Toya Sa Poland LCR precision meter | OLED | USB-C (YT-73074)
40.30 €
Monthly payment from 1,94 €
5095557 YT-73074
5906083123245
Shipping 9-15 b.d.
You are interested in this product?
All about the product

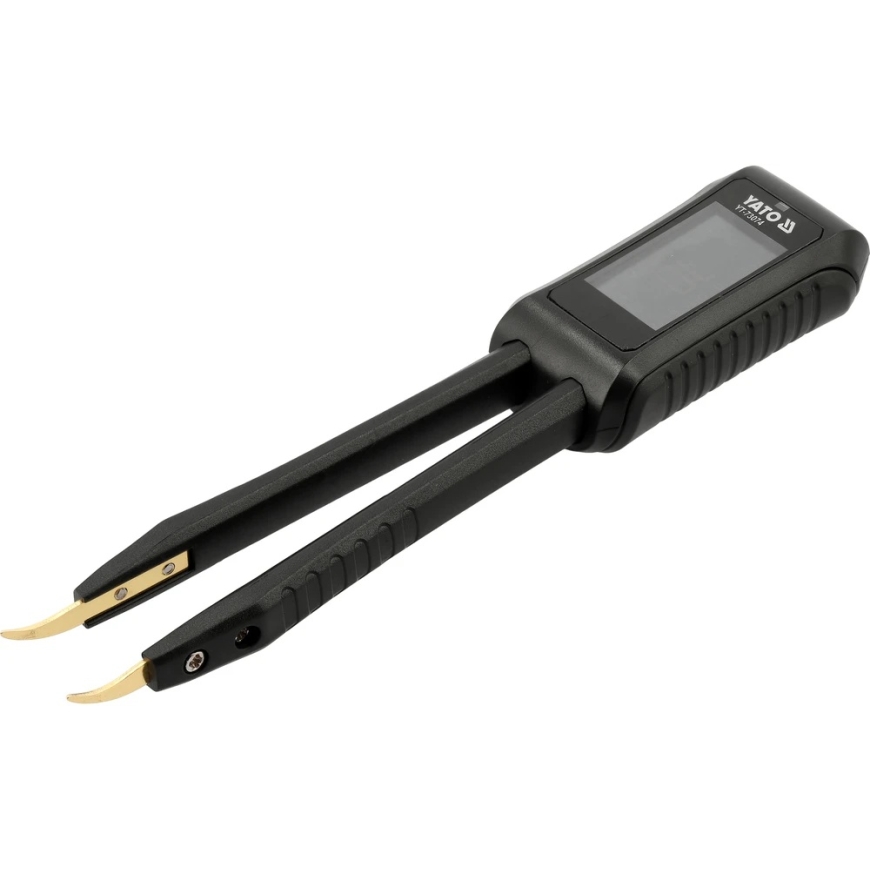

LCR Tweezer Meter | OLED | USB-C (YT-73074)
Accurate electronic component tester in a tweezer form designed for SMD and leaded component verification when a quick assessment of components' condition is needed without desoldering them from the board. More solutions for electronics work and workshops can be found
Main Features
- Designed for measuring and diagnosing SMD and leaded components.
- Allows testing components without desoldering them from the board.
- Automatically recognizes the component type and selects the measurement mode.
- Automatic measurement range or manual selection available.
- DATA HOLD function allows freezing the result on the display.
- OLED display shows measurement results in real-time.
- Suitable for service, workshops, and mobile electronics work.
Measurement Functions
- Resistance measurement: 10 mΩ – 10 MΩ.
- Capacitance measurement: 1 pF – 20 mF.
- Inductance measurement: 1 µH – 60 H.
- Diode test: up to 0.6 V.
- ESR measurement.
- Capacitor loss measurement.
- Coil Q factor measurement.
- Measurement frequency: 100 Hz, 1000 Hz, 10000 Hz.
- Measurement voltage: 0.3 V and 0.6 V.
- Measurement speed: 1 measurement per second.
Technical Specifications
- Display: OLED.
- Display reading range: 9999.
- Housing material: ABS.
- Dimensions: 146 × 30 × 18 mm.
- Weight: 37 g.
- Protection class: IP20.
- Operating temperature: 5–35 °C.
- Operating relative humidity: less than 75 %.
- Storage temperature: from -10 °C to +50 °C.
Power and Features
- Battery: Li-Po.
- Battery voltage: 3.7 V.
- Battery capacity: 500 mAh.

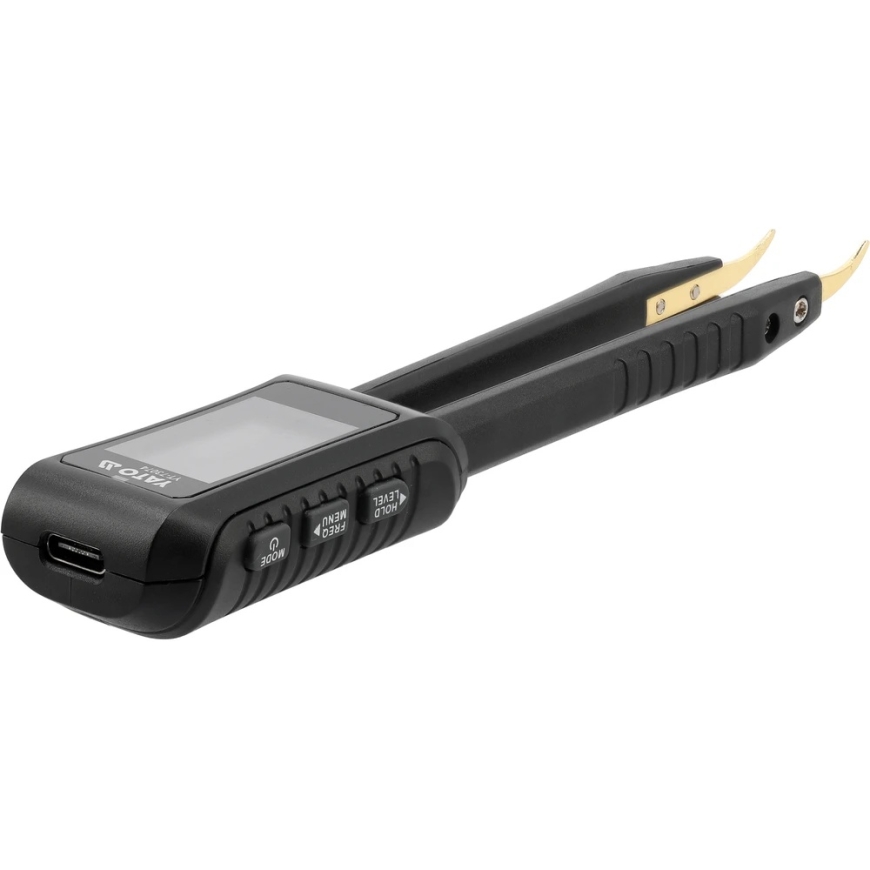

- Charging: USB Type-C.
- Battery level indicator: yes.
- Automatic shutdown: 5–120 min. or off.
- Language selection: Chinese and English.
- Screen orientation adjustment: left and right.
- Sound adjustment: 0–100 %.
- Backlight adjustment: 10–100 %.
- Calibration settings: 0 Ω – 10 MΩ, open.
- Factory settings restore: yes.
- Firmware update: yes.
Package Includes
- LCR tweezer meter.

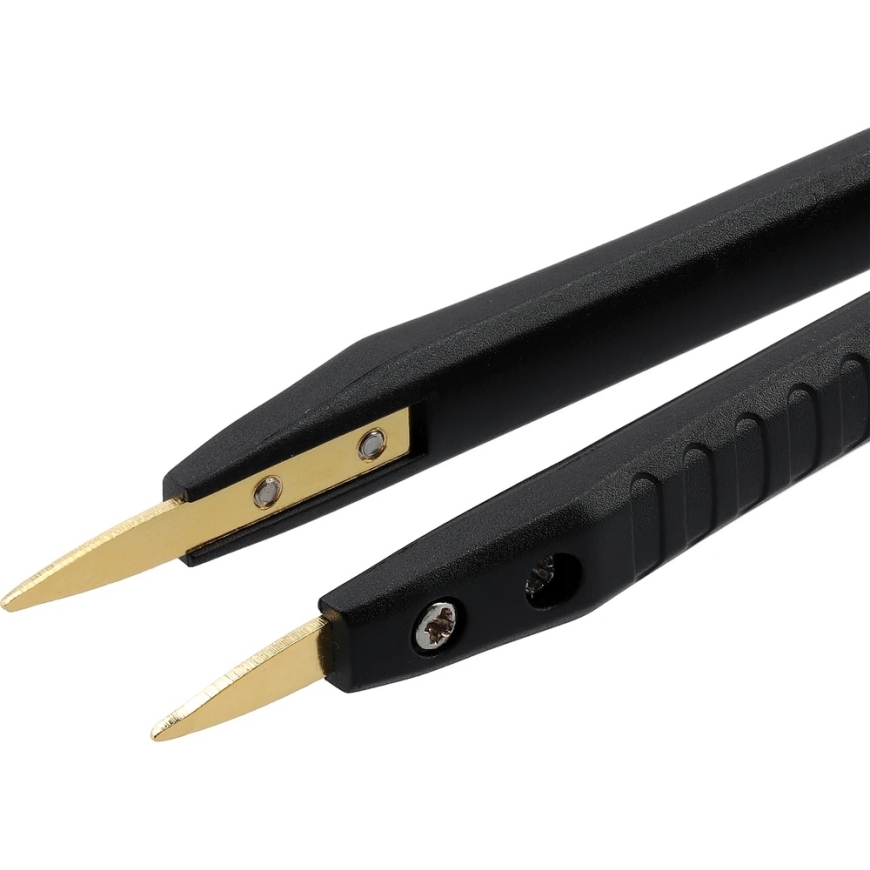

- Pair of straight tweezer tips.

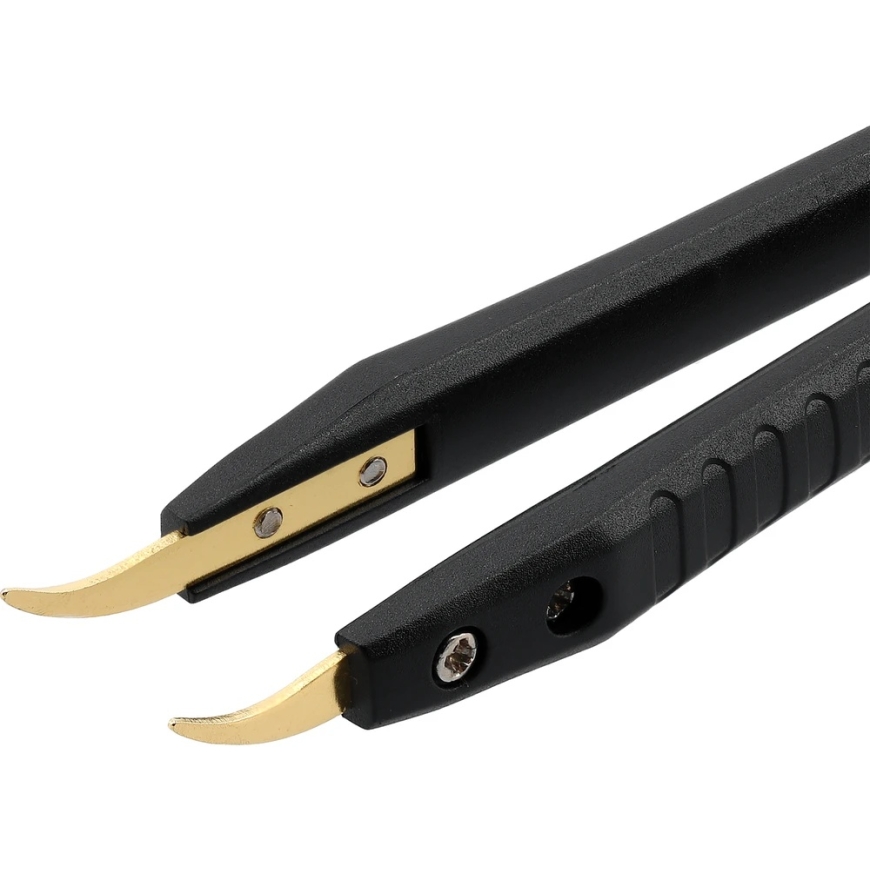

- Pair of bent tweezer tips.
- USB-C to USB-A cable.

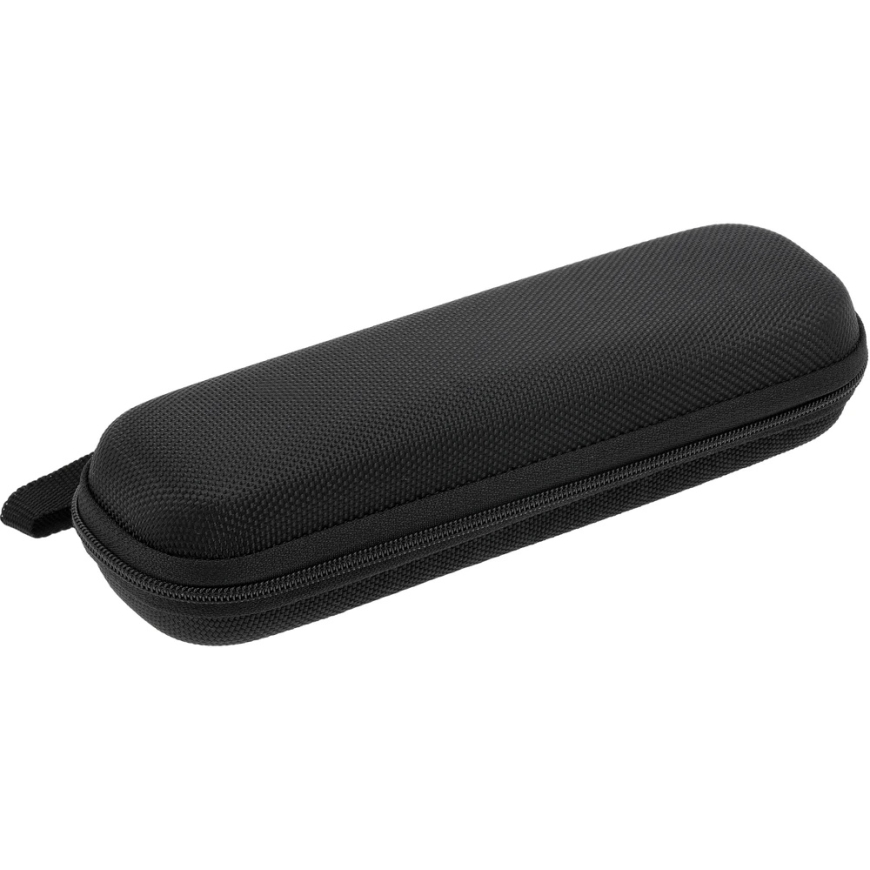

- Zippered case.
