Toya Sa Poland Mini Excavator | 24.7 HP | 650 kg | Kubota D1105 (YT-86400)
5094898 YT-87890
5906083118524
Shipping 9-15 b.d.
All about the product
Mini Excavator | 24.7 HP | 650 kg | Kubota D1105 (YT-86400)

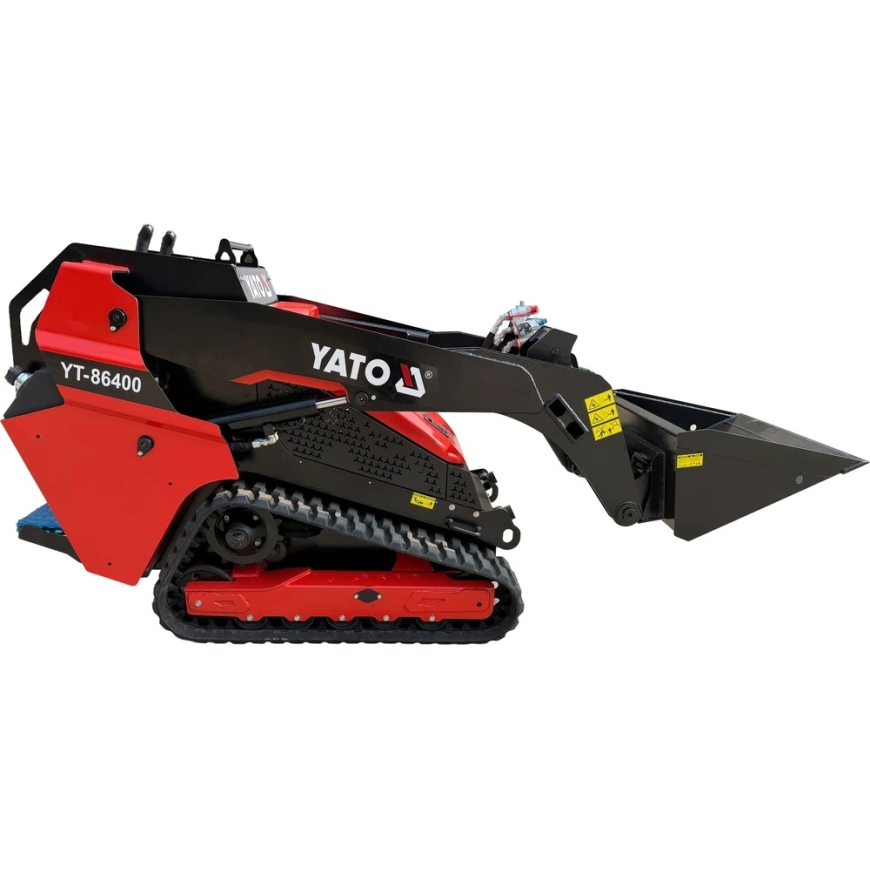

The YATO YT-86400 mini excavator is designed for construction, repair, earthworks, loading, landscaping, utility services, and agricultural tasks. It is a compact skid-steer type machine with a tracked chassis, powered by a 24.7 HP diesel Kubota D1105 engine, a maximum lifting capacity of 650 kg, and a weight of 1510 kg.
The excavator is adapted for use on soft, muddy, uneven surfaces and in narrower, harder-to-reach spaces. It comes standard with a 915 mm wide bucket, and its capabilities can be expanded by using compatible attachments such as forks, grapples, drills, sweeping equipment, snow plows, hydraulic hammers, or soil tillers. More equipment, tools, and work gear can be found at www.atsuktuvas.lt .
Key Specifications
- Item Code: YT-86400
- Manufacturer Code: 5906083130601
- Brand: YATO
- Series: GRH
- Type: Skid steer
- Chassis: tracked
- Engine: Kubota D1105
- Power: 18.2 kW / 24.7 HP
- Engine Displacement: 1123 cm³
- Number of Engine Cylinders: 3
- Fuel: diesel
- Cooling: liquid
- Start: electric
- Drive: hydraulic
- Control: fully hydraulic joysticks
Lifting Capacity and Operational Parameters
- Maximum Lifting Capacity: 650 kg
- Maximum Lifting Capability: 928 kg at 50% of the rated lifting capacity
- Maximum Forward Travel Speed: 6 km/h
- Maximum Reverse Travel Speed: 6 km/h
- Maximum Working Height: 3026 mm
- Maximum Dump Height: 1522 mm
- Bucket Dump Angle: 45°
- Front Turning Radius with Standard Bucket: 1750 mm
- Climbing Angle: 15°
- Ground Clearance: 213 mm
- Ground Pressure: 0.272 bar / 3.95 PSI
Dimensions and Construction
- Overall Dimensions with Standard Bucket: 2976 x 915 x 1466 mm
- Length without Attachments: 2272 mm
- Width: 914 mm
- Width with Bucket: 915 mm
- Overall Height: 1466 mm
- Working Height: 3026 mm
- Bucket Hinge Height: 2212 mm
- Track Width: 230 mm
- Track Gauge: 684 mm
- Contact Length with Ground: 1073 mm
- Number of Chassis Rollers: 5 on each side
- Machine Weight: 1510 kg
Capacities and Operating Data
- Fuel Tank Capacity: 28 l
- Fuel Consumption: 6.1 l/h
- Engine Oil Tank Capacity: 4 l
- Hydraulic Oil Tank Capacity: 32 l
- Bucket Volume: 0.14 m³
- Arm Lift Time: 3.69 s
- Lowering Time: 2.79 s
- Bucket Tilt Time: 1.62 s
- Operating Temperature Range: -10 ~ +40 °C
- Sound Pressure: 72.09 ± 3.0 dB(A)
- Sound Power: 99.6 ± 3.0 dB(A)
- Vibration: <2.5 / <0.5 m/s²
Attachment Plate and Accessories
- Standard Bucket Width: 915 mm
- Attachment Plate Width: 604 mm
- Attachment Plate Depth: 241.5 mm
- Pin Axle Distance: 370 mm
- Distance from Bottom Edge to Pin Axle: 57.5 mm
- Bottom Hook Thickness: 19 mm
- Bottom Hook Angle: 35°
- Bottom Profile Radius: R95
- Quick Coupling Mechanism with Two Spring Lock Pins
- Manual Leverage Lock Mechanism
- Automatic Locking Upon Attachment Installation
Package Contents
- Mini Excavator
- Standard 915 mm Wide Bucket
Usage Notes
- The machine is intended for construction, repair, earthworks, loading, landscaping, utility services, and agricultural tasks.
- The tracked chassis is relevant when working on soft, muddy, uneven ground or in confined work areas.
- Before selecting attachments, their compatibility with the attachment plate, hydraulic system, and specific working mode must be assessed.
- Do not exceed the specified maximum lifting capacity and working angles when operating the machine.
- Working conditions must meet the stated temperature range of -10 ~ +40 °C.
