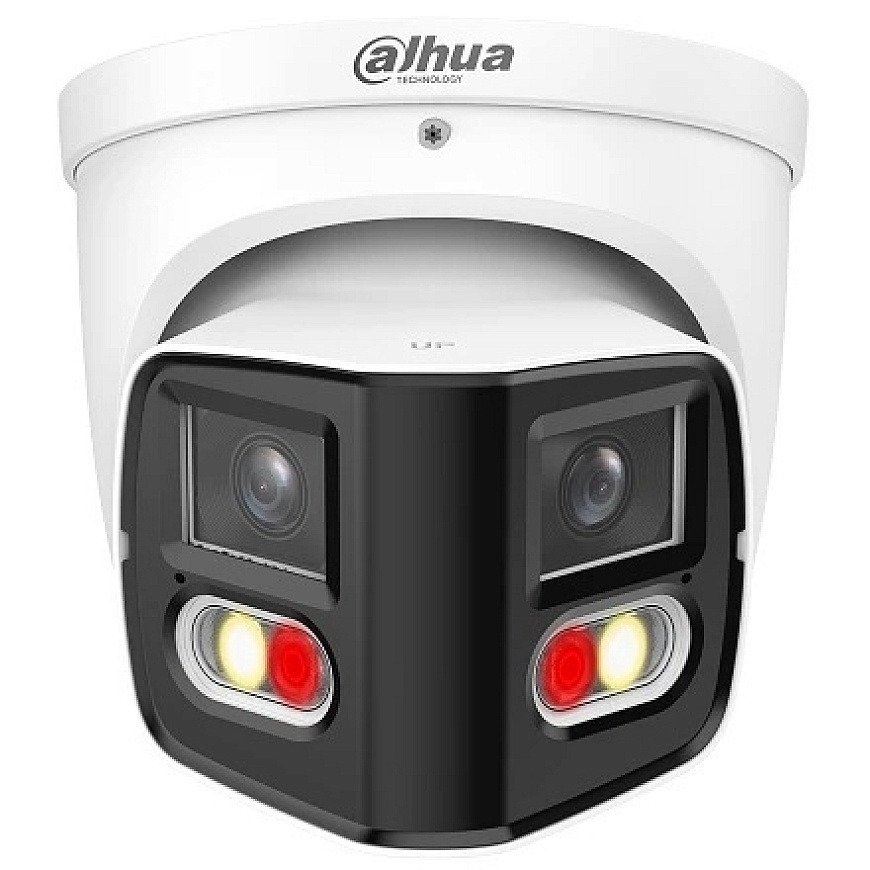

Dahua Technology Co IP network camera - Dahua 8MP PDW2849-A180-S-PV 180° network camera
317.25 €
Monthly payment from 9,07 €
5093464 6937552431850
Shipping 10-12 b.d.
You are interested in this product?
All about the product
Dahua 8MP PDW2849-A180-S-PV 180° Network Camera
Dahua 8MP network camera with dual 1/2.7 inch CMOS sensors, 4096 × 1860 resolution, and 180° horizontal field of view. The camera features a fixed 2.8 mm lens, IR and warm light LEDs, SMD 3.0 detection, integrated microphone and speaker, PoE, and IP67 protection.
- 8MP panoramic network camera with dual 1/2.7 inch CMOS sensors and an ultra-wide 180° horizontal field of view
- 2.8 mm fixed focal length lens, 4096 × 1860 resolution, 120 dB WDR, and clear image in challenging lighting conditions
- Smart dual illumination: IR up to 25 m and warm light up to 20 m for reliable monitoring day and night
- AI-based perimeter protection, SMD 3.0, EPTZ object tracking, integrated microphone and speaker, and IP67 weatherproofing
Product Information | |
|---|---|
| Product Type | IP Panoramic Network Camera |
| Brand | Dahua |
| Model | PDW2849-A180-S-PV |
| Camera Configuration | Panoramic camera with dual sensors |
Video Capture | |
| Image Sensors | 2 × 1/2.7 inch CMOS |
| Image Scanning System | Progressive scan |
| Minimum Illumination | 0.005 lux, in F1.4 color mode; 0.0005 lux, in F1.4 monochrome mode; 0 lux when illumination is on |
| Signal-to-Noise Ratio | >56 dB |
| Electronic Shutter | Automatic or manual, from 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB WDR |
| Image Processing | 3D noise reduction, backlight compensation, strong area compensation, fog reduction, automatic scene adaptation, and up to 4 privacy masking areas |
Lens and Illumination | |
| Lens Type | Fixed focal length |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Maximum Aperture | F1.4 |
| Vertical Field of View | 86° |
| Minimum Focus Distance | 0.8 m |
| Illumination Control | Automatic or manual |
| Light Sources | 2 IR LEDs and 2 warm light LEDs |
Image | |
| Video Compression | H.265, H.264, H.264H, H.264B, and MJPEG for auxiliary stream |
| Smart Codec | Smart H.265+ and Smart H.264+ |
| Streams | 3 streams |
| Maximum Frame Rate | Up to 20 fps |
| Supported Resolutions | 4096 × 1860, 3632 × 1632, 3040 × 1368, 1920 × 860, 1200 × 536, 960 × 432, and D1 |
| Bitrate Control | Constant or variable bitrate |
| Day/Night Mode | Automatic ICR, color, or monochrome |
Smart Features | |
| Perimeter Protection | Intrusion and virtual line crossing detection, distinguishing between people and vehicles |
| Smart Motion Detection | SMD 3.0 |
| Electronic PTZ | Zooms and tracks objects associated with smart alarm signals |
| Motion Detection | Up to 4 rectangle detection areas |
| Smart Search | Compatible with Smart NVR for more accurate event searching and video extraction |
Audio and Alerts | |
| Microphone | Integrated dual microphones |
| Speaker | Integrated speaker |
| Audio Compression | G.711a, G.711Mu, G.726, and PCM |
| Alert Features | Light and sound alerts; supports 11 built-in sound signals and up to 10 imported custom signals |
Network and Storage | |
| Network Interface | RJ-45 10/100 Base-T |
| Network Protocols | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, QoS, multicast transmission and P2P |
| Compatibility | ONVIF S, G, T, and M profiles; CGI |
| Storage | MicroSD card up to 512 GB, NAS, FTP, and SFTP |
| Compatible Software | SmartPSS Lite, DSS, DMSS, and DoLynk Care; mobile apps for iOS and Android |
| Security | HTTPS, 802.1X, X.509 certificates, account blocking, security logs, IP/MAC filtering, secure boot, secure execution, and secure update |
Power and Construction | |
| Power Source | 12 V DC (±30 %) or PoE 802.3af |
| Maximum Power Consumption | 9.7 W using 12 V DC or 11.2 W using PoE |
| Housing Material | Metal |
| Product Dimensions | 135.2 × 122.0 mm |
| Net Weight | 0.95 kg |
| Operating Temperature | From −40 °C to +60 °C |
| Operating Humidity | Up to 95 % relative humidity, non-condensing |
| Protection Class | IP67 |
Safety Information | |
| Safety Warning | Use only for its intended purpose of video surveillance. Installation, connection to the power source, and network configuration must be performed by qualified personnel. Use a compatible 12 V DC power supply or compliant PoE equipment and ensure that connections are protected from moisture. Do not look directly into the IR or warm light LEDs up close. |
