The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

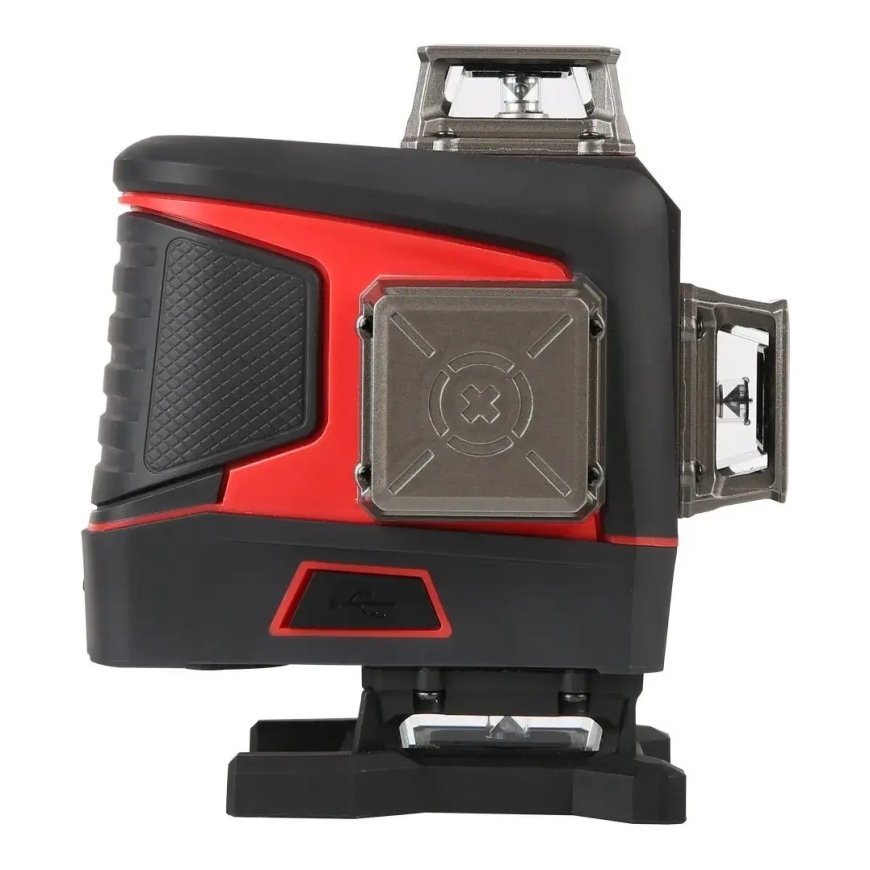

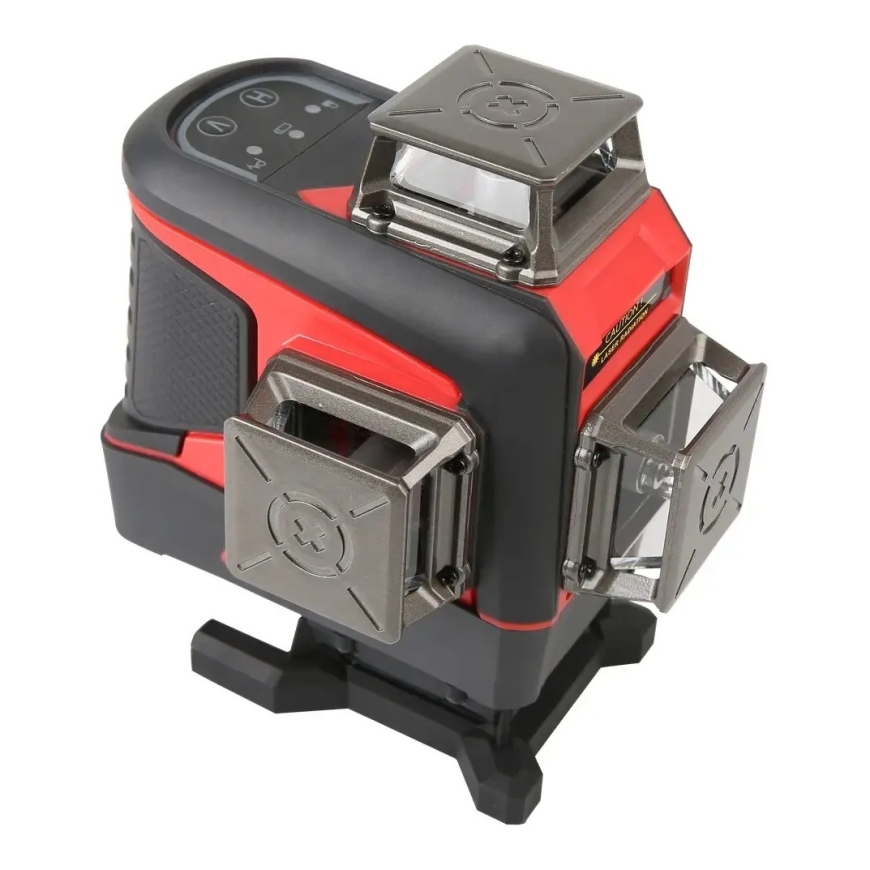

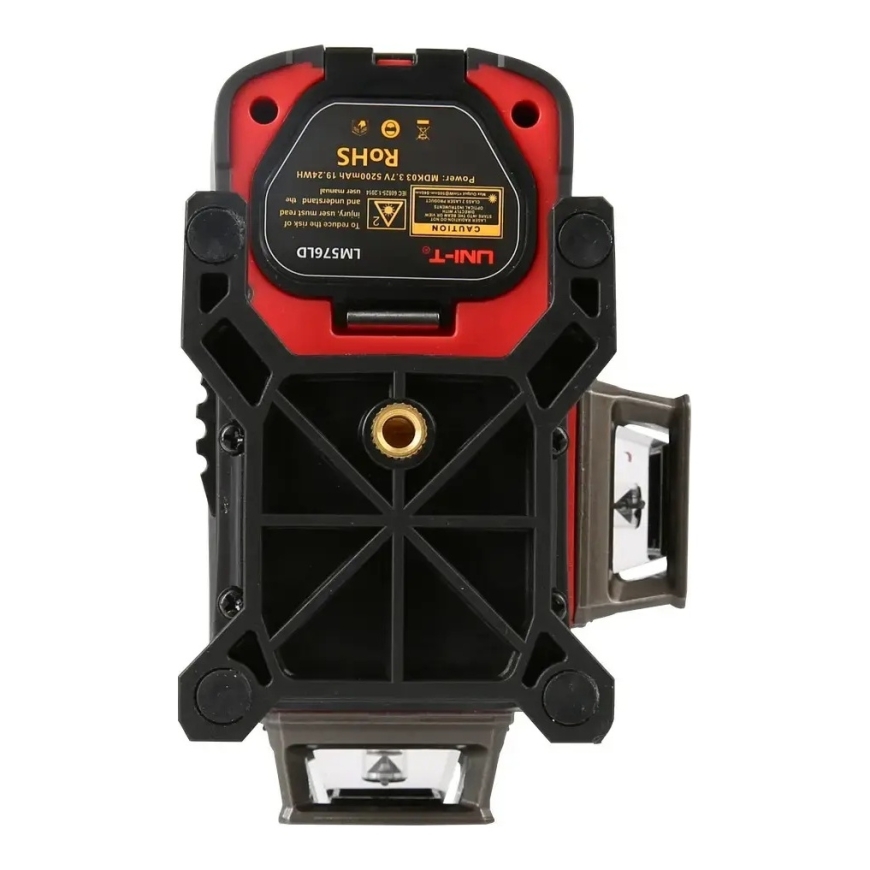

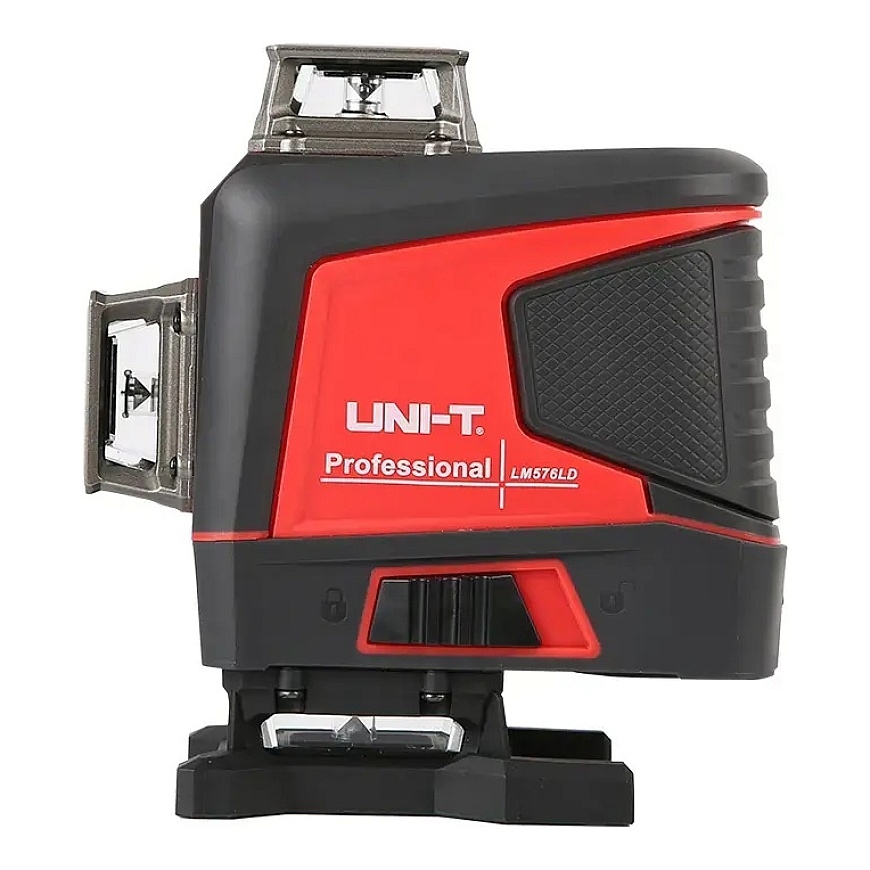

Laser level Laser type: Osram green LD Laser lines: 3D 16 lines UNI-T
5092229 LM576LD
6935750557600
Shipping 7-13 b.d.
All about the product
LM570/585 Series Laser Levelers
These laser levelers are equipped with green LD laser, suitable for large or bright work places. Its applications include: horizontal, vertical, cross line projection for decoration, building construction, home decoration, renovation, furniture installation, flooring, and project layout.
Models in LM570/585 Series: LM570LD-II, LM573LD-II, LM575LD, LM576LD, LM585LD
Features of LM570/585 Series Laser Levelers
Certificates (LM570LD-II/575LD only): CE, UKCA
● Osram LD green laser
● Self-leveling mode & manual mode
● Outdoor pulse mode
● 5200mAh Li-ion battery
● Type-C DC-in port
● Complimentary bracket
Specifications of LM570/585 Series Laser Levelers
Specifications | LM570LD-II | LM573LD-II | LM575LD | LM576LD | LM585LD |
Certificates | CE, UKCA (LM570LD-II/575LD only) | ||||
Laser type | Green LD | Green LD | Osram green LD | Osram green LD | Osram green LD |
Laser lines | 2 lines | 3D 12 lines | 3D 12 lines | 3D 16 lines | 8 lines |
Operating distance | 10m | 40m | 40m | 30m | 30m |
Laser accuracy | ±3mm/10m | ±3mm/10m | ±3mm/10m | ±3mm/10m | ±3mm/10m |
Outdoor pulse mode | √ | √ | √ | √ | |
Remote control | √ | √ | √ | √ | |
Self-leveling range | 3°±1° | ±3° | ±3° | ±3° | ±3° |
Self-leveling time | 3s | <3s | <3s | <3s | <3s |
Working hours | 4h | >6h | >6h | >4h | >4h |
Laser wavelength | 520nm | ||||
Laser class | 2 | ||||
General Characteristics | |||||
Power | LM570LD-II: 1.5V battery x 2 (LR6); LM573LD-II/LM575LD/LM576LD/LM585LD: 3.7V Li-ion battery 5200mAh | ||||
Product net weight | LM570LD-II: 240g; LM573LD-II/LM575LD: 694g; LM576LD: 653g; LM585LD: 591g | ||||
Product size | LM570LD-II: 85.5mm x 62mm x 90.3mm; LM573LD-II: 119mm x 89mm x 138mm; | ||||
Standard accessories | USB cable, adapter, English manual | ||||
Standard individual packing | Gift box, tool box | ||||
Standard quantity per carton | LM570LD-II: 20pcs; LM573LD-II/LM575LD/LM576LD/LM585LD: 4pcs | ||||
Standard carton measurement | LM570LD-II: 420mm x 320mm x 350mm; LM573LD-II/LM575LD/LM576LD/LM585LD: 620mm x 355mm x 325mm | ||||
Standard carton gross weight | LM570LD-II: 10.71kg; LM573LD-II/LM575LD/LM576LD: 10.63kg; LM585LD: 10.22kg |
