Solar connector Allpowers type Y
5091604 ABYTSC
6975274260563
Shipping 3-5 b.d.
All about the product

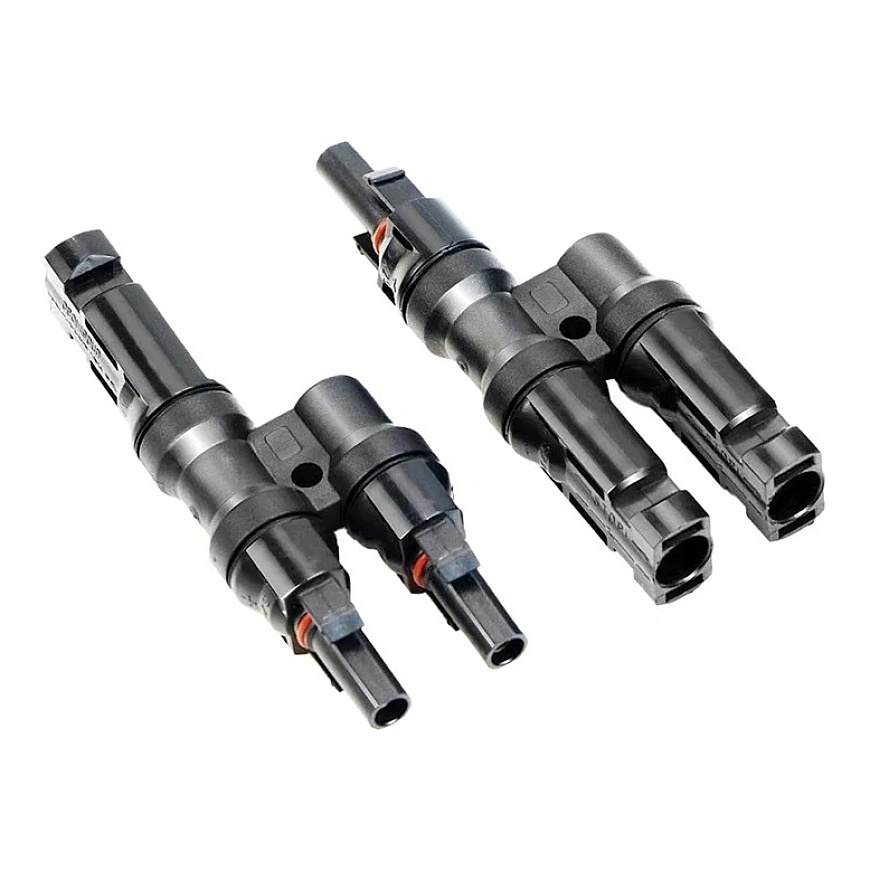

Allpowers Y-Type Solar Connector
The Allpowers Y-type solar connector allows for the parallel connection of two photovoltaic panels in a single installation. The set consists of splitters in a 1 M/FF and 1 F/MM configuration, designed to connect positive and negative wires. The PPO housing, silver-plated copper contacts, and IP67 sealing make the connectors suitable for use in outdoor solar installations.
Stable and Convenient Connection
The built-in self-locking system allows for easy connection of male and female plugs while preventing accidental disconnection. As a result, the cables remain securely connected during the system’s daily operation, and the connectors can be disconnected again if necessary.
Protection Against Outdoor Conditions
The male connector is equipped with an IP67 sealing ring that prevents water and dust from entering the connection point. This helps protect the contacts from moisture and corrosion, which is particularly important for outdoor photovoltaic systems.
Durable Materials and Wide Temperature Range
The PPO plastic housing and silver-plated copper contacts ensure durability and good conductivity. According to the specifications, the connectors can operate at temperatures ranging from -40°C to approximately 88°C, making them suitable for use in varying weather conditions.
| Manufacturer | Allpowers |
|---|---|
| Model | ABYTSC |
| Type | Y-type solar connector |
| Application | parallel connection of 2 solar panels |
| Configuration | 1 M/FF + 1 F/MM |
| Housing material | PPO |
| Contact material | silver-plated copper |
| Sealing protection rating | IP67 |
| Operating Temperature Range | from -40°C to approx. 88°C |
| Total Length | approx. 10.2 cm |
| Maximum Width | approx. 3.7 cm |
| Branch Length | approx. 6 cm |
