CAME KRONO Plus RAPID TOP Set for 6m Wing Gates
594.02 €
Monthly payment from 16,20 €
5088620 8K01MP-033
8050456085986
Shipping 8-12 b.d.
You are interested in this product?
All about the product

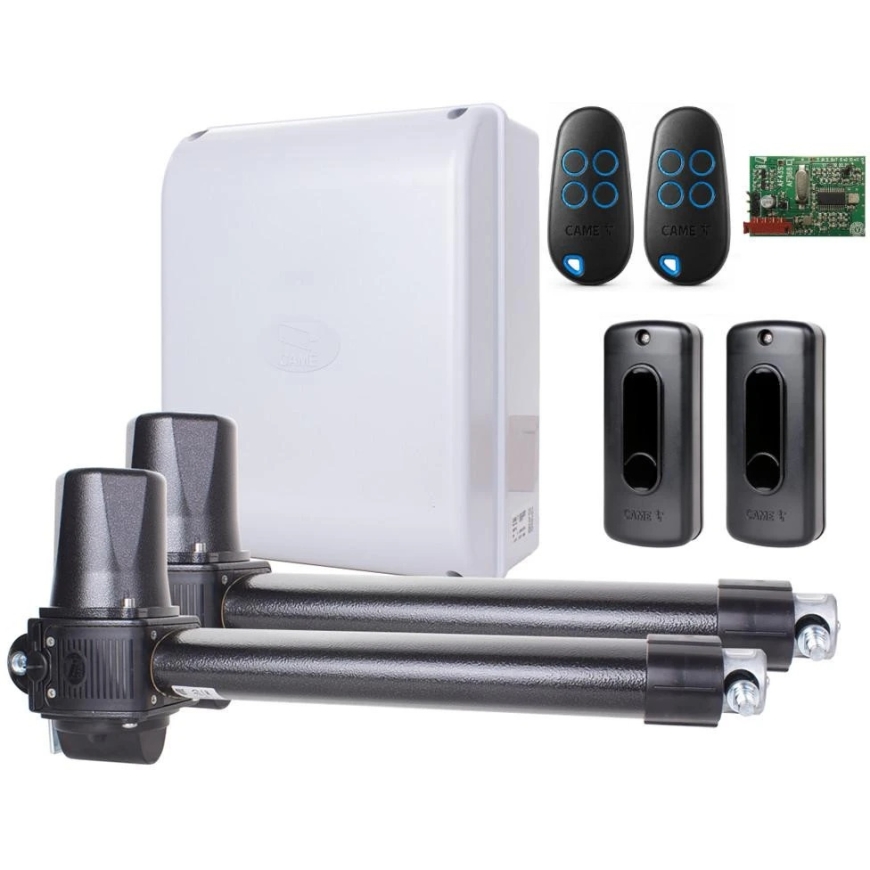

CAME KRONO Plus RAPID TOP Kit for Up to 6m Wing Gates
Model: 8K01MP-033
Purpose

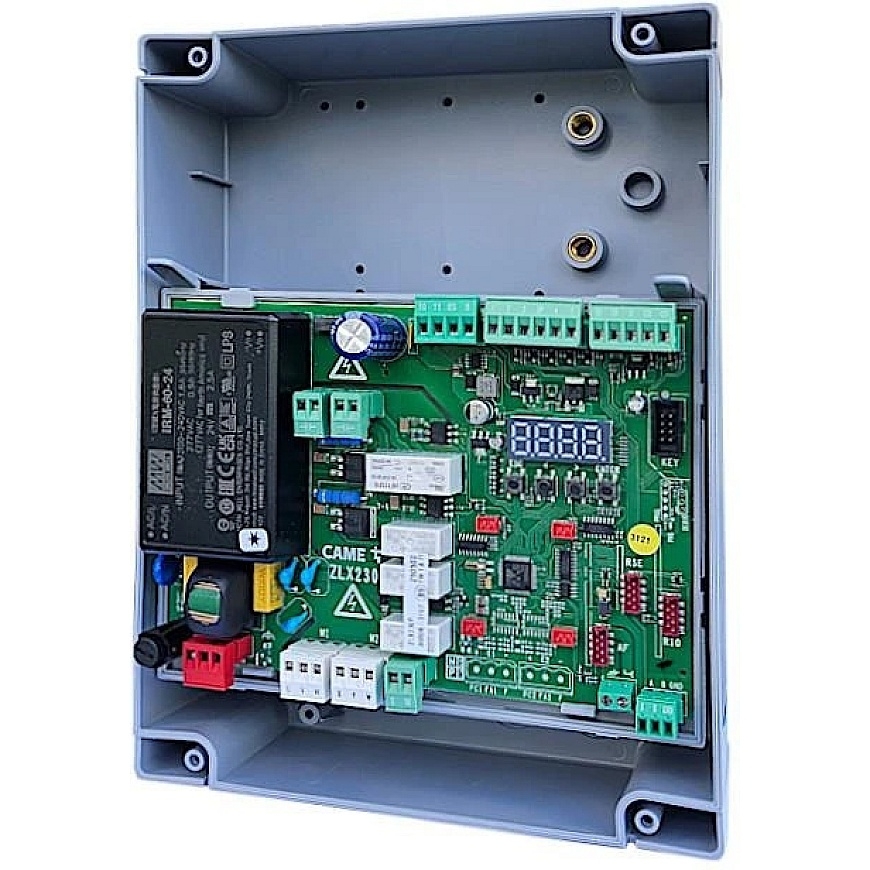

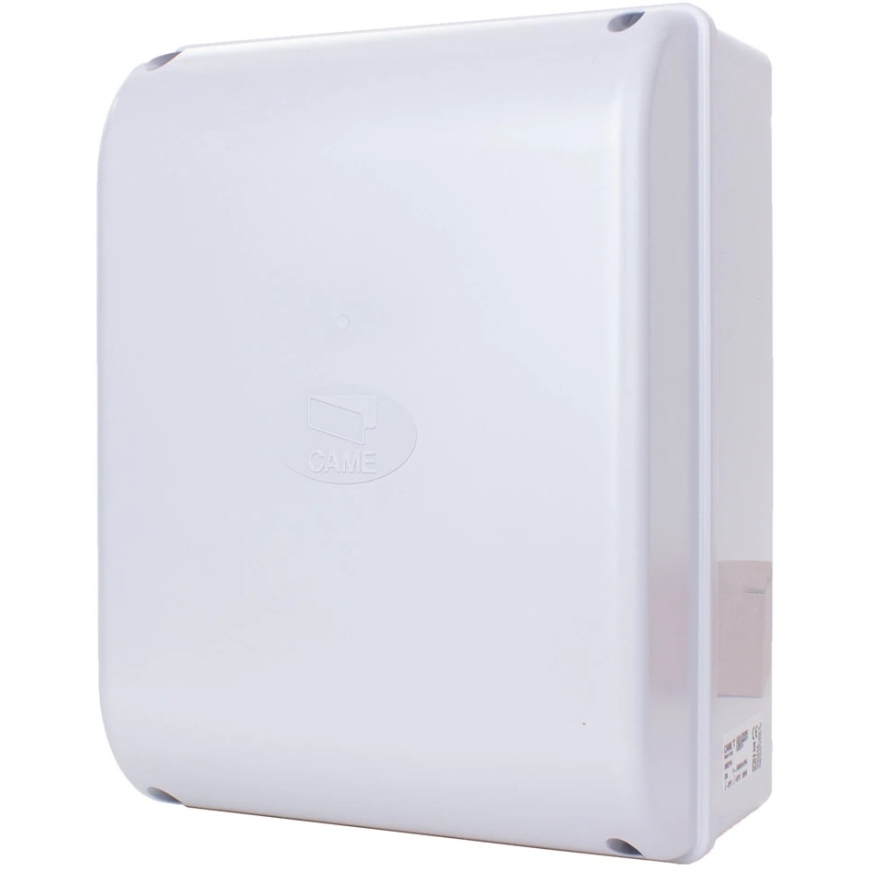

Complete CAME KRONO Plus RAPID TOP kit with ZLX230P control unit for automating a double wing gate with a wing length of up to 3 meters and a wing weight of up to 800kg!*
The kit includes built-in limit switches - no need for bumpers and central stop* and fast actuators that allow the gate to open at an angle of 90 degrees in 18 seconds.
- wing 3m - max. weight 400kg
- wing 2.5m - max. weight 600kg
- wing 2m - max. weight 800kg!
*the use of a central stop is recommended.

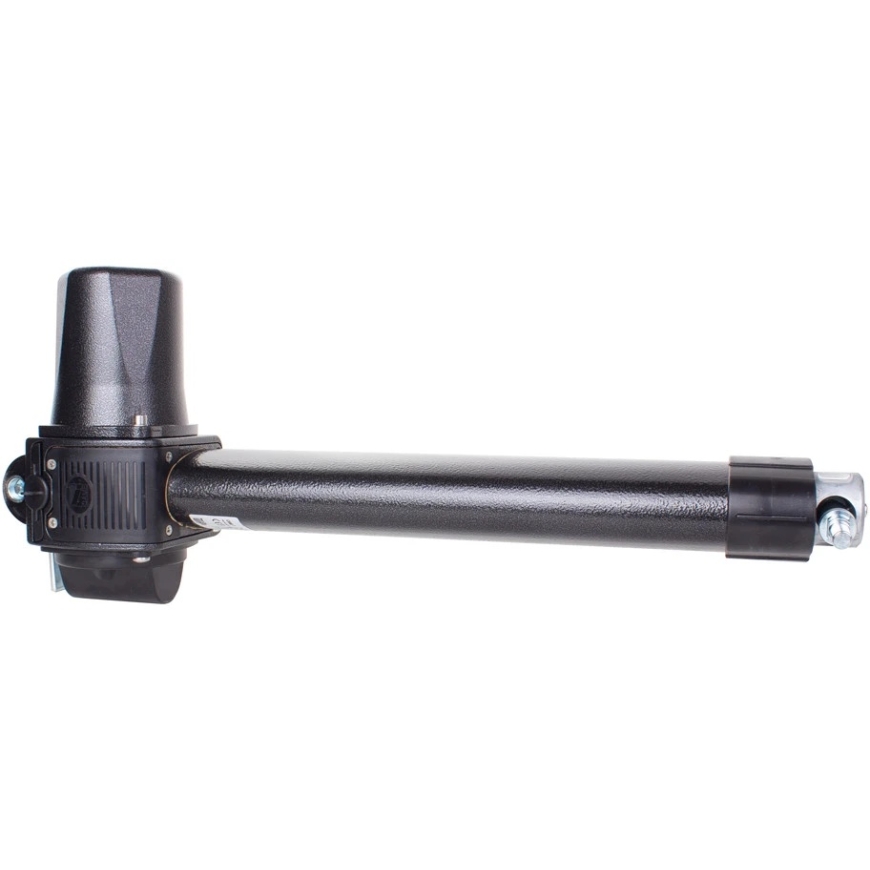

Technical specifications of CAME KRONO 3 drives:
- Protection level: IP54
- Power supply: 230V 50/60Hz
- Motor supply: 230V 50/60Hz
- Motor current consumption: 1.1A
- Maximum motor power: 130W
- Duty cycle: 30%
- Pulling force: 400 - 3000N
- Motor thermal protection: 150 degrees Celsius
- Opening time at 90 degrees: 18 seconds
- Operating temperature: from -20 to +55 degrees Celsius
