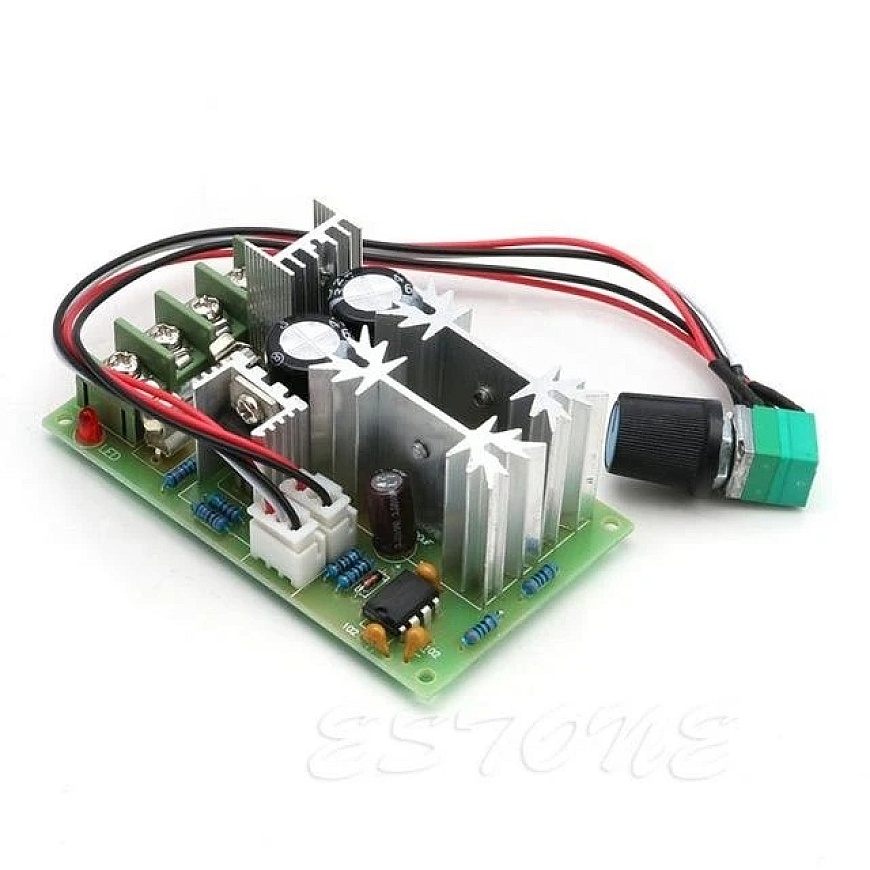

OEM DC Motor Speed Control Module - 10-60V 20A 1200W
5088384 AN0498
4779044511549
Shipping 5-9 b.d.
All about the product
PWM type DC motor controller. This module stands out from others because it can deliver exceptionally high power - up to 20A/60V, allowing it to control particularly powerful DC motors.
The PWM (Pulse width modulation) signal enables easy control of DC motor torque and speed. By turning the knob, the PWM signal's duty cycle increases, thus providing more power to the motor.
Note: First connect all required connectors, only then turn on the power supply, otherwise you may damage the controller.
Technical specifications and features:
- Current supplied to the motor: up to 20A
- Power: up to 1200 W
- PWM duty cycle: 0 - 100%
- Operating voltage: 10-60 V DC
- PWM frequency: 25 kHz
- Size: 77 x 42 mm
- Control of DC motor in conveyor lines
- Speed control of the rail track
