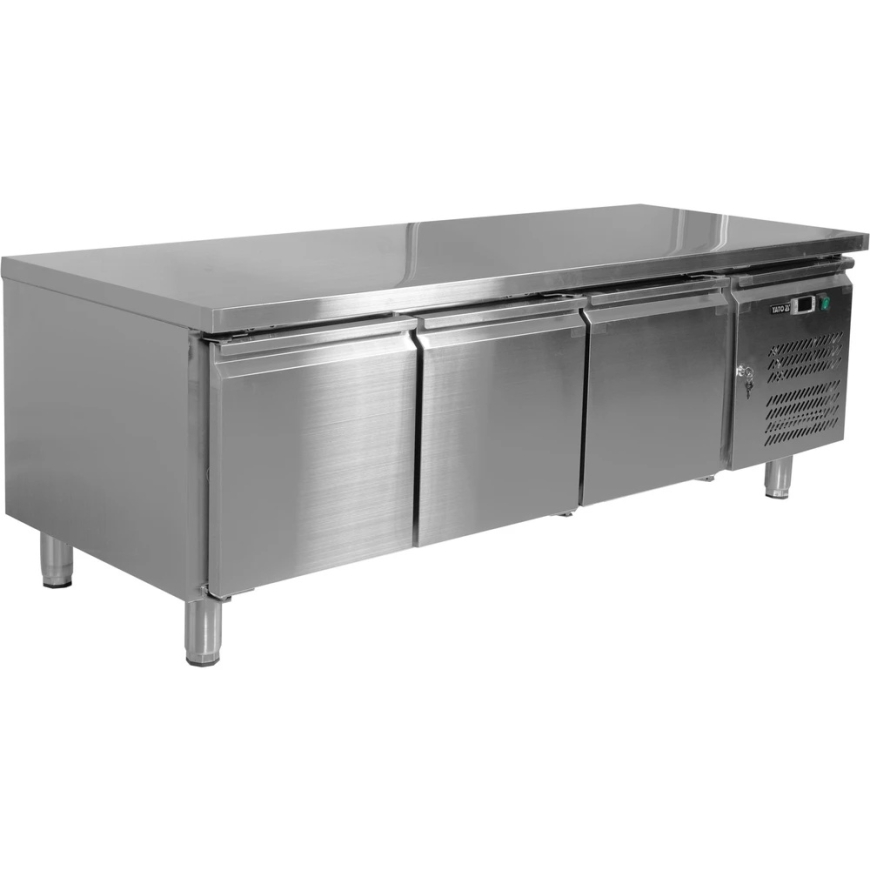

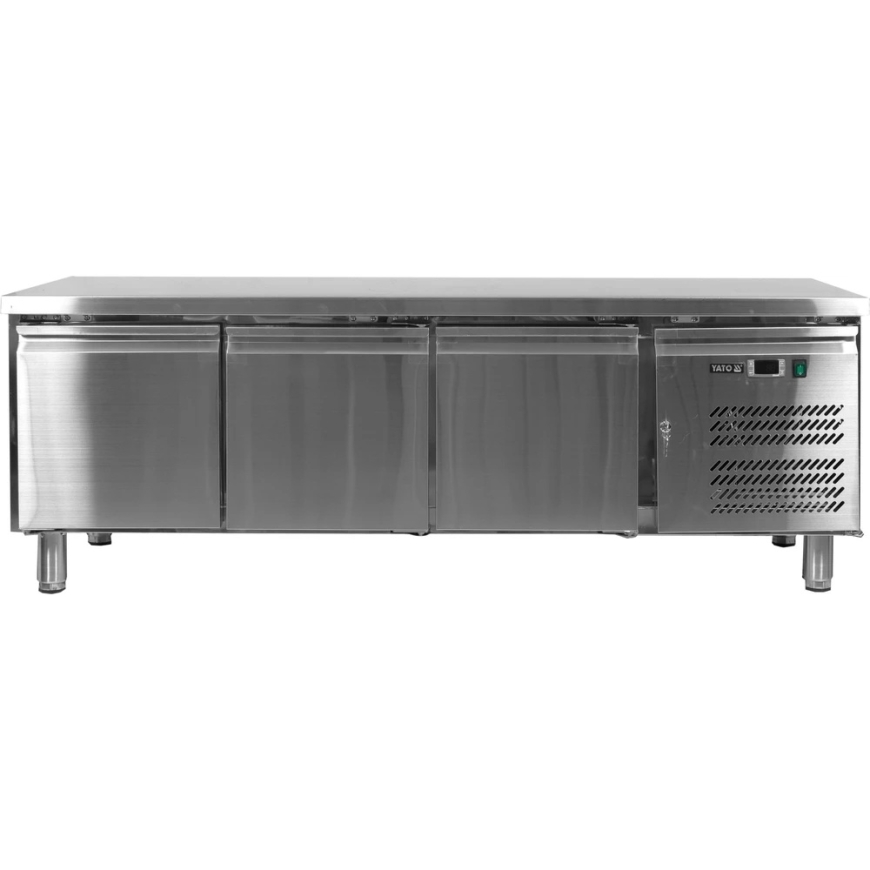

Cooling Base | 3 Doors | 317 L (YG-05259)

The professional cooling base "YATO" is designed for storing food products at temperatures from -2 °C to +8 °C. The model is suitable for restaurants, bars, pubs, pizzerias, and other gastronomic locations where a compact cooling zone, convenient equipment base, and stable operation in an intense environment are essential.

Main Features

• Total Capacity: 317 L


• Useful Capacity: 200 L


• Dimensions: 1795 × 700 × 650 mm


• Adjustable Height: 650–710 mm


• Working Surface Dimensions: 1795 × 700 mm


• Temperature Range: from -2 °C to +8 °C


• Chamber: GN 1/1 standard

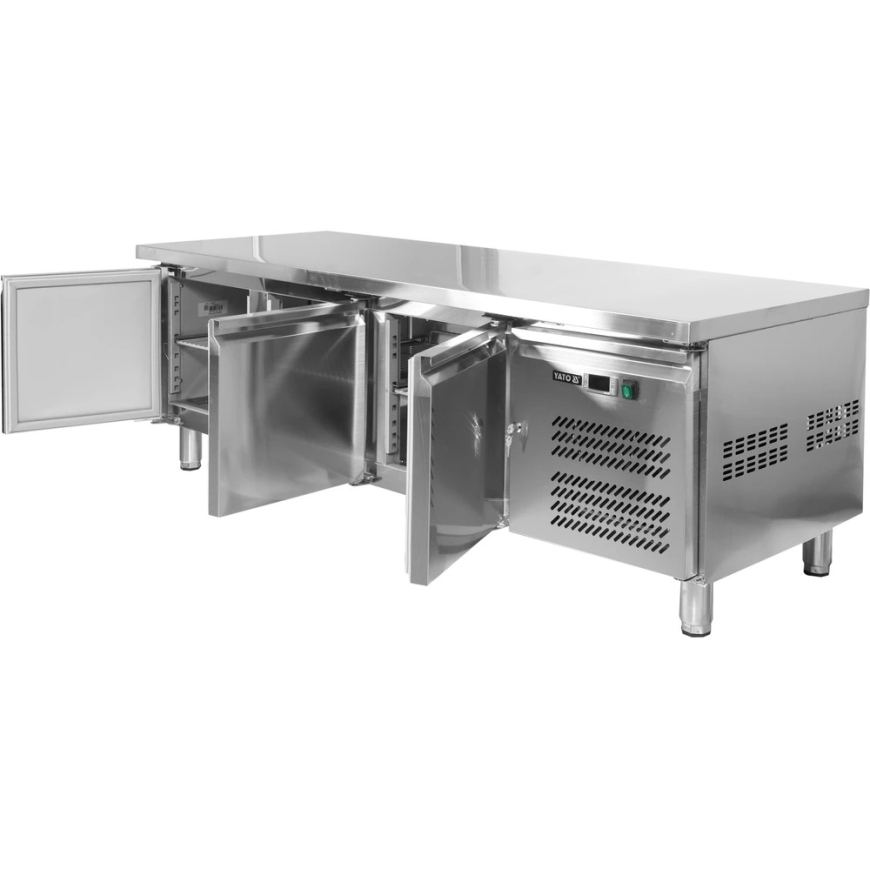

• Number of Doors: 3


• Door Type: hinged, self-closing, with removable magnetic seals


• Number of Shelves: 3


• Shelf Dimensions: 333 × 530 mm


• Maximum Load per Shelf: 40 kg


• Shelf Coating: PVC


• Number of Legs: 4


• Leg Height: 140–200 mm


• Leg Material: stainless steel

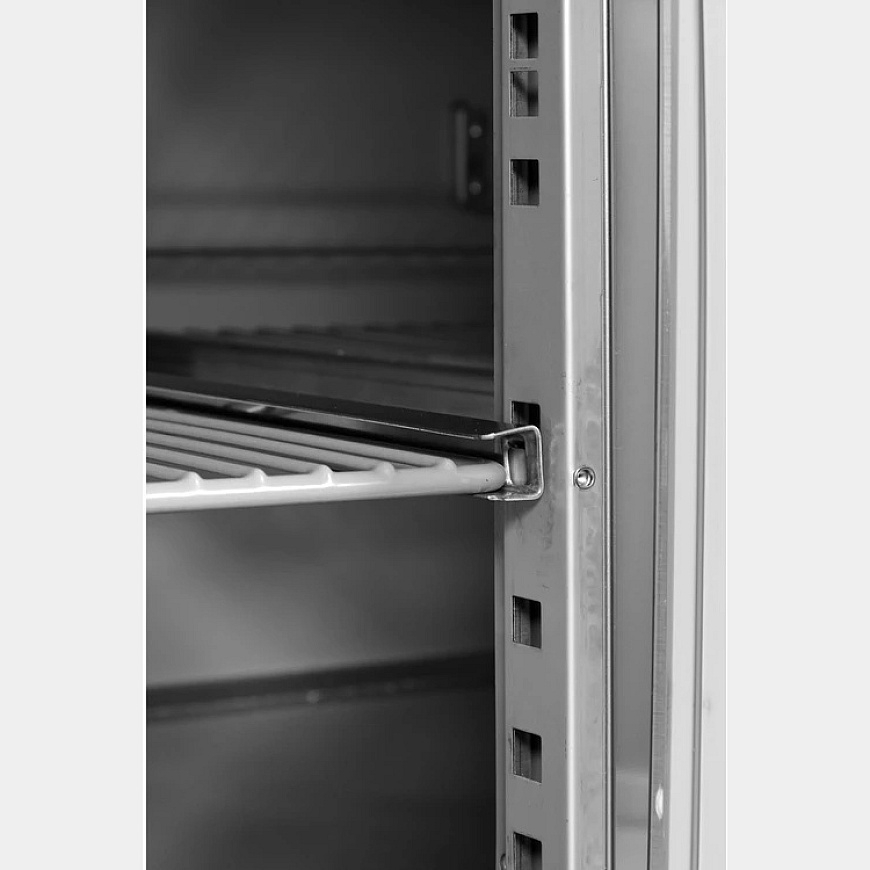

• Shelf Height Adjustment: yes, 6 positions


• Rounded Edges: yes

Construction and Technical Data

• Body Material: 201 stainless steel


• Compressor Location: side


• Cooling Type: forced air circulation with fan


• Defrosting: automatic

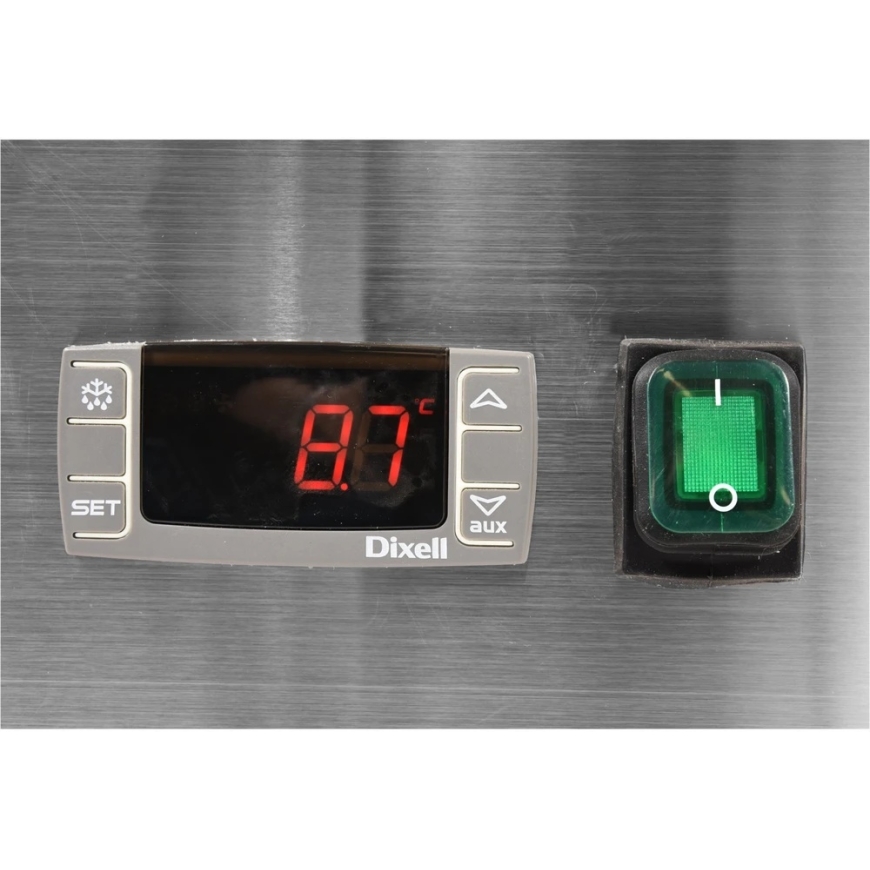

• Controller: electronic "Dixell" with digital display


• Power: 230 W


• Voltage: 220–240 V


• Frequency: 50 Hz


• Rated Current: 1.3 A


• Refrigerant: R290


• Refrigerant Charge: 50 g


• Insulation Thickness in Walls: 60 mm


• Insulation Thickness in Doors: 35 mm


• Insulation Foam Material: C5H10


• Average Annual Energy Consumption: 1137.71 kWh


• Energy Class: C


• Climate Class: 4


• Electrical Insulation Class: I


• Sound Pressure: <70 dB(A)


• Sound Power: <80 dB(A)


• Weight: 107 kg

The model allows for convenient storage of GN 1/1 containers and using the top surface as a base for various kitchen equipment. More professional kitchen equipment can be found at www.atsuktuvas.lt
