The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

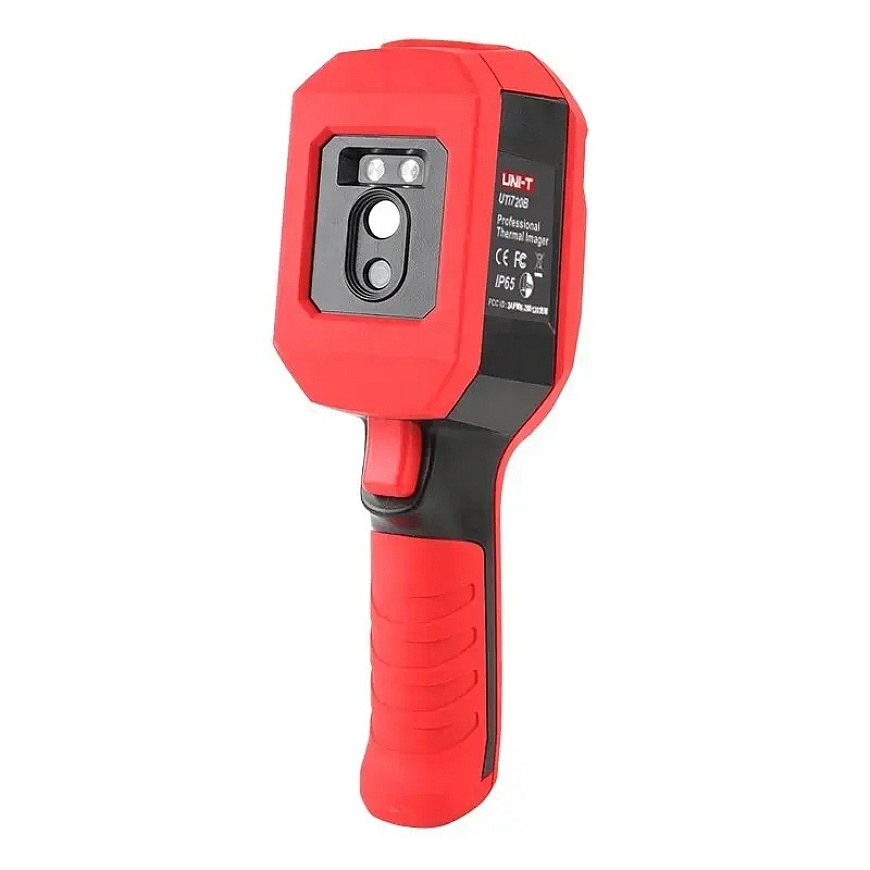

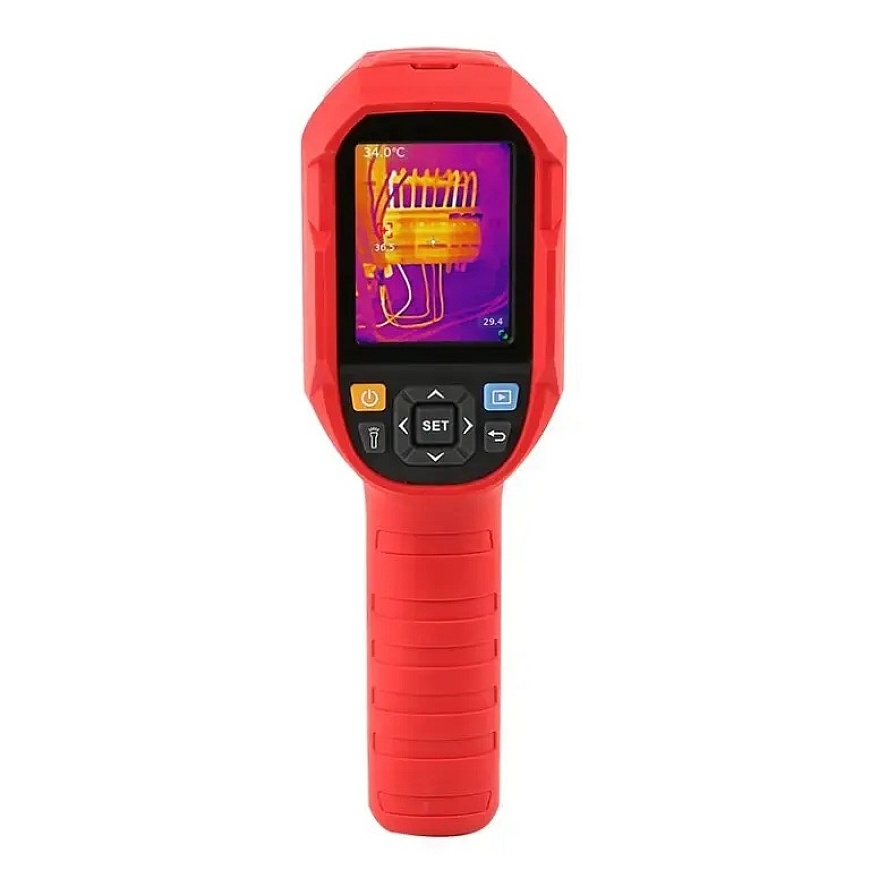

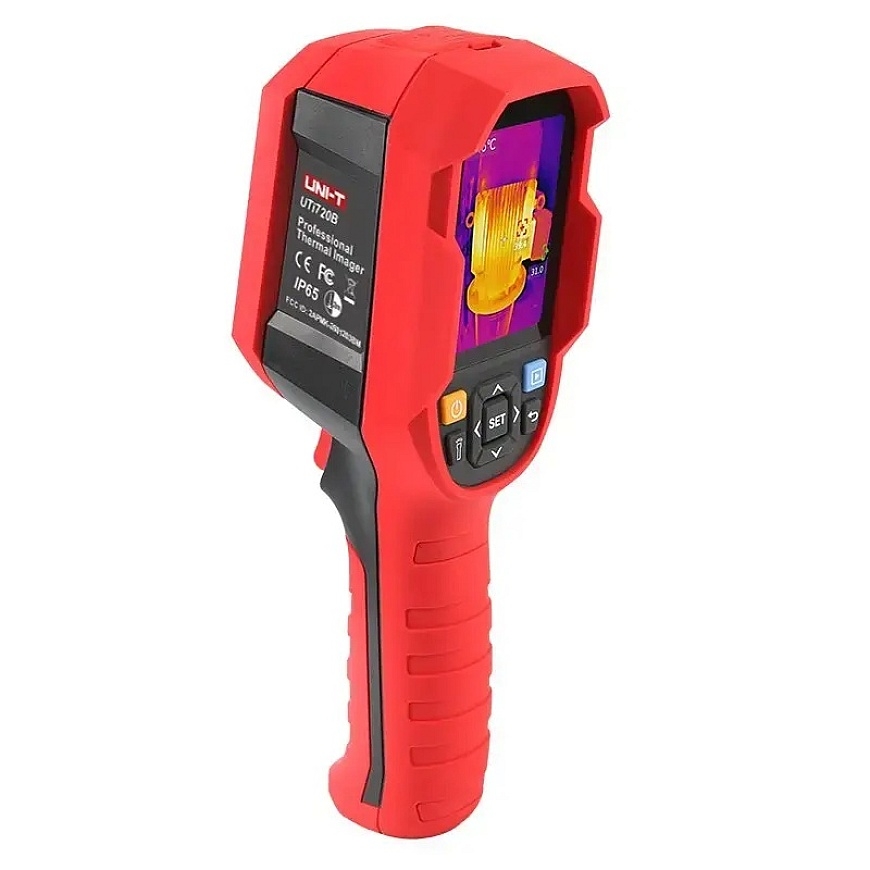

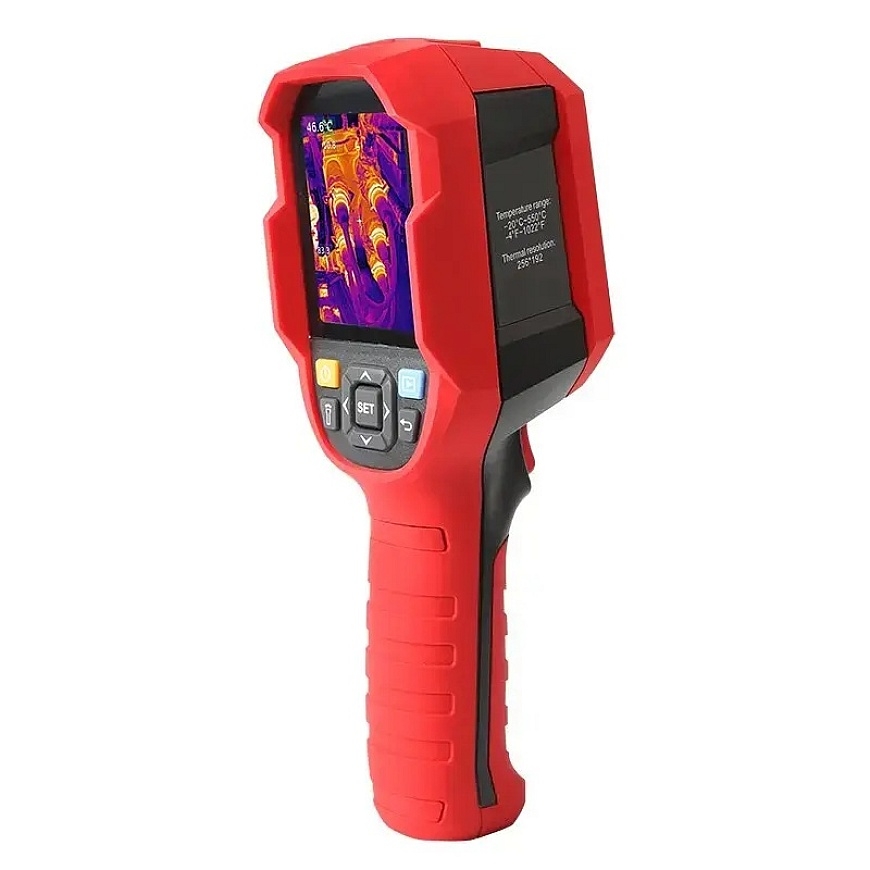

Heavy Duty Thermal Camera, 256x192, super 512x384, -20-550C, 25Hz, 2.8' TFT LCD, camera 2MP, IP65, WIFI, video recording, T-mix,
5086814 UTi720B
6935750572122
Shipping 6-8 b.d.
All about the product
UTi720B
Heavy Duty Thermal Camera
While continuing the sturdy & durable advantages of the last generation product, the performance of UTi720B has significant improvement. Super resolution & T-Mix algorithm are added for better imaging effect. Support to real-time monitor the temperature changes trend via video recording function. Complete one-stop functionality operation through connecting mobile APP via Wi-Fi.
Features :
- 256×192 infrared resolution (upgrades to 512×384 when super resolution is on)
- Temperature measurement range from -20℃ to 550℃
- Features T-Mix image fusion algorithm technology
- Video recording
- With a 2MP digital camera
- Wi-Fi connection
- Multi-language OS
- IP65 & 2m drop proof
· Specifications
Technical Data
Display
2.8” TFT (320×240)
IR resolution(Pixels)
256×192
Super resolution(Pixels)
✔ (512×384)
Spectral range
8~14µm
Pixel size
12µm
Frame rate
≤25Hz
Thermal sensitivity(NETD)
≤50mK
Focus
Focus Free
Field of view(FOV)
56°(H) × 42°(V)
Spatial resolution(IFOV)
3.75mrad
Temperature measurement range
-20℃~550℃
Accuracy
20℃~120℃, ±1.5℃ or ±1.5% whichever is greater
-10℃~20℃, 120℃~550℃, ±2℃ or ±2% whichever is greater
Functions
Color palette
White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
Image mode
Thermal, Visual image, T-Mix fusion, PIP
On screen analyzer
5 Points/3 Rectangles
HI/LO temperature alarm
LCD animation, LED flashlight, Buzzer
HI/LO temperature tracking
✔
Digital camera resolution
2MP
Video recording
✔
Wi-Fi/Wi-Fi live streaming
✔
LED lighting
✔
Analysis software
PC+APP
General Characteristics
Battery
5000mAh rechargeable Li-ion battery
Operating time
≥7 hours
USB
Type-C
Storage
Built-in 32GB
Image/video storage format
JPG/MP4
Protection
IP65 & 2m drop proof
Certificates
CE, FCC, RoHS
Languages
EN, FR, DE, IT, ES, SV, PL, CZ
Weight
600g
Dimension
236mm×75.5mm×86mm
Packing Details
Standard accessories
Type-C USB cable, Quick Start Guide, Download Operation Guide
Standard individual packing
Gift box
Standard Qty per carton
10pcs
Standard carton size
500mm×315mm×295mm
Standard carton G.W.
11.2kg
