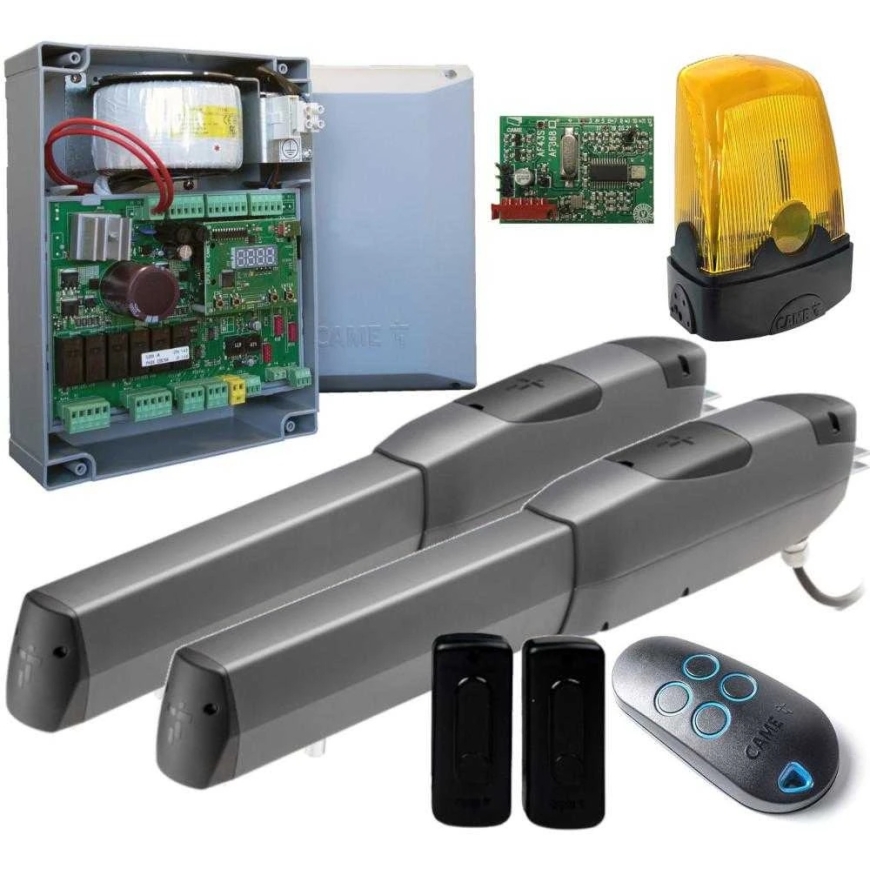

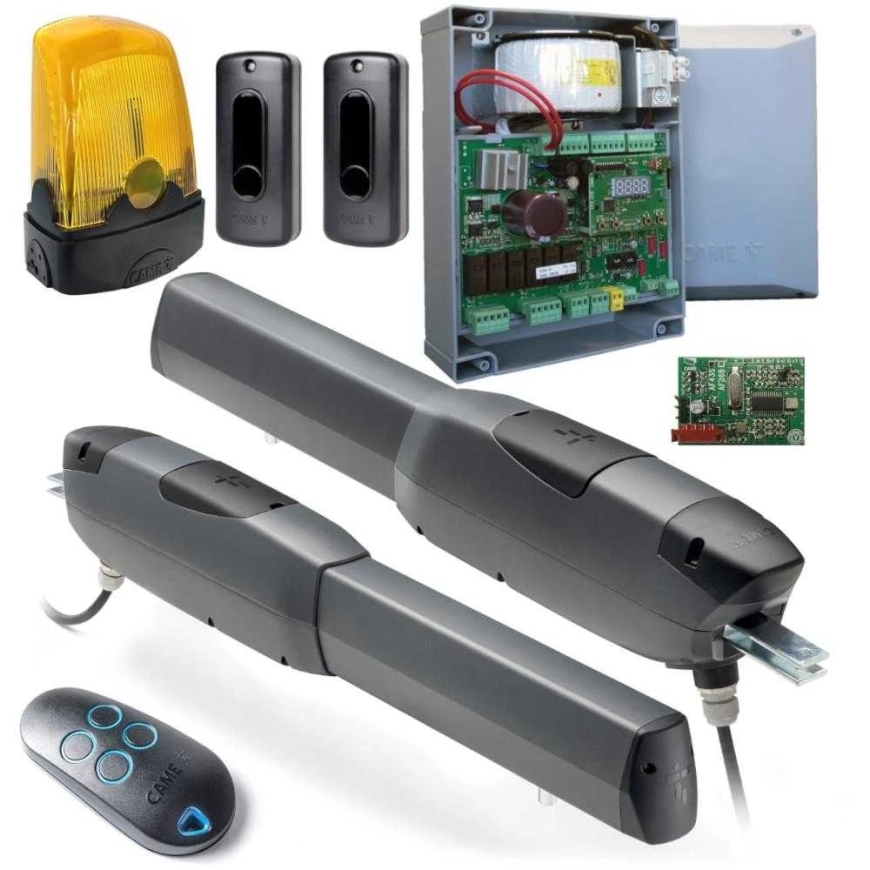

CAME NEW ATI30DGF SAFE 24V TOP kit for double-leaf gates up to 6 m
714.02 €
Monthly payment from 19,29 €
5086718 8K01MP-058
8050456100054
Shipping 8-12 b.d.
You are interested in this product?
All about the product
CAME NEW ATI30DGF SAFE 24V TOP set for double-leaf gates 6 m
Model: 8K01MP-058
Purpose
The NEW ATI is the result of CAME's experience in designing for long-term use. The mechanism is based on a planetary gearbox, protected by cast aluminum housings, ensuring optimal durability and an IP 54 protection class. Designed to withstand the harshest climatic conditions, it guarantees reliable operation at temperatures ranging from -20° to +55°C.
The provided set is intended for installation on double-leaf gates with a maximum entry width of 6 meters and a maximum weight of 1600 kg.
- The maximum width of a single door leaf is 3 meters.*
- The maximum weight of one wing is 800 kg.*

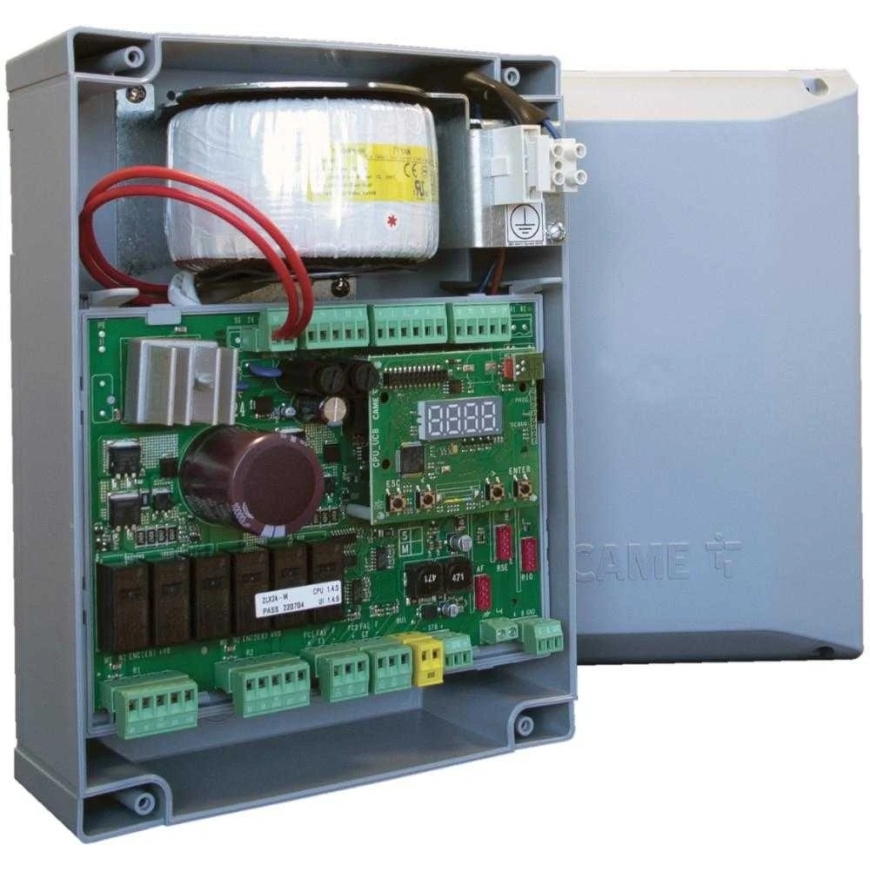

ZLX24MA control panel specifications:
- Configuration: F menu
- Configurable safety inputs: 2
- CXN bus inputs: YES
- RIO system 2.0 compatibility: YES
- CAME KEY and CAME slot compatibility: YES
- AST adaptive speed and torque control: YES
- Virtual encoder: YES
- Maximum number of users: 250
- Open Modbus protocol: YES
- Encoder/input for limit switch: YES
- Display: 7 segments
- CAME Connect compatibility: YES
- App control: YES
- Safety contact type: NC or resistive 8K02
- Virtual encoder: YES
- Stop: time-based or encoder-based
- Power supply type: transformer
- External box dimensions: 273.5 x 204 x 132 mm
Technical specifications of the gear motor:
- Model: 801MP-0210
- Protection class: IP54
- Motor supply: 24 V DC
- Power: 120 W
- Opening time to 90°: 13 sec.
- Duty cycles: intensive operation
- Operating temperature: from -20 °C to +55 °C
- Color: RAL7024
