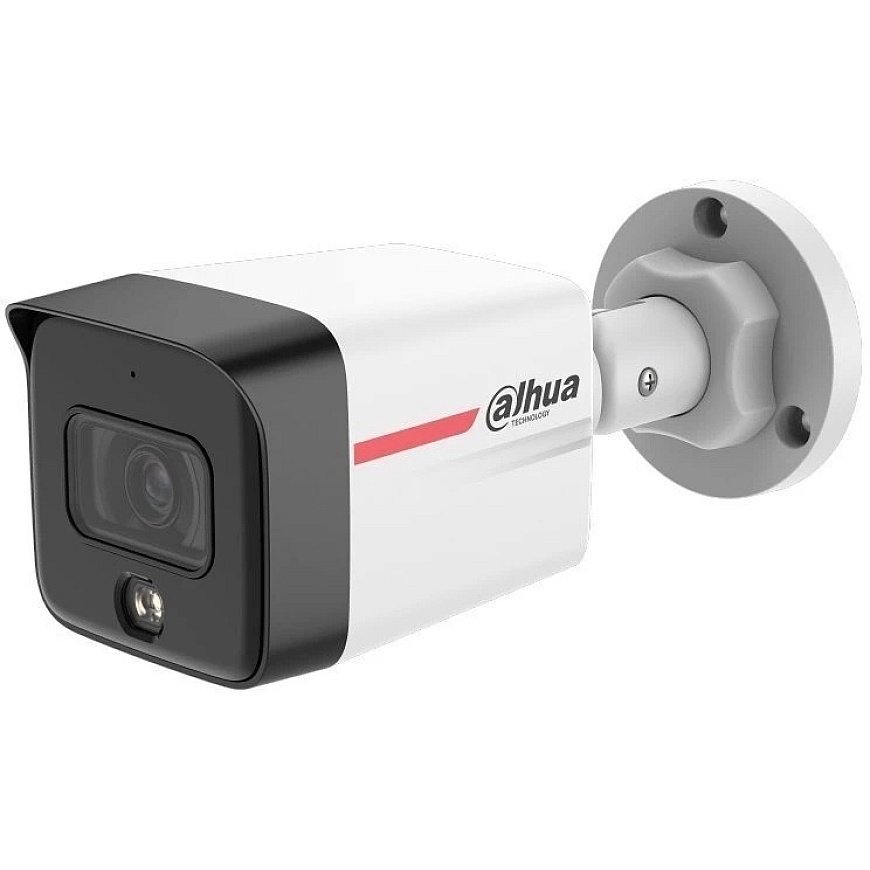

Dahua IPC-HFW1239TC1-A-LED-0280B-PRO IP Camera
100.69 €
Monthly payment from 3,49 €
5086037 IPC-HFW1239TC1-A-LED-0280B-PRO
6937552436305
Shipping 8-12 b.d.
You are interested in this product?
All about the product
IP camera Dahua IPC-HFW1239TC1-A-LED-0280B-PRO
Model: IPC-HFW1239TC1-A-LED-0280B-PRO
Key Features:
- High 2 MP Full HD video quality – 1/2.9" CMOS image sensor, ensuring detailed images up to 1920 × 1080 resolution at 25/30 fps .
- Excellent visibility in low light – high sensitivity of the camera allows for clear images even under challenging lighting conditions.
- Color night surveillance up to 20 m – built-in warm light illumination provides effective monitoring in the dark.
- Intelligent detection of people and vehicles – more accurate identification of important events and reduction of false alarms.
- Advanced video optimization – DWDR, 3D NR, HLC, and BLC enhance video clarity in challenging conditions.
- Bandwidth and storage savings – H.265 and AI H.264 / AI H.265 (Super AI Coding) ensure efficient compression while maintaining high recording quality.
- Built-in microphone – video recording with audio.
- Expanded event detection – including motion, video tampering, audio, IP conflict, network disconnection, and unauthorized access detection.
- Flexible power supply 12 V DC or PoE – easier installation and ability to power the camera directly through the network cable.
- Weatherproof IP67 – designed for reliable outdoor operation.
Technical Specification:
| Parameter | Specification |
| CAMERA | |
| Camera type | Bullet |
| Image sensor | 1/2.9" CMOS |
| Resolution | 2 MP |
| Max. resolution | 1920 × 1080 |
| ROM memory | 128 MB |
| RAM memory | 128 MB |
| Scanning system | Progressive |
| Electronic shutter | Automatic / manual: 1/3 s–1/100 000 s |
| Minimum illumination | 0.0004 lux @ F1.0 |
| Signal-to-noise ratio | >56 dB |
| Illumination type | Warm light |
| Illumination distance | up to 20 m |
| Number of illuminators | 1 × warm light |
| Illumination control | Automatic / manual |
| Position adjustment | Pan: 0°–360°; tilt: 0°–90°; rotation: 0°–360° |
| LENS | |
| Lens type | Fixed focal length |
| Lens mount | M12 |
| Focal length | 2.8 mm |
| Max. aperture | F1.0 |
| Viewing angle | Horizontal: 101°; vertical: 53°; diagonal: 119° |
| Aperture control | Fixed |
| Minimum focusing distance | 1.1 m |
| DORI – detection | 47.1 m |
| DORI – observation | 18.9 m |
| DORI – recognition | 9.4 m |
| DORI – identification | 4.7 m |
| DORI | Standard EN 62676-4, defining the observer's ability to distinguish persons or objects. The specified distances do not define the effective range of intelligent analysis functions. |
| SMART FUNCTIONS | |
| SMD | SMD Plus |
| Smart search | Collaboration with compatible Smart NVR for precise smart search, event retrieval, and event record linking |
| Low light operating level | "Ultra Starlight" |
| VIDEO RECORDING | |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (only auxiliary stream) |
| AI encoding | AI H.265; AI H.264 (Super AI Coding); Smart H.265+; Smart H.264+ |
| Main stream | 1920 × 1080 @ 1–25/30 fps |
| Auxiliary stream | 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps |
| Number of streams | 2 |
| Supported resolutions | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240) |
| Bitrate control | VBR; CBR |
| H.264 bitrate | 24 kb/s–4096 kb/s |
| H.265 bitrate | 9 kb/s–4096 kb/s |
| Default bitrate | 2048 kb/s at 1080p |
| Day / night mode | Color / monochrome |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White balance | Automatic; natural; street lighting; outdoor; manual; regional custom |
| Gain control | Automatic / manual |
| Noise reduction | 3D NR |
| Motion detection | On / off; 4 rectangle zones |
| ROI | Yes, 4 zones |
| Intelligent lighting | Yes |
| Video rotation | 0° / 90° / 180° / 270°; 90° / 270° at 1080p and lower resolutions |
| Mirror image | Yes |
| Privacy masking | 4 zones |
| Interface languages | English; Spanish; Russian; Ukrainian |
| SOUND | |
| Built-in microphone | Yes |
| Audio compression | G.711a; G.711Mu; PCM; G.726 |
| Audio sampling | 8 kHz; 16 kHz |
| ALARMS AND EVENTS | |
| Alarm events | Network connection loss; IP conflict; unauthorized access; motion detection; video sabotage; audio detection; SMD; security exception |
| FUNCTIONS AND SETTINGS | |
| Video settings | Brightness; contrast; sharpness; saturation; gamma |
| OSD | Time; channel; location; custom text |
| Recording modes | Manual; video detection; schedule |
| Recording priority | Manual > video detection > schedule |
| Settings recovery | One-click recovery |
| User management | Up to 20 users |
| Security mode | Username and password; MAC address; HTTPS; network access control |
| NETWORK | |
| Network port | RJ-45 10/100 Base-T |
| SDK and API | Yes |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| ONVIF | Profile S; Profile T |
| CGI | Yes |
| Users / hosts number | 6 |
| Total bandwidth | 24 Mb/s |
| Data storage / network recording | FTP |
| Browsers | IE; Chrome; Firefox |
| Software | SmartPSS Lite; DSS; DMSS; DoLynk Care |
| Mobile app | iOS; Android |
| Security | Digest; WSSE; account lock; security logs; IP/MAC filtering; X.509 certificates; syslog; HTTPS; Trusted Boot; Trusted Execution; Trusted Upgrade; session security; security alerts; SSL/TLS 1.2; AES-256 |
| CONSTRUCTION | |
| Enclosure material | Metal + plastic |
| Dimensions | 180.4 × 70 × 70 mm (length × width × height) |
| Package dimensions | 206 × 106 × 97 mm |
| Net weight | 0.29 kg |
| Gross weight | 0.40 kg |
| Mounting | Ceiling; wall; on vertical pole |
| Power adapter | Optional |
| Lens | Included |
| ENVIRONMENTAL CONDITIONS | |
| Operating temperature | from -40°C to +60°C |
| Operating humidity | ≤95% RH, non-condensing |
| Storage temperature | from -40°C to +60°C |
| Storage humidity | ≤95% RH, non-condensing |
| Protection level | IP67 |
| Corrosion protection | Basic – the product is designed for general use, without special corrosion protection requirements |
| POWER | |
| Power | 12 V DC ±30% / PoE (802.3af) |
| Dual backup power | Yes |
| Main power consumption | 1.3 W (12 V DC); 2.1 W (PoE) |
| Max. power consumption | 3.6 W (12 V DC); 4.8 W (PoE) – switching ICR, enabling AI ISP and illumination |
| CERTIFICATIONS | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic compatibility directive 2014/30/EU |
