Mercusys MS106LP Switch
Mercusys MS106LP Switch – 2
Mercusys MS106LP Switch – 3
Mercusys MS106LP Switch – 4
Mercusys MS106LP Switch – 5
New
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch
Mercusys MS106LP Switch

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Mercusys MS106LP Switch

31.30 €
5085266

MS106LP

6957939003845

Shipping 8-13 b.d.

You are interested in this product?
(Read terms of service)

All about the product

MERCUSYS Switch MS106LP

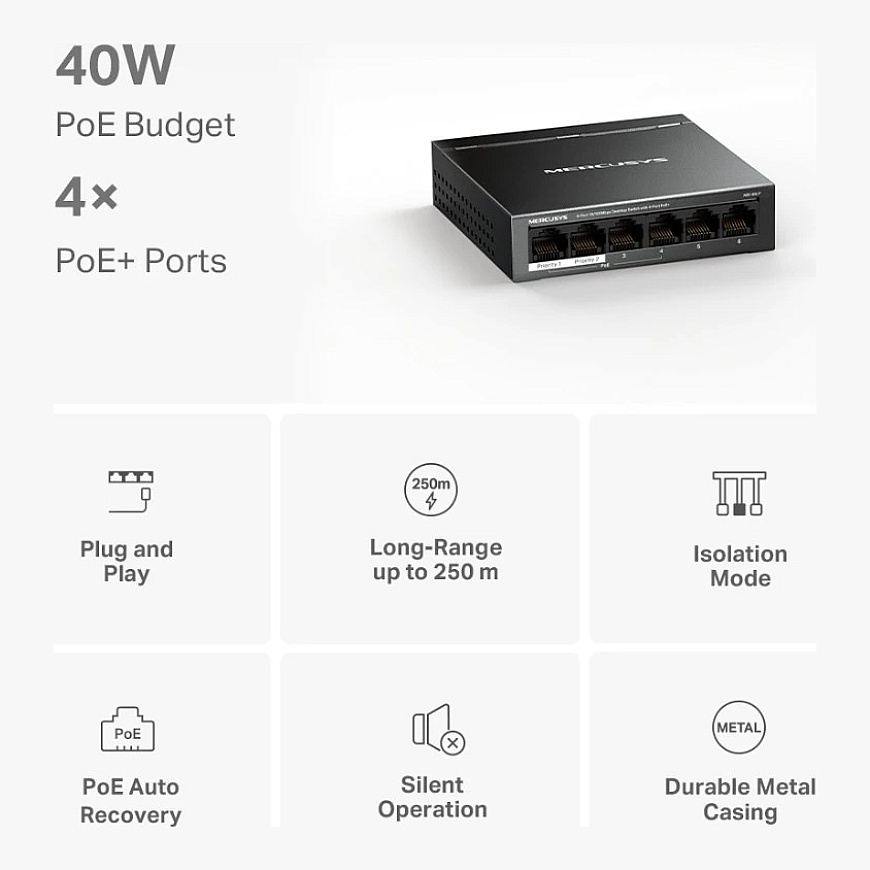

6-port 10/100 Mbps desktop switch with 4 PoE+ ports

  • 6 Ports: 6 × 10/100 Mbps RJ45 ports with 4 PoE+ ports

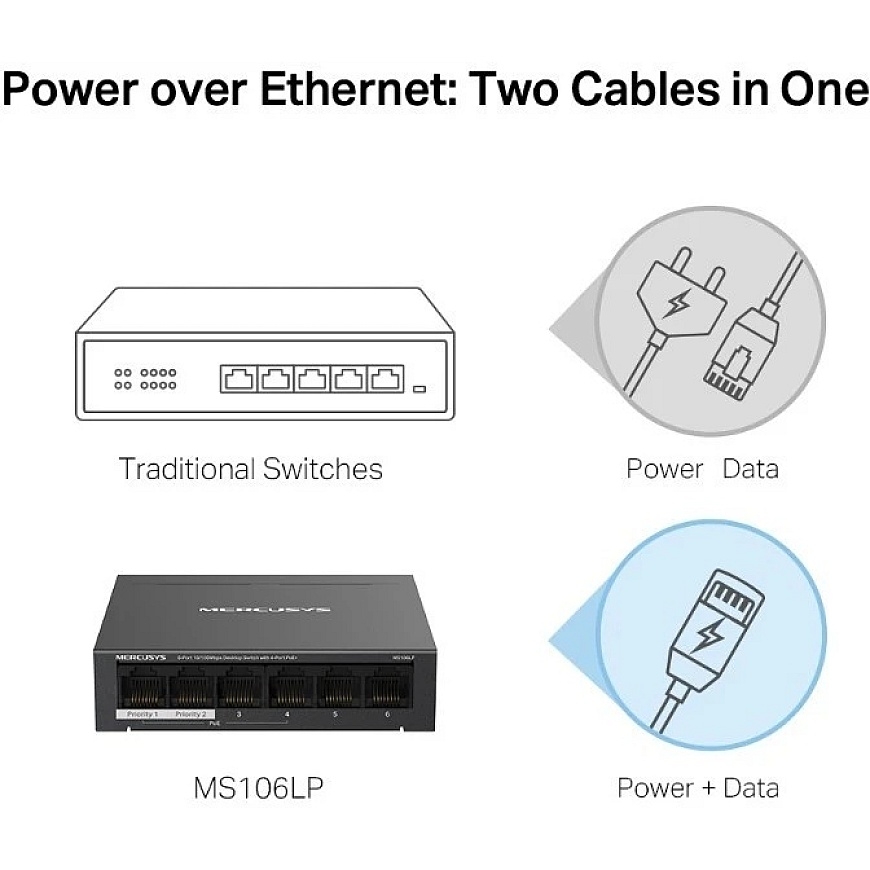

  • Two cables in one: with four PoE+ ports, data and power are transmitted over a single cable.
  • High power PoE+: supports up to 30 W of PoE power for each PoE port and 40 W for all PoE ports
  • 2 × uplink ports: MS106LP features 2 × uplink ports when isolation mode is enabled. One for internet connection and the other for NVR connection.
  • Long distance up to 250 m: Increases PoE transmission distance up to 250 m using extended mode
  • Isolation mode: with a single click, you can isolate traffic to specific ports to ensure stability and security.
  • Compatible with powered devices: Works with IEEE 802.3af/at compatible devices
  • Durable metal casing: ensures effective heat dissipation and long network lifespan
  • Plug and play: easy to use and saves time and effort
  • PoE automatic recovery: automatically reboots powered off or unresponsive PoE devices

Product page: https://www.mercusys.com/cz/product/details/ms106lp

Technical Specifications
Hardware
Dimensions (L x W x H) 99.8 * 98 * 25 mm
PoE ports RJ45
Standard: Compatible with 802.3 af/at powered devices
PoE ports: 1–4 ports
PoE power budget: 40 W
Interfaces 6 × 10/100 Mbps ports, auto negotiation, auto MDI/MDIX
External power supply External power adapter (output: 53.5 V / 0.81 A)
Installation Desktop
Wall-mounted
Standards and Protocols IEEE 802.3x flow control
Data transfer rate 10/100 Mbps half duplex
20/200 Mbps full duplex
Jumbo Frame 2 KB
MAC Address Table 2K
Max Power Consumption 1.87 W (220 V / 50 Hz, no PD connected)
44.8 W (220 V / 50 Hz, with 65 W PD connected)
Max Heat Dissipation 6.34 BTU/hr (no PD connected)
152.32 BTU/hr (with 65 W PD connected)
Others
Package Contents 6-port 10/100 Mbps desktop switch with 4 PoE+ ports (MS106LP)
Power adapter
Quick installation guide
Environment Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40⁻⁶~70⁻⁶ (-40℉~158℉)
Operating humidity: 10–90 % non-condensing
Storage humidity: 5–95 % non-condensing
