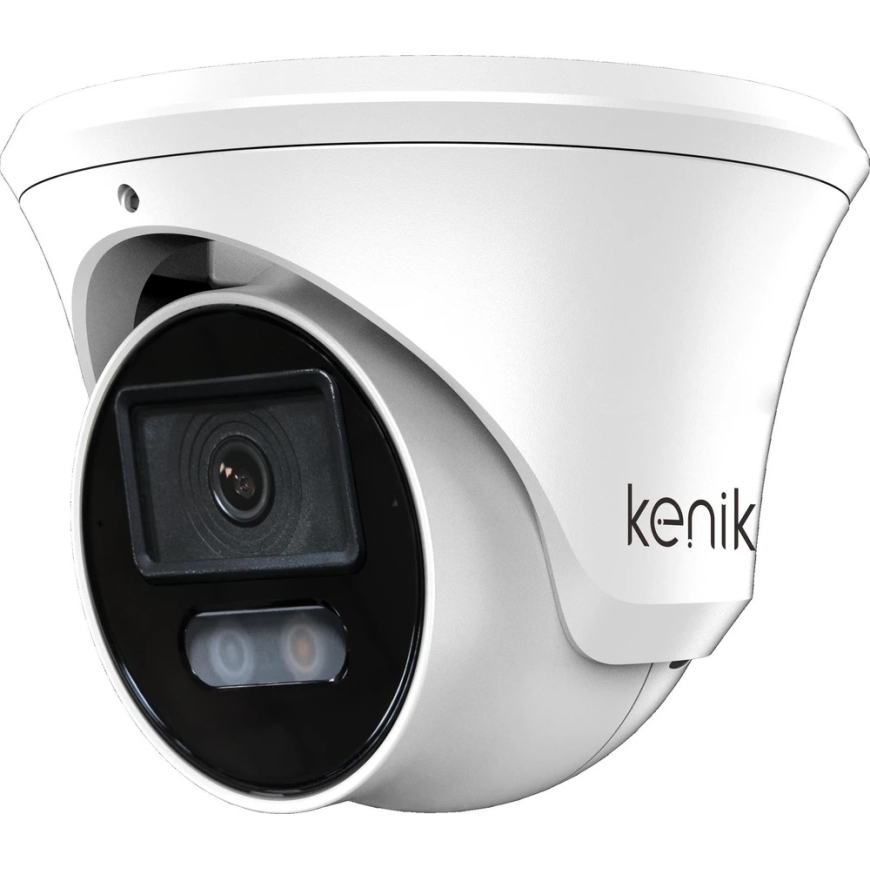

KENIK KG-8P30DAS-IL IP CAMERA (2.8mm)
210.45 €
Monthly payment from 6,32 €
5084717 KG-8P30DAS-IL
5903716301650
Shipping 8-12 b.d.
You are interested in this product?
All about the product
IP CAMERA KENIK KG-8P30DAS-IL (2.8mm)
Model: KG-8P30DAS-IL
Main Features:
- Resolution 8MPX (3840 × 2160) at 25 frames per second
- H.265+/H.264+ compression
- WDR (120 dB), day/night (ICR), 3DNR, AWB, AGC, BLC
- 2.8 mm lens
- Built-in microphone
- Smart dual light reflector (IR + LED) up to 30 m
- MicroSD card reader up to 512 GB
- Intelligent video analytics IVS: SMD + PP 2.0 (person/vehicle/motorcycle), line crossing, intrusion detection, entering area, exiting area, loitering, face detection
- 3 streams
- Reset button
- 1/1 alarm input/output
- 1/1 audio input/output
- Corridor mode
- Dual power source 12 V DC / PoE (802.3af)
- IP67 rated enclosure
- Supports ONVIF 2.6 standard
- Mobile viewing on smartphones (“Android”, “iPhone”)
- Free software in Polish for registering on your computer
Purpose
The camera is intended for outdoor use. The enclosure allows for mounting on both ceilings and walls. It is ideal for monitoring parking lots, sports fields, arenas, squares, government institutions, schools, and more.
Technical Specifications
| Model | KG-8P30DAS-IL |
| Image sensor | 1/2.7 inch CMOS progressive scan |
| Minimum illumination | Color: 0.007 lux (F1.4, AGC on), 0 lux in ambient light |
| Illumination range | 30 m (IR light), 30 m (warm light) |
| Smart IR | Yes |
| Lens | |
| Focal length | 2.8 mm |
| Aperture | F1.4 |
| Field of view (FOV) | Horizontal: 109°, Vertical: 58°, Diagonal: 131° |
| Lens mount | M12 |
| Compression standard | |
| Video compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 profile | Baseline / Main / High |
| H.265 profile | Main |
| Video bitrate | 11 Kbps–16 Mbps |
| Triple stream | Supported |
| Audio compression | G.711A / G.711U |
| Audio bitrate | 64 Kbps |
| Image | |
| Maximum video resolution | 8 MP (3840 × 2160) |
| Main stream | 50 Hz: 25 fps 8 MP (3840 × 2160), 25 fps 6 MP (3200 × 1800), 25 fps 5 MP (3072 × 1728), 25 fps 4 MP (2560 × 1440), 25 fps 1080P (1920 × 1080) 60 Hz: 30 fps 8 MP (3840 × 2160), 30 fps 6 MP (3200 × 1800), 30 fps 5 MP (3072 × 1728), 30 fps 4 MP (2560 × 1440), 30 fps 1080P (1920 × 1080) |
| Sub stream | 50 Hz: 25 frames per second 720P (1280 × 720), 25 frames per second D1 (704 × 576), 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second 720P (1280 × 720), 30 frames per second D1 (704 × 480), 30 frames per second CIF (352 × 240) |
| Third stream | 50 Hz: 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second CIF (352 × 240) |
| Video settings | Brightness, contrast, saturation, hue, sharpness |
| Shutter speed | Automatic / manual, 1/3 seconds ~ 1/100000 seconds |
| Day/night mode | IR cut filter |
| Wide dynamic range (WDR) | 120 dB |
| Noise reduction | 2D/3D DNR |
| BLC / HLC / ROI / Rotation | Supported |
| Least developed countries | Yes |
| Smart features | |
| Main events | motion detection (SMD person/vehicle/motorcycle), video masking |
| Smart events | Line crossing, intruder detection, entering/exiting zone (person/vehicle/motorcycle), loitering detection |
| People counting | NO |
| Face detection | Yes |
| Network | |
| Online record | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, cloud protocol |
| System compatibility | ONVIF (S, G, T profiles), SDK |
| Security | Password protection, complex password, HTTPS encryption, IP address filtering, basic and digest authentication HTTP/HTTPS, TLS 1.1/1.2 support, WSSE and digest authentication for open network video interface (ONVIF). |
| Users | Up to 40 users |
| Web browsers | Direct view with plugins: IE 10, IE 11 Direct view without plugins: “Chrome 57.0+”, “Firefox 52.0+”, “Edge 89+” Local service: “Chrome 57.0+”, “Firefox 52.0+” |
| Mobile app | “Android”, “iOS” |
| Active deterrence | |
| Red and blue traffic signal warning | NO |
| Audio warning | NO |
| Interfaces | |
| Communication interface | 1 × RJ45 10/100/1000M adaptive Ethernet |
| Internal memory | Up to 512 GB |
| Microphone | Yes, built-in |
| Speaker | NO |
| Audio input/output | 1/1 |
| Input/output alarm | 1/1 |
| RS485 | missing |
| Reset button | Yes |
| General | |
| Operating conditions | -40°C ~ 60°C, humidity ≤95% (non-condensing) |
| Power supply | 12 V DC ±25 % |
| PoE | PoE (802.3af) |
| Power consumption | Max. 8.5 W |
| Protection level | IP67 |
| Enclosure material | Metal |
| Dimensions | Φ144.5 × 113.5 mm |
| Total weight | 1050 g |
