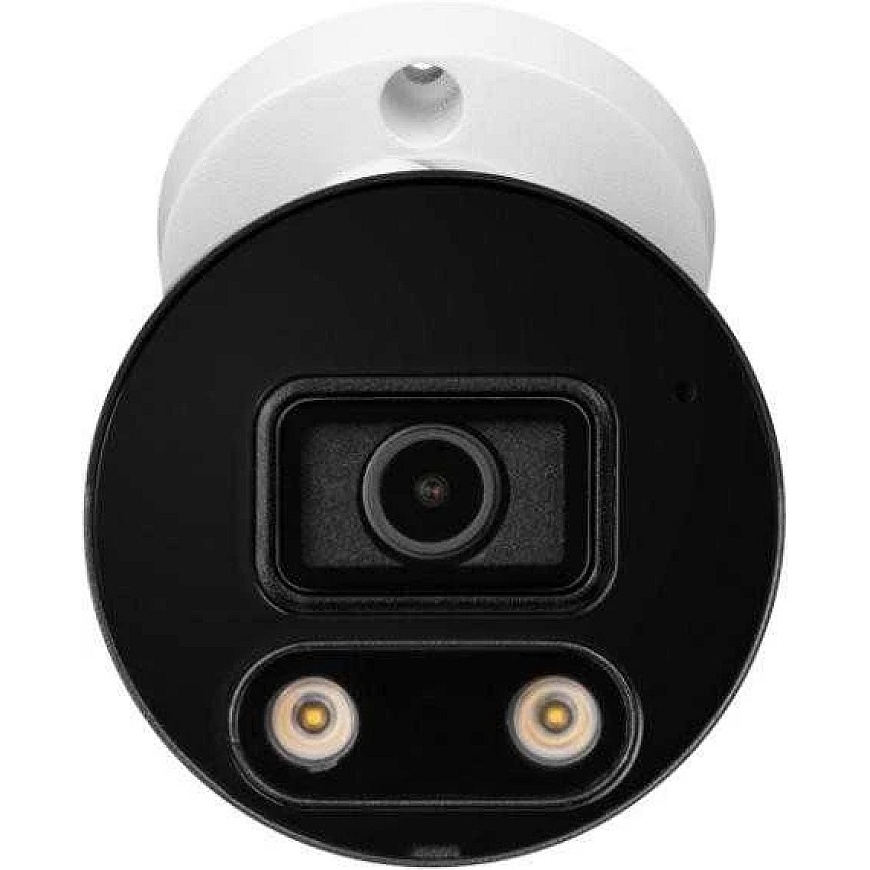

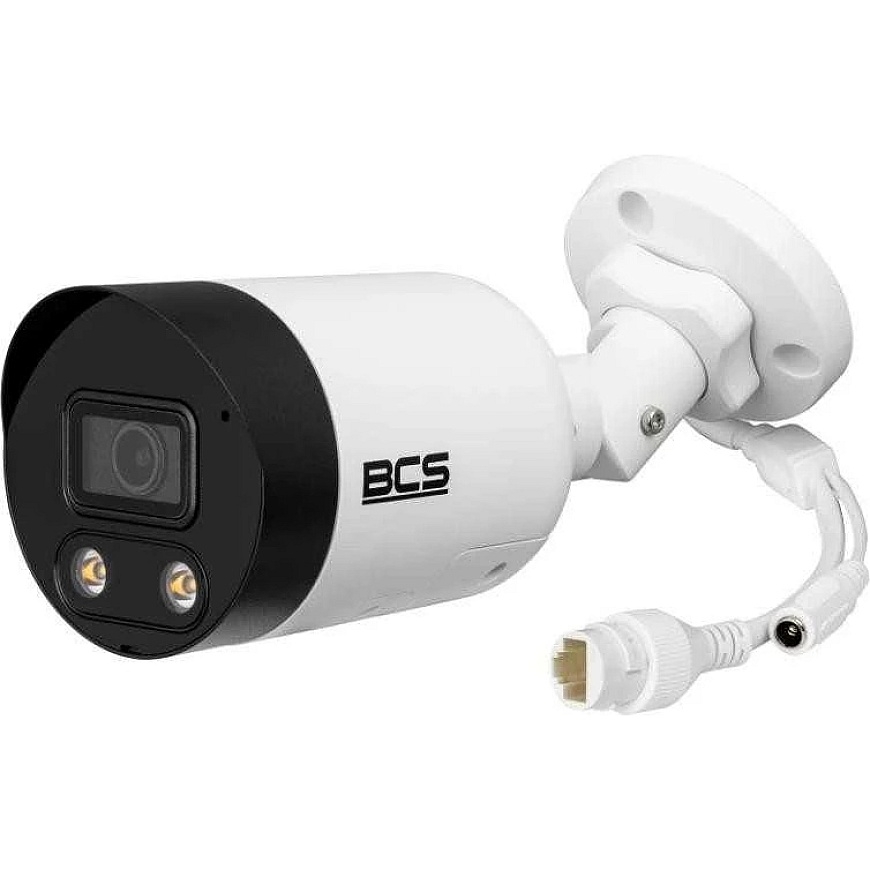

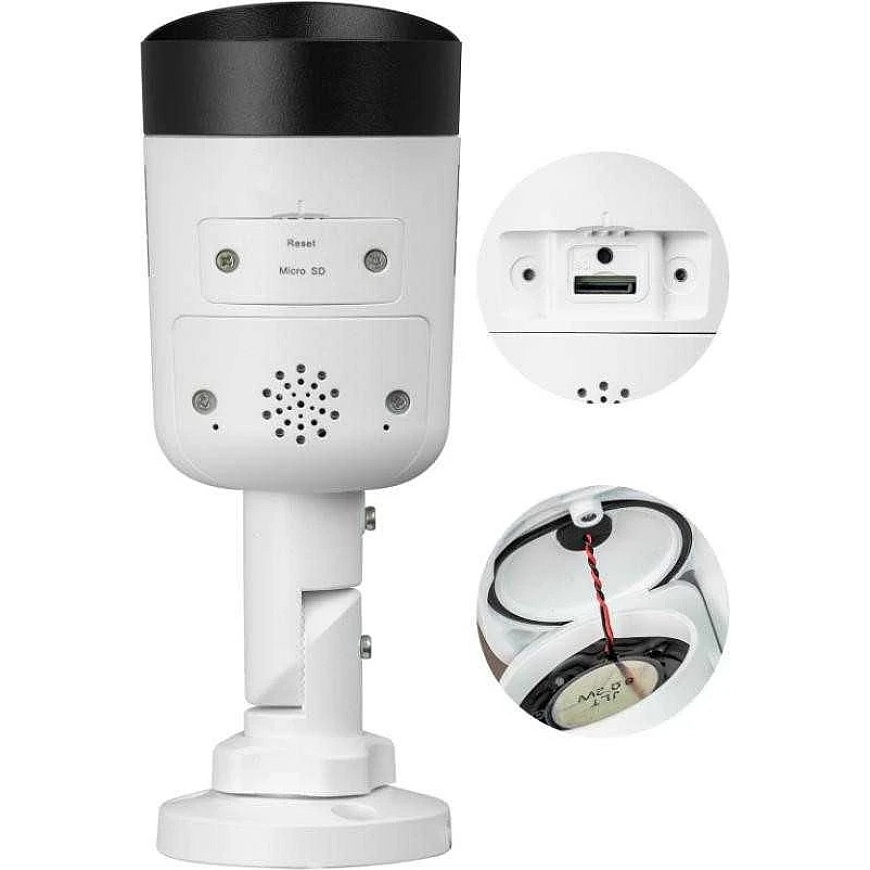

BCS-P-TIP28FSR4L4-Ai2 BCS POINT 8Mpx Tube IP Camera

All about the product

The IP camera BCS-P-TIP28FSR4L4-Ai2 is an advanced surveillance solution suitable for offices and other spaces requiring high video quality and smart analytical features. With an 8 Mpx resolution, it produces a 3840×2160 standard image at a rate of 30 frames per second, ensuring clear and detailed recordings. The fixed focal length lens with a focal length of 2.8 mm provides a wide 113.4° field of view, allowing for monitoring larger areas without blind spots. Smart motion detection and perimeter protection enable quick identification of potential threats, enhancing the security of the monitored space. Due to the two-way audio capabilities with a microphone and speaker, users can not only monitor but also communicate with people in the camera's operational zone. The "SkyLight" and "NightColor" technologies ensure high image quality both during the day and at night, while the LED illumination range of up to 40 m allows for effective nighttime monitoring. The IP67 rated housing ensures resistance to water and dust, making the camera suitable for outdoor use in varying weather conditions. The support for "PoE" (802.3af) power simplifies installation by eliminating the need for additional power cables, which increases installation flexibility. The IP camera BCS-P-TIP28FSR4L4-Ai2 offers high-quality surveillance for your office The IP camera BCS-P-TIP28FSR4L4-Ai2 is a modern surveillance solution that provides excellent video quality and reliability in an office environment. With an 8 Mpx resolution and the ability to generate a 3840×2160 standard image at 30 frames per second, this camera ensures accurate space monitoring, which is critically important for security in any office. 2.8 mm lens and 8 Mpx resolution – excellent detail quality The camera is equipped with a fixed focal length lens, with a focal length of 2.8 mm, ensuring a broad 113.4° field of view. This allows users to enjoy excellent detail quality, which is essential for monitoring key office areas. Smart analytical features – perimeter protection and object recognition The BCS-P-TIP28FSR4L4-Ai2 model offers advanced analytical features such as perimeter protection and smart motion detection. These capabilities allow for effective monitoring of the environment, identifying potential threats and responding to them in real-time, significantly enhancing office security. Built-in microphone and speaker – real-time communication The camera features a built-in microphone and speaker, enabling two-way communication. This is an excellent solution for offices where it is important not only to monitor but also to communicate with individuals in the camera's operational zone, enhancing work comfort. "SkyLight" and "NightColor" technologies – clear images in any conditions By utilizing "SkyLight" and "NightColor" technologies, the BCS-P-TIP28FSR4L4-Ai2 camera ensures high video quality both day and night. The LED lighting, with a range up to 40 m, guarantees that nighttime monitoring is as effective as daytime monitoring, which is crucial for continuous observation. Waterproof IP67 housing – the ideal outdoor solution The camera's housing, rated IP67, ensures resistance to water and dust, making it an ideal solution for outdoor use. The camera operates within a wide temperature range from -30°C to +60°C, ensuring its reliability in various weather conditions. "PoE" power and "RTMP" streaming capability – installation flexibility The camera supports "PoE" (802.3af) power, making installation easy as there is no need for additional power cables. Additionally, the "RTMP" streaming capability provides flexibility in controlling and transmitting video to various platforms, enhancing the functionality of the surveillance system. Technical specifications of the IP camera BCS-P-TIP28FSR4L4-Ai2 – comprehensive information and technical parameters Manufacturer BCS Camera type Cylinder Resolution 8 Mpx Image sensor 1/2.7'' PS CMOS Scanning system Progressive scan Pixels 3840 (H) × 2160 (V) Lens Fixed 2.8 mm Aperture F1.4 Field of view H 98.7° V 53.6° D 113.4° Sensitivity 0.003 lux (F1.4, AGC), 0 lux (b/w, IR) Signal-to-noise ratio 56 dB WDR 130 dB Number of streams 3 Resolutions 8M (3840×2160), 5M (3072×1728), 4M (2560×1440), 2M (1920×1080), 720P (1280×720) Main stream 3840×2160@30 fps IR range 40 m White light range 40 m Microphone Yes Speaker Yes "microSD" memory card slot up to 512 GB Power 12 V DC / PoE (802.3af) Power consumption max. 11 W Protection class IP67 Surge protection 4 kV Operating conditions -30°C~+60°C, max. 95 % relative humidity Dimensions 192 × 75 × 74 mm Weight 0.41 kg Built-in smart features Yes Perimeter protection Yes Object recognition Yes People counting Yes SMD – smart motion detection Yes
