2 ceiling and mounting bracket set with vacuum arm 400–550 mm + mounting accessories, BESSEY [STE55-SET]

All about the product

2 ceiling and fastening holder set with pump lever 400–550 mm + fastening accessories, BESSEY [STE55-SET]

CEILING HOLDER WITH PUMP LEVER, 400–550 mm, BESSEY [STE55]

• Ceiling and mounting supports allow for quick and safe support of elements during construction, finishing, assembly, and drywall work,
• Exceptionally stable construction made of durable steel pipes can withstand loads of up to 350 kg while minimally and maximally extending the support,
• very convenient one-handed operation due to two-component plastic handle with pumping mechanism,
• quick sliding button allows for fast extension and retraction of the telescopic pipe,
• rotating handle allows for precise adjustment of holding force,
• 9 x 7 cm supporting surfaces come with non-slip TPU pads,

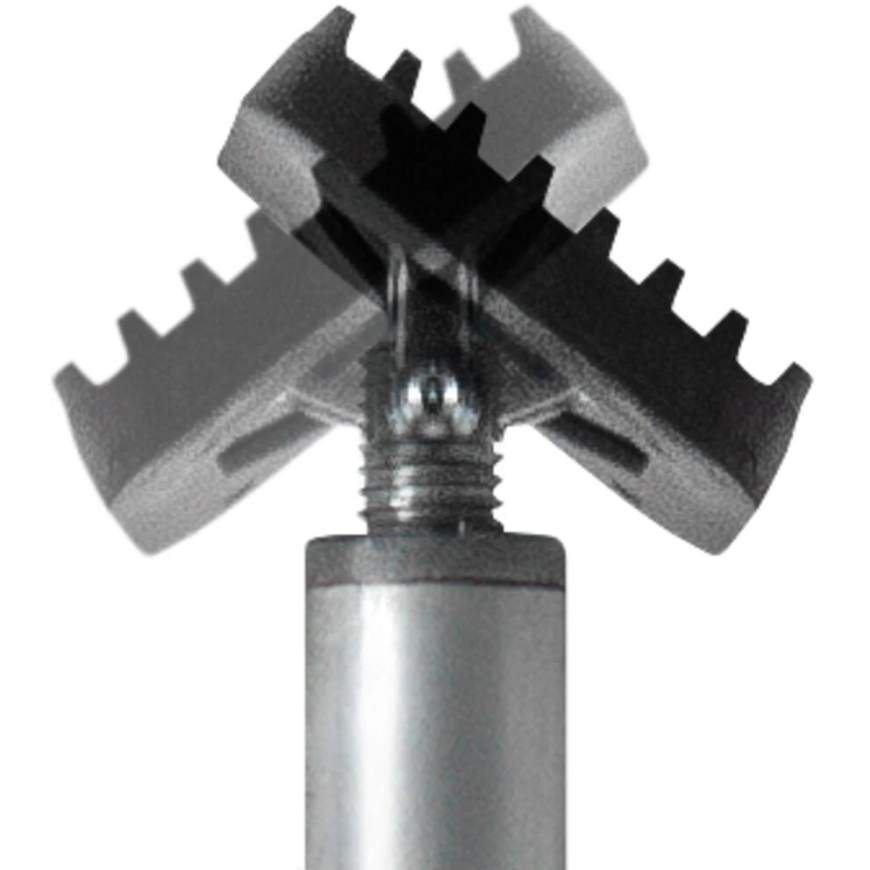

• gradually tiltable supporting surfaces from -45° to +45° allow the use of support on sloped surfaces,
• the telescopic pipe system consists of an inner pipe with a diameter of Ø28 mm and an outer pipe with a diameter of Ø32 mm,
• coated steel pipes ensure high durability and stability of the construction,
• Ceiling support can be precisely adjusted according to working conditions and safely released due to:
  - three-stage installation: for initial adjustment, press the release button and extend the telescopic pipe to the desired height; use the pump lever to accurately set the support against the held element; then turn the handle clockwise until the desired holding force is reached,
  - two-stage release: turn the ceiling support counterclockwise; when the holding force no longer functions, press the release button and retract the telescopic pipe.

CEILING AND MOUNTING SUPPORT TECHNICAL PARAMETERS [STE55]

• adjustable range: 400–550 mm,
• maximum load with minimum extension: 350 kg,
• maximum load at maximum extension: 350 kg,
• inner tube diameter: 28 mm,
• outer tube diameter: 32 mm,
• support surface dimensions: 9 x 7 cm,
• support surface tilt range: from -45° to +45°,
• weight: 1.42 kg.

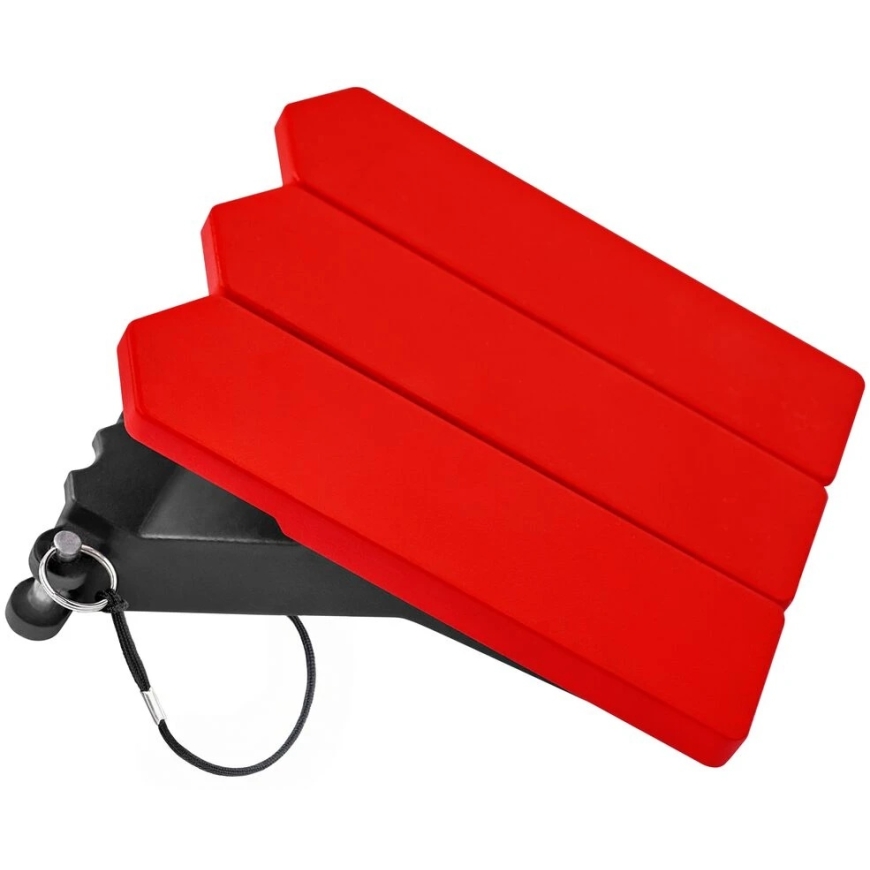

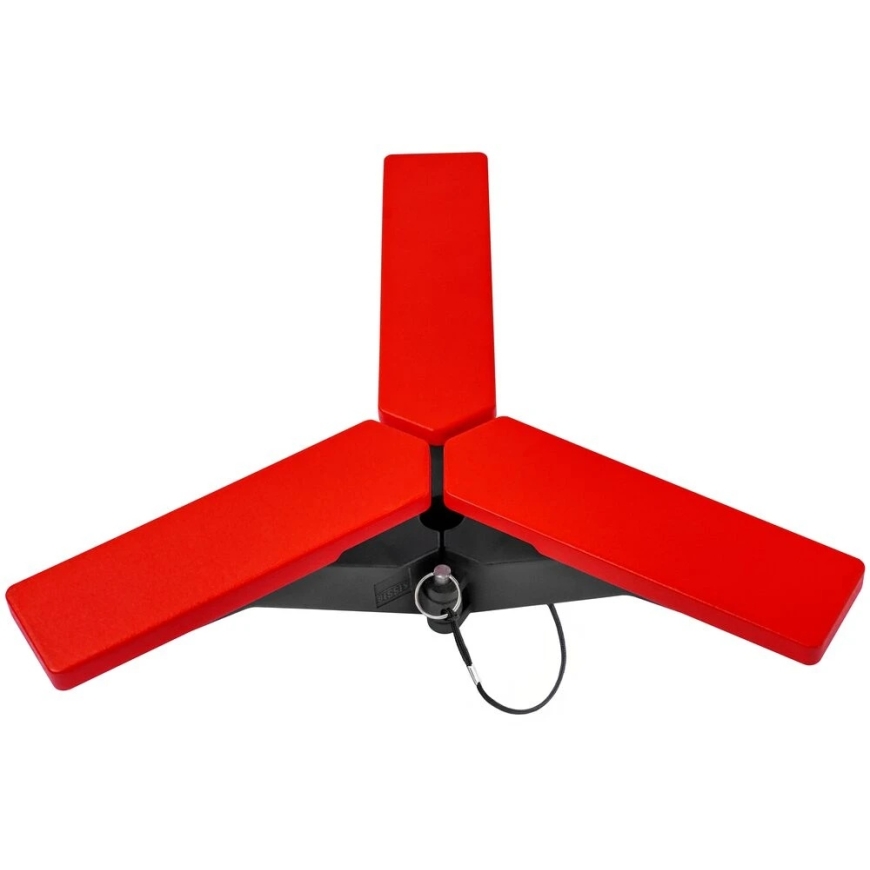

CEILING BRACKET BESSEY ST AND STE SUPPORT SYSTEMS [STE-DS]

• the ceiling bracket increases the load-bearing surface of the telescopic support, ensuring even distribution of force,
• features three wing support surfaces that enhance stability during use,
• designed for ceiling supports with an outer diameter of telescopic inner tubes ranging from 25 to 28 mm,
• quick assembly without additional tools makes it easier to prepare the support for work,
• guarantees safe operation due to the fully encased steel tube that prevents the support surface from tilting,
• the construction is made of durable polyamide PA6,
• connecting elements made of steel and galvanized steel ensure greater corrosion resistance and durability during use,
• plastic protective caps help protect surfaces from damage.

CEILING BRACKET TECHNICAL PARAMETERS [STE-DS]

• suitable for: ST, STE series supports,
• designed for pipes with an outer diameter of 25–28 mm,
• weight: 0.42 kg.

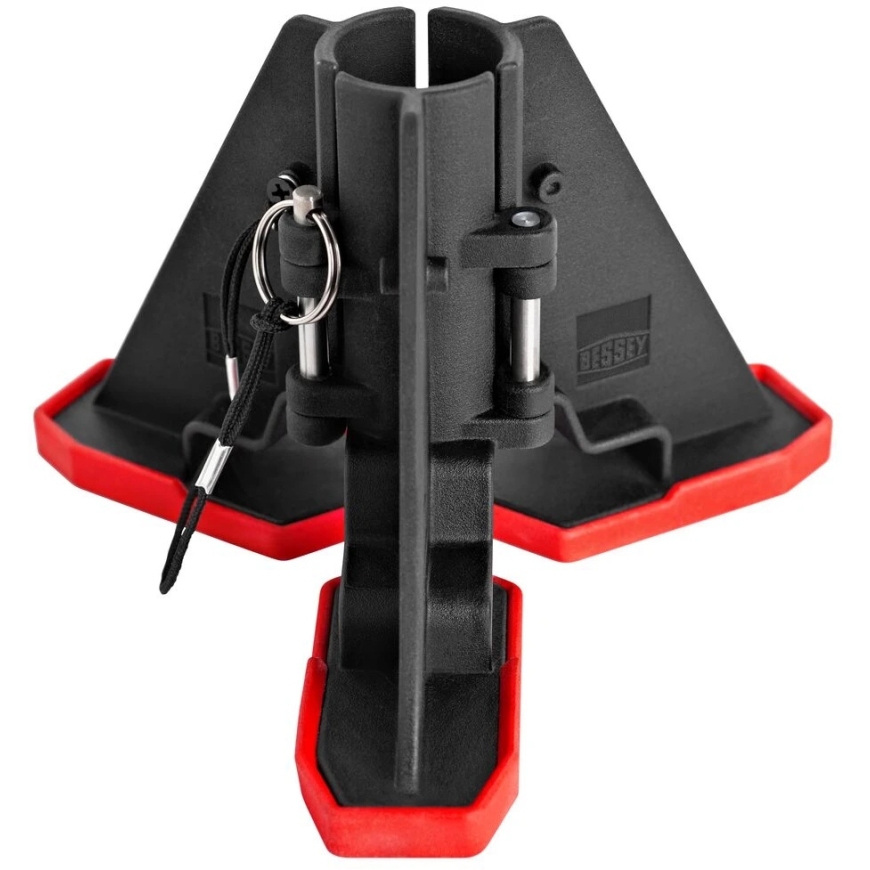

SMALL CONSTRUCTION TRIPOD FOR STE SUPPORTS, BESSEY [STE-KBS]

• small construction tripod designed for telescopic supports STE55 and STE90,
• is a compact and space-saving alternative to the larger STE-BS construction tripod,
• allows the telescopic support to be set in a vertical position even when not tensioned, making initial adjustment easier,
• Non-slip protective pads protect sensitive surfaces from damage,
• quick assembly without tools allows for easy setup of the tripod for work,
• Lightweight and stable construction made of reinforced PA6 material.

SMALL TRIPOD TECHNICAL PARAMETERS [STE-KBS]

• suitable for: STE55 / STE90,
• body material: reinforced PA6 plastic,
• protective caps: TPU material,
• connecting elements: galvanized steel,
• weight: 0.27 kg.

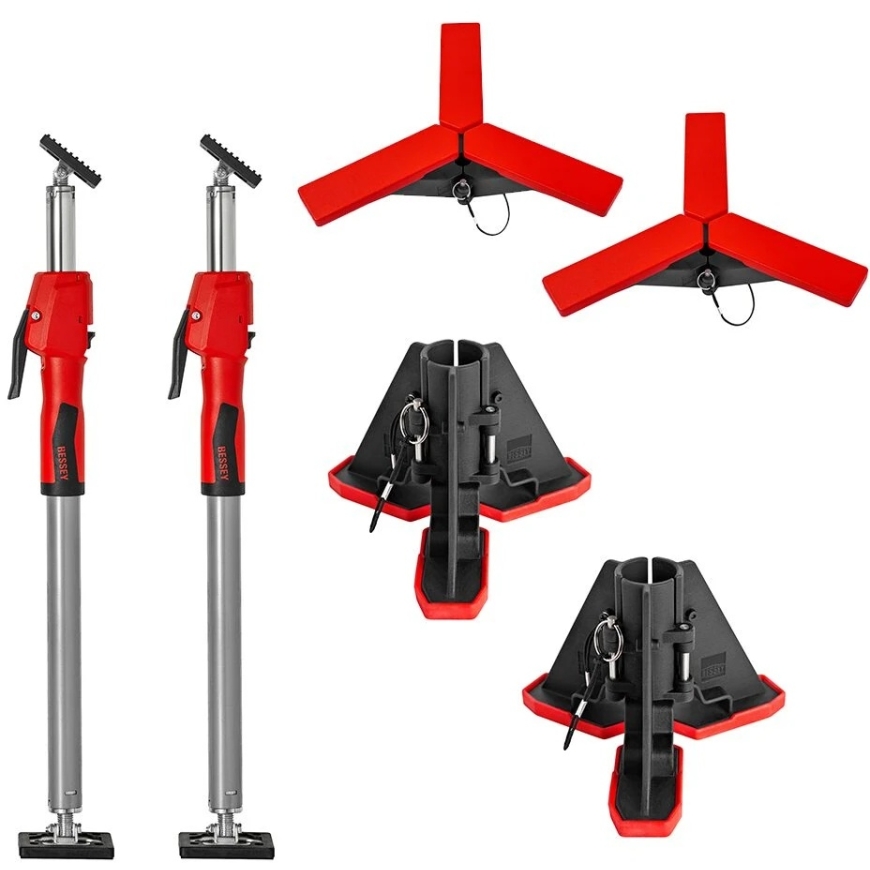

BESSEY TOOL SET [STE55-SET]

• 2 x ceiling and mounting brackets [STE55],
• 2 x ceiling supports [STE-DS],
• 2 small construction tripods [STE-KBS].
