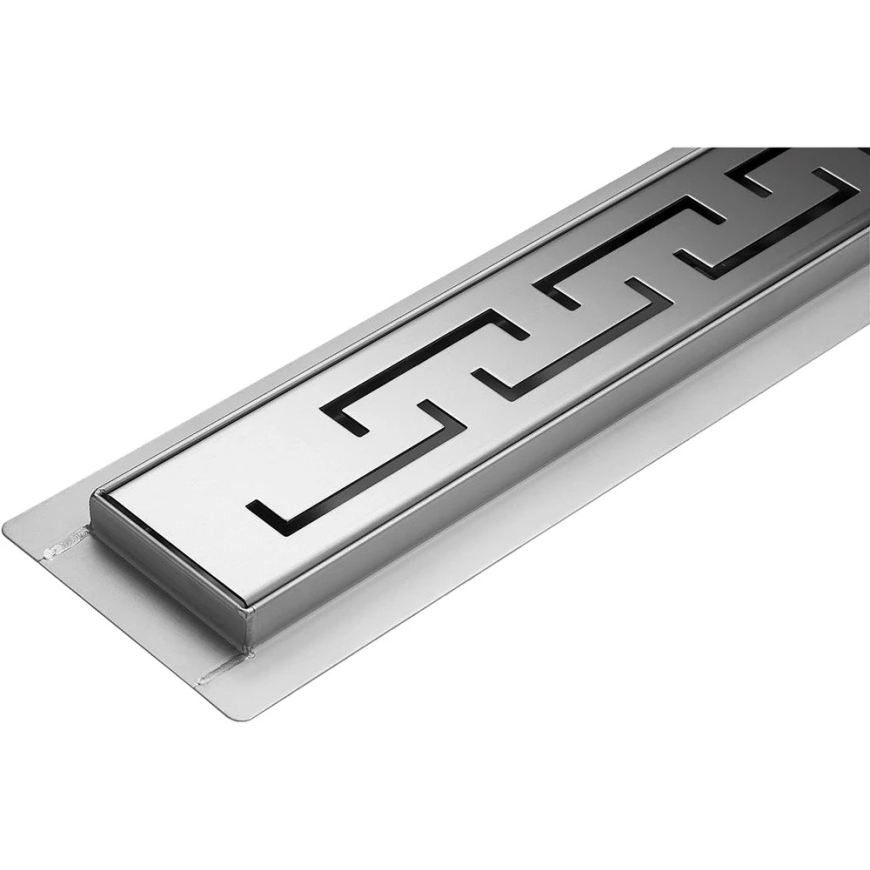

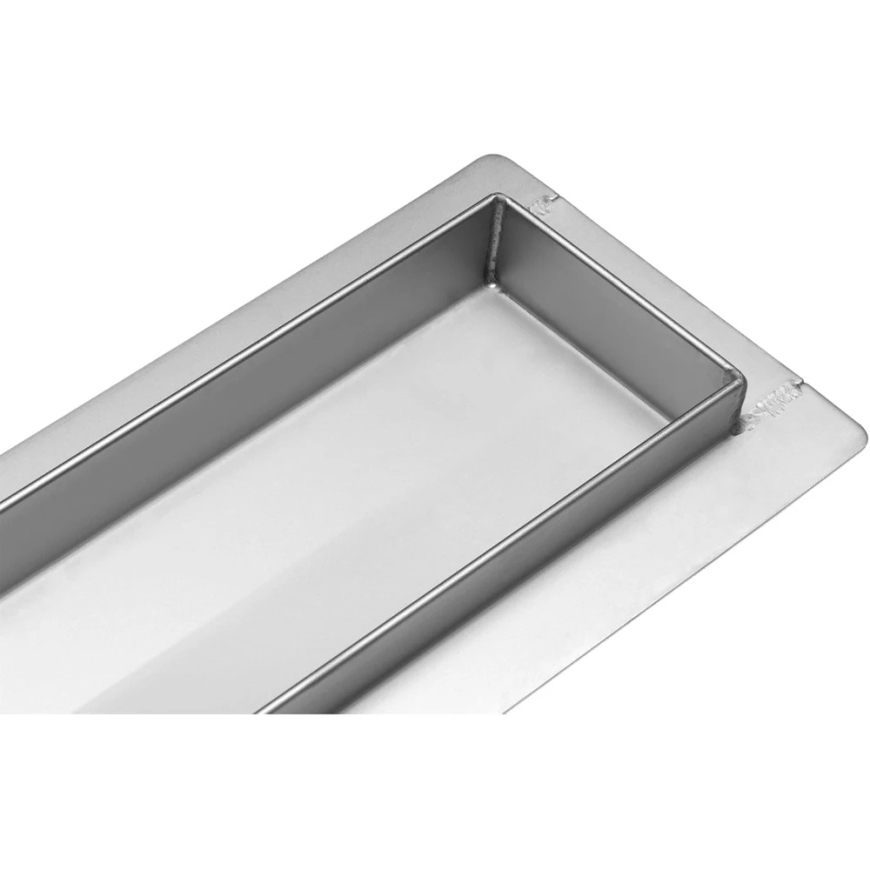

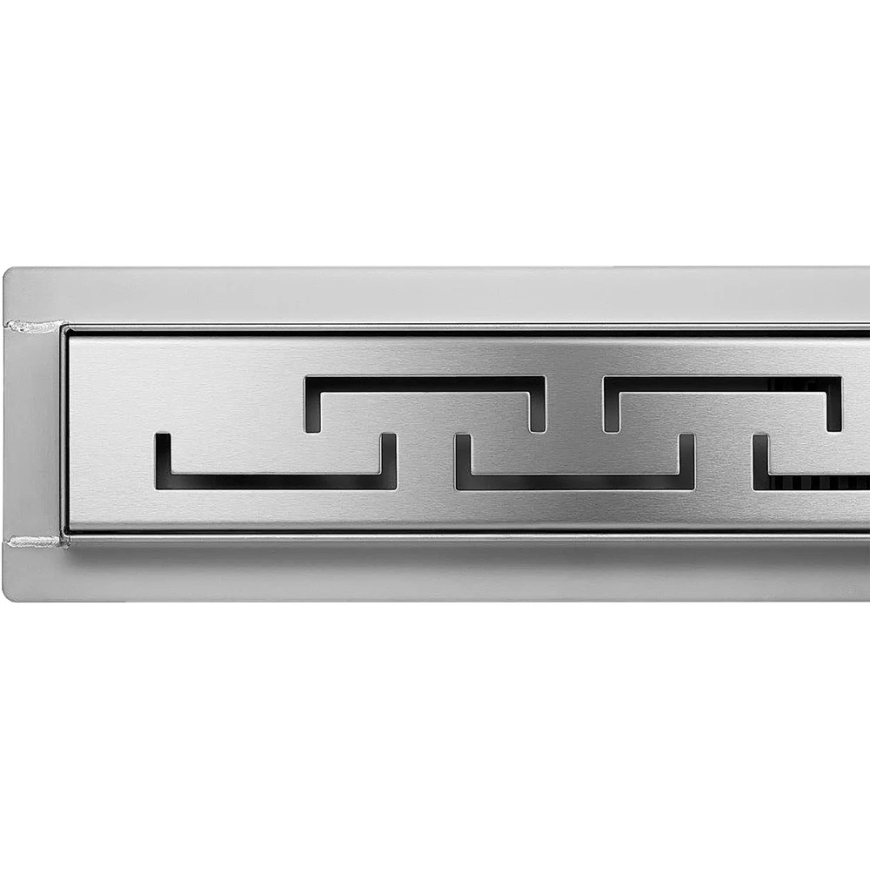

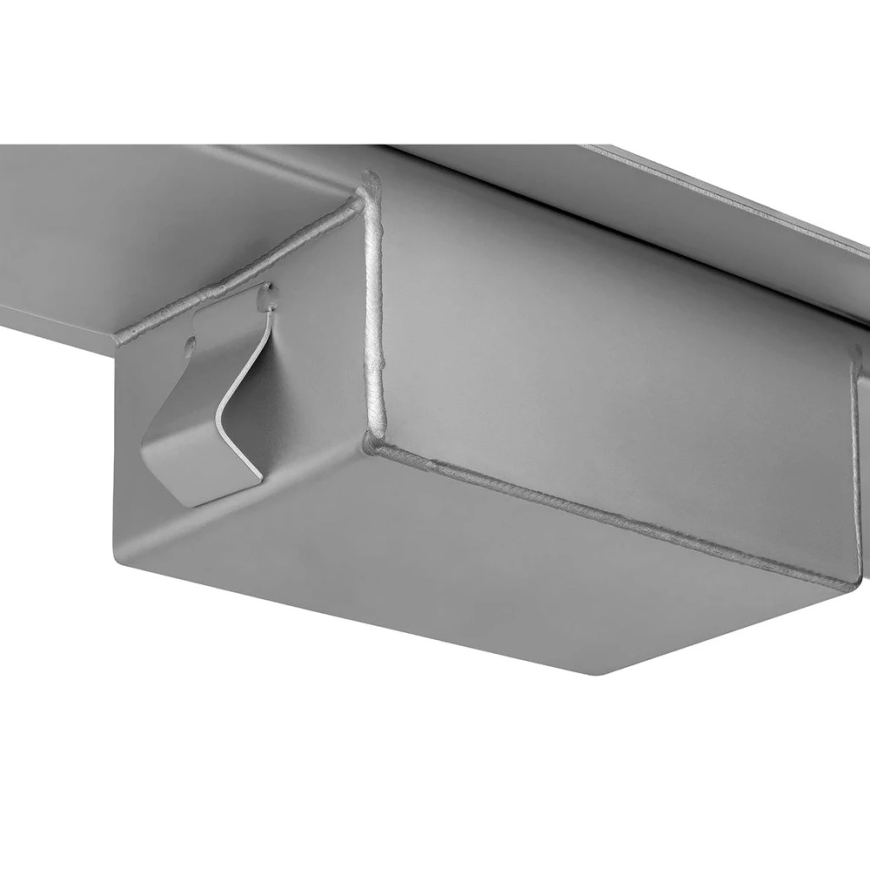

OLIMP LINEAR DRAIN 70 CM WET&DRY

All about the product

The "Wave" linear drain is a great idea to elegantly and practically organize your bathroom space.
The wide selection of sizes allows for optimal adjustment of its length to the dimensions of your shower enclosure or tiles, enabling more flexible planning of the shower space than using traditional shower trays.
It is made of AISI 304 stainless steel, which is known for its resistance to corrosion, detergents, and mechanical damage.
"Fala" shower channels come equipped with features that ensure convenient and efficient operation for many years:

- WET&DRY - a special solution in the siphon that prevents odors and insects during use and after drying;

- EASYclean - thanks to the included hook, it is easy to clean ;

- GRIPstrong - handles that stabilize the body, providing additional structure stiffness on the floor;

- HYDROcloth - the included sealing mat is an essential part for waterproofing;

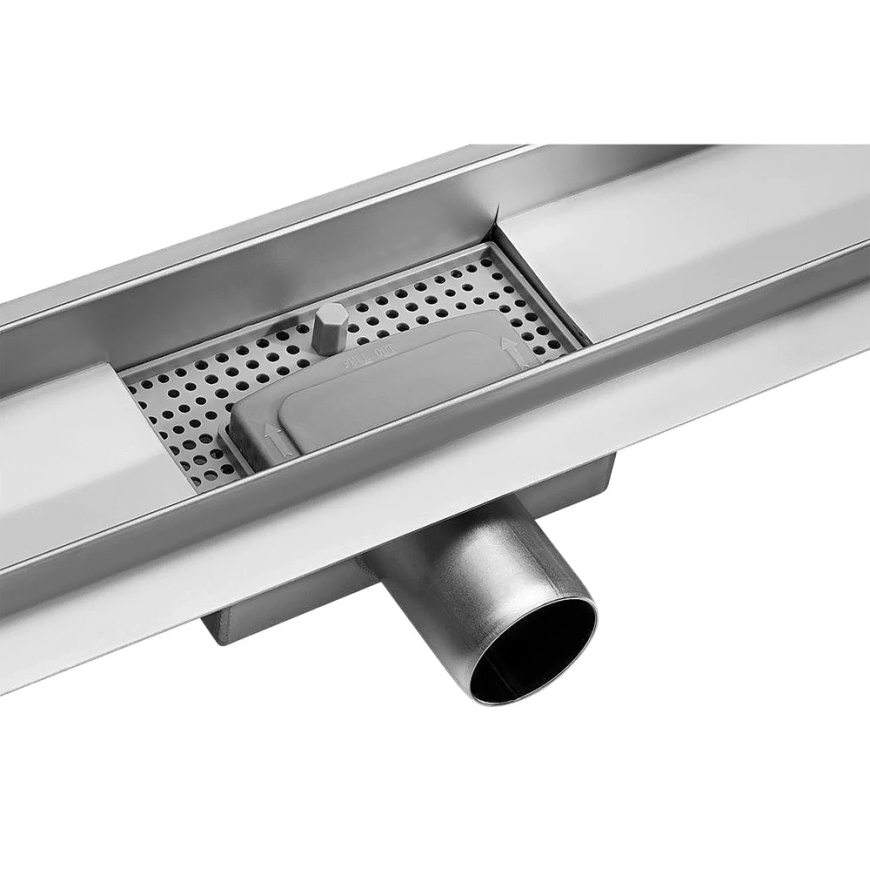

- STRAINER - an effective and durable mesh that protects against siphon clogging and facilitates continuous drainage maintenance;

- HQwelding - high-quality precision welding seams ensure drainage tightness;

- EXTRAslim - made of AISI 304 stainless steel, this very low-odor trap makes installation easier;

- EASYfix - a wide height adjustment range allows to adapt the drain pipe to the floor surface.

With the installation of the "Wave" drain pipe, you will not have to worry - all our drain pipes come with a 10-year warranty !

Detailed information:
- channel length: 70 cm
- grate construction - OLIMP
- material: stainless steel AISI 304
- width: 70 mm (an additional approximately 2 cm long flange on each side)
- siphon height: 52 mm high

Thickness of linear channel steel:

• channel: 1.2 mm
• grate: 1.5 mm

Product complies with EN 1253-1
Load class: K3 (surfaces without traffic)
Product thermal behavior class: Class A (no installation restrictions)
Flow rate: more than 36 l/min (maximum flow rate of the shower mixer - 18 l/min)
