Wireless HDMI Extender Kenik KG-EX20HDMI-W/4K6
149.00 €
Monthly payment from 4,74 €
5069038 KG-EX20HDMI-W/4K6
5903716300875
Shipping 8-12 b.d.
You are interested in this product?
All about the product

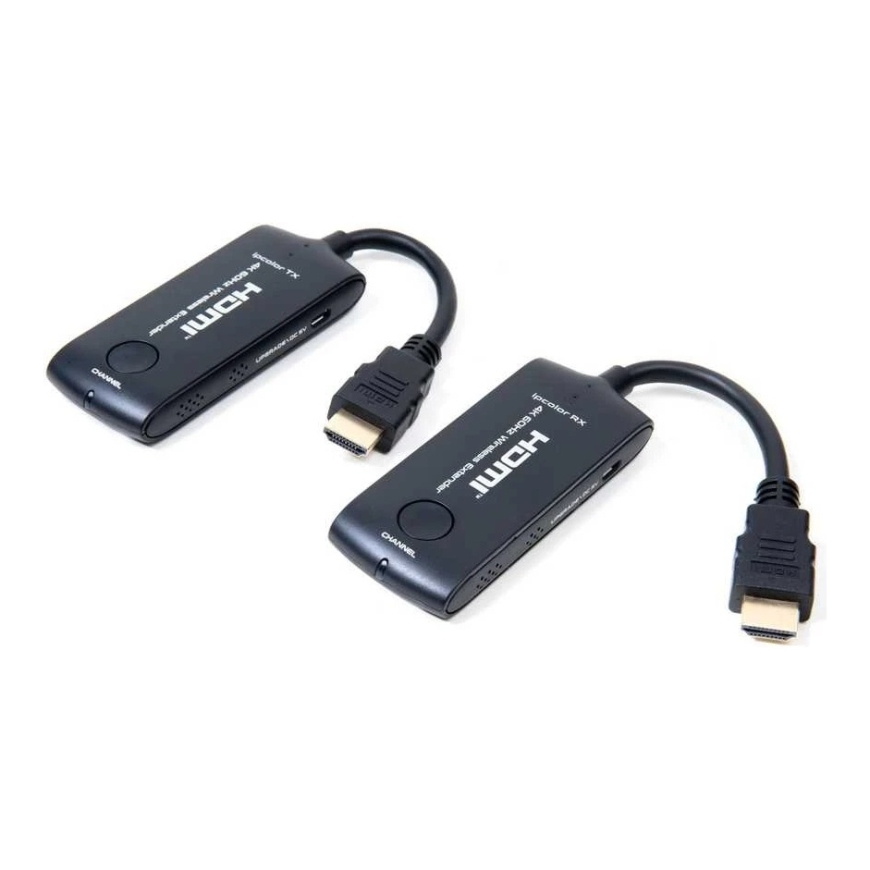

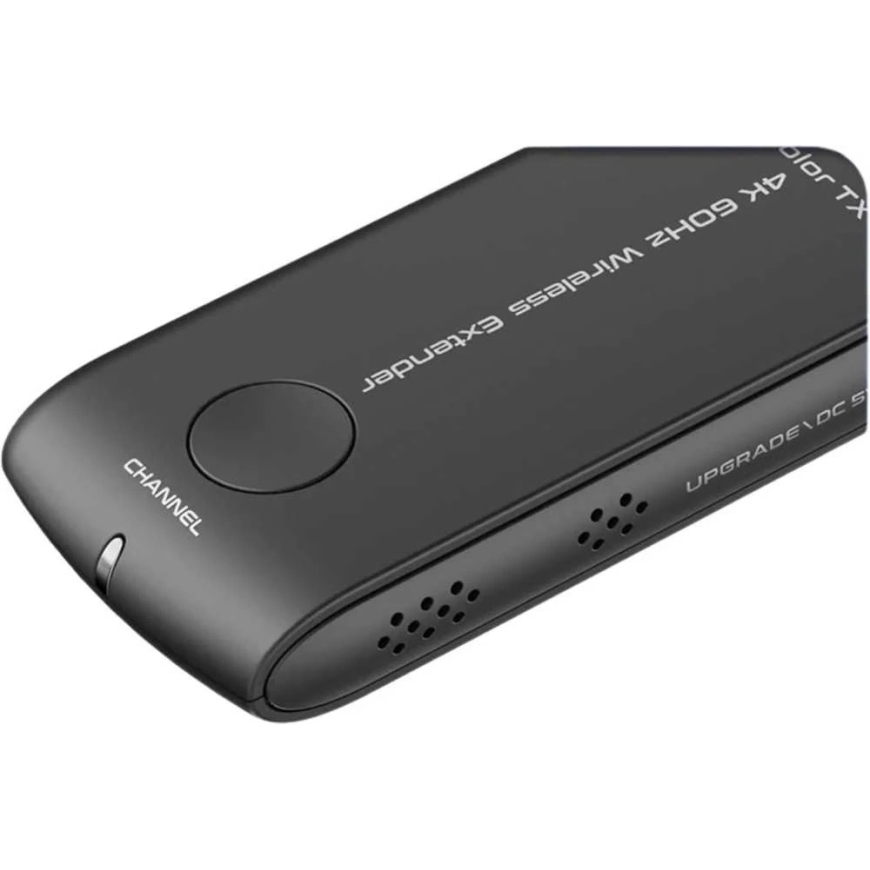

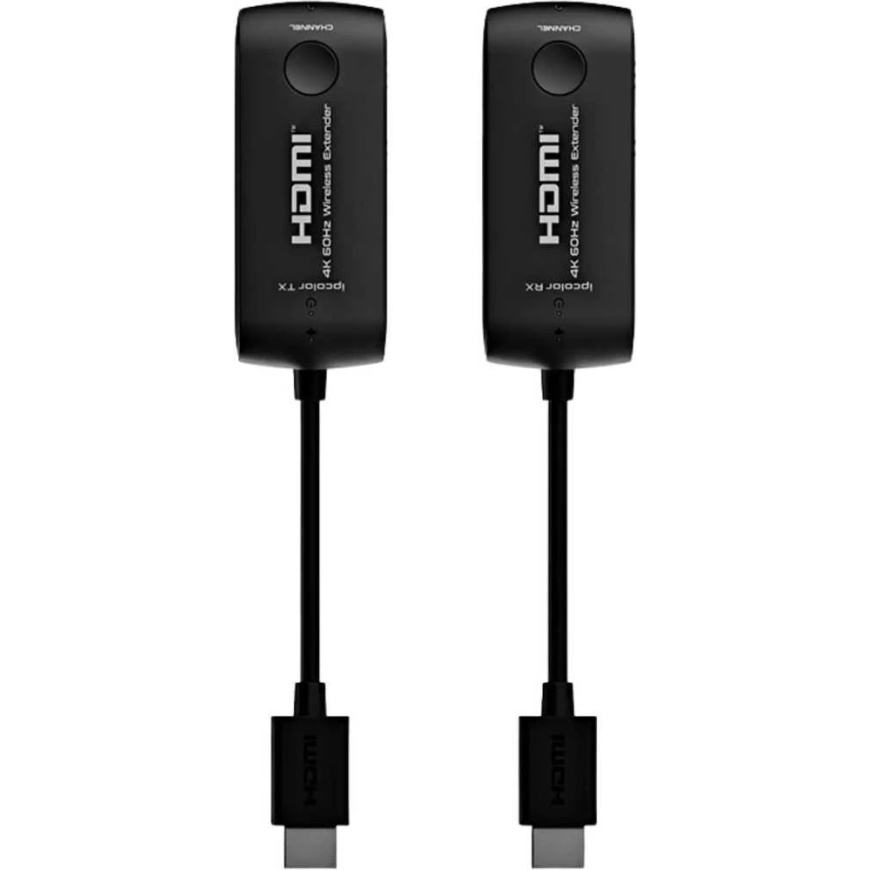

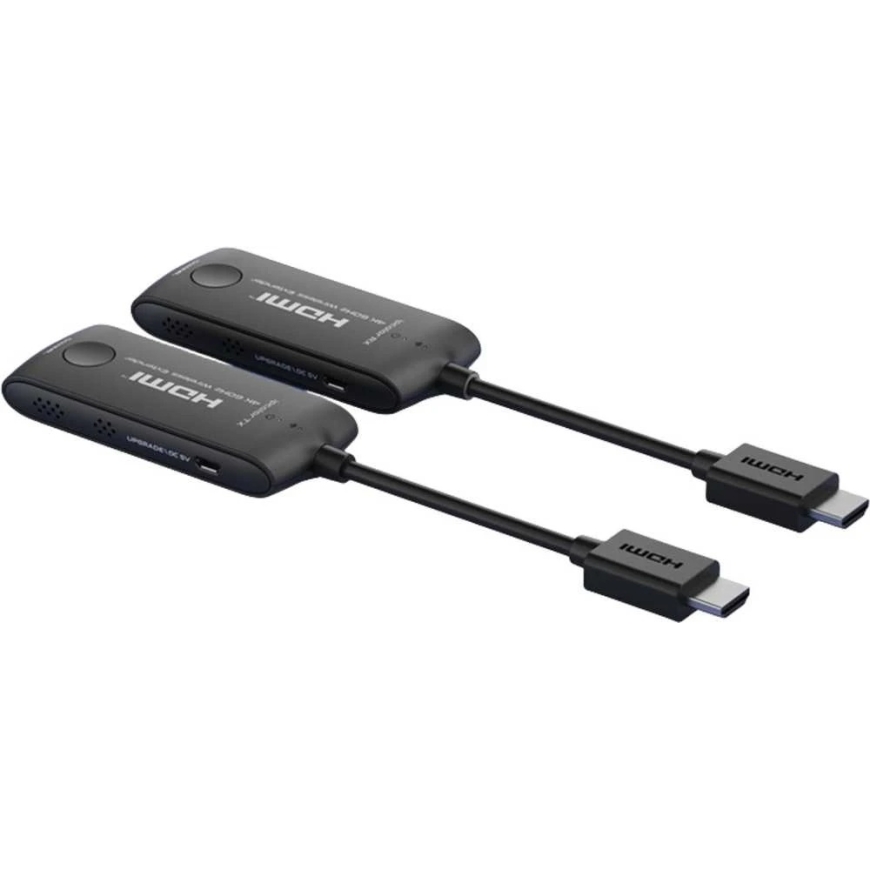

Wireless HDMI Extender Kenik KG-EX20HDMI-W/4K6
Model: KG-EX20HDMI-W/4K6
Features
- 16TX-1RX wireless HDMI extender 4K60Hz
- Utilization of ipcolor STREAM technology allows for the transmission of high-definition images with low latency.
- Supports up to 4096 × 2160 resolution at 60 Hz frequency, backward compatible
- Supports wireless transmission from up to 16 transmitters to 1 receiver, transmission distance of up to 20 m (line of sight)
- When multiple TVs operate in the same zone, SSID linking and channel switching are supported to eliminate interference.
- Supports 5 GHz wireless frequency band, high resistance to interference
- Ability to update firmware via Micro USB port
- Compact, portable design, easy to power on and off
- Designed for stable, continuous operation around the clock
Application
Application range includes, among others:
- conference and training rooms,
- home entertainment,
- VR / AR and interactive multimedia,
- trade fairs and exhibition displays.
Technical Specifications
| Model | approx. 1625 mm. |
| Producer | Kenik |
| Voltage / current | Powered via Micro USB (5V/1A) |
| Power consumption | Transmission < 5 W, reception < 3.5 W |
| HDMI version | HDMI 2.0 |
| HDCP version | HDCP 1.4 / HDCP 2.2 |
| Max transmission bandwidth | 18 Gb/s |
| Supported resolutions | 4096 × 2160 at 24/30/50/60 Hz (YUV 4:4:4, YUV 4:2:2, RGB); 3840 × 2160 at 24/30/50/60 Hz (YUV 4:4:4, YUV 4:2:2, RGB); 1080p at 50/60 Hz; 720p at 50/60 Hz; 1920 × 1200 at 60 Hz |
| TMDS signal – input/output | 0.7 ~ 1.2 Vp-p (TMDS) |
| DDC signal – input/output | 5 Vp-p (TTL) |
| Wi-Fi frequency band | 5.18–5.24 GHz |
| Transmission range | ≤ 20 m |
| Latency | 100–250 ms |
| Connection type | Point-to-point |
| SSID linking | Supported |
| ESD protection | 1a: Contact discharge – level 3 |
| 1b: Air discharge – level 3 | |
| Standard: IEC 61000-4-2 | |
| Operating temperature | −20 ~ +60 ℃ |
| Storage temperature | −30 ~ +70 ℃ |
| Humidity (non-condensing) | 0–90 % relative humidity |
| Dimensions | Transmitter: 40.2 (width) × 230 (length) × 15.0 (height) mm |
| Receiver dimensions: 40.2 (width) × 230 (length) × 15.0 (height) mm | |
| Color | Black |
| Housing material | ABS |
| Net weight | Weight: 47 g |
| RX: 54 g |
