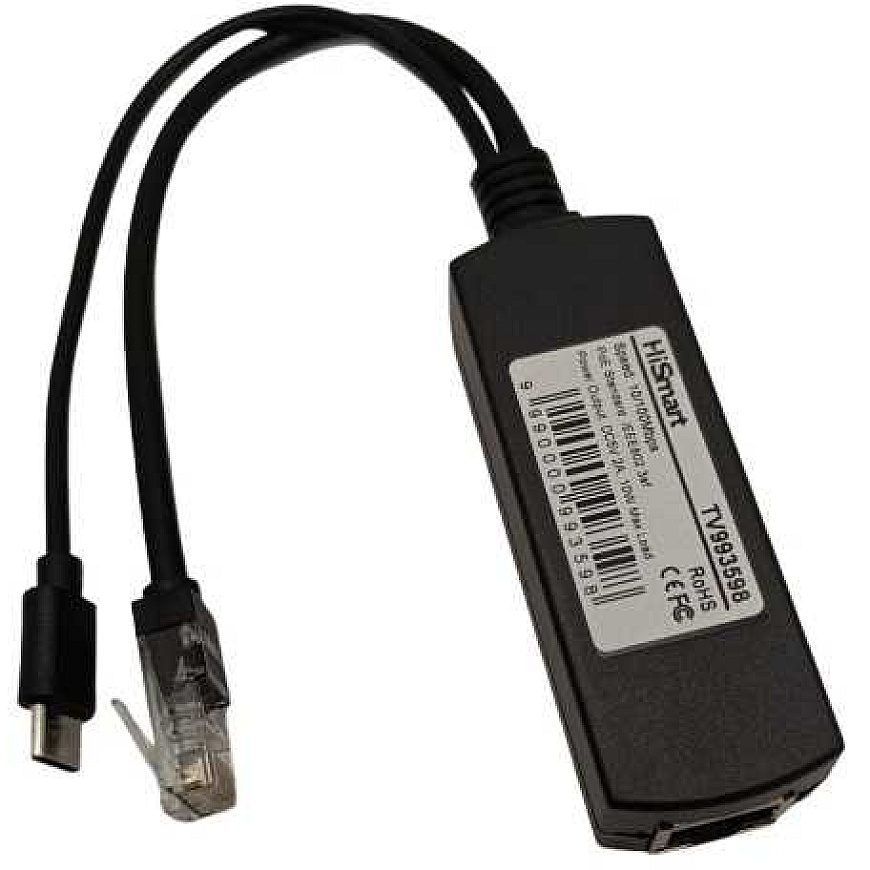

Extra Digital PoE 10/100M Splitter 10W, USB-C 5V 2A
5068849 TV993598
9990000993598
Shipping 5-8 b.d.
All about the product
PoE 10/100M splitter 10W, 5V DC, 2A (USB Type-C)
Features:
1x RJ45 input port + 1x RJ45 output connector + 1x USB Type-C connector.
Supports PoE IEEE802.3af standard.
Suitable for PoE hubs or PoE injectors, compatible with Mid-Span and End-Span devices.
Input voltage: 44-57V; output power: 10W, with >82% efficiency.
Maximum output: DC 5V, 2A.
Supports short-circuit, overcurrent, and overheating protection.
Supports isolation mode.
High voltage protection: 1500 V.
Specifications:
Connectors:
1x 8-pin RJ45 input port (F).
1x RJ45 output connector (M).
1x USB Type-C connector (M).
PoE input voltage: 44-57V.
Output voltage: 5V DC.
Output current: 2A.
Rated output power: 10W.
Efficiency: > 81.5%.
Network bandwidth: 10/100Mbps.
Operating temperature: -20°C~+60°C.
Operating humidity: 20%~80%.
Length: 190mm.
Warranty: 24 months.
