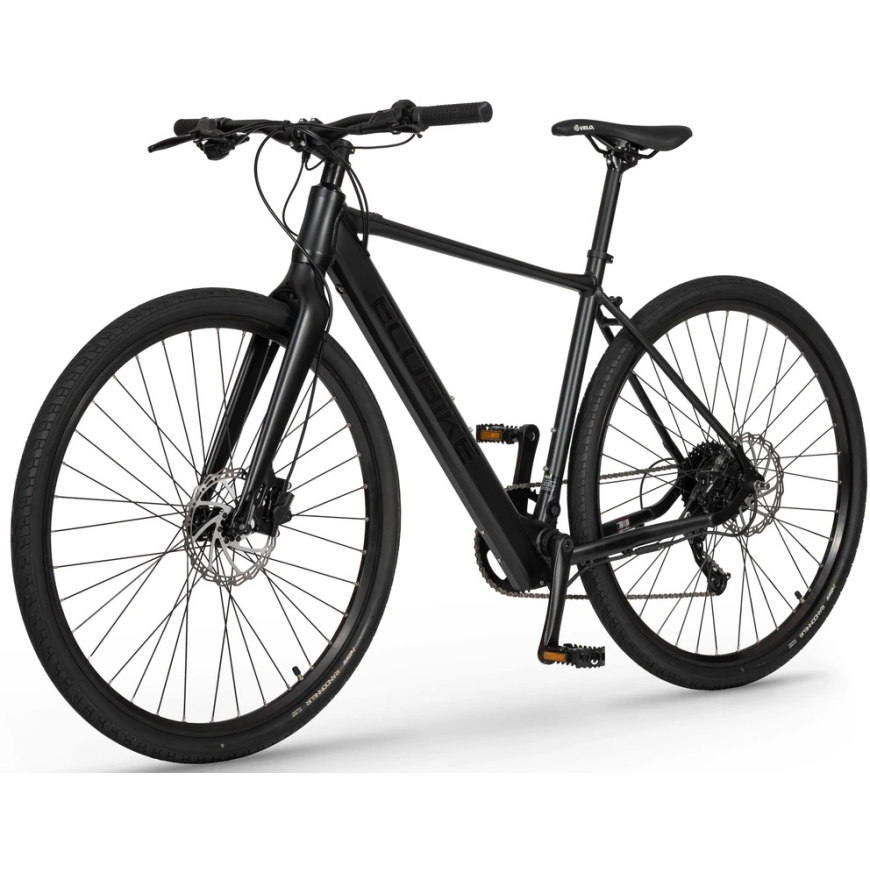

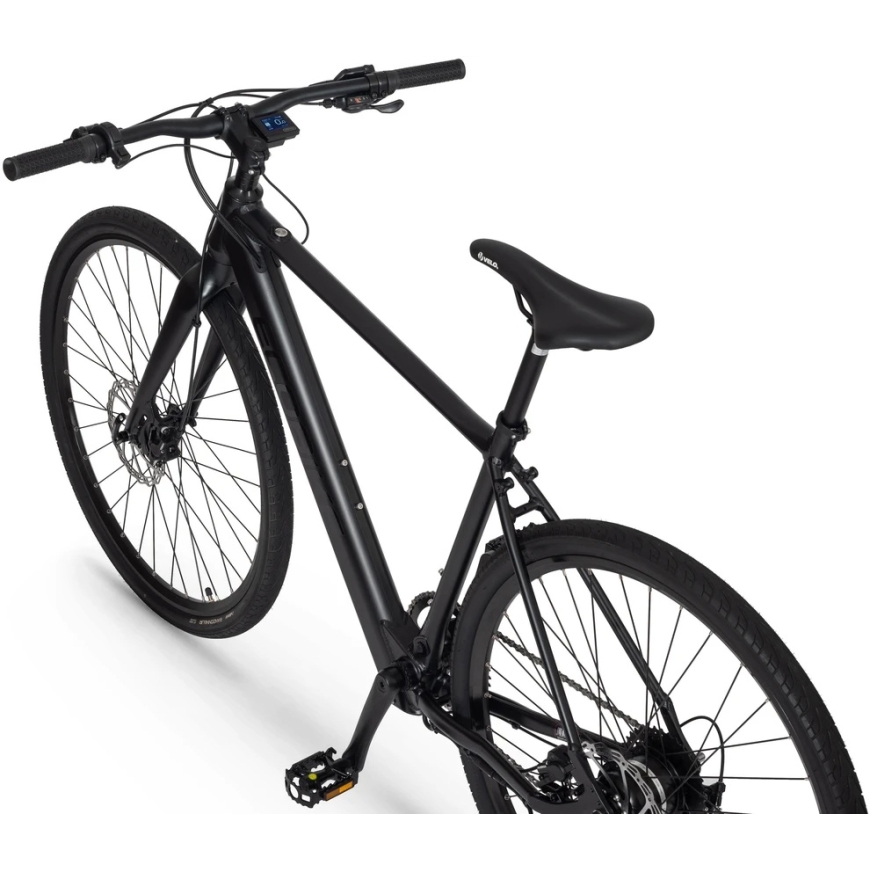

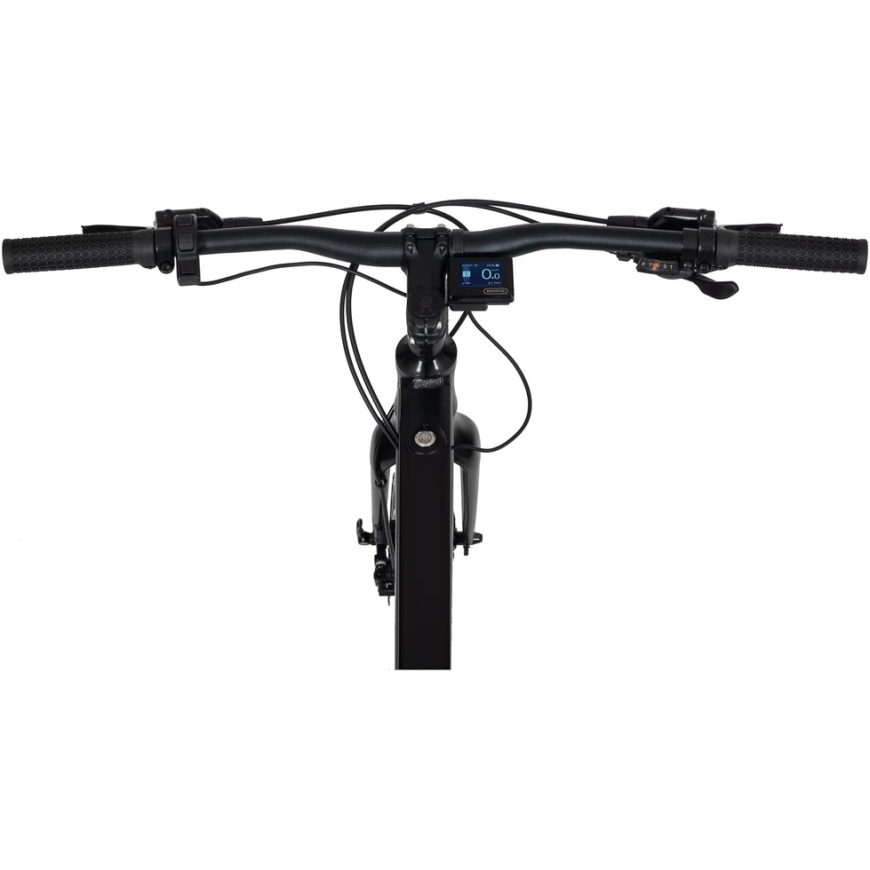

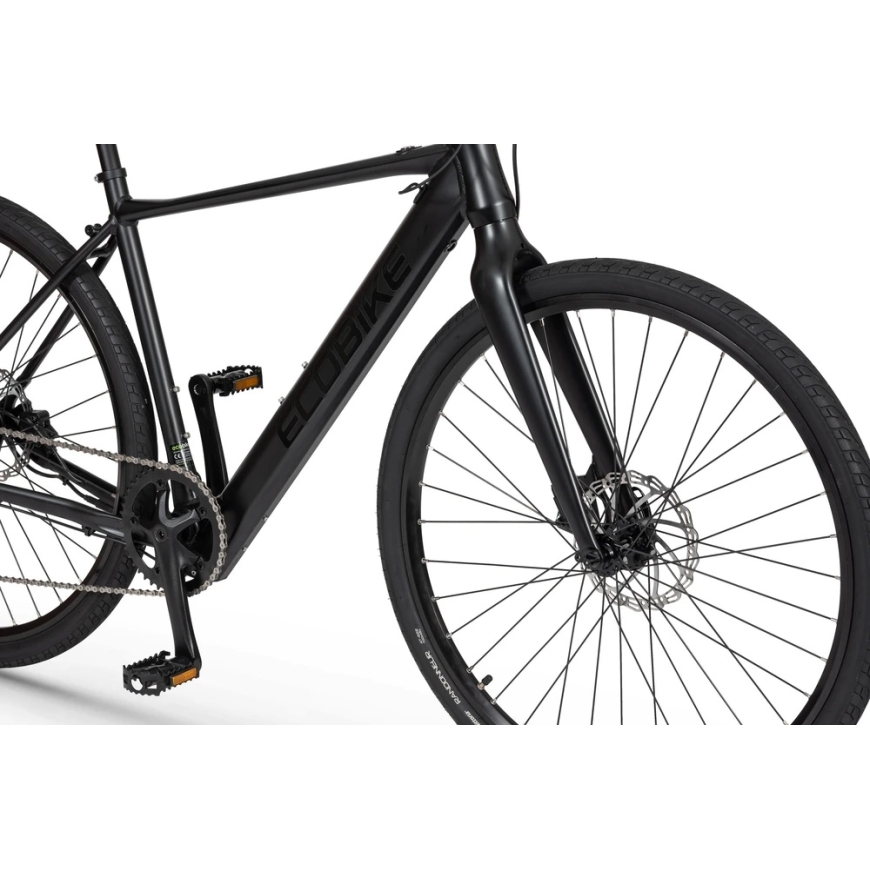

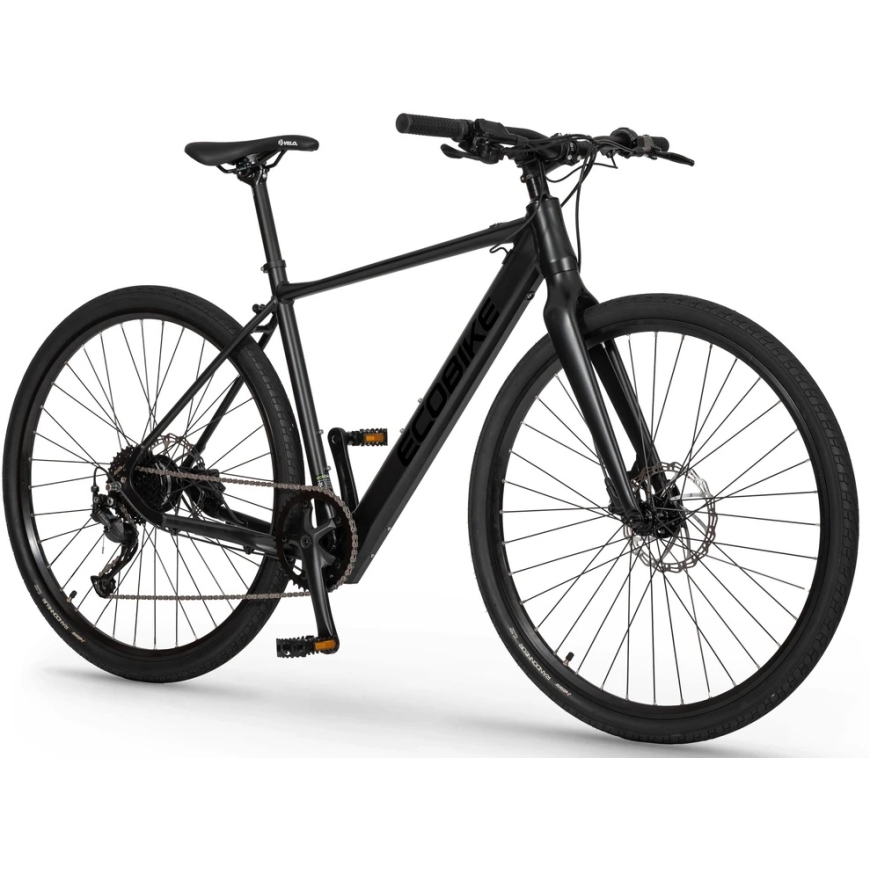

Ecobike Urban Plus 10 Electric Bike + 7 Ah 601Wh
1 358.40 €
Monthly payment from 35,88 €
5068339 2099900031502
2099900031502
Shipping 5-8 b.d.
You are interested in this product?
All about the product
Product Technical Specifications
- 349.2 + 252 Wh: MAX 120 km
- Voltage: 36V
- Motor mounted in the rear wheel
- Maximum speed supported by the motor: 25 km/h according to EU standard EN 15194
- Torque: 30 Nm
- Manufacturer: BAFANG
- Power: 250 W
- Built into the frame (hidden)
- Battery lifespan (approx.): 700 charges
- Charging time: ~ 5 hours
- Type: Li-ion
- Voltage: 36V
- Charger: 220-240V 42V 2A D type
- Cell manufacturer: LG
- Smart BMS (Battery Management System) - intelligent battery management system
- Battery can be charged even when removed from the bike (convenient for charging at home)
- BATTERY CHARGING TIME: ~ 5 hours
- FRAME: Aluminum, hydroformed tubes
- FRAME SIZE: 19"
- FORK: Rigid, aluminum
- BRAKES: Tektro HD M275 hydraulic disc
- CHAIN: KMC X8NP 1/2"*3/32"*110L
- FRONT CHAINRING: Prowheel 44T, single speed
- REAR DERAILLEUR: Shimano ALIVIO SGS 9-speed
- REAR CASSETTE: Shimano CS-HG200-9 9-speed 11-36T
- HANDLEBAR: Zoom MTB-AL-E320BT, aluminum, diameter at the stem clamp (center): 31.8 mm, length: 720 mm
- STEM: Zoom TDS-RD479, aluminum, for fork outer diameter: 28.6 mm, extension (length): 70 mm
- HUBS: Front: KT KT-XA2F 13G 36H 9x100 mm / Rear: Integrated motor
- PEDALS: Included
- RIMS: 28", reinforced, 3 walls
- SADDLE: VELO VL-3381
- SADDLE POST: Zoom SP-C255, Diameter: 27.2 mm, length 300 mm
- GEAR SHIFTER: Shimano Altus 9 speed
- SPOKES: Stainless steel
- TIRES: Vittoria Tire City Randonneur (SNC) 47-622
- WEIGHT: 18.7 kg
- NUMBER OF GEARS: 9
- HANDLEBAR GRIPS: VELO VLG-1889D2
- Top tube length: 590 mm
- Head tube length: 120 mm
- Frame size: 490 mm
- Wheelbase (distance between axle centers): 1087.50 mm
- Seat tube angle: 74
- Head tube angle: 70.50
- Maximum bike load: 125 kg
- Battery capacity - measured in Wh (watt-hours) or Ah (ampere-hours) and directly affects the maximum travel distance with a fully charged battery. Higher capacity means greater travel distance
- Travel distance - Indicates the approximate distance in kilometers that you can travel with a fully charged battery. Distance depends on rider's weight, battery capacity, weather conditions, terrain (inclines/declines) and the level of motor assistance while pedaling. It is important to note that over time the battery capacity decreases. This is a normal chemical process of lithium-ion batteries (cell aging). Improper use or modifications can reduce the maximum travel distance.
- Bike weight - the total weight of all bike components, including the motor, battery, frame parts, and accessories. Ecobike bikes have an excellent power-to-weight ratio.
- Motor power - Nominal power that the electric bicycle motor can generate. The power does not exceed the requirements set for electric bicycles in many countries.
- Maximum motor power - the highest power that an electric motor can generate without a speed limiter, and to achieve this, it may be necessary to change some parts to match the correct voltage/current parameters. Users cannot usually select maximum motor power without certain modifications. Removing the speed limiter will require registering the vehicle as an electric moped. Additionally, in such cases, the relevant traffic rules applicable to mopeds must be followed. Due to improperly performed modifications, the electric bicycle system may fail. In such cases, regarding modifications - neither the manufacturer nor the seller is liable for any losses or injuries.
- Battery lifespan - the specified number of charge cycles is approximate and can be less depending on how the battery is used, stored, etc.
- Maximum speed that can be sustained by the motor is 25 km/h. Upon reaching this limit, the motor shuts off and will only activate again when the speed decreases. The motor operates only while pedaling (helps during pedaling). The bike does not have a throttle. Assistance levels and other settings can be selected using the controller on the handlebar.
- Warranty - all EcoBike bicycles come with a 2-year factory warranty for the frame and components. The battery has a 1-year warranty. Other warranty conditions are listed on our website. For warranty questions - please contact Bikko.
TRAVEL DISTANCE:
Battery capacity and approximate travel distance:
MOTOR:
BATTERY:
FRAME GEOMETRY:
