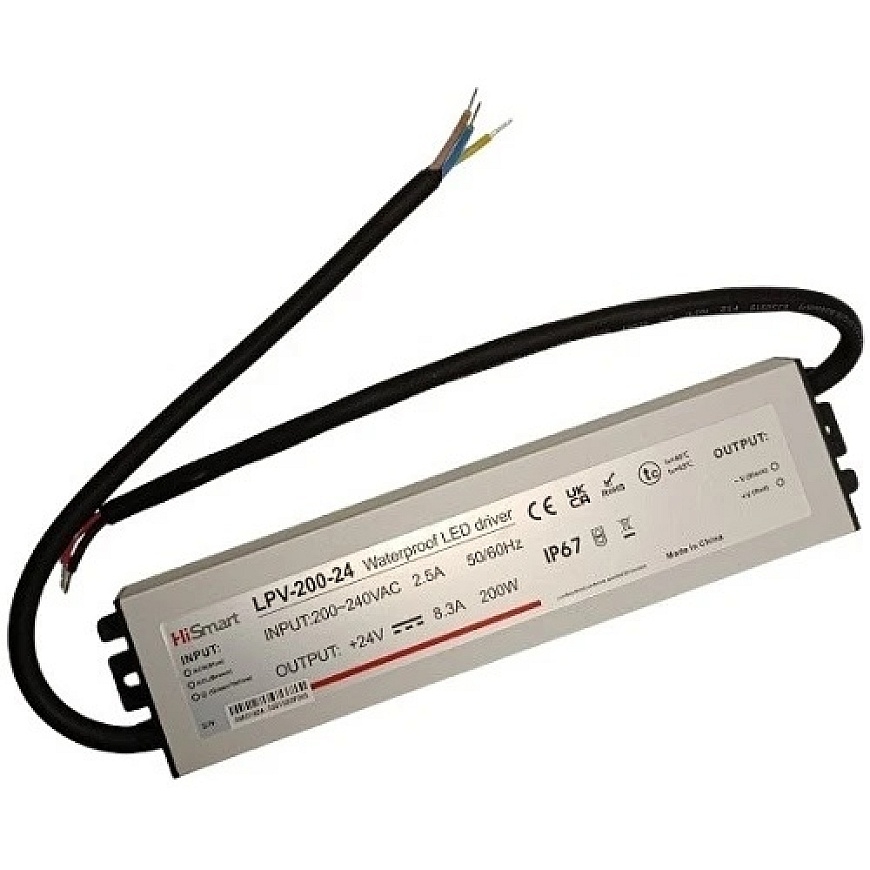

Hismart Power Supply 24V, 8.3A, 200W, IP67
5065921 LPV-200-24
9990000700783
Shipping 5-8 b.d.
All about the product
Impulse power supply 24V, 8.3A, 200W, safety class IP67.
Features:
24V power supply operating in impulse mode.
Small size, lightweight, high efficiency.
Protection: against overload, overvoltage, short circuit, overheating.
Cooling by free air convection. The metal casing improves heat dissipation.
Fully protected isolated aluminum casing. Safety class IP67 (water resistant), suitable for both indoor and outdoor installation.
Specifications:
Power supply type: impulse.
Input voltage: AC 200-240V. Frequency: 50/60Hz.
Output voltage: DC 24V.
Maximum output current: 8.3A.
Maximum power: 199.2W.
Ripple and noise: 360 mV p-p.
Efficiency: 93%.
Leakage current in the input circuit at AC 240V: up to 0.75mA.
Operating temperature: from -20°C to +60°C.
Operating humidity: 20%~90%RH.
Casing material: aluminum.
Safety class: IP67.
Dimensions: 235x54x21 mm.
Weight: 0.5kg.
Warranty: 24 months.
