SWITCHING POWER SUPPLY APPLICATION FOR DIN RAIL ESPE HDN-1524 24V/15W/0.63A

SMPS POWER SUPPLY FOR DIN RAIL ESPE HDN-1524 24V/15W/0.63A - MAIN FEATURES:

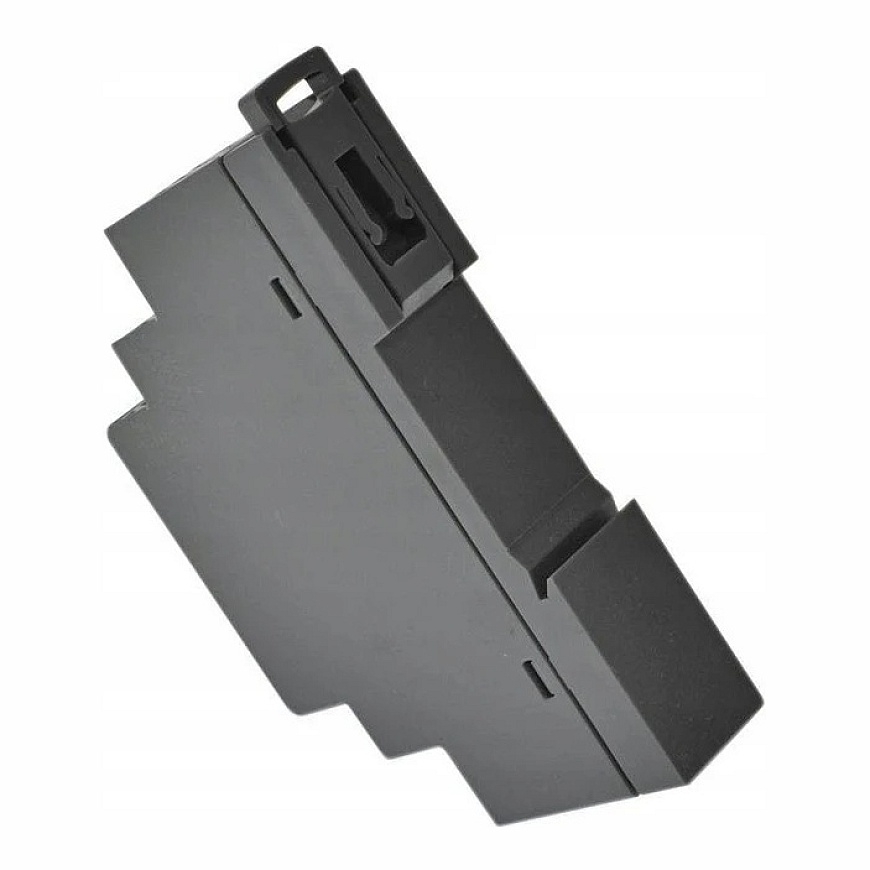

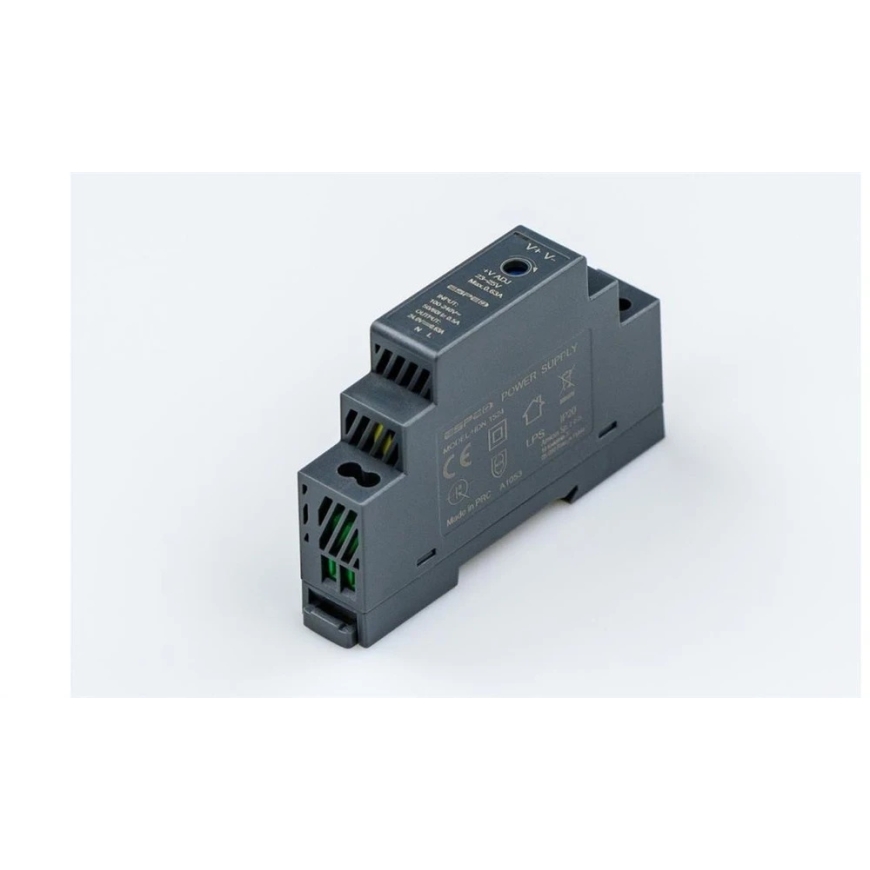

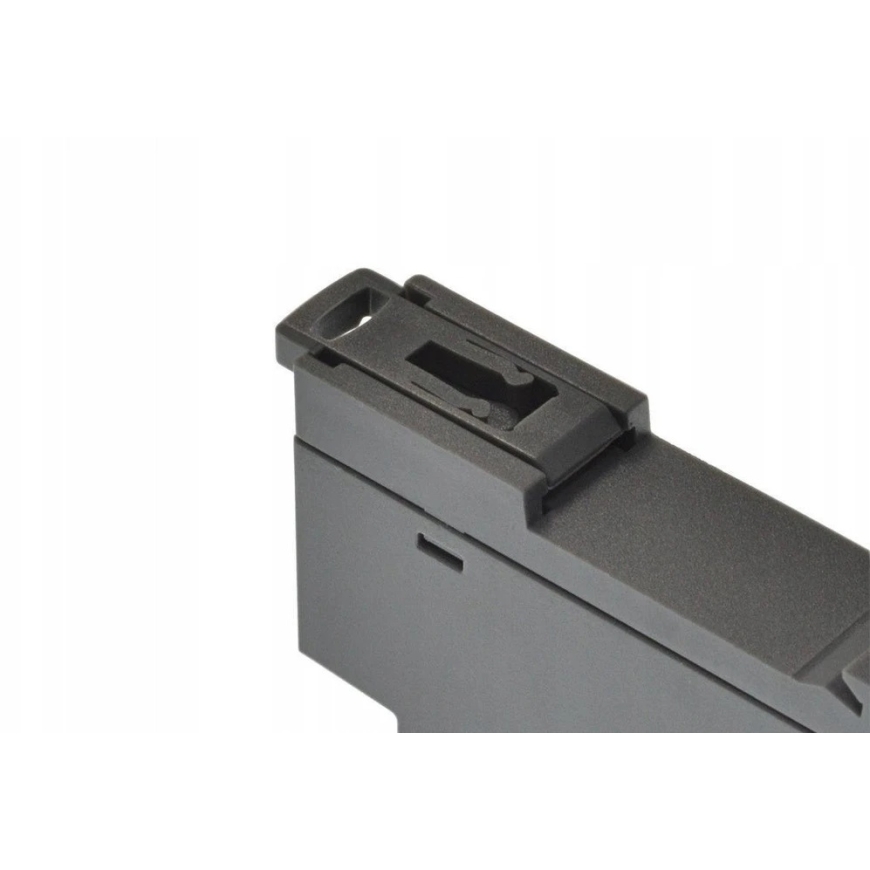

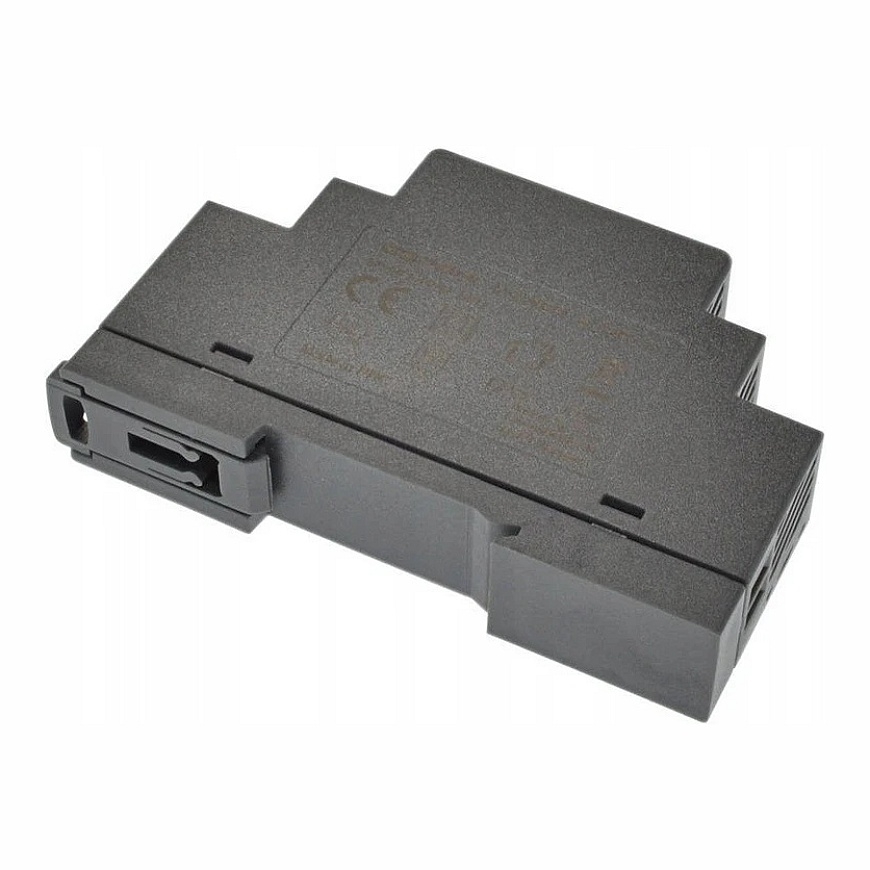

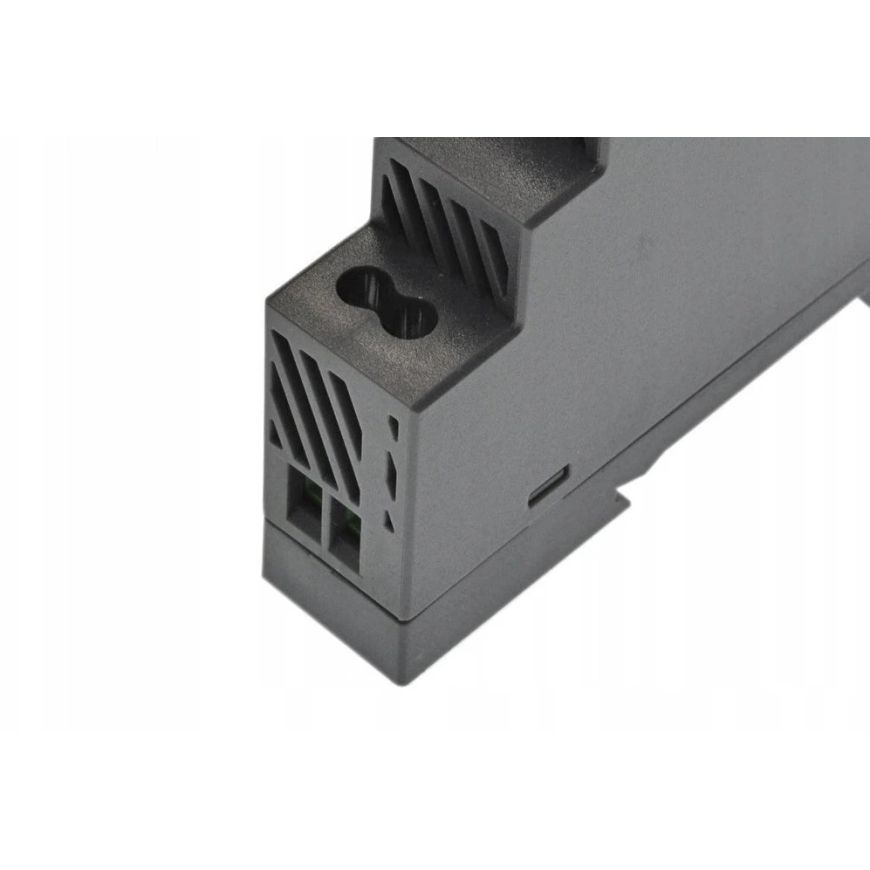

ESPE HDN-1524 is a high-quality, efficient switching power supply in a plastic housing, designed for mounting on a 1U TS35 mm DIN rail. The perforated housing ensures good ventilation, while the trimmer allows precise voltage adjustment to compensate for voltage drops in the cables.

SMPS POWER SUPPLY FOR DIN RAIL ESPE HDN-1524 24V/15W/0.63A - FUNCTIONS AND APPLICATION:

Power supply characteristics:

• compact size
• high output power
• based on high-class electronic components
• fully protected, low inrush current
• trimmer
• perforated housing
• LED indicator light

Power supply application:

• industrial automation systems
• alarm and monitoring systems
• building automation installations
• lighting systems

SMPS POWER SUPPLY FOR DIN RAIL ESPE HDN-1524 24V/15W/0.63A - TECHNICAL DATA:

Input parameters:

• input voltage range: 100–240 V AC
• power line frequency range: 47–53 Hz
• no-load power consumption: less than 0.25 W

Output parameters:

• regulation type: CV - constant output voltage
• nominal output voltage: 24 V
• output voltage regulation: 23–25 V
• nominal output power: 15 W
• nominal load current: 0.63 A
• maximum output voltage ripple: 150 mVp-p
• energy conversion efficiency: over 85% I

Additional information:

• Operating temperature: from -10ºC to +40ºC
• output protection: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP)
• input protection: overvoltage (OVP), undervoltage (UVP)
• MTBF: 30,000 hours
• Dimensions: 90 x 58 x 18 mm
• weight: 70 g
• Housing: IP20
