Fala NAPO LINIJAUS DRAIN 30 CM

All about the product

The "Wave" linear drainage system is a great idea to elegantly and practically organize your bathroom space.
A wide selection of sizes allows for optimal length adjustment to fit your shower cabin or tile dimensions, enabling more flexible planning of the shower area compared to traditional shower trays.
It is made of only AISI 304 stainless steel, which is known for its resistance to corrosion, detergents, and mechanical damage .
The "Fala" shower drains are equipped with features that ensure convenient and efficient operation for many years:

- SMARTthru - a special inspection window ensures 100% flow control and easy cleaning;

- EASYclean - it is easy to clean thanks to the included hook;

- GRIPstrong - handles that stabilize the body, providing additional structural rigidity on the floor;

- HYDROcloth - the included sealing mat is a necessary component for waterproofing;

- STRAINER - an effective and durable mesh that protects against siphon clogging and facilitates ongoing drainage maintenance;

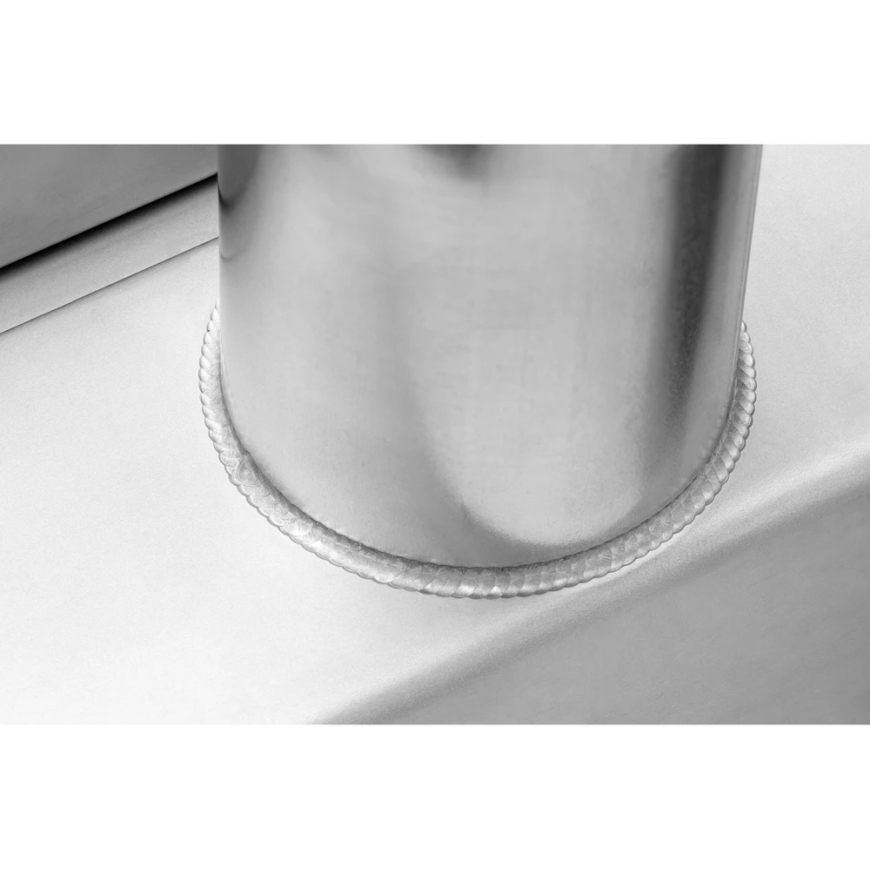

- HQwelding - high quality precision welding seams, ensuring the tightness of the drainage;

- EXTRAslim - made of AISI 304 stainless steel , a very low odor trap that facilitates installation;

- EASYfix - a wide height adjustment range that allows for adapting the drainage pipe to the floor surface.

You can install the "Wave" drainage system without worry - all our drainage systems come with a 10-year warranty!

Specifications:
- length of the drain: 30 cm
- grate design - Napo
- material: AISI 304 stainless steel
- width: 70 mm (additional flange about 2 cm on both sides)
- siphon height: 52 mm

Thickness of the linear channels:

• channel: 1.2 mm
• grate: 1.5 mm

Product according to EN 1253-1
Load class: K3 (surfaces without traffic)
Thermal behavior class of the product: Class A (no installation restrictions)
Flow rate: more than 36 l/min (maximum flow of shower mixer - 18 l/min)
