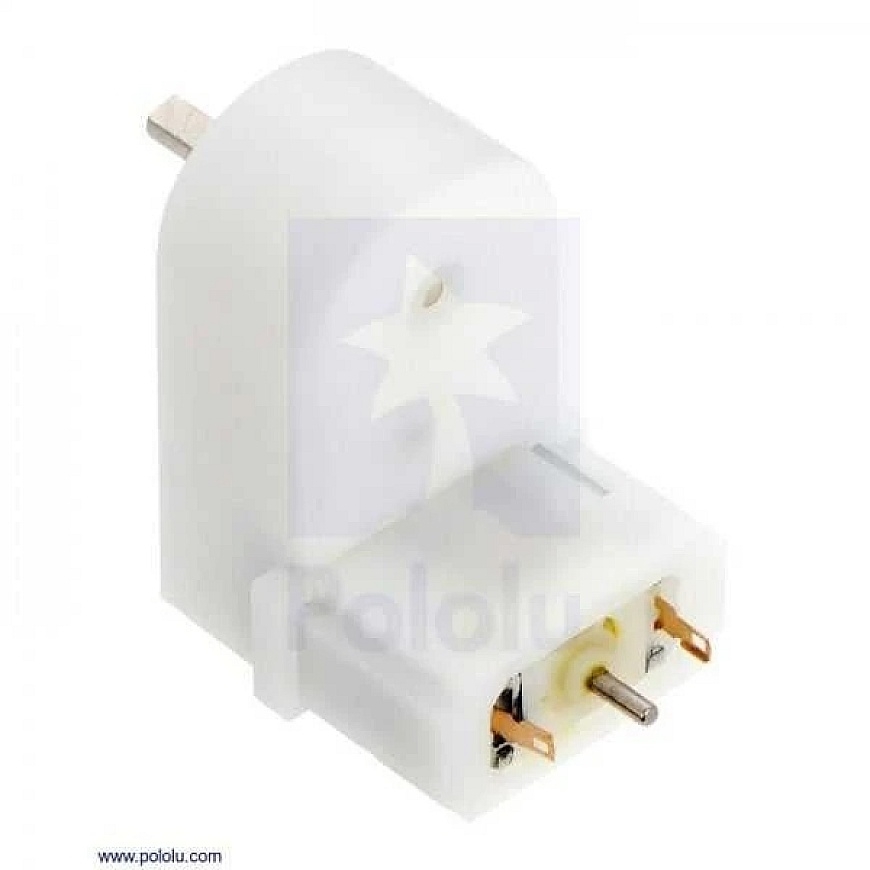

Oem Pololu DC motor with 120:1 reduction gearbox
22.01 €
5063503 AN-03748
5904422306137
Shipping 8-15 b.d.
You are interested in this product?
All about the product
This compact, affordable plastic motor (DC motor with a 120:1 gear reduction) is perfect for small robots. It is designed to operate at 4.5 V, but should also work within the 3 V – 6 V range. The motor measures 9.7 mm in length and 3 mm in diameter, with a D-shaped output shaft.
Specifications:
- Dimensions: 36.5x 20x 27.4mm
- Weight: 19g
- Shaft diameter: 3mm
- Shaft type: 3mm D
- Operating voltage: 4.5V
- Gear ratio: 120:1
- No-load speed at 4.5V: 150 rpm
- No-load current at 4.5V: 130 mA
- Stall current at 4.5V: 1250mA
- Torque at 4.5V: 25oz
- Extended motor shaft: 5x1.5mm
