"SwitchBot" Vision Pro Keyboard

All about the product

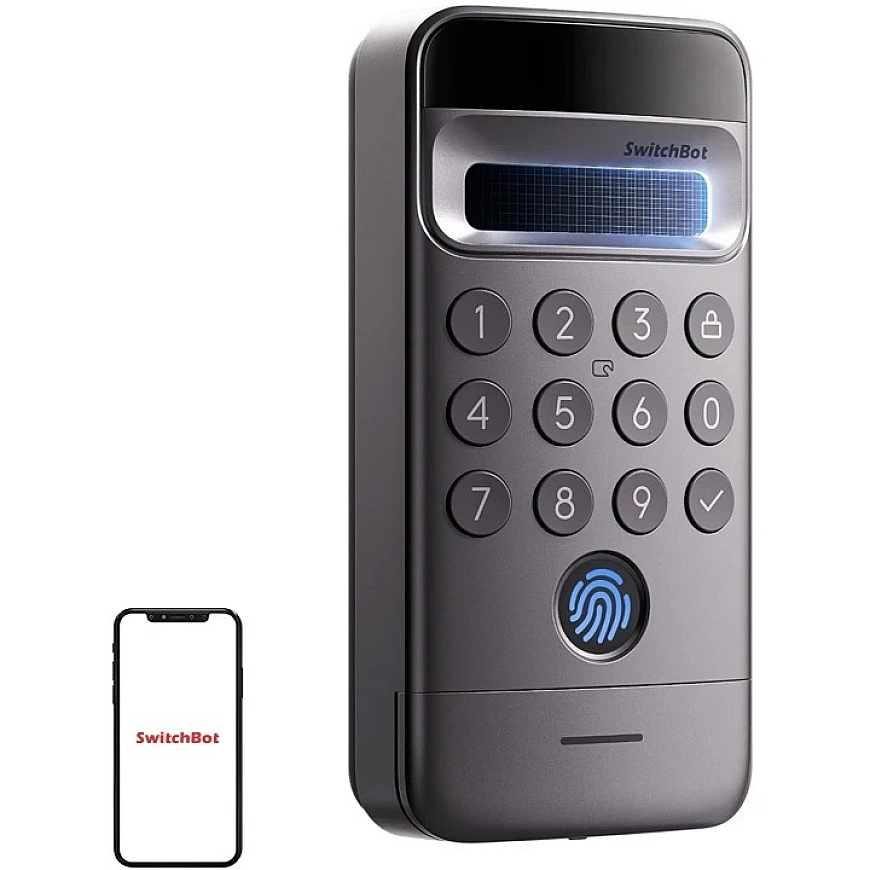

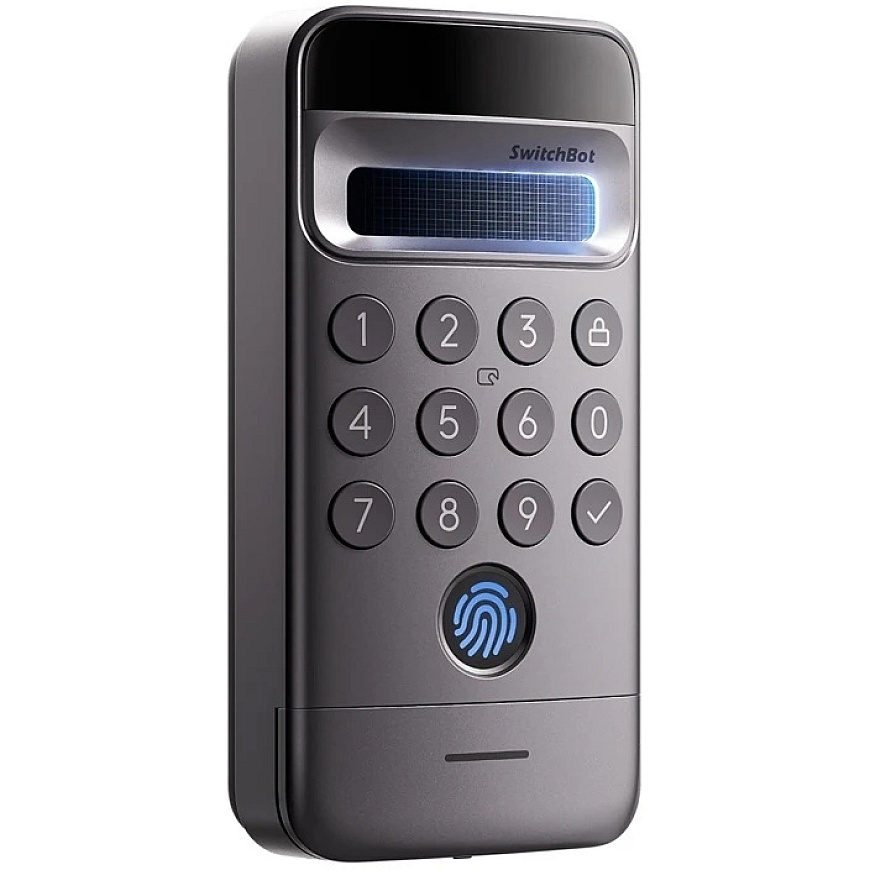

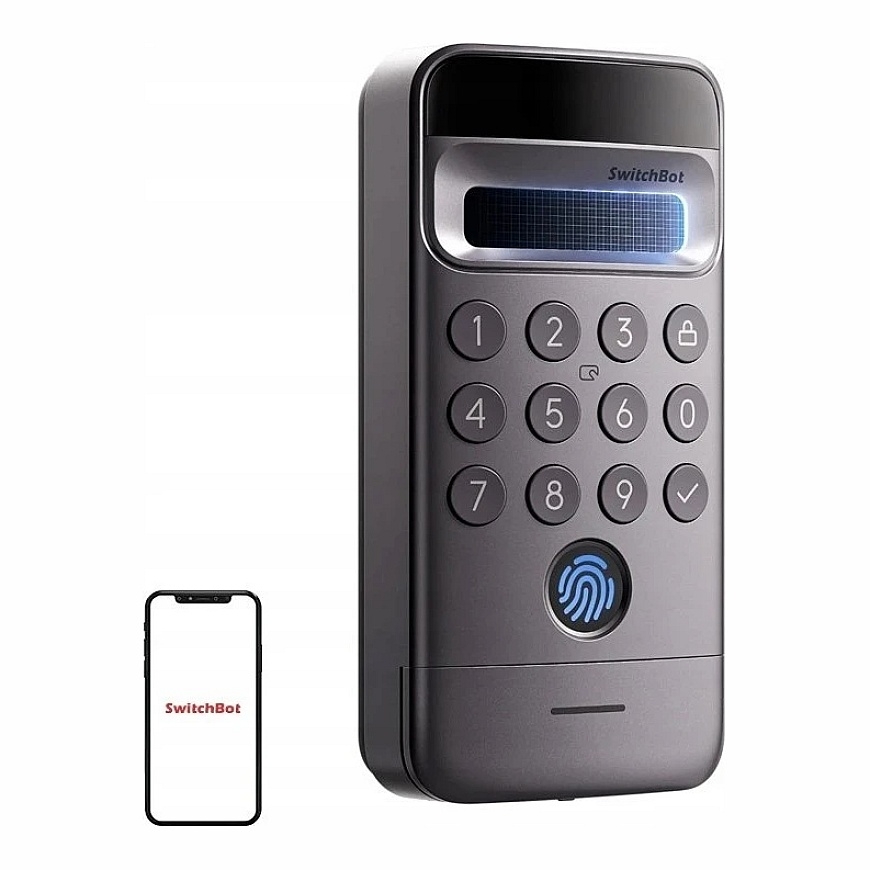

"SwitchBot" Keypad Vision Pro

The "SwitchBot Keypad Vision Pro" is an advanced keypad designed for "SwitchBot" smart locks, combining multiple unlocking methods with a high level of security. The device allows you to instantly unlock doors in just 0.3 seconds using 3D face recognition, palm vein scanning, a password, an NFC card, a mobile app, or, when paired with a compatible lock, a fingerprint. All biometric data is stored locally on the device, and advanced smart anti-tampering algorithms effectively protect against attempts to cheat using photographs, videos, and 2D images. The device has an IP65 rating, operates in temperatures from -20 °C to 45 °C, and the battery lasts up to 12 months, making it suitable for both indoor and outdoor use.

Next-Generation Biometric Authentication

The keypad uses 3D face recognition and palm vein scanning technologies, ensuring an exceptionally high level of accuracy. In both cases, the false acceptance rate is less than 0.0001%, providing reliable user identification. Face recognition utilizes 940 nm infrared light, enabling operation even in complete darkness. This is a convenient solution when your hands are busy, you're wearing a mask, your fingers are wet, or it's difficult to read fingerprints.

Multiple Access Methods for Household Members and Guests

The "SwitchBot Keypad Vision Pro" allows flexible access management to your home. The system supports up to 100 users using face recognition and up to 100 users using palm vein scanning. You can also save up to 100 NFC cards, create access codes ranging from 6 to 12 digits, and grant access via the "SwitchBot" app. Various types of codes are available, including permanent, temporary, single-use, and emergency codes, making it easy to grant access to family members, guests, or staff.

Integration with the "SwitchBot" Ecosystem

The device works with the entire "SwitchBot Lock" series, including the "Lock Pro" and "Lock Ultra" models. When paired with a compatible lock, you can also use fingerprint unlocking for up to 90 users. The keypad also serves as a doorbell – pressing the button activates the audible signal on the "Lock Ultra", and when connected to the "Hub 3", the user receives immediate notifications about people at the entrance. The "Hub 3" also features a remote control, integration with "Alexa", "Google Home", and "Siri", and supports the "Matter" standard.

Long Battery Life and Convenient Charging

The integrated lithium battery provides up to a year of operation on a single charge if 10 unlocking actions are performed daily. The keypad can be charged using a USB-C cable or an external battery, enhancing user convenience. For those seeking maximum autonomy, there is also an option to power the device using a compatible solar panel, which can supply the necessary energy for daily operation under suitable lighting conditions.

Durable Design for Everyday Use

The housing, made from PC materials and coated with UV protection and durable PVC film, is designed to withstand challenging conditions. The IP65 rating protects the device from dust and water, and installation can be done using 3M adhesive tape or screws. The Bluetooth Low Energy connection ensures stable connectivity up to 5 meters, while the compact dimensions of 131 × 65 × 30 mm and a weight of 205 g allow for aesthetically pleasing installation on the front door.

Included in the package

• Pro keypad with camera
• Mounting kit (A)
• Corner mounting kit (B)
• Mounting strip A
• Mounting strip B
• Hole marking sticker
• C-type charging cable
• Black screws × 2
• Button sticker
• Retractable pin (reset / unlock)
• Screw set (including wall plugs)
• Wet wipes
• NFC card
