TCL Wall-Mounted Air Conditioner, BreezeIN 2.0 R32 Wi-Fi, 2.6/3.4
5061476 6931084315831
Shipping 7-11 b.d.
All about the product

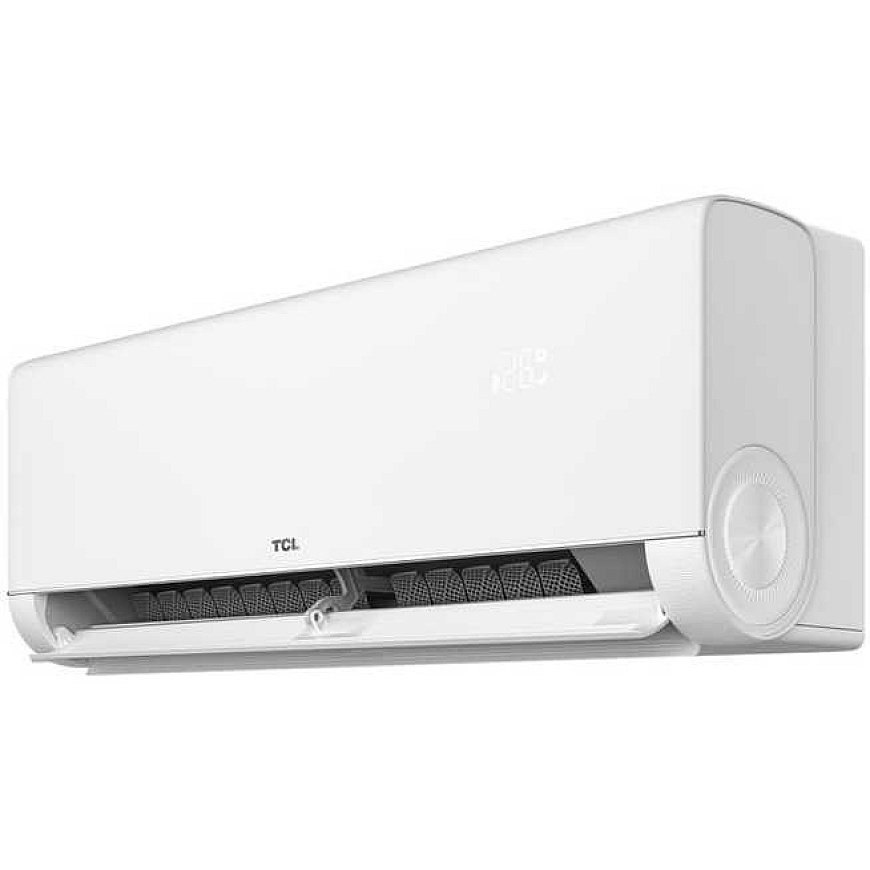

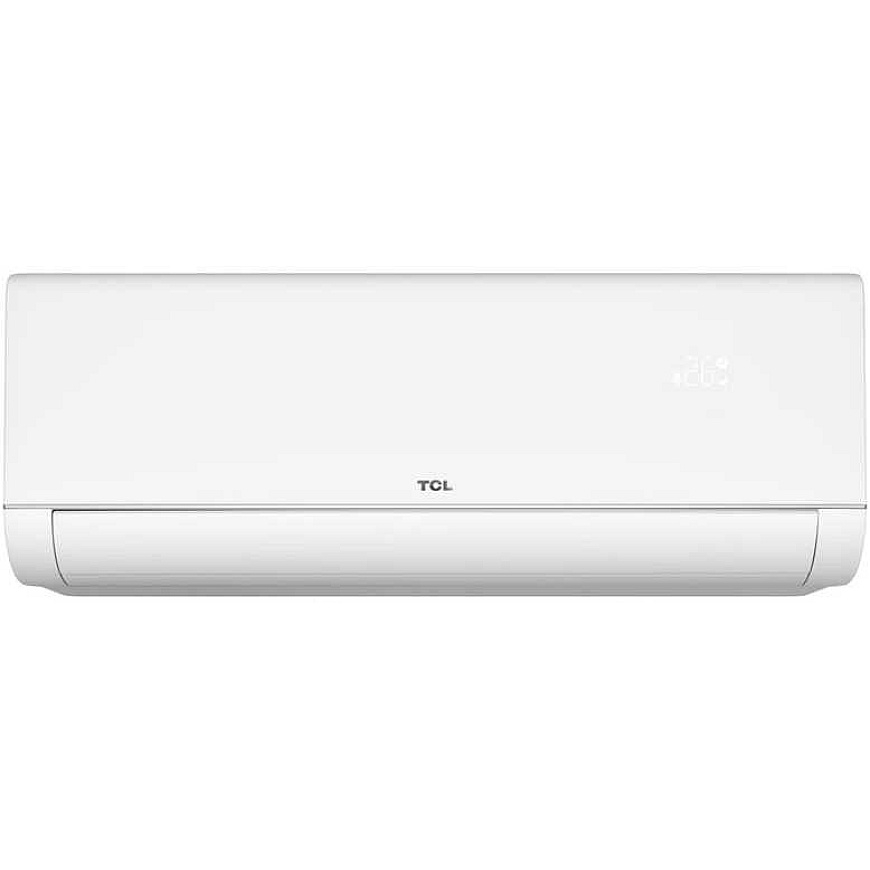

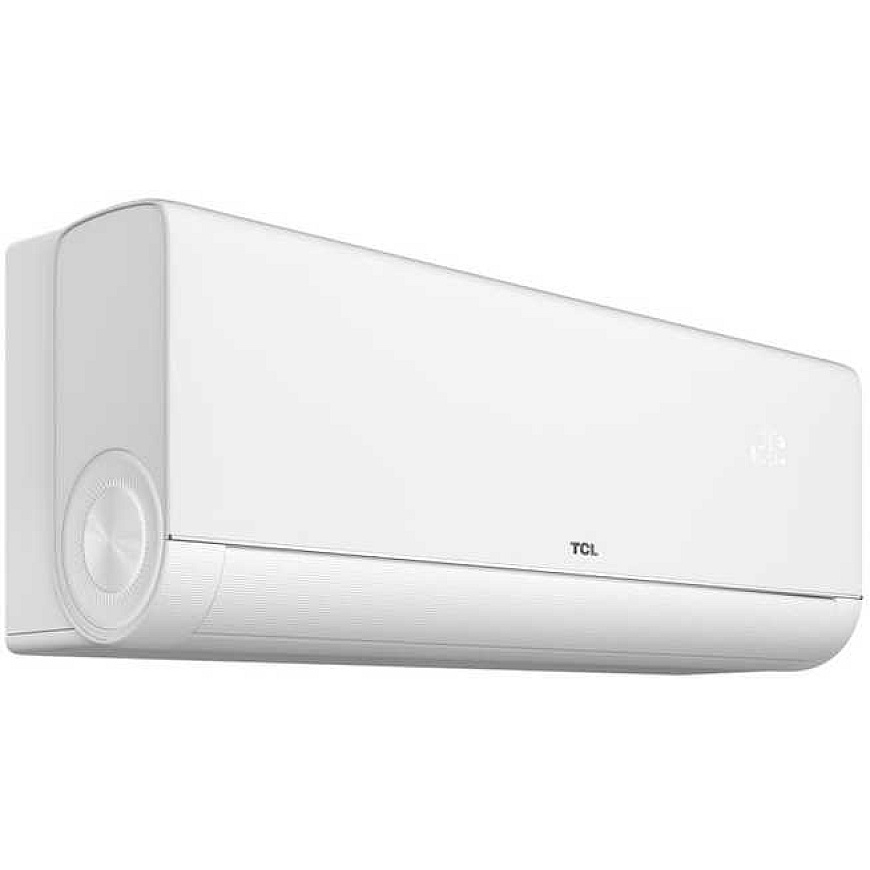

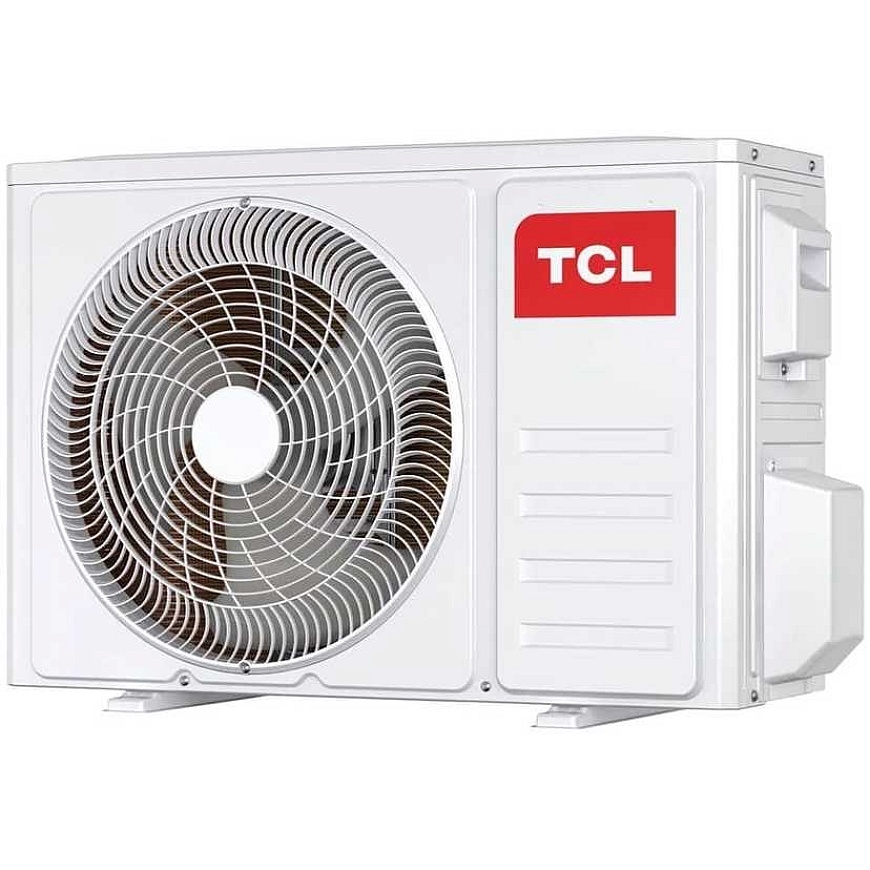

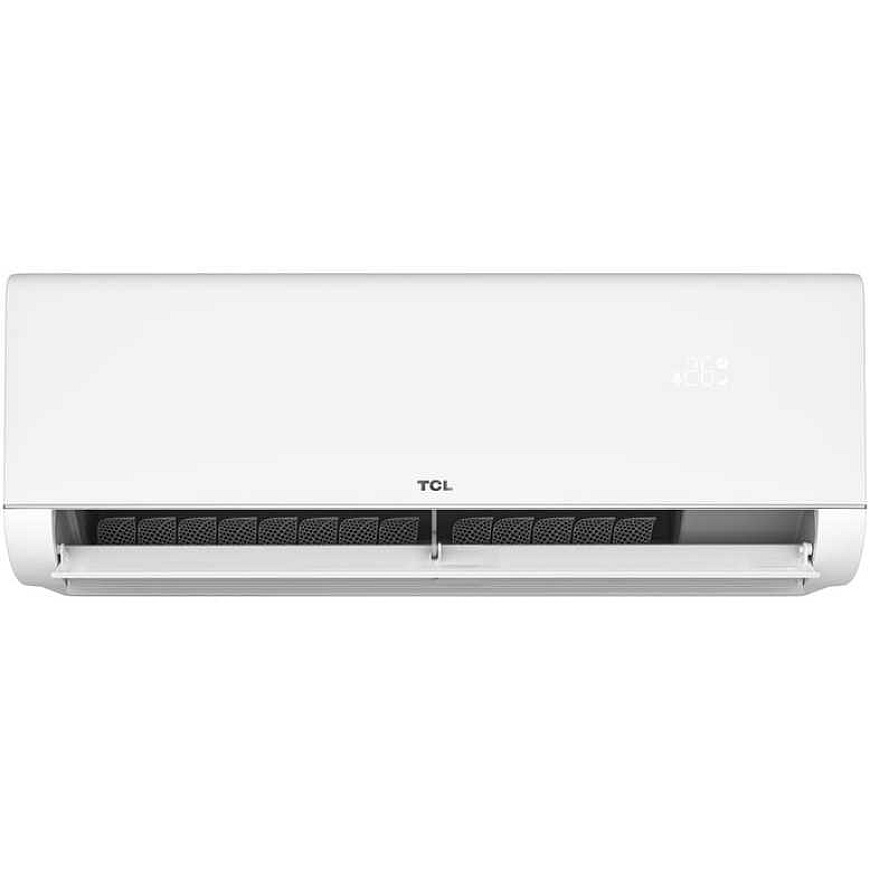

Wall-mounted air conditioner with an external unit included
TCL BreezeIN 2.0 2.6 kW wall-mounted air conditioner
TCL BreezeIN 2.0 2.6 kW – inverter wall-mounted air conditioner / heat pump, designed for cooling and heating indoor spaces. The model features integrated Wi-Fi control, Gentle Breeze soft airflow technology, dual airflow directing system, T-AI energy-saving technology, and a self-cleaning function.
Specifications
- Model: TAC-09CHSD/UG11V3A
- Cooling capacity: 2.68 kW (0.94–3.81 kW)
- Heating capacity: 3.35 kW (0.94–4.23 kW)
- SEER: 8.5
- SCOP: 4.6
- Energy efficiency class: A+++ cooling / A++ heating
- Refrigerant: R32
- Airflow when cooling / heating: 680 / 700 m³/h
- Indoor unit sound pressure level: 19–44 dB(A)
- Outdoor unit sound pressure level: 52 dB(A)
- Operating outdoor temperature for cooling: from -15 to +53 °C
- Operating outdoor temperature for heating: down to -30 °C
- Indoor unit dimensions: 808 x 305 x 209 mm
- Outdoor unit dimensions: 787 x 498 x 290 mm
- Maximum pipe length: 25 m
- Maximum height difference: 10 m
- Recommended room area: up to 25 m²
- Package contents: indoor and outdoor units
Gentle airflow
Gentle Breeze technology distributes cold airflow through 13 special fins with 1222 microholes. This converts strong direct blowing into a more even and softer airflow.
Wide dual airflow directing system
The dual airflow directing system allows for more efficient airflow distribution both when cooling and heating. The lower flap moves up to 90°, and the upper one – up to 180°, enabling the air to reach a larger area of the room.
T-AI energy saving
The T-AI system pre-adjusts the inverter compressor's working frequency and allocates more power for maintaining the target temperature instead of unnecessary cooling of the room.
Smart Wi-Fi control
The air conditioner can be controlled via the TCL Home app, allowing you to change temperature and operating modes remotely. BreezeIN 2.0 is also compatible with Google Home and Amazon Alexa voice control.
Fast cooling and heating
The efficient inverter compressor allows for quick temperature change in the room. In fast operation mode, cooling kicks in within 30 seconds, while heating starts within 60 seconds.
56 °C self-cleaning
The self-cleaning cycle of the indoor unit includes condensing, frosting, defrosting, drying, and heating up to 56 °C. The outdoor unit's Reverse Clean function helps remove dust and other contaminants from the heat exchanger.
More features and comfort
- 108 mm large diameter fan – the optimized indoor unit fan ensures powerful airflow; according to the manufacturer, the airflow volume has been increased by up to 25 %.
- Stable cooling up to +53 °C – the system is designed to operate in cooling mode even at high outdoor temperatures.
- Stable heating down to -25 °C – BreezeIN 2.0 can operate in heating mode even at low outdoor temperatures.
- Power Cut Auto Restart – upon restoration of power supply, the device automatically continues operating with previous settings.
- Dry Contact control – the ability to link the device's on/off with doors, windows, or other control systems.
- BMS compatibility – the air conditioners can be integrated into building management systems.
- Electricity consumption monitoring – energy usage graphs can be viewed in the TCL Home app to monitor the device's operation.
- 3-level Generator Mode – allows limiting the compressor current and power at three different levels.
- Easier maintenance – improved indoor unit design allows for simpler access to electronic components and service maintenance.
- More convenient installation – integrated level, larger space for pipe connection, wiring opening box, and One PRESS mechanism simplify the device installation.
- Easier disassembly and cleaning – key elements of the indoor unit are designed for easier removal and access for deeper cleaning.
- OTA updates – the software of electronic controllers can be updated remotely using cloud technology.
