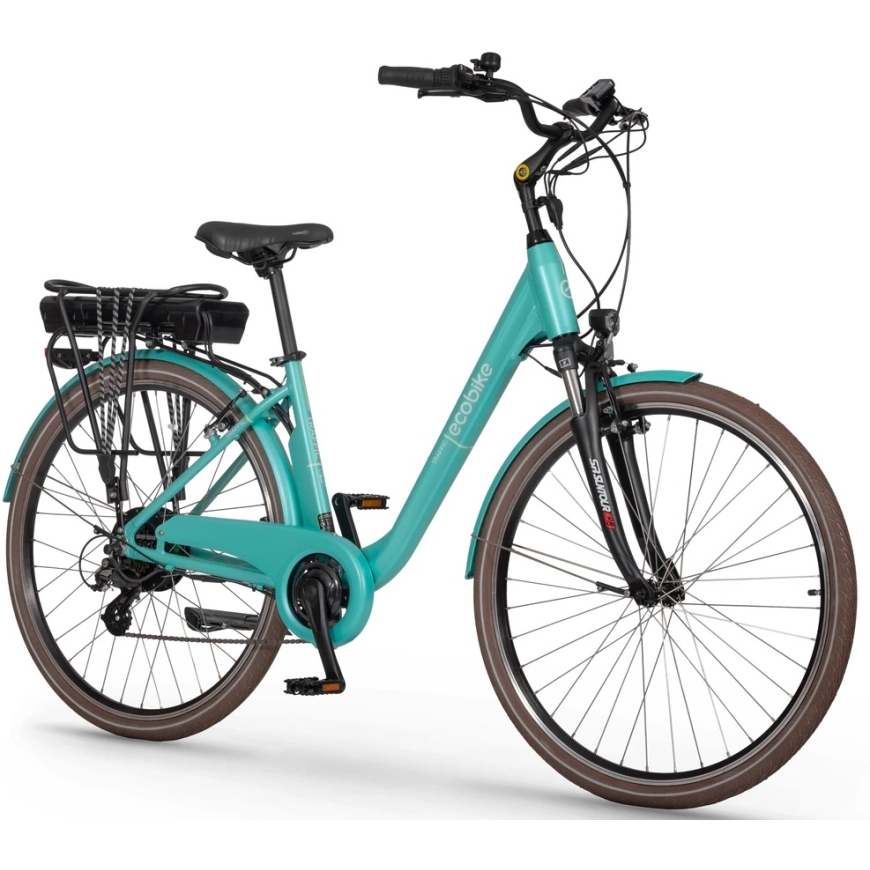

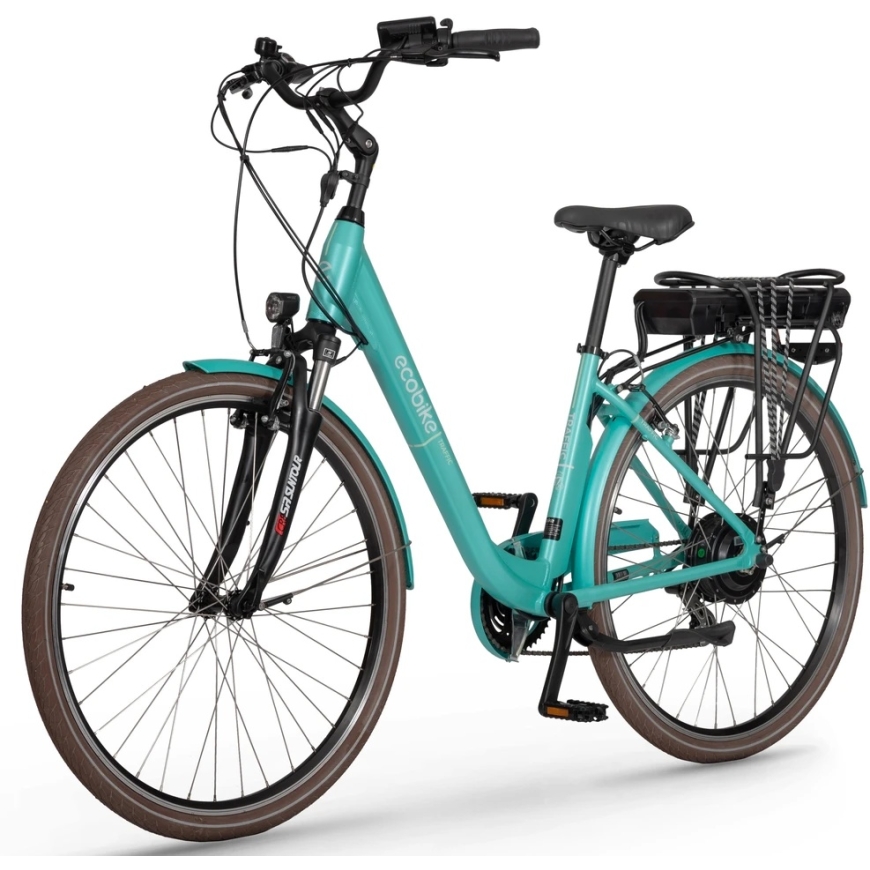

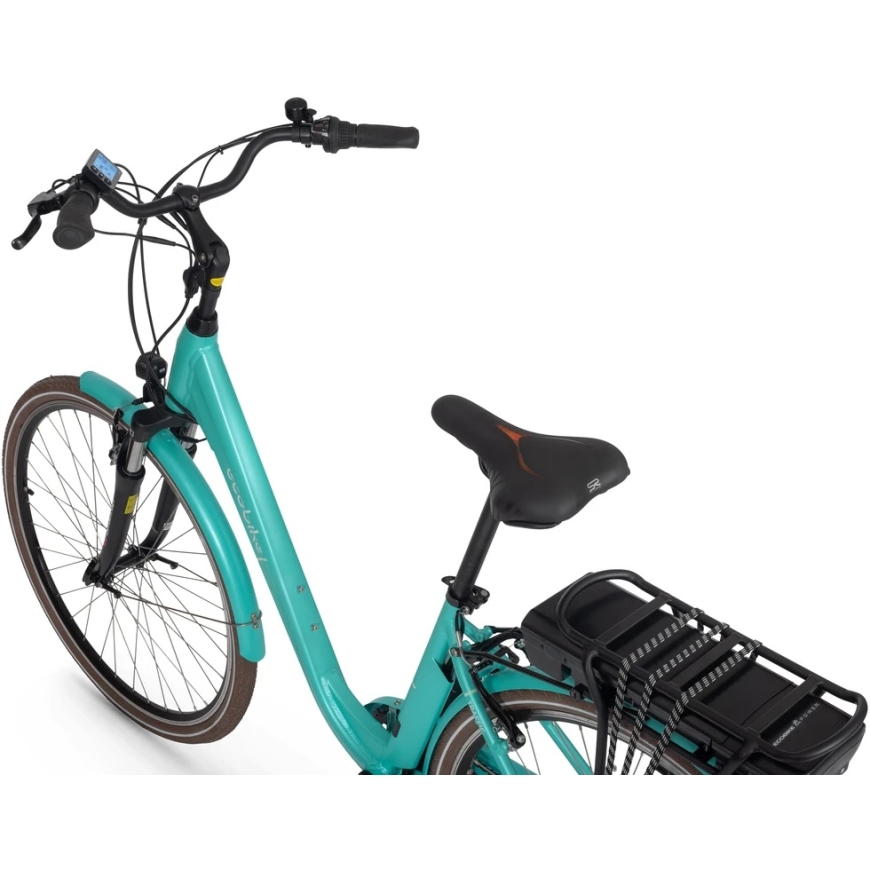

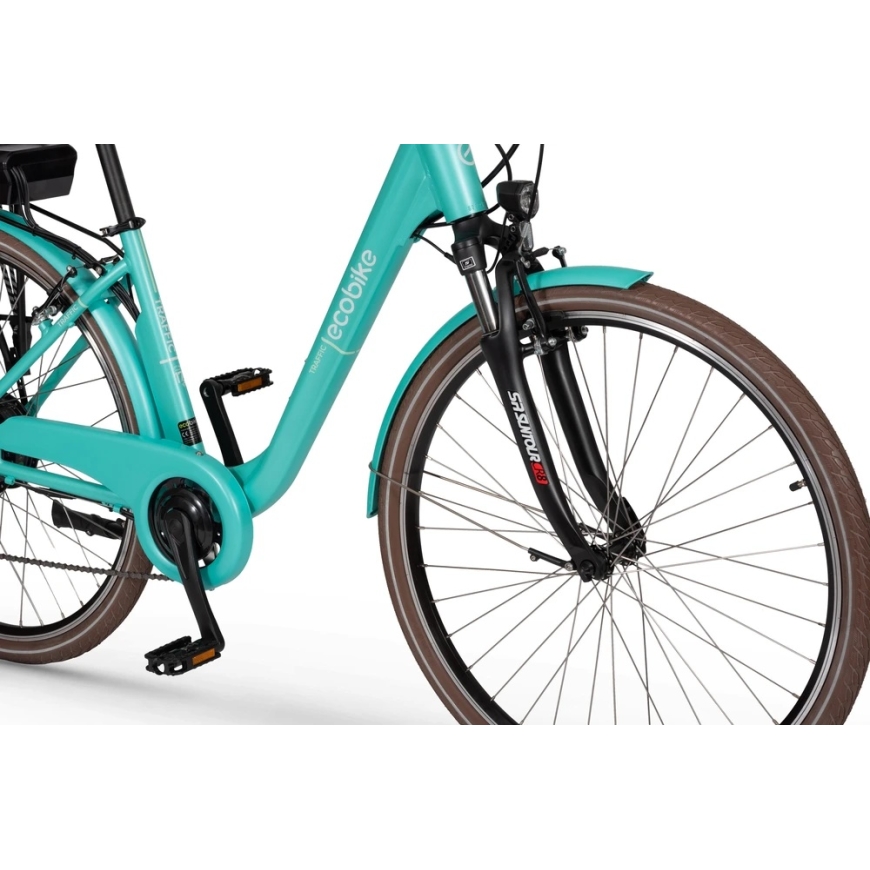

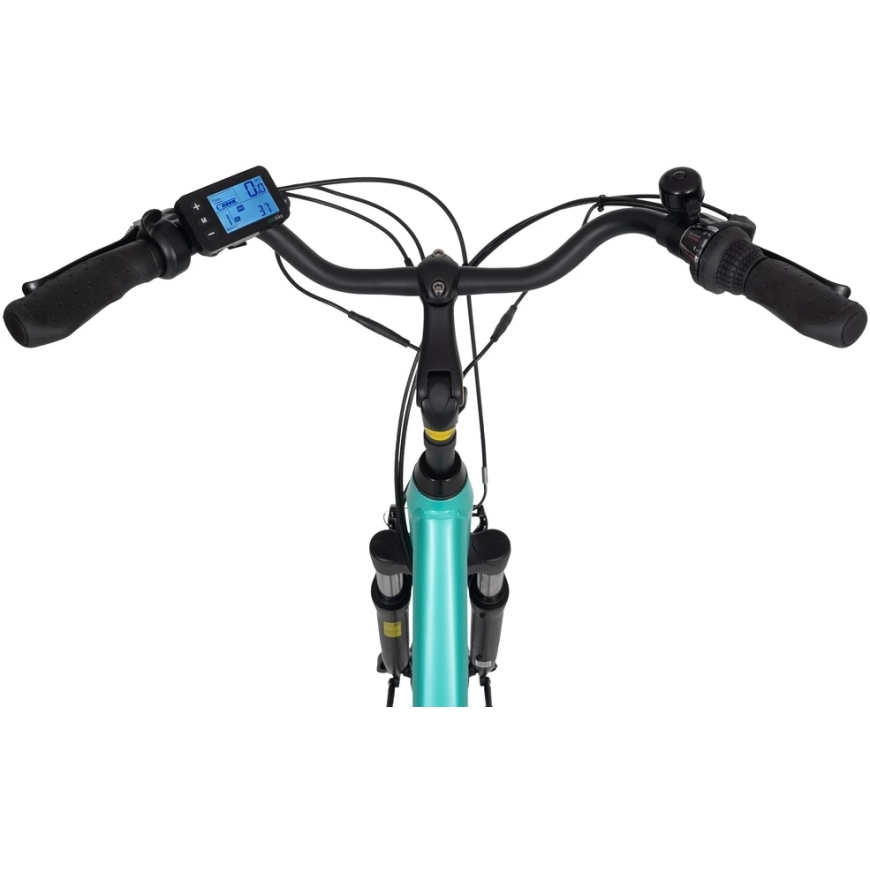

Ecobike Traffic 28 Mint 630Wh Electric Bicycle
978.92 €
Monthly payment from 26,11 €
5060655 2099900031526
2099900031526
Shipping 5-8 b.d.
You are interested in this product?
All about the product
Product Technical Specifications
- 630 Wh: MAX 140 km
- Voltage: 36 V
- Motor mounted in the rear wheel
- Maximum motor assisted speed: 25 km/h according to EU standard EN 15194
- Torque: 45 Nm
- Manufacturer: Bafang
- Power: 250 W
RANGE:
Battery capacity and approximate range:
MOTOR:
- Built into the frame (hidden)
- Battery life (approx): 700 charges
- Type: Li-ion
- Voltage: 36 V
- Charger: 220-240 W / 42V / 2A / D type
- Cell manufacturer: LG
- Smart BMS (Battery Management System) - smart battery management system
- The battery can be charged while removed from the bike (convenient for charging at home)
- BATTERY CHARGING TIME: 6-9 hours
- FRAME: Aluminum, hydroformed tubes
- FRAME SIZE: 17"
- FORK: SunTour SF14 CR8V P, travel 63 mm
- BRAKES: Promax TX - 117, V-brake
- CHAIN: KMC Z7 (114L)
- FRONT CHAINRING: Prowheel PRO A42 1-speed, number of teeth: 42T, crank length: 170 mm
- REAR DERAILLEUR: Shimano Altus 7-speed
- REAR SPROCKET: Shimano MF-TZ500, 14-28T, 7-speed
- BOTTOM BRACKET: Feimin FP - B902W, 68 x 124 mm
- HANDLEBAR: Promax HB-T320, aluminum, with rise, 45-degree angle for more comfortable seating, diameter at the extension mounting point (center): 25.4 mm, length: 600 mm
- HANDLEBAR EXTENSION: Promax MQ-525, aluminum, adjustable
- BEARINGS: Front: Joytech 751DSE / Rear: Integrated motor
- PEDALS: Wellgo 9/16" LU - C33
- RIMS: STARS 28" reinforced, 3 walls
- SADDLE: Selle Royal Lookin Basic
- GEAR SHIFT LEVER: Shimano Tourney Revo 7-speed
- TIRES: 28'' x 1.75 Rubena Fash
- WEIGHT: 24.1 kg
- NUMBER OF GEARS 7
- FENDERS: Set for front and rear, with fender mounts ("ears")
- HANDLEBAR GRIPS: VELO VLG-519AD2, 22.2 x 135 mm / 22.2 x 92 mm
- KICKSTAND: Center, adjustable length, aluminum
- RACK: Aluminum, max load: 25 kg, with rack bungee cords
- LIGHTING: Rear light: Spaninga RL1900 XE 36VDC, E-Bike Version / Front light: Spaninga Kendo XE 6-36V, E-Bike Version
- Top tube length: 600.30 mm
- Headset tube length: 161 mm
- Frame size: 432 mm
- Wheelbase (distance between axle centers): 1105.70 mm
- Vertical tube angle: 72.50
- Headset angle: 70
- Maximum bike load: 125 kg
- Battery capacity - measured in Wh (watt-hours) or Ah (ampere-hours) and directly affects the maximum range with a fully charged battery. Higher capacity - longer range
- Range - Indicates the approximate distance in kilometers that you can travel with a fully charged battery. The range depends on the rider's weight, battery capacity, weather conditions, terrain (inclines/descents) and level of motor assistance when pedaling. It is important to note that over time, battery capacity decreases over several years. This is a normal chemical process of lithium-ion batteries (cell aging). Incorrect use or modifications can reduce the maximum achievable range.
- Bike weight - total weight of all bike components, including motor, battery, frame parts, and accessories. Ecobike bikes have an excellent power-to-weight ratio.
- Motor power - The nominal power that an electric bike motor can generate. The power does not exceed the power requirements for electric bikes set in many countries.
- Maximum motor power - the highest possible power generated by an electric motor that can be achieved without a speed limiter and may require changing some components to match the correct voltage/current parameters. The user cannot usually select maximum motor power without certain modifications. Removing the speed limiter will require registering the vehicle as an electric moped. Moreover, in this case, the relevant traffic regulations for mopeds must be followed. Due to improperly performed modifications, the e-bike system may malfunction. In such cases, regarding modifications - neither the manufacturer nor the seller is responsible for any losses or injuries incurred.
- Battery lifespan - the indicated number of charging cycles is approximate and can be lower depending on how the battery is used, stored, etc.
- Maximum speed that the motor can maintain is 25 km/h. Upon reaching this limit, the motor shuts off and will only restart when the speed drops. The motor only assists while pedaling (helps pedal). The bike does not have an accelerator throttle. Levels of assistance and other settings can be selected using the controller on the handlebar.
- Warranty - all EcoBike bikes come with a 2-year factory warranty for the frame and parts. The battery has a 1-year warranty. Other warranty conditions are provided on our website. For warranty inquiries - please contact Bikko.
BATTERY:
FRAME GEOMETRY:
