NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P – 2
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P – 3
New
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P
NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

NARROW SYMMETRICAL ELECTRIC CONNECTOR WITH MEMORY 12V AC/DC KENIK KG-ES15P

30.37 €
5060473

KG-ES15P

5903716302169

Shipping 8-12 b.d.

You are interested in this product?
(Read terms of service)

All about the product

NARROW SYMMETRICAL ELECTROMAGNETIC LOCK WITH MEMORY 12V AC/DC KENIK KG-ES15P

Model: KG-ES15P
narrow-symmetrical-electromagnetic-lock-with-memory

Specification

Type: Standard (NC)

Symmetrical: Yes

Memory: Yes

Locking: No

Supply Voltage: 12V AC/DC

Resistance: 3000N

Current Consumption: 12V AC: 480mA; 12V DC: 680mA

Coil Resistance: 17.6Ω

Tongue Adjustment: 0-3.5 mm

Operating (Ambient) Temperature: -25°C ~ +50°C

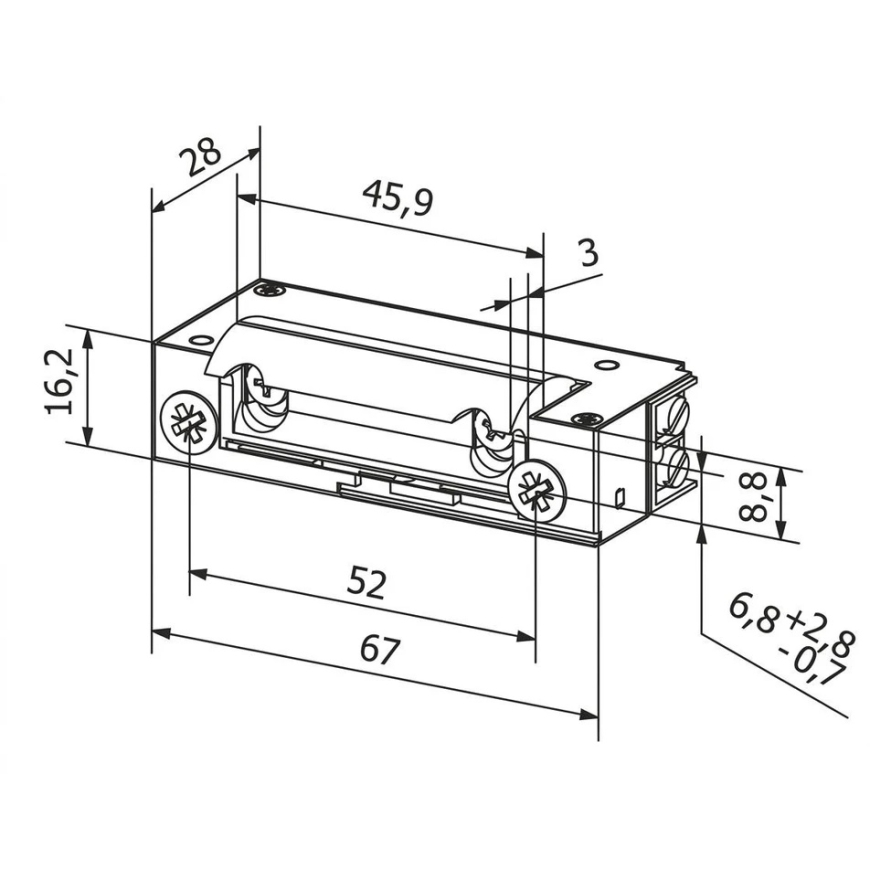

Dimensions (Height x Width x Depth): 67 x 16.2 x 28 mm
