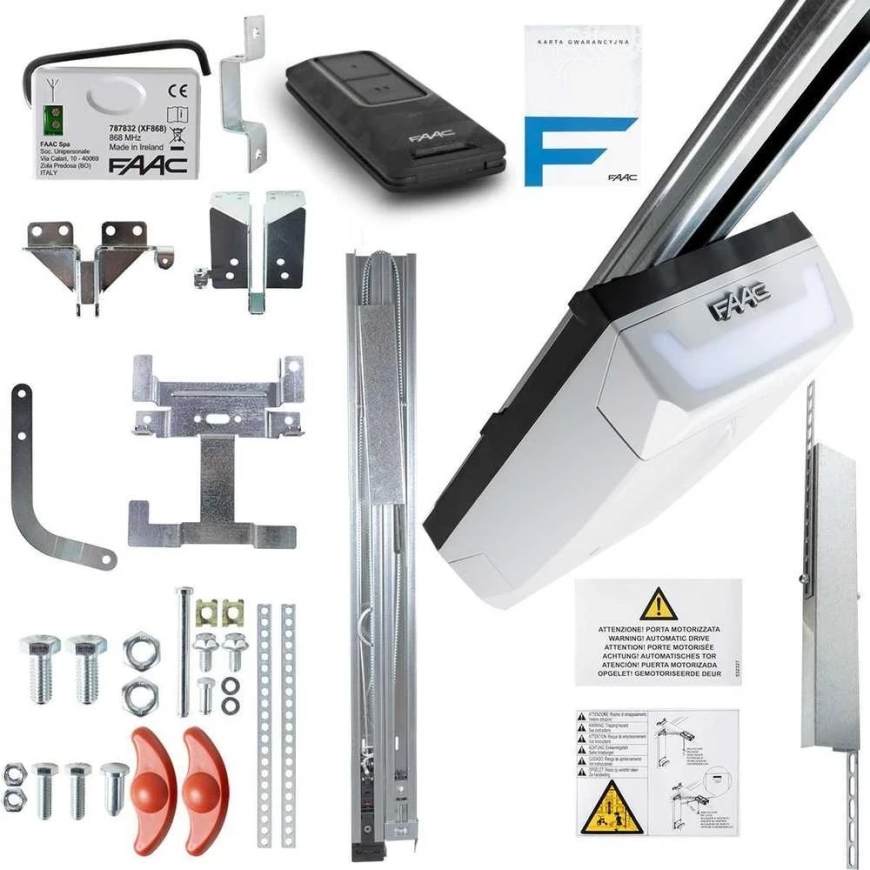

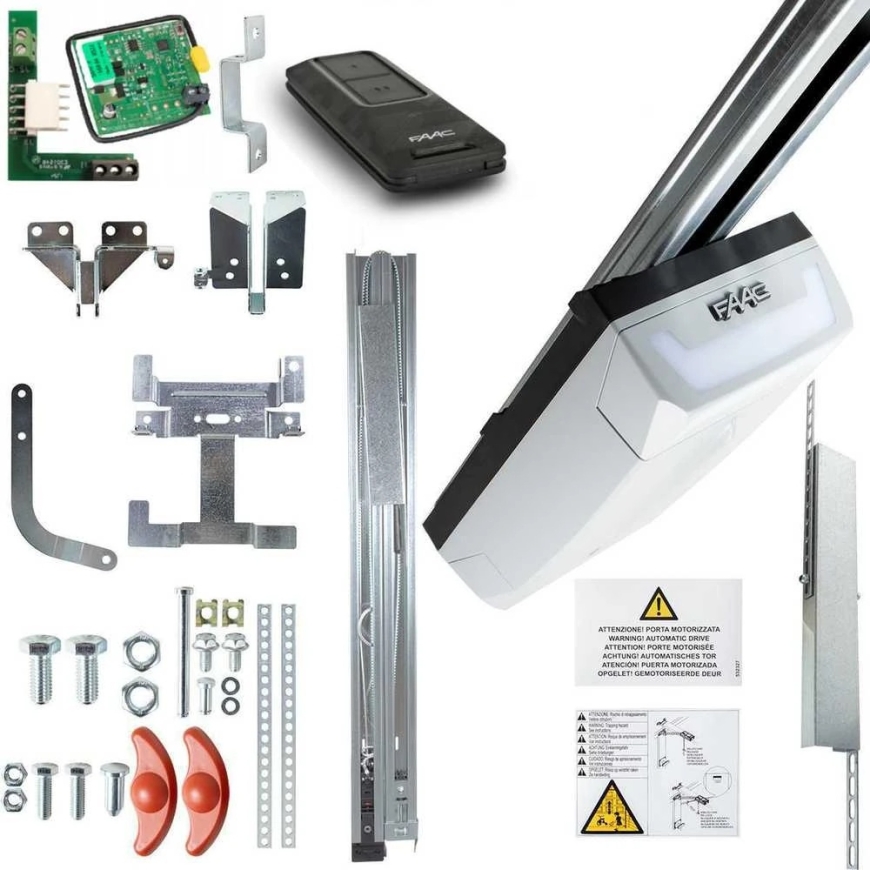

FAAC D1000 FDS garage door set with 3 m two-part Kevlar rail

PURPOSE OF FAAC D1000 KIT:

• The kit FAAC D1000 is a reliable solution designed for large garages and heavy gates.
• It is designed to lift sectional doors or overhead doors with spring / drive, suitable for households up to 10 m2 area .
• The kit is ideal for automating single and double garage doors, e.g., 4.5 m wide and 2.5 m high.

KIT CHARACTERISTICS AND DESCRIPTION:

• The drive FAAC D1000 has a modern look, suitable even for the most elegant garage.
• The nylon patented automation base support ensures quick installation of the drive to the garage ceiling, reducing installation time by up to 40 %.

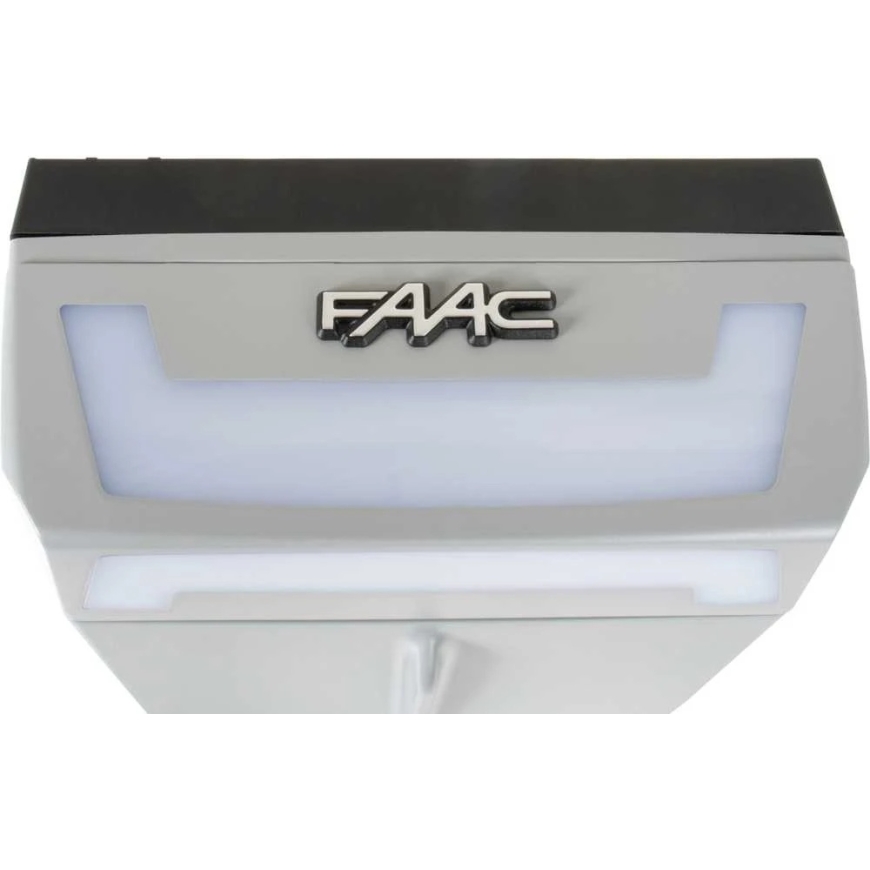

• An additional feature of the FAAC garage drive is that there is a lamp built into the housing , which lights up the space with a pleasant, soft light when the automation is activated.
• When installing a new drive, there is no need for additional safety photo eyes , since the drive itself has an electronic anti-crushing protection module that automatically programs during the garage door opening and closing cycle.
• The drive memorizes the force needed to close or open the doors , and when this force exceeds the programmed limit, the doors are stopped during opening and the direction of door movement is reversed during closing.
• Everything complies with safety standards, guaranteed by internationally recognized organizations!
• An additional advantage of the drives is that they do not require grounding , making them easier to install, since no major alterations and additional cables needed for standard garage drives are necessary!

TECHNICAL SPECIFICATIONS:

• Power supply: 230 V
• Electric drive: 24 Vdc
• Max. power consumption: 350 W
• Max. pulling force: 1000 N
• Operating mode: continuous
• External lamp: 230 V - 40 W (max.)
• External lamp operating time: 120 s
• Standard trolley speed: 6.6 m/min.
• Reduced trolley speed: 3.8 m/min.
• Deceleration speed: 1.3 m/min.
• Noise level at standard speed: 45 dB
• Deceleration time: variable, depending on configuration
• Built-in safety mechanism: standard power supply
• Protection class: for indoor use (IP20)
• Operating temperature range: from -20 C to + 55 C
• Dimensions (length x width x height) mm: 360 x 200 x 145
