Konner & Sohnen Diesel KS GENERATOR diesel KS 16-1/3E 12.8kW 230/400V, electric starter (EURO V)
6 648.20 €
Monthly payment from 172,09 €
5059629 KS16-1/3E
4260405368174
Shipping 6-10 b.d.
You are interested in this product?
All about the product
Könner & Söhnen KS 16-1/3E is a diesel generator with a voltage of 230/400 V and electric start. The maximum/rated power at 230 V is 16/15 kVA, and at 400 V — 20/18.75 kVA. The model features a two-cylinder four-stroke air-cooled KS 1400HD diesel engine, a heater, intelligent AVR voltage regulation, and a multifunctional HGM501 digital controller. The generator is equipped with a 30 L fuel tank, integrated battery charger, ATS output, and CEE 230 V and 400 V sockets.
General Specifications
| Parameter | Value |
|---|---|
| Product Type | Diesel Generator |
| Brand | Könner & Söhnen |
| Model / SKU | KS 16-1/3E |
| Voltage | 230/400 V |
| Maximum / Rated Power (230 V) | 16/15 kVA |
| Maximum / Rated Power (400 V) | 20/18.75 kVA |
| Power Factor (cosφ) | 1 (230 V) / 0.8 (400 V) |
| Frequency | 50 Hz |
| Maximum Current | 69.56/28.9 A |
| Sockets | 1×CEE 400V 32A, 1×CEE 230V 63A |
| Fuel Consumption at 50% Load | 3.36 l/h |

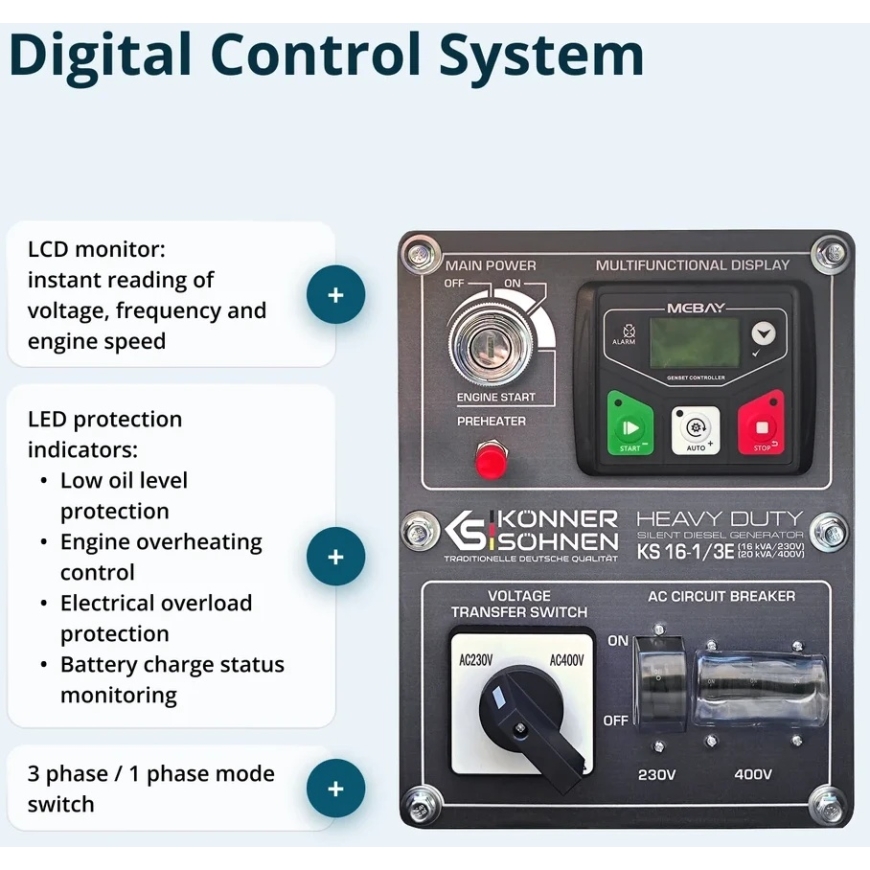

| Controller | Multifunctional HGM501 Digital Controller |
| Noise Level Lpa/Lwa | 76/96 dB |
| Engine Model | KS 1400HD |
| Engine Type | 2-cylinder, 4-stroke, air-cooled diesel engine |
| Engine RPM | 3000 rpm |
| Engine Power | 30 HP / 22 kW |
| Heater | Yes |
| Fuel Tank Capacity | 30 L |
| Oil Capacity | 4 L |
| Engine Displacement | 1326 cm³ |
| Voltage Regulation | Intelligent AVR |
| Starting System | Electric |
| Battery | 45 Ah |
| Integrated Charger | Yes |
| ATS Output | Yes |
| Protection Class | IP23 |
| Net Dimensions | 1320 × 820 × 880 mm |
| Gross Dimensions | 1330 × 830 × 930 mm |
| Net Weight | 363 kg |
| EAN | 4260405368174 |
