ADE-CM20 USB-C 5Gbps - Gigabit Ethernet adapter with integrated CAT6 RJ-45 network cable (2 m), Asix AX88179B
5055646 ADE-CM20
8595247909756
Shipping 3-7 b.d.
All about the product
Gigabit Ethernet connection via USB-C up to 1 Gbps
With the external USB network adapter AXAGON ADE-CM20 you can easily connect a device (laptop, computer, tablet or phone) to the internet or local LAN network. Simply plug it into the USB-C port of the device and connect the built-in CAT6 network cable with an RJ-45 connector directly to the network . This provides a stable wired connection of up to 1 Gbit/s speed without the need for driver installation. Compared to Wi-Fi, a wired connection ensures lower latency , more stable data transmission , and a more reliable internet connection.
The adapter also supports advanced network features such as Wake-on-LAN, VLAN, Jumbo Frames, or precise time synchronization PTP/gPTP. It is ideal for working from home, video conferencing, quick backups to NAS, or gaming (e.g., Nintendo Switch with wired connection). It is also suitable for situations where a laptop or another device does not have a LAN port or the port is damaged.

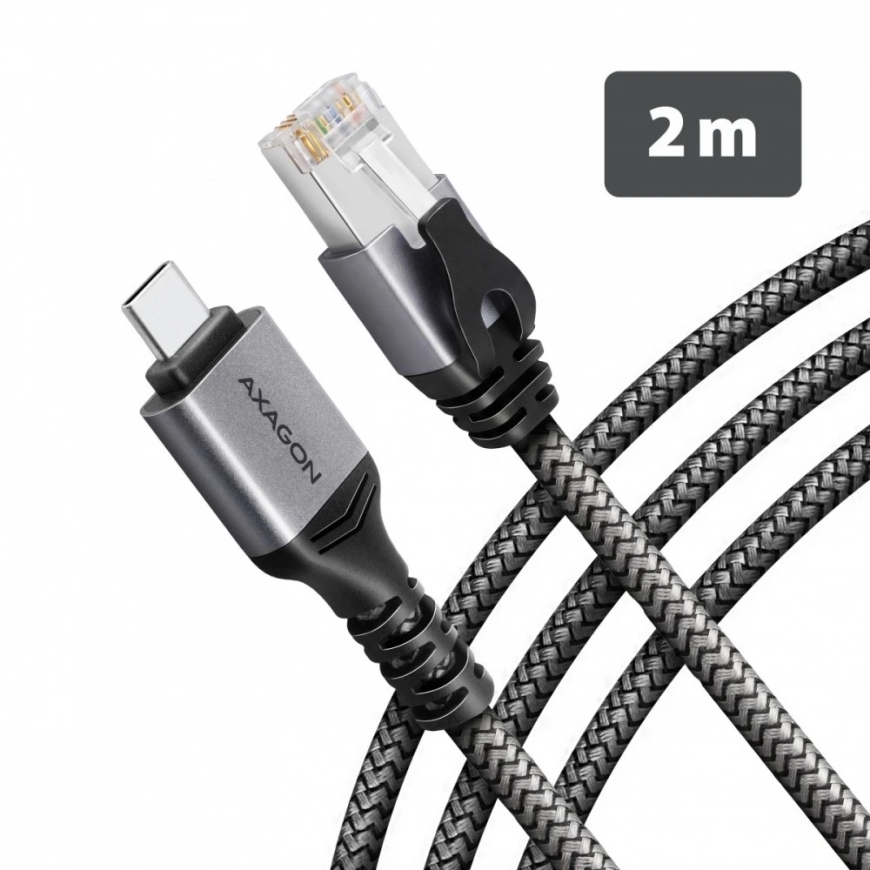

Direct network connection with 2 m CAT6 cable
F/UTP network cable of CAT6 category, 2 meters long makes it easy to connect even to a distant network socket. This way, you can easily connect the adapter directly without additional extension cables , whether at your desk, in a meeting room, or at home. You can conveniently hide the cable in an installation channel and leave it permanently connected to the data socket. For maximum flexibility, it is also offered with other lengths and USB-A variant cables.
Stable connection for NAS, data transfer, and internet use
The adapter supports a transfer speed of up to 1 Gbps (10/100/1000 Mbit/s) and can be used, for example, for backing up data to a network drive (NAS), transferring large files between devices, or connecting to a company's network with a higher data flow . Additionally, a stable wired connection eliminates signal hiccups and fluctuations typical of Wi-Fi.
Wake-on-LAN, VLAN, Jumbo Frames and PTP for advanced networks
The network card with ASIX AX88179B chip offers numerous advanced features for home and enterprise networks. Wake-on-LAN allows you to remotely wake the computer, VLAN (IEEE 802.1Q) is designed to separate network traffic, and Jumbo Frames up to 9 kB can increase the efficiency of large data transfers, such as between a computer and NAS. Support for IEEE 802.1P allows prioritization of network traffic, and PTP (IEEE 1588v2) and gPTP (IEEE 802.1AS) enable precise synchronization of device times over the network. Technologies such as IPv4/IPv6 Checksum Offload and TCP Large Send Offload move part of the network communication processing to the adapter, thereby helping to reduce CPU load. There is also AUTO-MDIX that automatically detects the connection of the network cable.
Wide compatibility without driver installation
The network adapter/cable supports Windows, macOS, Linux, iPadOS, iOS, and Android operating systems. Thanks to automatic installation , simply connecting the adapter makes it ready to use immediately without driver installation. Thus, you can easily use it with a desktop computer, laptop, ultrabook, tablet , or mobile phone that supports wired Ethernet connection. It is also compatible with the gaming console Nintendo Switch , making it an easy way to ensure a stable wired connection even while gaming.

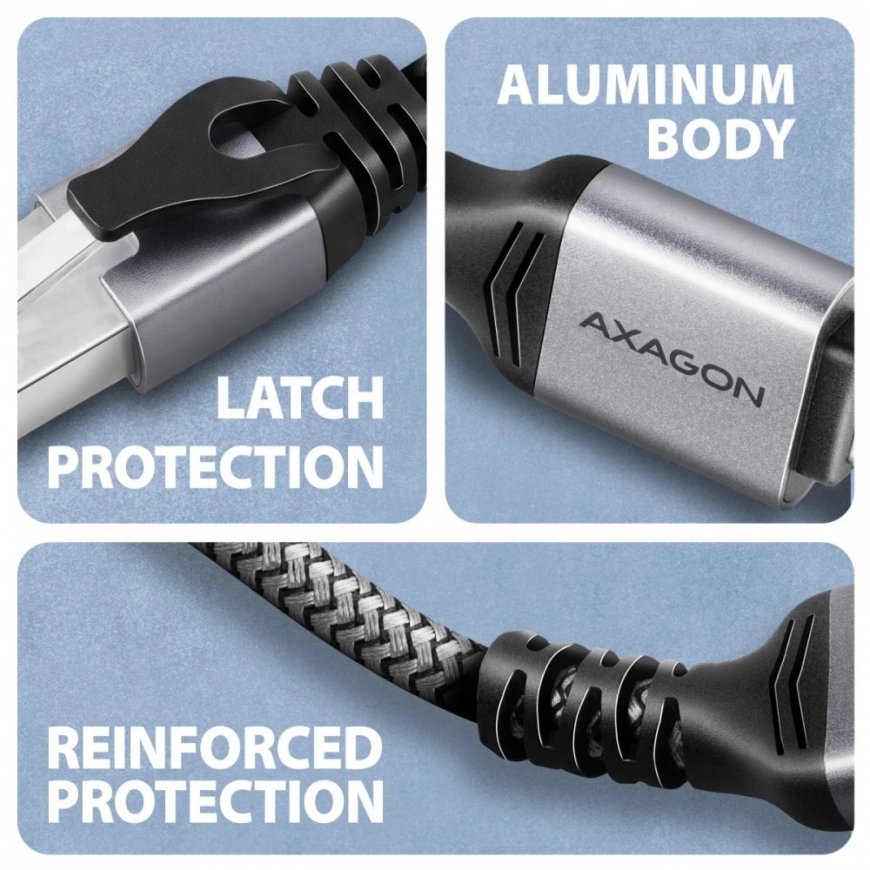

Aluminum housing, durable braid, and quality shielding
The elegant aluminum housing reliably protects the electronics from mechanical damage, while the durable cable braid enhances its resistance to daily use. The aluminum housing also efficiently dissipates heat generated during the adapter's operation. Quality shielding with foil and ground wire reduces electromagnetic interference and contributes to stable data transmission. As a result, the adapter is a reliable choice even in environments with elevated levels of electromagnetic interference, such as offices, server rooms, or industrial facilities.
Input (connection to laptop):
• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C male connector,
• compatible with USB 480Mbps, USB 10Gbps, USB 20Gbps, USB 40Gbps and Thunderbolt 3/4/5.
Output:

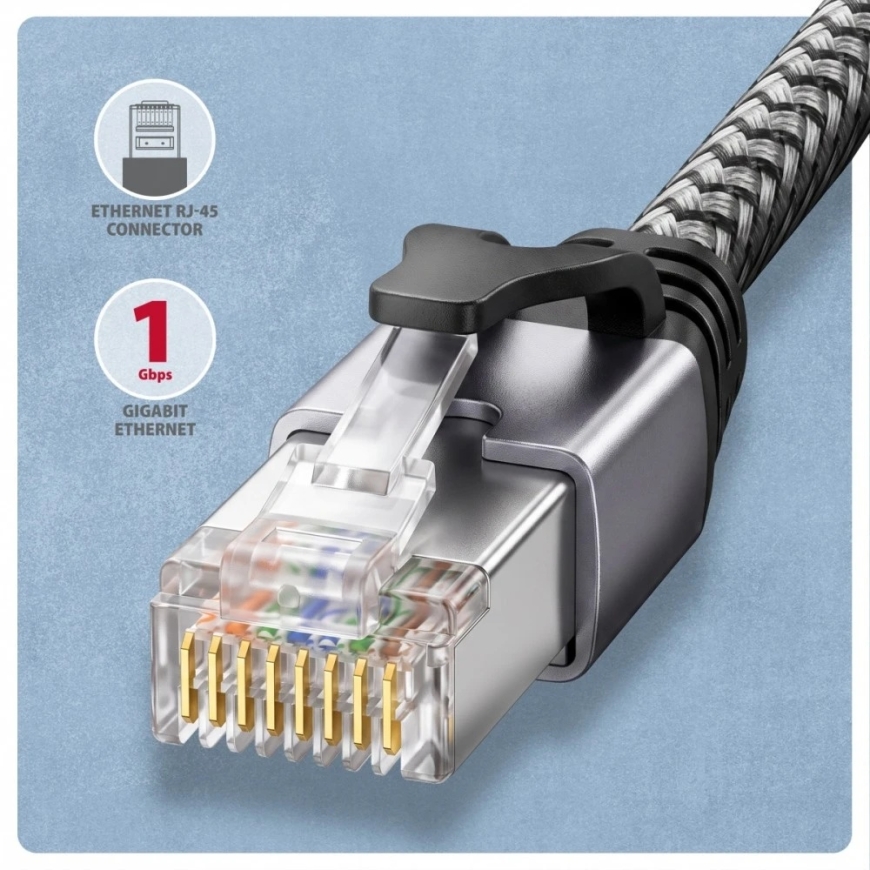

• Gigabit Ethernet interface, RJ-45 male connector,
• supported Ethernet interface transfer speeds 10/100/1000 Mb/s,
• supported specifications IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T,
• 10/100/1000 Mb/s auto detection,
• IPv4/IPv6 Packet Checksum Offload Engine (COE) support, to reduce CPU load, including IPv4 IP/TCP/UDP/ICMP/IGMP and IPv6 TCP/UDP/ICMPv6 checksum verification and generation,
• TCP Large Send Offload V1 and V2 support,
• IEEE 802.1P Layer 2 Priority Encoding and Decoding support,
• IEEE 802.1Q VLAN tagging support,
• up to 4096 VLAN ID filtering support,
• IEEE 802.3az EEE (Energy Efficient Ethernet) support - reducing power consumption in standby mode,
• IEEE 802.3 Annex.31B Flow Control support,
• IEEE 1588v2 PTP (Precision Time Protocol) and IEEE 802.1AS gPTP (Generalized Precision Time Protocol) support,
• up to 9K Jumbo Frame support,
• L2 MAC address filtering support,
• L3/L4 IPv4/IPv6 IP/Port filtering support,
• Auto-MDI/MDIX support - crossover detection and automatic correction eliminate the need for crossover cables.
Other features:
• F/UTP Cat6 category cable,
• full Plug and Play and Hot Plug support,
• CDC-ECM support for automatic driver installation on various OS,
• CDC-NCM support for native driverless support on iOS/iPadOS/macOS/Linux,
• iPXE support for network booting,
• powered via USB bus (bus power) - no additional power required,
• support for direct connection of two devices (point-to-point, without switch or router),
• ASIX AX88179B chip.
Wake-on-LAN features support in various modes:
• support for sleep mode and remote waking via Magic Packet, Microsoft Wake-up Frame and Link Change wake-up,
• Bonjour Wake-on-Demand support,
• Wakeup Packet Indication support,
• Microsoft Modern Standby support.
Advanced power management features:
• Power Management Offload (ARP and NS) support,
• IEEE 802.3az EEE (Energy Efficient Ethernet) support,
• ECMA-393 proxZzzy standard for sleeping hosts, to manage network connectivity of sleeping computers through intermediary servers.
Other data:
• Active part with USB-C dimensions: 59 × 18 × 8 mm (L × W × H)
• External cable diameter: 5 mm
• Conductors: 28 AWG
• Cable length: 2 m
• Weight: 71 g
Supported operating systems:
• Windows (min. 8.1 and newer), macOS, Linux, iPadOS, iOS, Android, Nintendo Switch system software.
In the package in a cardboard box included:
• 2 m long USB-C – RJ-45 Gigabit Ethernet cable,
• multilingual manual CZ/DE/DK/ENG/ESP/EST/FIN/FR/GR/HR/HU/IT/LT/LV/NL/NOR/PL/PT/RO/SK/SLO/SRB/SWE/TR/UA/ALB/BG/BOS/CN/ARA.
