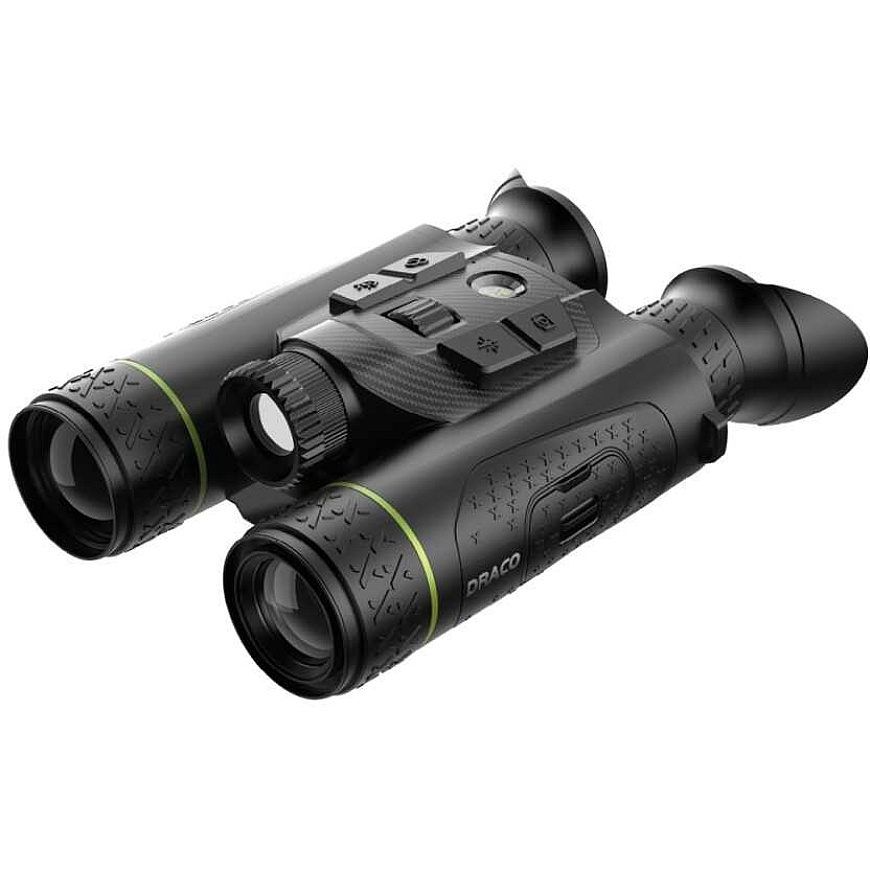

PIXFRA Draco PFI-D225-4K 850NM multispectral thermal imaging binoculars

All about the product

Description

Thermal Parameters

Detector Type: uncooled vanadium oxide detector in the focal plane
Effective Pixels: 256 (H) × 192 (V)
Pixel Pitch: 12 μm
Spectral Range: from 8 μm to 14 μm
Sensitivity (NETD): ≤18 mK at f/ 1.0
Focusing Distance: 25 mm
Aperture: F0.9
Focusing Control: manual
Field of View (FOV): H: 7.0°; V: 5.3° / H: 12.2 m; V: 9.3 m (@100 m)
Detection Distance: 1,300 m
Minimum Focusing Distance: 3 m
Digital Zoom: 1×-8×
Base Zoom: 4.3×


Digital Parameters
Maximum Resolution: 3840 (H) × 2160 (V) (4K)
Frame Rate: 50 Hz
Digital Optics Focusing Distance: 55 mm
Aperture: F2.0
Field of View: H: 8.0°; V: 4.5° / H: 14.0 m; V: 8.8 m (@100 m)
Focusing Control: manual
Minimum Focusing Distance: 7 m
Base Zoom: 5.5×
Digital Zoom: 1×-8×
Screen and Image Modes
Screen Type: 0.49 inch OLED, 1920×1080


Image Palette:

Hot white, Hot black, Yellow, Nitric red, Hot green, Sepia
Digital: color, black and white, green, yellow, automatic
Image Modes: thermal vision / visible / PIP (picture in picture)
Inter-object distance: 60-74 mm



Features
Video Recording: Yes
Photo: Yes
Wi-Fi Access Point: Yes
GPS: Yes
Compass: Yes
Microphone: Yes
PIP (picture in picture): Yes
Hotspot Tracking: Yes
FFC (Flat Field Correction): automatic / semi-automatic / manual
DPC (Dead Pixel Correction): Yes
Storage Mode: Yes
Local Album: Yes
PIPS 3.0: Yes
Smart IR Port: Yes
IR and Laser Functions
IR Light Wavelength: 850 nm
IR Range: 400 m
Exclusive IR Illumination: Yes
Laser Rangefinder: 1,000 m
Laser Accuracy: ±1 m
Laser Safety Class: Class 1
Power and Energy
Battery: replaceable lithium battery 18650
Operating Time: ≥9 hours at 25°C (Wi-Fi off)
Power Voltage: constant 5 V current source
Connector: USB Type-C
Environmental and Mechanical Characteristics
Operating Temperature: from -30 °C to +55 °C
Protection Class: IP67
Dimensions (L×W×H): 195.0 × 130.6 × 61.7 mm
Weight: ≤0.61 kg
Package Dimensions: 286.0 × 228.0 × 107.0 mm
