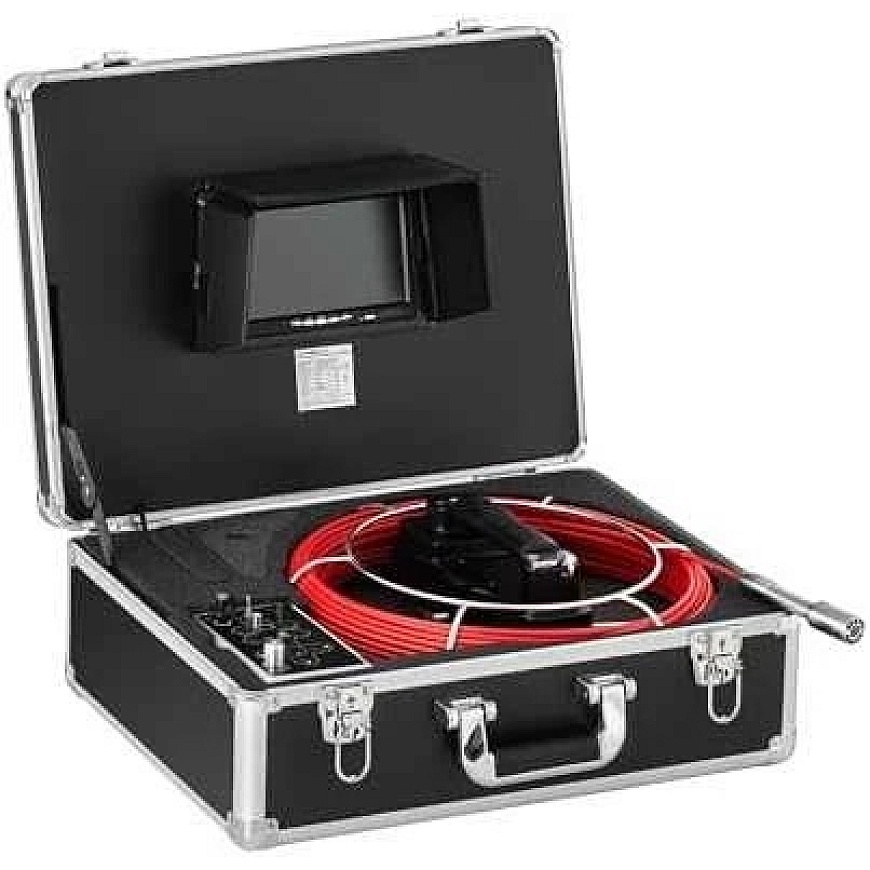

Steinberg Systems Endoscope Diagnostic Inspection Camera Case 12 LED TFT 7'' SD 20 m
659.00 €
Monthly payment from 17,87 €
5054816 10030558
4062859947406
Shipping 6-10 b.d.
You are interested in this product?
All about the product
Manufacturer code: 10030558

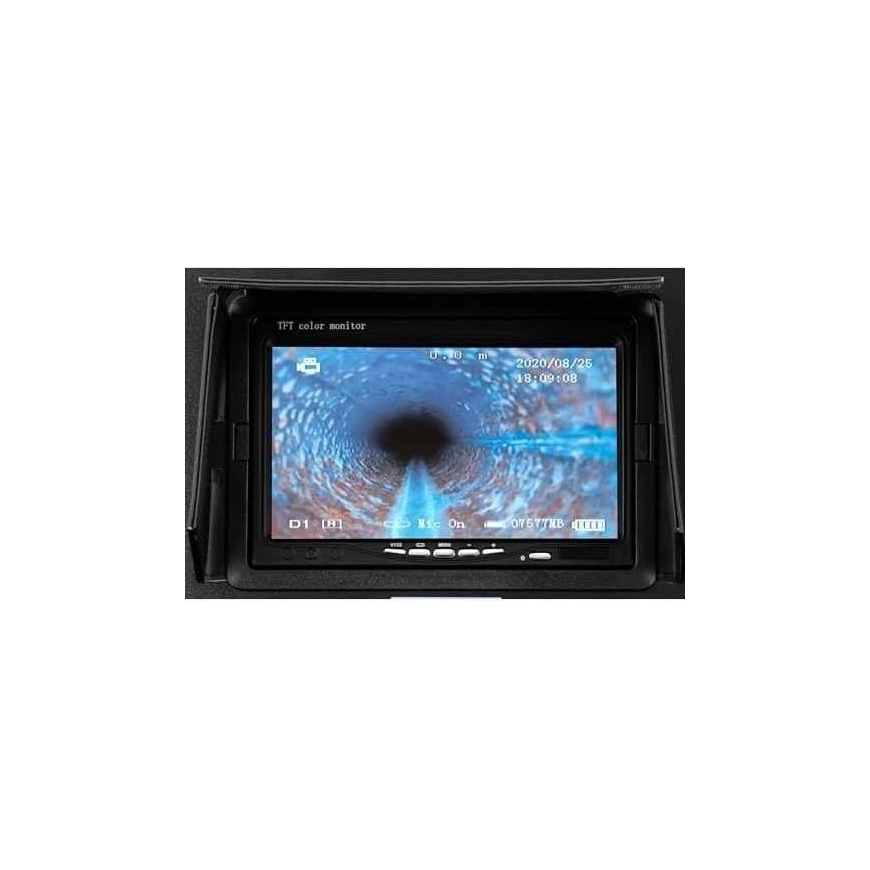

This endoscopic camera is ideal for inspecting tight spaces such as pipes. With a 20-meter long cable, it is perfect for use in ventilation ducts or sewage inspections. A 105-degree viewing angle and 12 LEDs ensure excellent visibility. The 7-inch color TFT screen displays captured images, and videos and photos are stored on an SD card (up to 256 GB).
Product features:
- - Visibility – 7-inch TFT monitor with sun protection provides a clear live view,
- - Brightness – 12 LEDs ensure excellent illumination,
- - Long operating range – 20-meter long cable reaches the farthest corners,
- - Data storage – you can save video and audio recordings as well as photos,
- - Portability – practical carrying case for outdoor use.
Technical specifications:
- - Display - LCD
- - User manual - Yes
- - LED lamp - Yes
- - Case included - Yes
- USB port – Yes
- Automatic shut-off – No
- - Digital zoom - x10
- - Head rotation angle [degrees] - 90
- - Viewing angle [degrees] - 105
- - Material - Control box - ABS camera head - 304 stainless steel cable - PP, fiberglass, copper box filler - Black EPE cable holder - PVC protective strips - PC sun visor - PU charger - ABS connecting cable - TPU
- - Housing material - Fire-resistant plate and aluminum alloy
- - Power source - 100–240 V / 50/60 Hz 1.5 A
- - IP protection class - IP68
- - Display type - 7-inch TFT color display
- - Number of LEDs - 12
- - Memory - 8 GB SD card (supports up to 256 GB SD card or USB drive)
- - Battery - Built-in 4400 mAh / 12.6 V lithium-ion battery
- - Sensor resolution - 1/4 inch
- - Head diameter - 23 x 120 mm
- - Lens type - Sapphire glass
- - Signal transmission - Cable
- - Probe arm length [mm] - 20
- - Dimensions (L x W x H) [cm] - 47 x 37 x 19
- - Weight [kg] - 7
- - Shipping dimensions (L x W x H) [cm] - 49 x 20 x 42
- - Shipping weight [kg] - 7.62

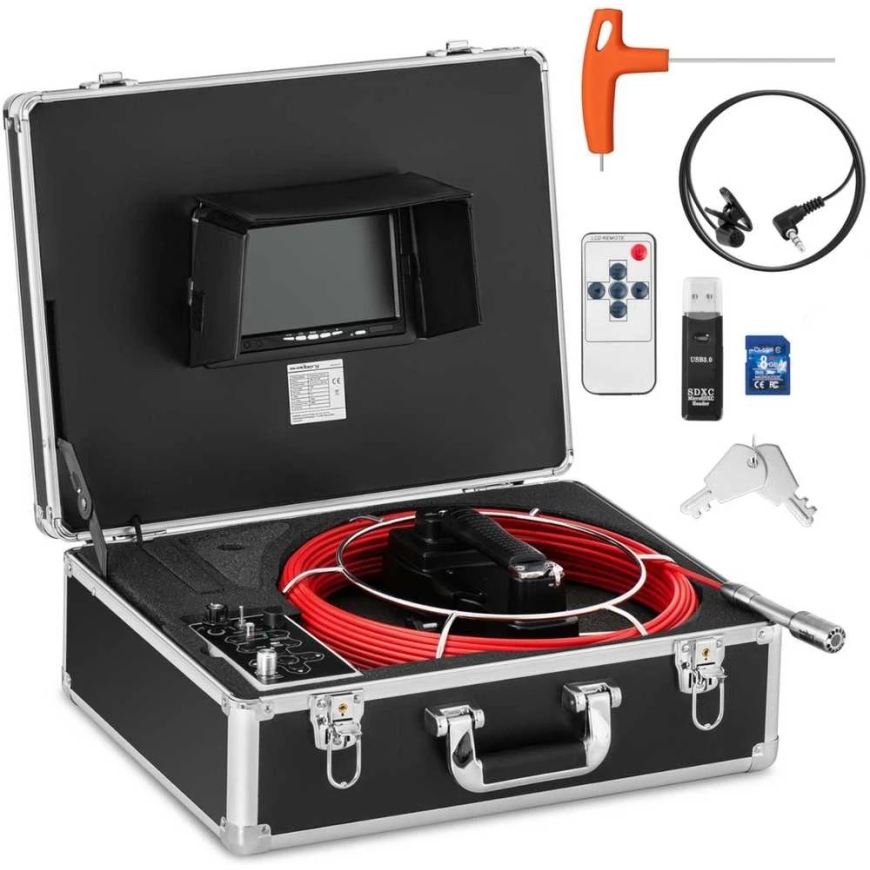

Included:
- - 7 screen #8221
- - Wire
- - Camera head (23 mm)
- - Control box
- - Rails (40 and 80 mm)
- - Connecting line
- - Aluminum case
- - SD card and USB drive
- - Battery and charger
- - Microphone
- - Screwdrivers - 2 pcs.
- - Remote control
- - Keys - 2 pcs.
- - User manual
