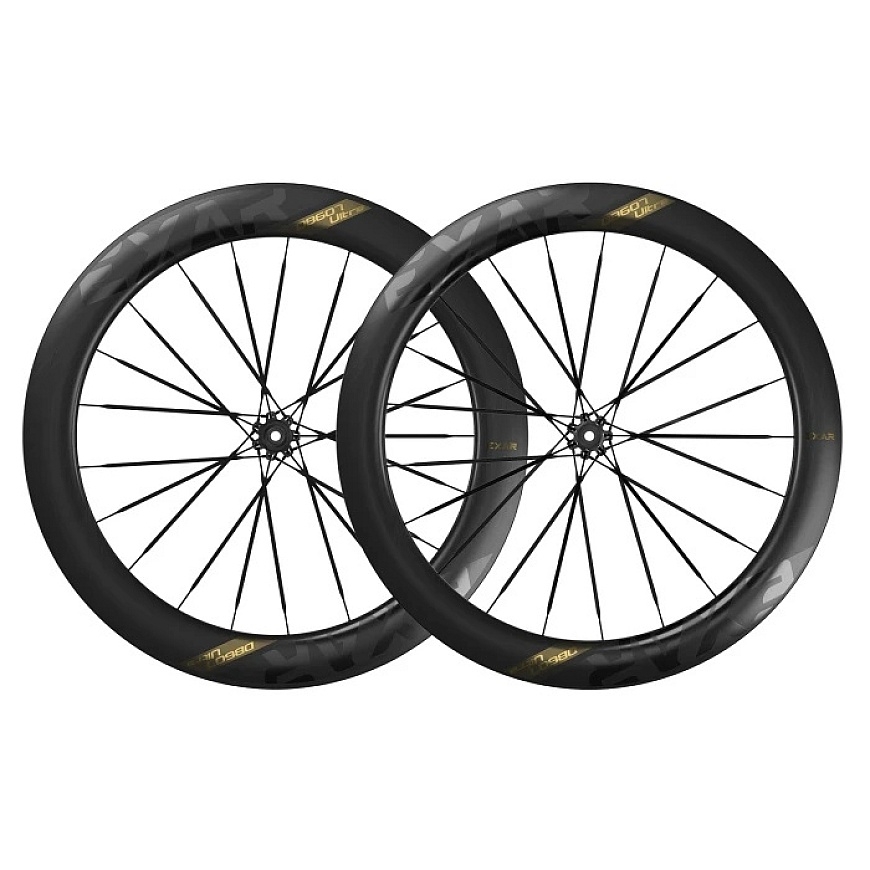

Magene EXAR Angle Fiber Wheels Ultra DB508
5054322 28278
6971606842292
Shipping 6-10 b.d.
All about the product
Lightweight Performance and Handling
The EXAR Ultra carbon fiber wheelset is designed for top-level performance – combining HI-MOD carbon fiber with a sleek, weight-saving design that provides greater stiffness, smoother starts, and faster acceleration. The unique configuration of smaller front and larger rear wheels ensures an ideal balance of stability and control, making these wheels versatile for both climbing and flat terrain. Carbon fiber spokes, 30% lighter and stronger than steel, enhance efficiency, while the 2:1 spoke pattern and hidden metal elements reduce wind resistance and improve aerodynamics.
Precise Engagement and Aerodynamic Design
The 36-tooth flat-type ratchet system ensures quick and precise engagement along with greater durability. 30/32 mm wide rims improve stability in crosswinds, while paired with 28–32c tires, they create a flat aerodynamic profile that offers more comfort on varied roads. The optimized flange diameter hub and smoothly machined bearing surfaces increase stiffness and longevity, while the well-balanced WR size maintains even spoke tension and excellent lateral stiffness.
Smooth Rolling and Impact Resistance
Thanks to the low rolling resistance of ceramic bearings, the EXAR Ultra wheelset allows for rapid acceleration and smooth rolling. The UCI certification confirms impact resistance, and the set is suitable for both tubeless and clincher tires. The package includes rim tape and a plug set to reduce weight. Perfect for TPU tubes, this wheelset offers stable, high-speed performance for cyclists who value reliability and efficiency.
Specification
| DB405 | DB508 | DB607 | |
|---|---|---|---|
| Brakes | Disc | ||
| Height | Front 40 mm, Rear 45 mm | Front 50 mm, Rear 58 mm | Front 60 mm, Rear 67 mm |
| Weight | 1280 g | 1350 g | 1460 g |
| External Rim Width | 30 mm | 30 mm | Front 32 mm, Rear 30 mm |
| Internal Rim Width | 23 mm | ||
| Rim Material | Hi-MOD Carbon Fiber | ||
| Spokes | 4.0×1.2 mm | 5.2×0.8 mm | 5.2×0.8 mm |
| Front Wheel Spoke Tension | 110 kgf ±10 % | ||
| Rear Wheel Spoke Tension | Drive side 130 kgf ±10 %, Non-drive side 110 kgf ±10 % | ||
| Ratchet | 36T, compatible with DT system. Replaceable ratchet disks with different tooth counts | ||
| Frame Gap | 100/142 mm thru-axle | ||
| Freehub | Standard Shimano 11-speed (Campagnolo N3W and Sram XDR freehubs sold separately) | ||
| Compatible Cassettes | Shimano 8–12 s, Sram 8–12 s, Campagnolo 8–13 s | ||
| Compatible Tires | Clincher and tubeless tires | ||
| Maximum Tire Pressure | 110 psi 28c, 100 psi 30c, 90 psi 32c | ||
| Package Contents | 1× front carbon fiber wheel, 1× rear carbon fiber wheel, 2× tubeless strips, 1× instruction | ||
