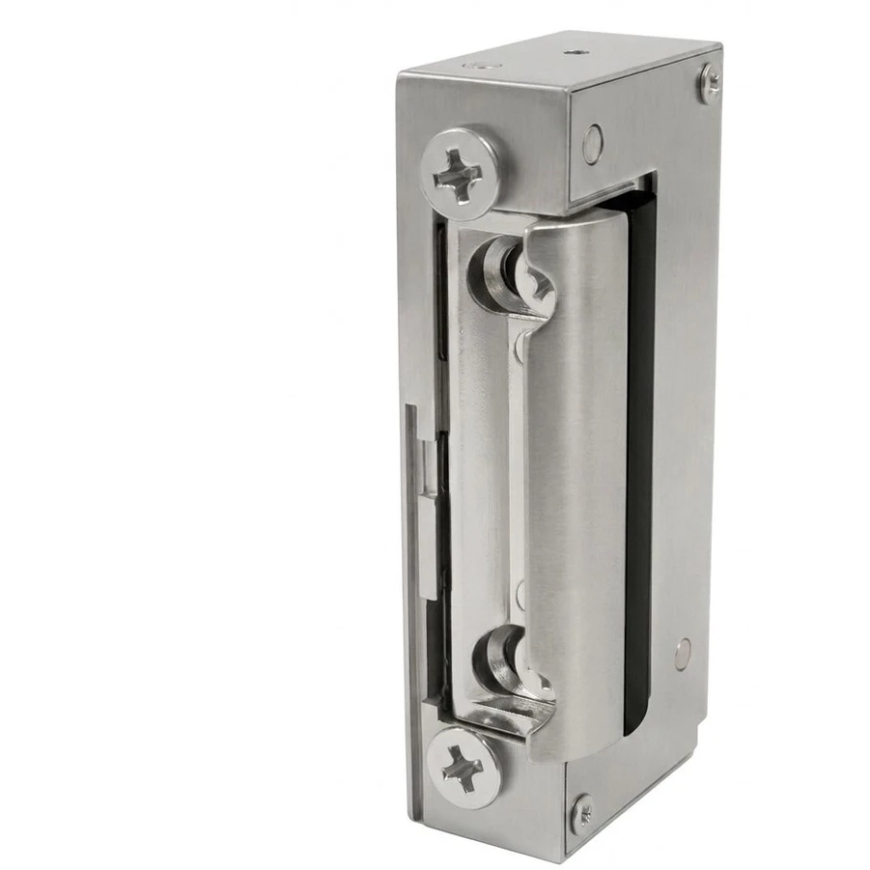

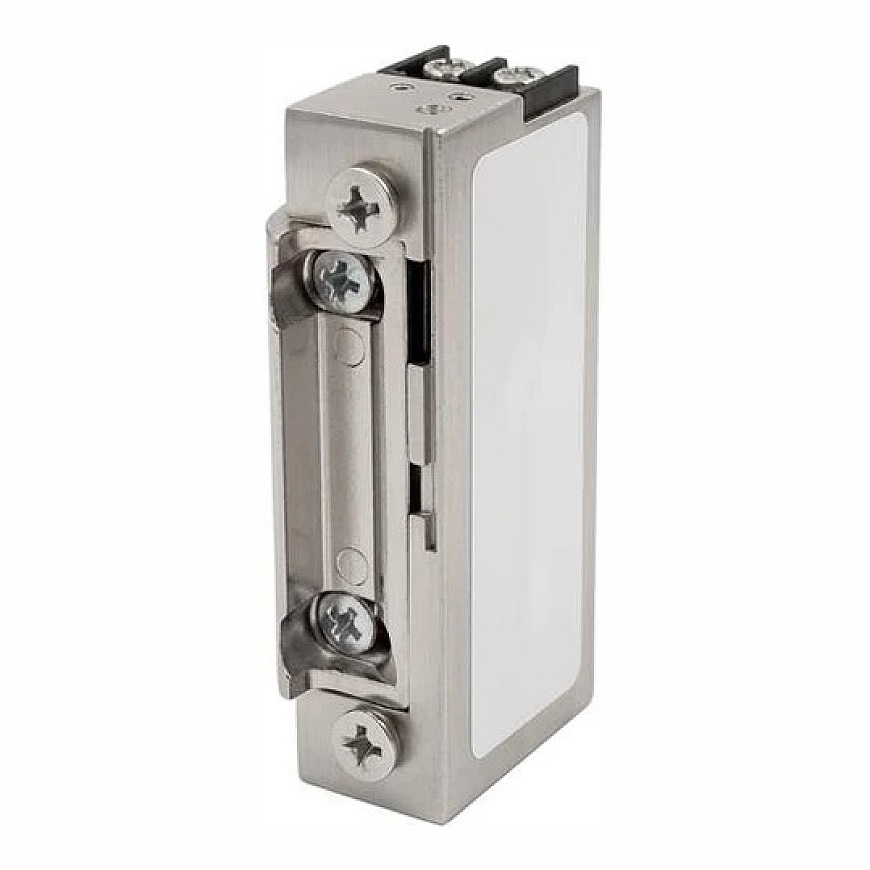

NARROW SYMMETRICAL LOW-CURRENT ELECTROCONTACT 12-24V DC KENIK KG-ES15N
30.64 €
5054235 KG-ES15N
5903716302800
Shipping 8-12 b.d.
You are interested in this product?
All about the product
NARROW SYMMETRICAL LOW VOLTAGE ELECTROMAGNETIC LOCK 12-24V DC KENIK KG-ES15N
Model: KG-ES15N
Specification
Type: Standard (NC)
Symmetrical: Yes
Memory: No
Locking: No
Supply Voltage: 12-24V AC/DC
Resistance: 3000N
Current Consumption: 12V AC: 200mA; 12V DC: 280mA; 24V AC: 390mA; 24V DC: 560mA
Coil Resistance: 43Ω
Tongue Adjustment: 0-3.5 mm
Continuous Operation with Current (100%ED): yes, at 12V DC
Operating Temperature (environment): -25°C ~ +50°C

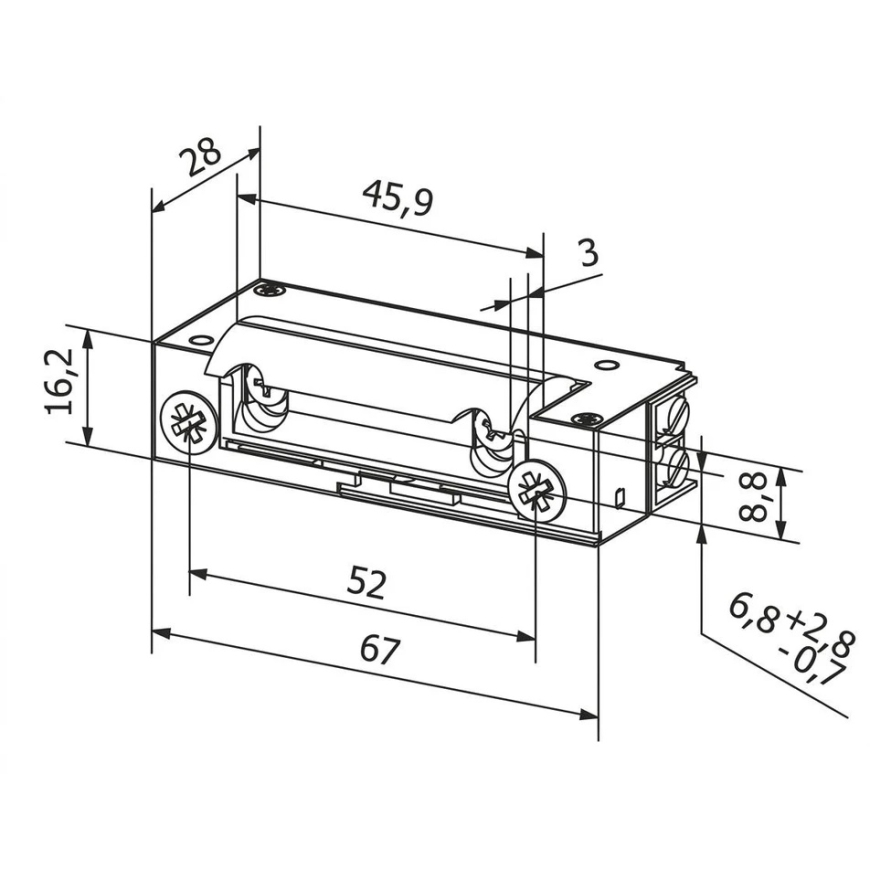

Dimensions (height x width x depth): 67 x 16.2 x 28 mm
