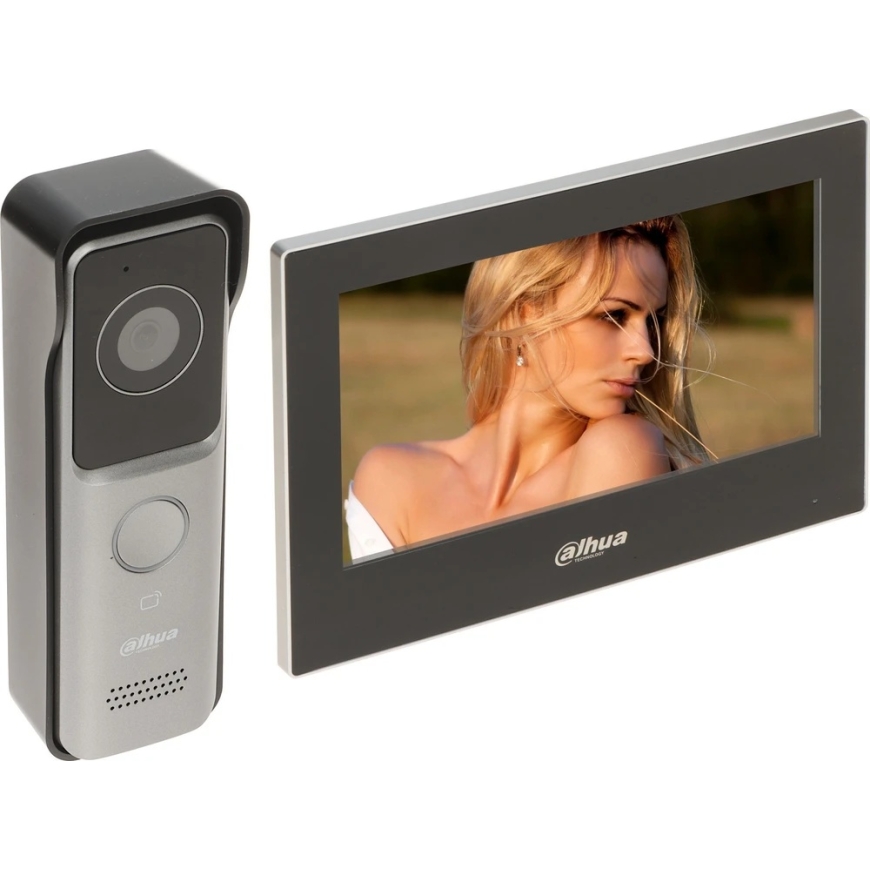

Dahua Technology KTW02 Video Intercom System 2 MP 17.8 cm (7") Light Green
5054225 DHI-KTW02
6923172536556
Shipping 8-12 b.d.
All about the product
Weight and Dimensions
Dimensions of the door station (width x depth x height): 160 x 50 x 30 mm,
Power Management
AC adapter output current: 1 A,
Power consumption: 6 W,
Power consumption (standby mode): 3.5 W,
AC adapter output voltage: 33 V,
Outdoor device power type: DC/PoE,
Storage
Compatible memory cards: SD, MicroSD (TransFlash),
Maximum memory card size: 256 GB,
Memory card slot: Yes,
Network
Cable technology: 10/100Base-T(X),
Supported network protocols: RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF,
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b,
Ethernet interface type: Fast Ethernet,
Ethernet LAN data transfer rate: 100, 10,
Wi-Fi: Yes,
Power over Ethernet (PoE): Yes,
Number of Ethernet LAN (RJ-45) ports: 1,
Construction
Mounting supported: Vertically,
International Protection (IP) code: IP65,
Control type: Touch,
Product color: Light Green,
Housing material: Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS),
Suitable for use: Outdoor,
Sound
Built-in speakers: Yes,
Audio codecs: PCM, G.711a, G.711u,
Noise reduction effect: Yes,
Package Data
Included outdoor device: Yes,
Included indoor device: Yes,
Technical Information
Communication technology: Wired and Wireless,
Compliance certificates: CE, Federal Communications Commission (FCC),
Speaker: Yes,
Automatic gain control: Yes,
Built-in microphone: Yes,
Fingerprint reader: Yes,
Color: No,
VoIP protocols: RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF,
Wall-mounted: Yes,
Door station control: Yes,
Compliance with sustainability requirements: Yes,
Motion detection function: Yes,
Maximum number of supported cameras: 1,
RFID reader: Yes,
Camera
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"),
Megapixels: 2 MP,
Sensor type: CMOS,
Maximum frame rate: 30 fps,
Supported video modes: 720p, 1080p,
Horizontal field of view: 110°,
Vertical field of view: 62°,
Environmental Conditions
Operating relative humidity range: 10 - 90%,
Operating temperature range (TT): -40 - 60 °C,
Display
Display resolution: 1024 x 600 pixels,
Screen diagonal: 17.8 cm (7"),
Touchscreen: Yes,
Supported video formats: H.264, H.265,
Display technology: TFT,
Logistics Data
Quantity per package: 1 pcs,
Minimum order quantity: 1 pcs,
Night Vision
Night vision: Yes,
LED type: IR,
