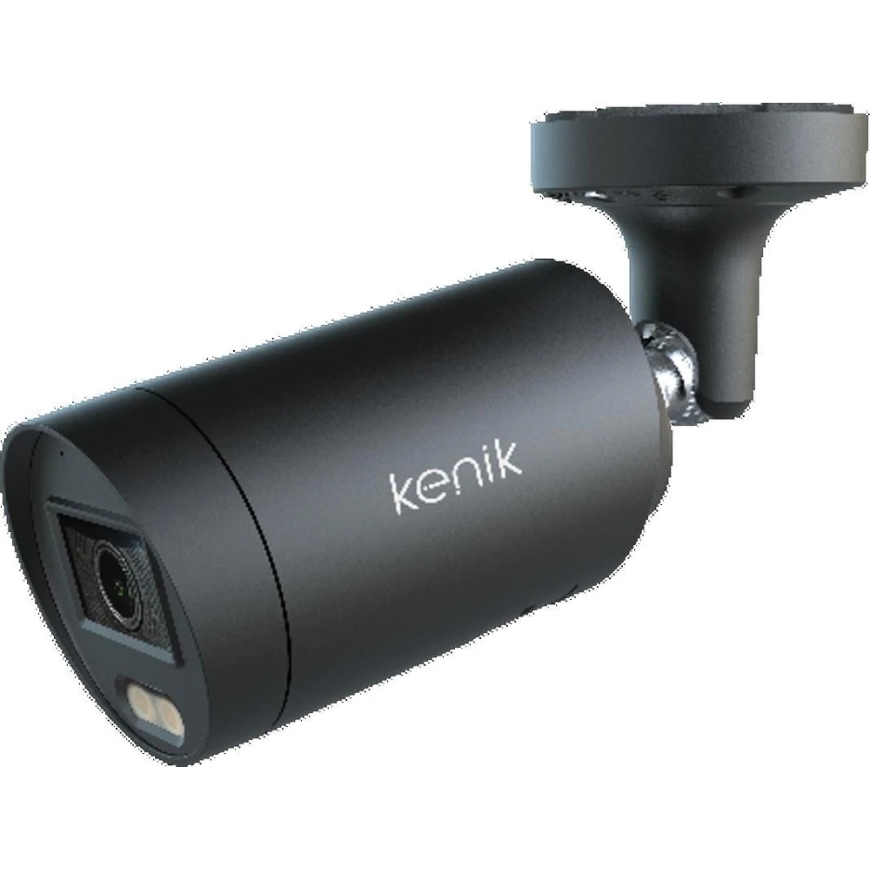

IP CAMERA KENIK KG-4G30TAS-ILC-B (2.8mm)

Model: KG-4G30TAS-ILC-B
kamera-ip-kenik-kg-4g30tas-ilc-b-28mm

Main features:

  • Resolution 4MPX (2688x1520) at 25 frames per second
  • 1/1.8 inch sensor
  • H.265+/H.264+ compression
  • WDR (120 dB) , day/night (ICR), 3DNR, AWB, AGC, BLC

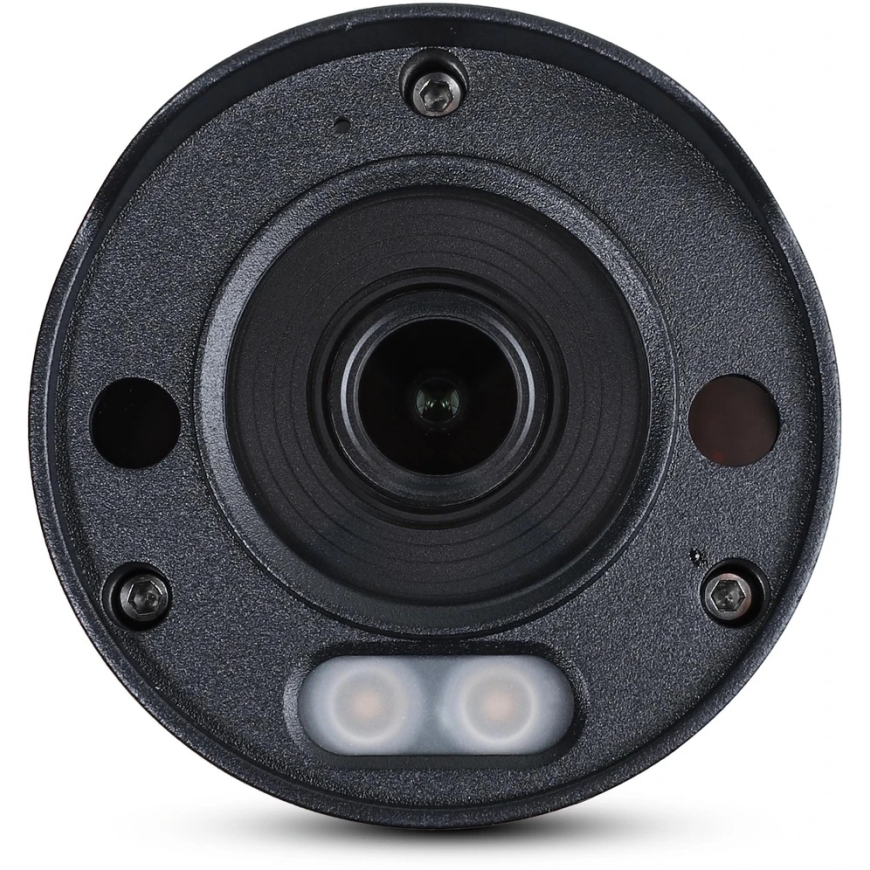

  • 2.8 mm lens (F1.0)
  • AI-IPT GeckoVu technology
  • Color image at night (2)
  • Integrated microphone
  • LED illuminator up to 30 m
  • MicroSD card slot up to 256 GB
  • Intelligent IVS video analysis (SMD+PP 2.0)
  • IG function
  • Reset button
  • Corridor mode
  • Dual power source 12 V DC / PoE (802.3af)
  • IP67 rated housing
  • Supports ONVIF 2.6 standard
  • Mobile viewing on smartphone (“Android”, “iPhone”)
  • Free software in Polish for registration on your computer

Application

The camera is designed for outdoor use. The housing allows it to be mounted to ceilings or walls. It is ideal for monitoring parking spaces, sports grounds, arenas, squares, government institutions, schools, etc.

Technical specifications:

KG-4G30TAS-ILC-B
Camera
Sensor 1/1.8 inch progressive scan CMOS sensor
Sensitivity Color: 0.0005 lux @ (F1.0, AGC on), 0 lux with LED illumination on
Shutter speed Automatic / manual, 1/3~1/100000 s
Lens 2.8 mm @ F1.0 Field of view, horizontal angle: 110°, vertical angle: 59°
Lens connection M16
Video rotation Yes
Wide dynamic range WDR
Noise reduction 2/3D DNR
Illuminator range 30 m (white light)
Smart IR NO
Microphone Yes
Speaker NO
MicroSD card slot Yes, up to 256 GB
USA NAS (NFS, SMB/CIFS)
Red/blue LEDs NO
Audio signal NO
Compression
Video compression H.264/H.264+/H.265/H.265+/MJPEG
H.264 codec profile baseline/main/high
H.265 codec profile main
Audio compression G.711A, G.711U
Video bit rate 11 Kbps~10 Mbps
Audio bit rate 64 Kbps
Maximum resolution 4 MP (2688 × 1520)
Frame rate Main stream 50 Hz: 20 frames per second 4 million resolution (2688 × 1520), 25 frames per second 4 million resolution (2560 × 1440), 25 frames per second 1080P (1920 × 1080), 60 Hz: 20 frames per second 4 million resolution (2688 × 1520), 30 frames per second 4 million resolution (2560 × 1440), 30 frames per second 1080P (1920 × 1080).
Sub stream 50 Hz: 25 frames per second 720P (1280 × 720), 25 frames per second D1 (704 × 576), 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second 720P (1280 × 720), 30 frames per second D1 (704 × 480), 30 frames per second CIF (352 × 240)
Mobile stream 50 Hz: 25 frames per second CIF (352 × 288) 60 Hz: 30 frames per second CIF (352 × 240)
Video settings Brightness / Contrast / Saturation / Hue / Sharpness
BLC YES
HLC YES
ROI YES
Network
Events motion detection, video obscuring, line crossing,
Intelligent image analysis People/vehicles detection SMD+PP, line crossing, intruder detection, entering territory, exiting territory
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
Supported standards Onvif (S, G, T profiles), CGI
Security User authentication, IP filtering, video masking
Mobile viewing “iPhone”, “iPad”, “Android”
Web IE, “Chrome”, “Firefox”
Interfaces
Communication interface 1 x RJ45 10M/100M Ethernet port
Reset Yes
General
Operating conditions (-40 °C ~ 60 °C) (-40 °F ~ 140 °F) Humidity 95 % or less (non-condensing)
Power voltage 12 V DC ±25 %
POE power source PoE (802.3af)
Housing material Metal
Power consumption MAX. 8 W
Ingress protection rating IP67
Dimensions Φ76 × 215.8 mm
Weight 900 g
