Portable Electric Vehicle Charger - DEPOW deM2D22B7D_DL 22 kW 7 m
5051599 deM2D22B7D_DL
6975828005190
Shipping 3-5 b.d.
All about the product

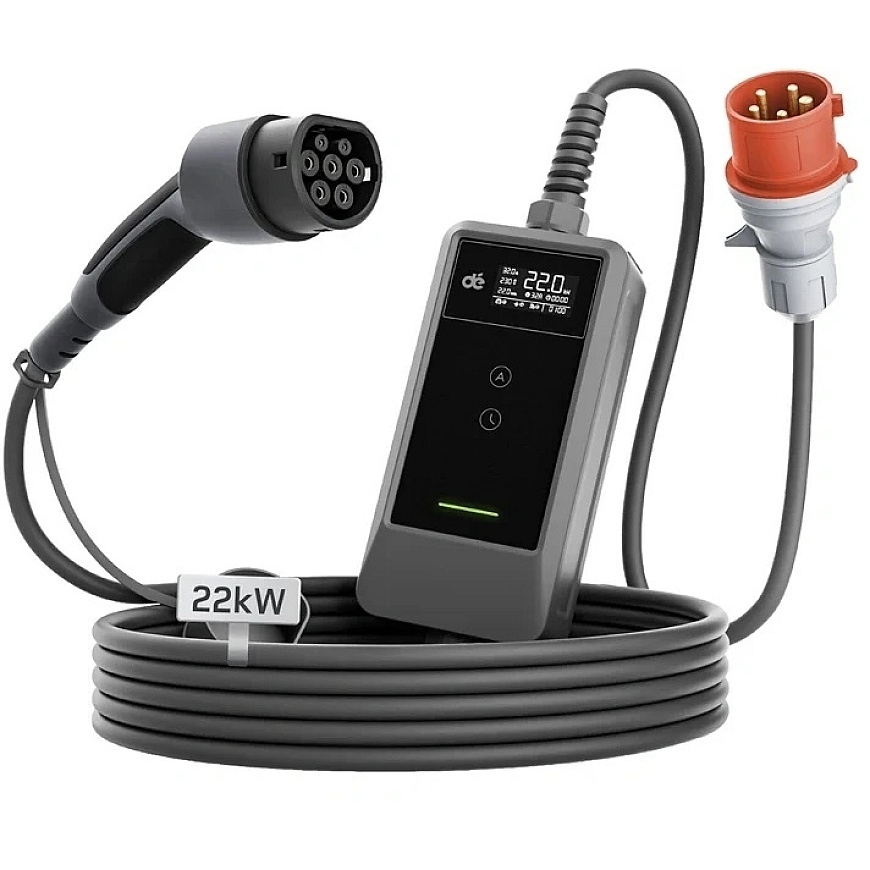

DEPOW Portable Electric Car Charger, 22 kW, 7 m

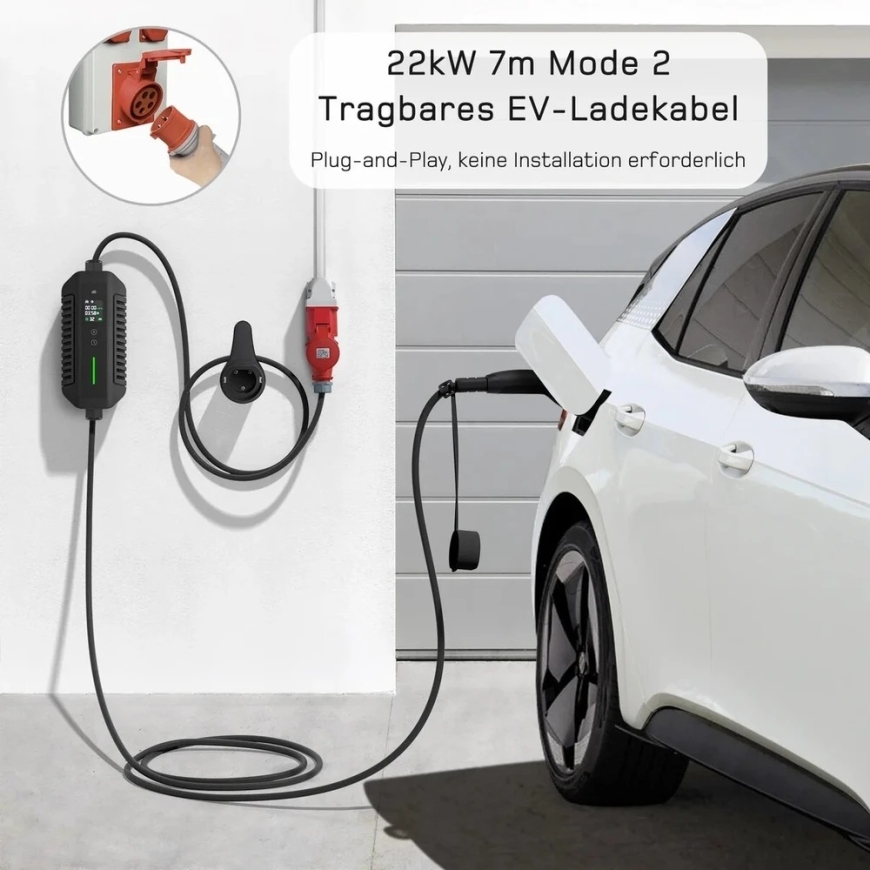

The DEPOW portable electric car charger, with a power of up to 22 kW, features a 7-meter cable and a Type 2 connector, ensuring flexibility in connecting the car to a power source. The device supports single and three-phase charging in Mode 2 and allows current adjustment from 6 to 32 A. Users also have access to an LCD screen, Wi-Fi and Bluetooth connectivity, app control, and a charging schedule function. The charger is designed for both indoor and outdoor use, and its control unit has an IP66 protection rating.
Current Adjustment According to Electrical System
The ability to adjust the current allows users to tailor the charging process to their electrical system's capabilities and current needs. Options include 6 A, 10 A, 13 A, 16 A, 20 A, 24 A, and 32 A. This enables the user to limit current use when electrical installation does not permit full utilization of the charger's capabilities. The LCD screen allows for easy monitoring of key parameters and the current operational status of the device.
Control via Wi-Fi and Bluetooth App
The charger can connect to a mobile app via Wi-Fi or Bluetooth, making it easy to manage the charging process. In the app, you can remotely start and stop the charging session, monitor the device's operation in real-time, view charging history, and set a schedule for specific hours. The "RFID Toggle" feature in this model refers to digital authorization or session locking in the app, rather than a physical RFID card reader. This helps to prevent unauthorized charging with the function properly configured in the app.
Safety Features for Daily Use
The DEPOW device has safety features that monitor overload, overvoltage, voltage dip, leakage current, short circuits, grounding faults, and control unit temperature. The integrated RCD Type A 30 mA AC + 6 mA DC protection detects deviations related to AC and DC components. Temperature control additionally helps protect the device during prolonged charging. LED indicators show power status, standby mode, ongoing charging, and any errors.

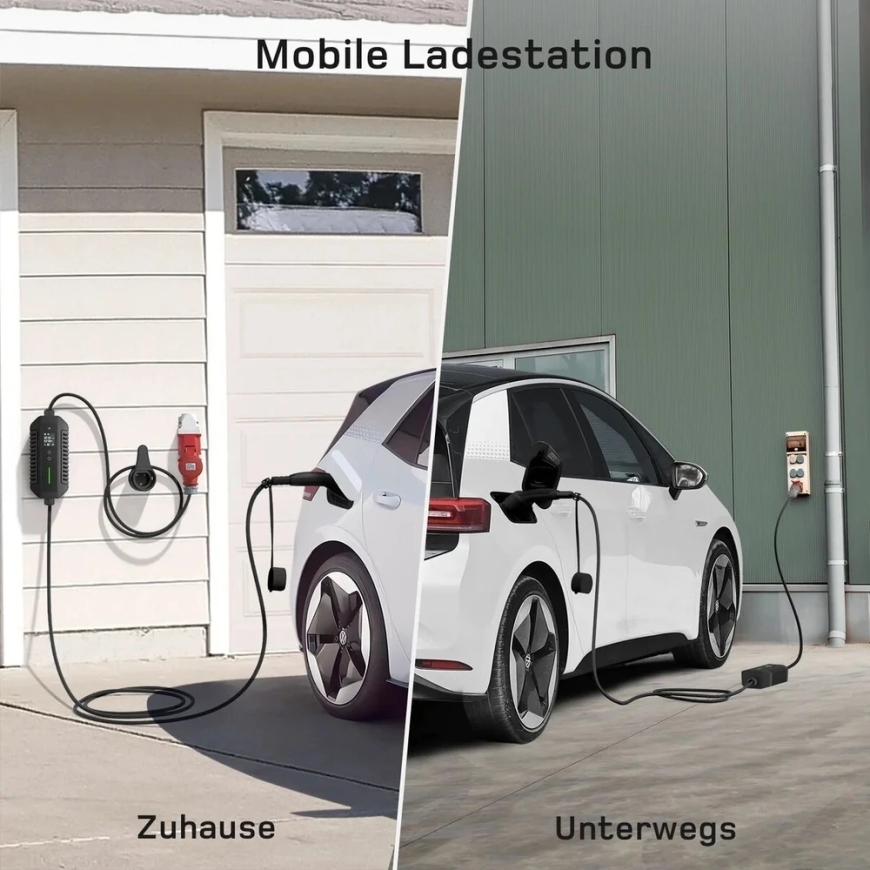

Designed for Various Conditions
The control unit has an IP66 protection rating, and the Type 2 plug – IP55, making the set more resistant to dust and water. The device can operate from -25°C to 50°C temperature and from 5% to 95% relative humidity without condensation. Power consumption in standby mode is less than 5 W, and total harmonic distortion (THD) does not exceed 5%.

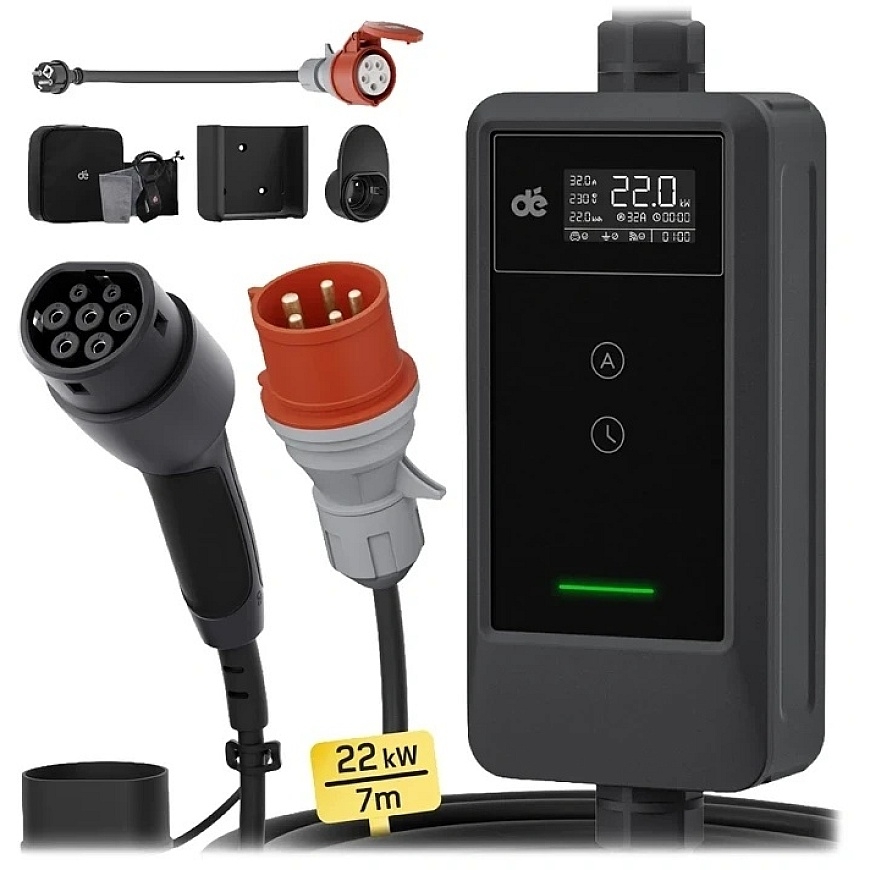

In the Box
- DEPOW 22 kW Portable Electric Car Charger with 7 m Cable
- Type 2 Car Connector
- 5-Pole CEE Power Plug
- CEE Adapter for Power from Industrial Socket
- Schuko Adapter for Connection to Standard 230 V Socket
- Wall Mount for Type 2 Plug
- Wall Mount for Cable
- Installation Fasteners
- Cable Tie
- Cleaning Cloth

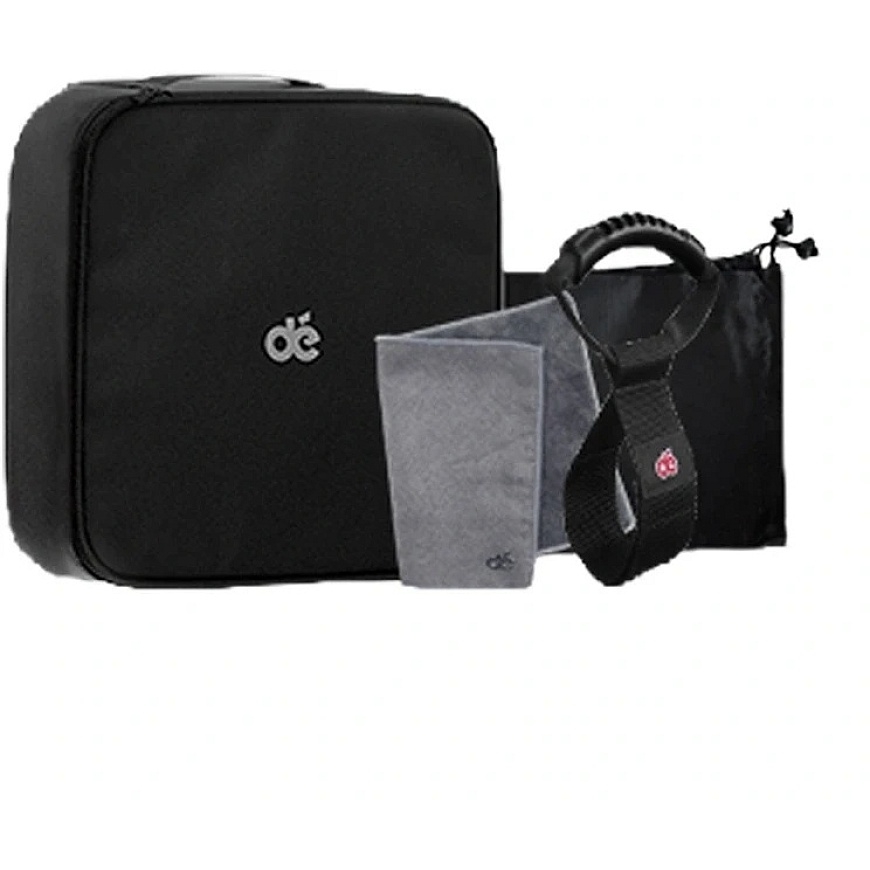

- Carrying Bag
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D22B7D_DL |
| Maximum Power | 22 kW |
| Charging Type | Single-phase / 3-Phase, Mode 2 |
| Voltage | 400 V AC, 50 Hz |
| Connector | Type 2 |
| Cable Length | 7 m |
| Current Control | 6 A / 10 A / 13 A / 16 A / 20 A / 24 A / 32 A |
| Display | LCD |
| Connectivity | Wi-Fi, Bluetooth |
| App Features | remote start/stop, real-time monitoring, current adjustment, charging schedule, charging history, digital authorization/lock "RFID Toggle" |
| RCD | Type A 30 mA AC + 6 mA DC |
| Protections | overload, overvoltage and voltage dip, ground fault current, short circuit, grounding check, temperature control |
| Control Unit Protection Rating | IP66 |
| Type 2 Plug Protection Rating | IP55 |
| Operating Temperature | from -25°C to 50°C |
| Storage Temperature | from -40°C to 80°C |
| Operating Humidity | 5–95% RH, no condensation |
| THD | ≤5% |
| Standby Power Consumption | <5 W |
| Control Unit Dimensions | 238 × 115 × 69 mm |
| Usage | Indoor and Outdoor |
