The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

cordless rebar tying tool 40V max XGT Makita [TR001GD203] 2x2.5Ah

1 232.72 €
Monthly payment from 32,64 €
5050358

XGTTR001GD2032x2.5Ah

0197050020697

Shipping 8-12 b.d.

You are interested in this product?
(Read terms of service)

All about the product

Meie ettevõte ei ole Makita kaubamärgi tootja, volitatud edasimüüja ega volitatud esindaja Eestis-s.

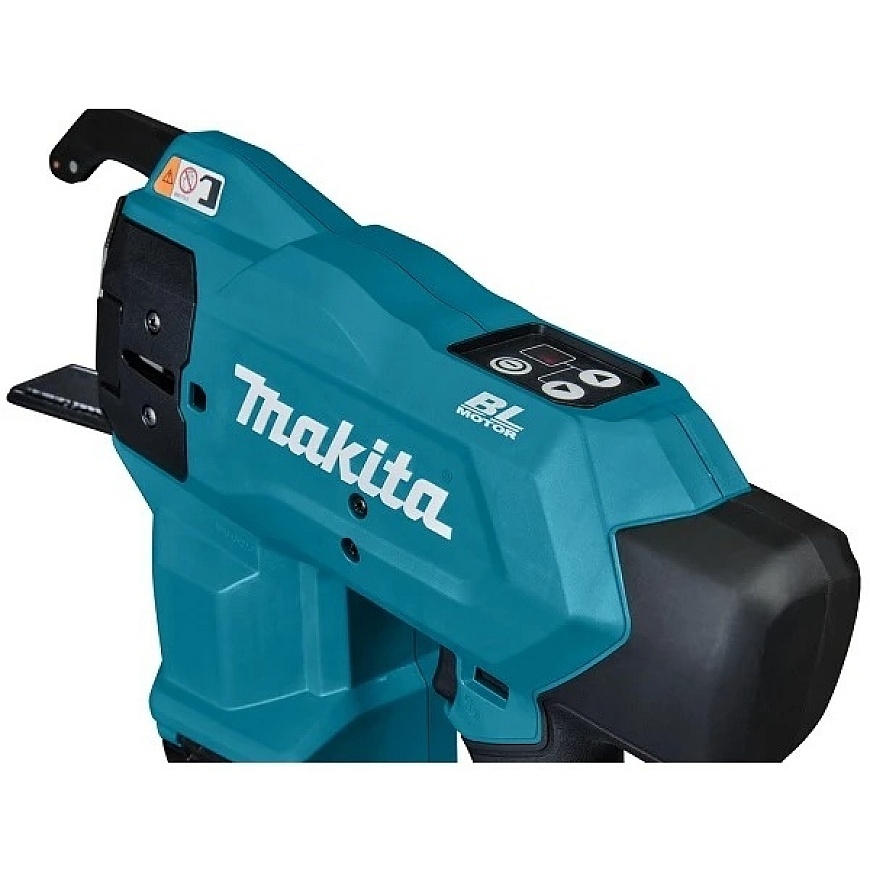

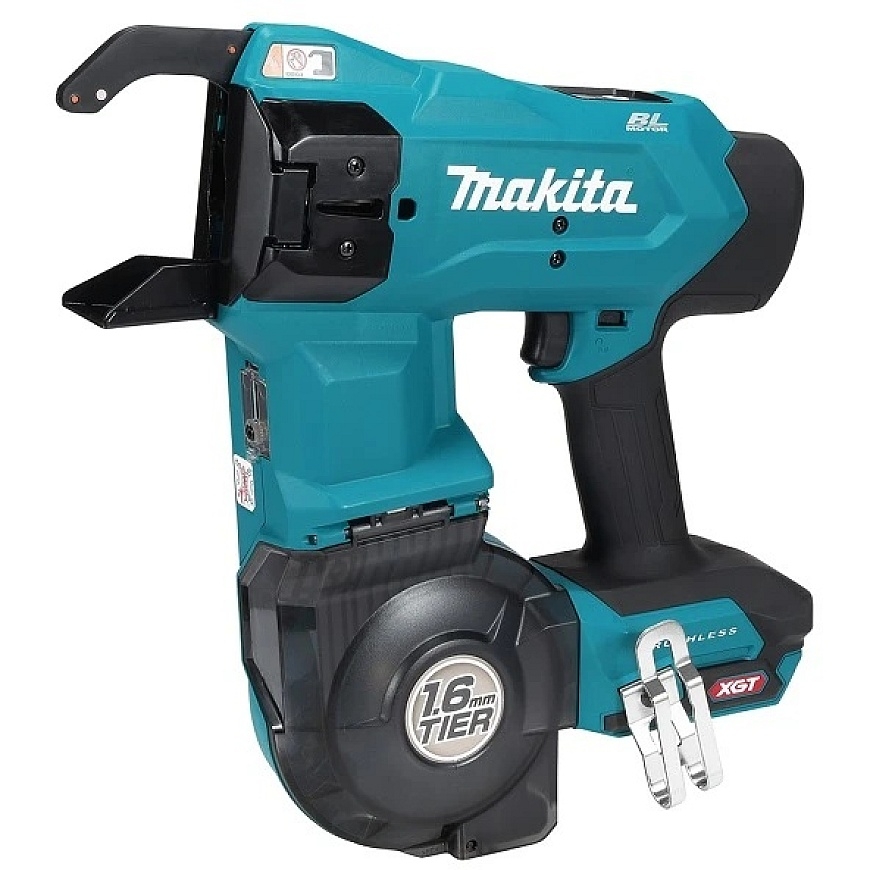

Cordless rebar tie gun 40V max XGT Makita [TR001GD203]:

  • is designed for quick and automatic tying of rebar,
  • is mainly used in the construction industry, especially for preparing rebar frameworks, such as in concrete foundations,
  • has the ability to tie a wide range of rebar diameters, from small to large, making the device versatile - the maximum tying capacity for 2 bars is, for example, 25 x 29 mm),
  • the battery system 40V max XGT provides great power and long working time necessary for intensive rebar work,
  • is equipped with 2 brushless BLDC motors for twisting and feeding, ensuring stable tying,
  • has been produced using XPT Technology , which provides increased resistance to dust and moisture, protecting key components of the machine from harsh conditions on the construction site,
  • the tie gun can be operated with one hand, making it easier to adjust the position of rebar with the free hand,

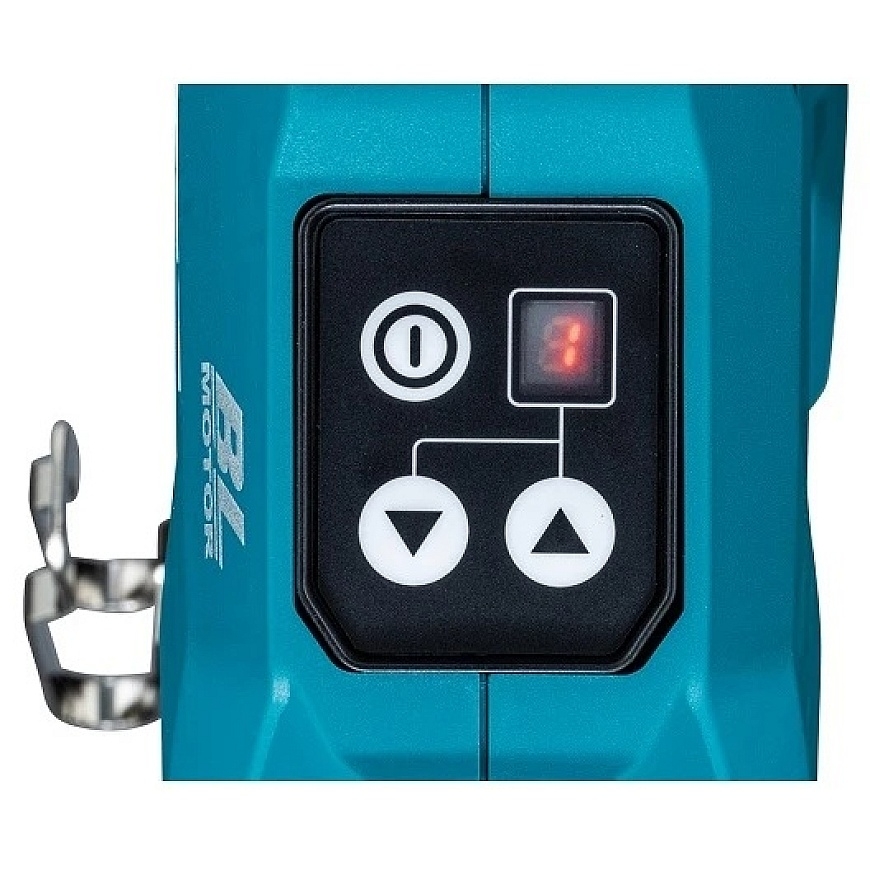

  • 6-stage tying force adjustment allows precise adjustment of the clamping force to different combinations and diameters of rebar, ensuring optimal tying strength,
  • has 2 wire tying modes:
    - continuous tying mode for quick tying of large surfaces, without the need to release and re-press the trigger each time
    - single tying mode for precise and single tie applications in areas requiring more attention,
  • switching the tying mode is done via a button, the selected mode is indicated by an appropriate indicator,
  • t pulling mechanism actively pulls the wire during the tying process, which is key to ensuring tight contact of the wire with the rebar providing stability in tying,
  • the tie gun features a main power switch with automatic shut-off and a window at the front of the tie gun allowing the operator to easily check the position and condition of the wire,

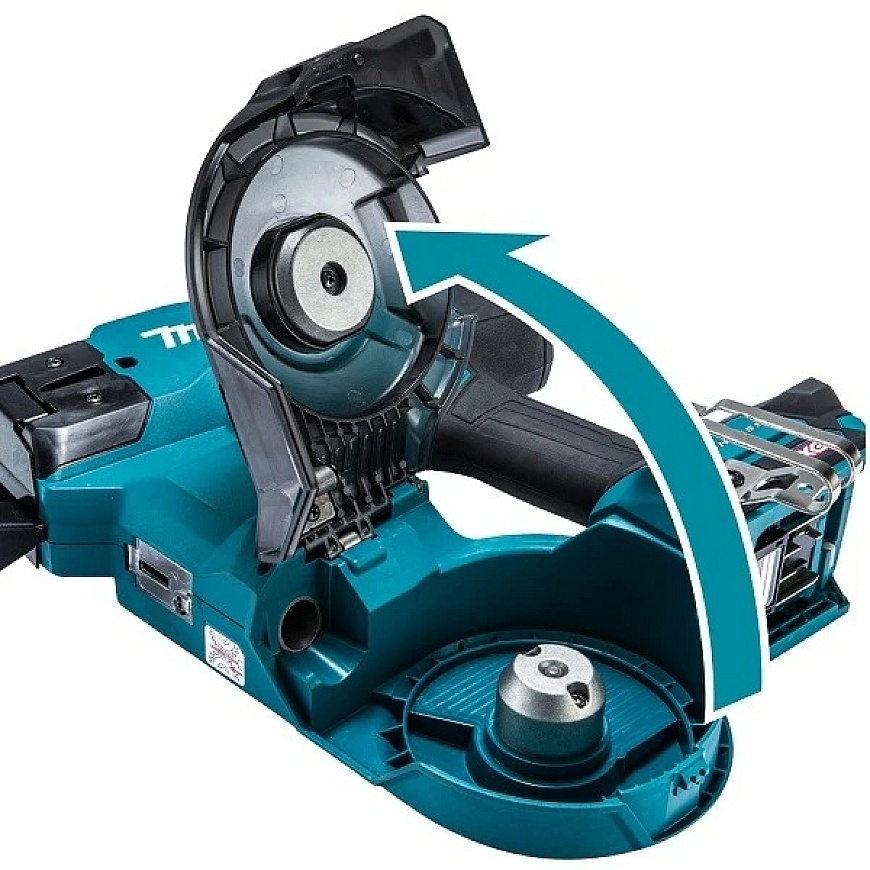

  • synchronized cover and gear mechanism ensure simple and quick spool changes, minimizing downtime during work,
  • there is a possibility to store the hex key in the device body,
  • ergonomically designed handle covered with elastomer improves grip and work comfort,

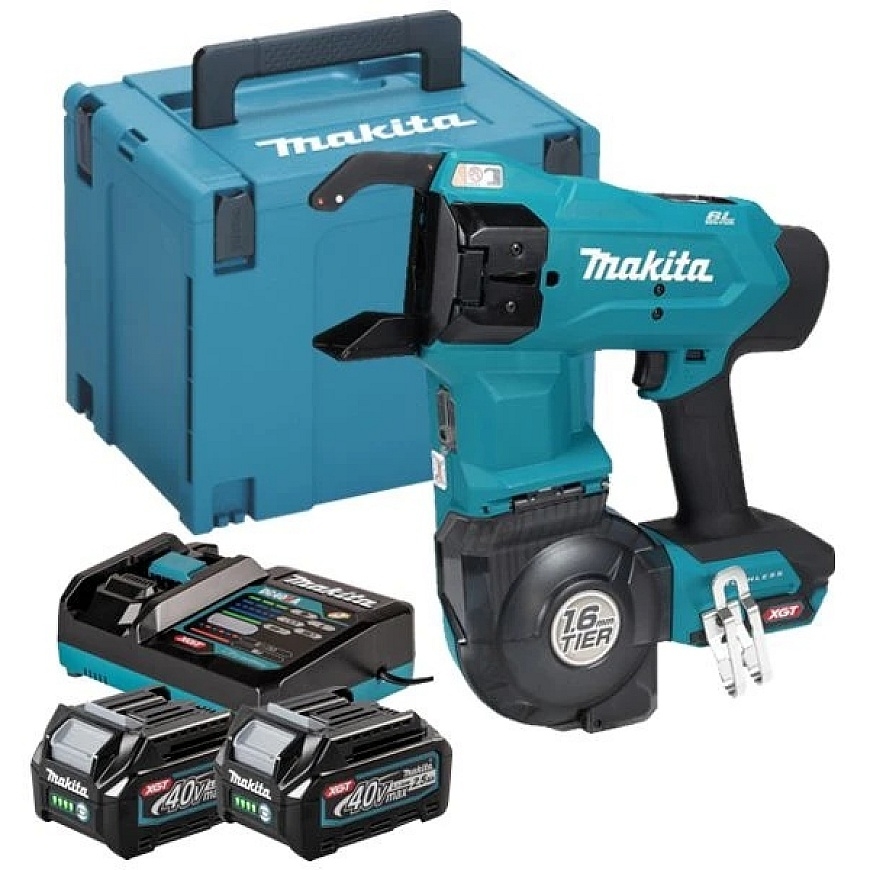

  • the tie gun comes with 2 batteries and a charger, packaged in a MAKPAC system case.

TECHNICAL PARAMETERS OF MAKITA REBAR TIE MACHINE [TR001GD203]:

  • power supply voltage : 40V max XGT,
  • battery type : Li-ion,
  • supported batteries : 2.0 / 2.5 / 4.0 / 5.0 / 8.0 Ah,
  • estimated number of ties per spool : approx. 240,
  • tying speed : 0.7 s,
  • wire diameter : 1.6 mm,
  • maximum tying capacity of 2 reinforcing bars : 25 x 29 mm,
  • maximum tying capacity of 3 reinforcing bars : (19 x 19) x 25 mm,
  • maximum tying capacity of 4 reinforcing bars : (16 x 16) x (16 x 16) mm,
  • tying strength adjustment: 6-level,
  • acoustic power level : 88 dB(A),
  • acoustic pressure level : 80 dB(A),
  • noise coefficient : 3 dB(A),
  • vibration level : ≤ 2.5 m/s²,
  • vibration coefficient K h : 1.5 m/s²,
  • dimensions (L x W x H) : 375 x 113 x 331 mm,
  • weight without battery : 2.6 kg,
  • weight with battery : 3.3 - 4.5 kg

EQUIPMENT OF MAKITA REBAR AND WIRE TIE MACHINE [TR001GD203]:

  • 2 BL4025 batteries (40V / 2.5 Ah),
  • 40V max XGT charger,
  • oil for pneumatic tools [194381-3],
  • 2.5 mm hex key [783208-8],
  • MAKPAC type 4 system case [821552-6],
  • MAKPAC case insert [836433-1],
  • user manual

User manual: https://www.icmsmakita.eu/CMS/custom/fi/attachments/user_manuals/User_manuals_EU3/TR001G.pdf

Declaration of conformity: https://www.icmsmakita.eu/CMS/custom/fi/attachments/ec_declaration_conformity/TR001G.pdf

Service diagram: https://www.icmsmakita.eu/CMS/custom/fi/attachments/part_drawings/EN/TR001G.pdf
