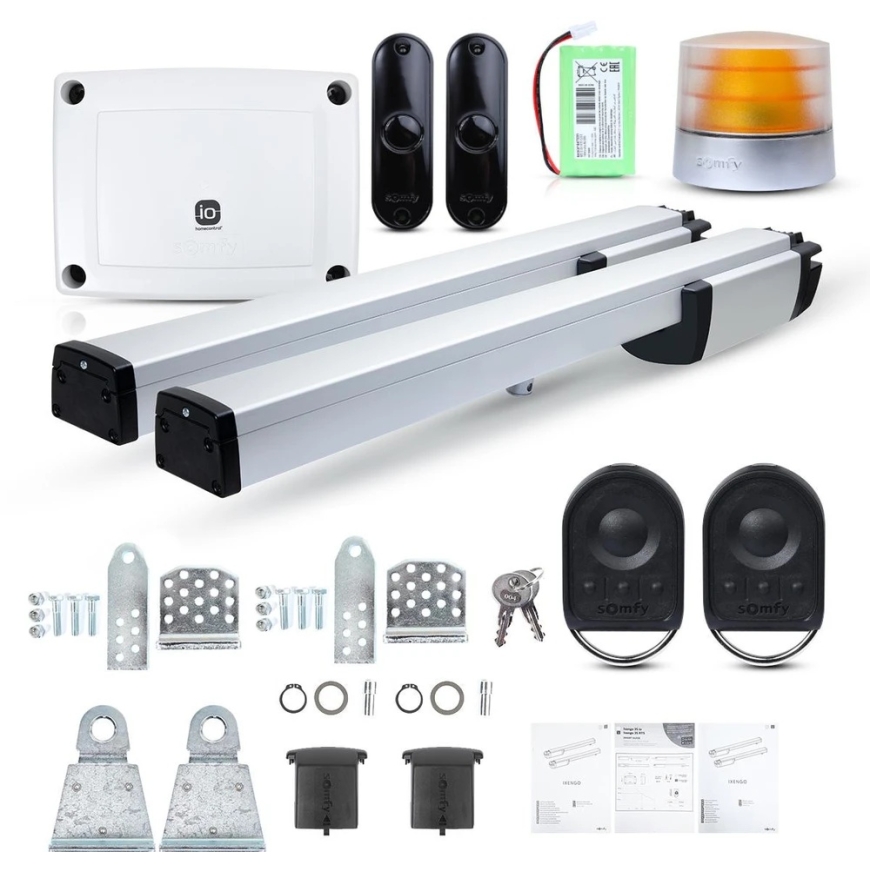

Somfy Ixengo L 3S+ IO Comfort Pack Set for Double Leaf Gates up to 8 m
741.28 €
Monthly payment from 19,99 €
5049840 1246485
3660849692490
Shipping 8-12 b.d.
You are interested in this product?
All about the product
„Somfy Ixengo L 3S+ IO Comfort Pack“ 8 m for two-leaf gates
Model: 1246485
Key Features
- Fits narrow 80 mm wide posts.
- Intuitive app “Fix & Go” for easy and successful installation of the drive and optimized performance.
- Highly advanced and unique limit switch system, accessible from the top of the drive, indicating when the correct position is reached with a blinking LED.
- Non-removable mechanism ensures very high resistance to strong wind pressure and other forces.
- Simple and safe disengagement using a unique key.
- Smooth stopping and adjustable torque value.
- Very precise adjustment of the closing position and closing force.
- Deceleration zone and displacement between the two spans minimized.
- Compatibility with solar energy systems when installed in hard-to-reach places for power cables.
- Emergency battery ensures gate operation during power outages.
- Photoelectric cells ensure safe passage (two pairs recommended).
- Warning light alerts pedestrians about the gate's movement.
Purpose
This kit is designed for swinging gates with a leaf length of up to 4 m and a weight of up to 400 kg. This product may only be installed by home automation and drive specialists. Installation instructions provided by “SOMFY” are intended for professionals.
io-homecontrol® technology
- Compatibility with all “Somfy” products that support “io” technology.
- Each two-way transmitter receives feedback signals from the controlled product.
- By connecting the “TaHoma®” switch to the system, the current gate position can be controlled and monitored remotely.
Technical Specifications:
- Power Supply : 230 V (-15 % / +10 %) - 50 Hz
- Motor Supply : 24 V DC
- Power Consumption (max.) : 40 W
- Lighting Power : max. 500 W.
- Accessory Supply Voltage : 24 V DC / 1200 mA
- Maximum weight for swinging gates: 800 kg (400 kg per leaf)
- Maximum number of cycles per day: 30
- Radio Frequency : IO 868–870 MHz
- Max. number of remote controls : 30 for opening/closing, 4 for lighting, 4 external outputs.
- Protection Class : IP44
- Power Consumption in Standby Mode: 0.42 W
- Operating Temperature : from -20°C to +60°C
