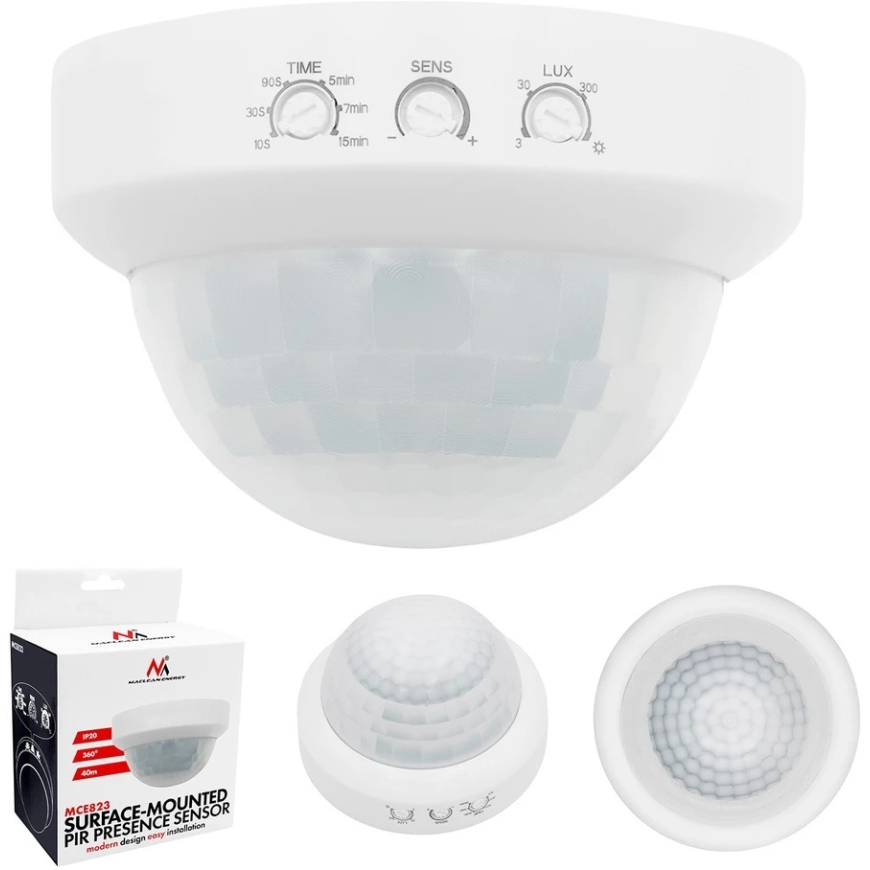

Maclean PIR Motion Sensor, Surface-Mount, Detection Range 10x40 m, 1000 W/2000 W, 220–240 V AC, 50/60 Hz, MCE823

PIR MOTION SENSOR MACLEAN MCE823 – CONVENIENT LIGHTING CONTROL
"Maclean MCE823" is a practical PIR motion sensor designed for surface mounting to automatically control lighting in homes, offices, corridors, garages, basements, or utility rooms. The device detects motion and presence, then turns on the connected lighting without the need for a traditional switch. This way, the light can illuminate exactly when needed, enhancing usability and helping to reduce energy consumption.

WIDE 360° DETECTION ANGLE AND ADJUSTABLE LIGHTING TIME
The "Maclean MCE823" motion sensor provides a full 360-degree detection angle, effectively monitoring the space around the installation site. This solution is particularly suitable for corridors, passage areas, and zones where movement can occur from various directions. The lighting support time can be adjusted from 10 seconds to 15 minutes, tailoring the sensor's operation to specific purposes. A shorter setting is suitable for corridors, while a longer duration is useful in garages, basements, or utility rooms.

Specification – Manufacturer: "Maclean"
– Model: MCE823
– Color: white
– Voltage: 220–240 V/AC
– Detection angle: 360°
– Network frequency: 50/60 Hz
– Detection technology: PIR
– Detection range: max. 40 m (<24 °C)
– Delay time: min. 10 s ± 3 s, max. 15 min ± 2 min (adjustable)
– Ambient light: <32000 lux (adjustable)
– Mounting height: 2.2–4 m
– Rated load: max. 2000 W (resistive load) / 1000 W (inductive load)
– Operating humidity: <93% RH
– Motion detection speed: 0.6–1.5 m/s
– Operating temperature: from –20 to +40 °C
– Electric shock protection class: II
– Protection degree: IP20

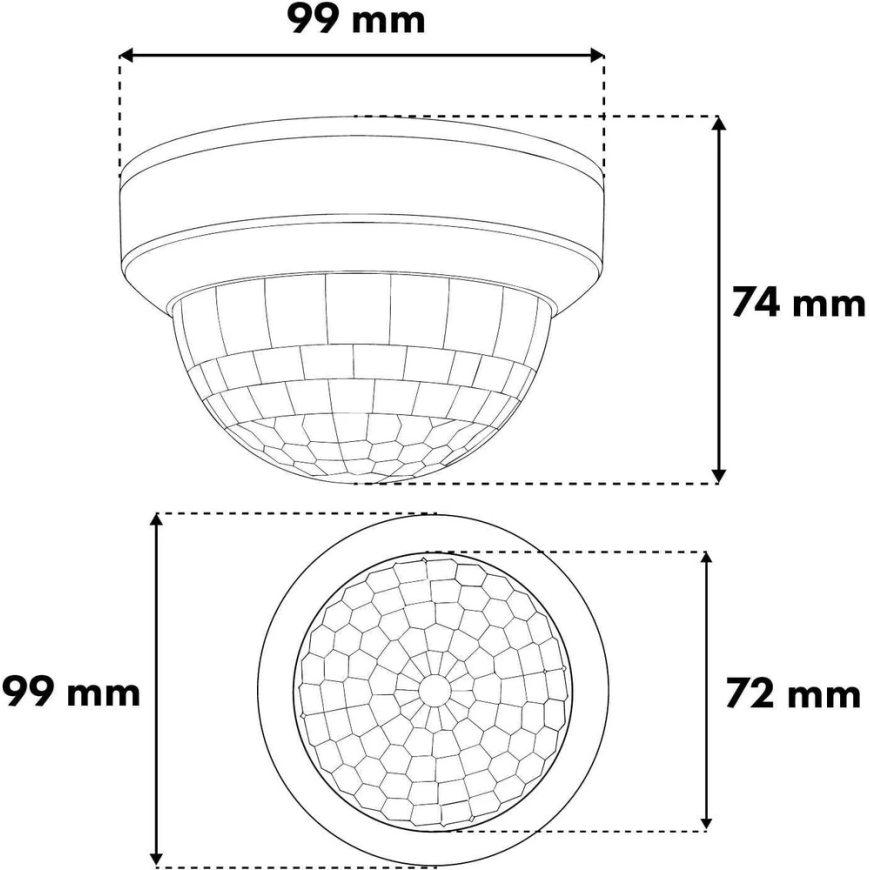

– Height: 74 mm
– Overall diameter: 99 mm
– Sensor diameter: 72 mm

Package includes – PIR motion sensor "Maclean MCE823"

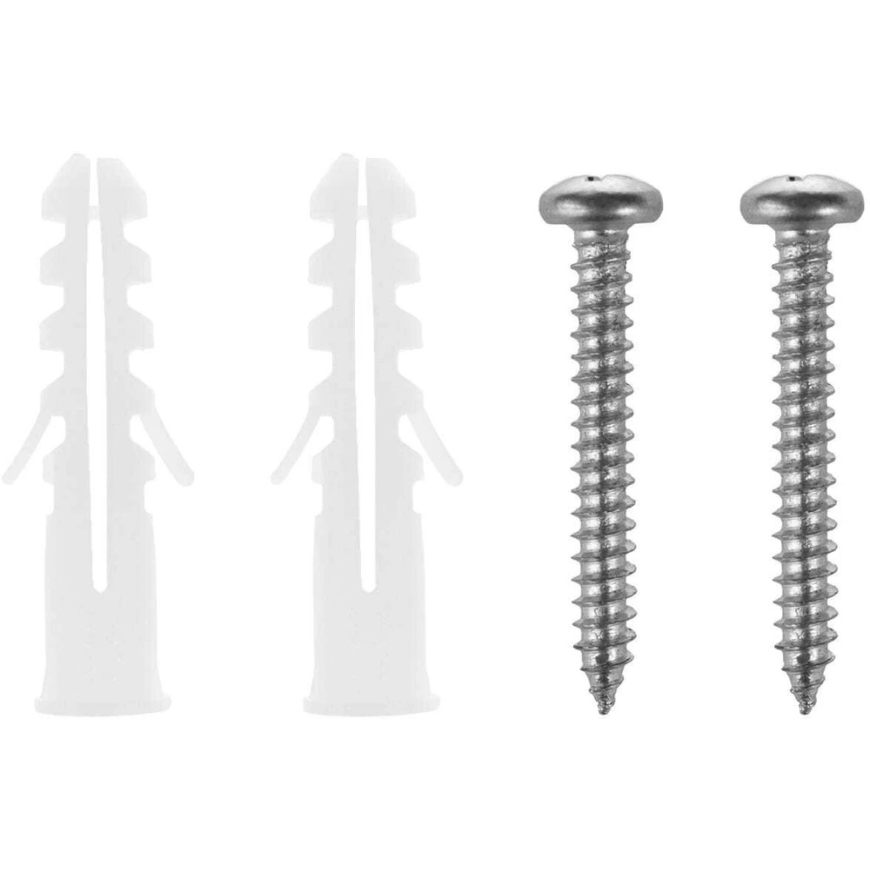

– Mounting accessories
– User manual
– Manufacturer's packaging

ADJUSTABLE TWILIGHT SENSOR AND SURFACE MOUNTING
The built-in adjustable twilight sensor allows you to set the light intensity level at which the device should turn on the lighting. Thus, the "Maclean MCE823" can operate mostly in low light, reducing unnecessary energy consumption during the day. The surface-mounted design facilitates installation on walls or ceilings, while the ability to adjust the lighting time, sensitivity, and twilight threshold enables precise adaptation of the sensor's operation to the specific features of the premises. This is a practical solution for automating lighting in corridors, garages, basements, offices, and other spaces.

Features – Wide 360° detection angle – effective monitoring of the space around the sensor and fast motion detection regardless of the direction the user is coming from
– Presence detection – responds to motion and presence in the room
– Adjustable sensitivity – the ability to adapt the device's response to room characteristics and reduce the risk of accidental lighting activation
– Adjustable lighting support time – smooth adjustment of operation time from 10 seconds to 15 minutes
– Adjustable twilight sensor – light intensity level setting at which the sensor will operate, so lighting does not have to turn on during the day
– Automatic lighting control – light turns on only when motion is detected and there are suitable lighting conditions
– Convenience and energy saving – lighting automation reduces the need to use switches and helps lower electricity costs
– Wide application – suitable for corridors, staircases, closets, garages, basements, utility rooms, offices, and other used spaces
– Discreet design – the mounted device remains minimally visible and blends well with modern interior design
