Automotive Leak Detector - ANCEL L5000 PRO 0.5–20 PSI EVAP Smoke Tester
5049768 L5000PRO
6978281190588
Shipping 3-5 b.d.
All about the product
ANCEL L5000 PRO Diagnostic Leak Detector for Automotive Systems
The ANCEL L5000 PRO is a sophisticated leak detector designed to check automotive systems using air and smoke. It allows for quick leak detection by introducing smoke into the system and operates in various modes – from low pressure (0.5 psi) to high pressure (20 psi). The device also supports pressure drop testing at set pressure and vacuum leak testing, expanding diagnostic capabilities for various vehicle systems.
Wide Range of Applications for Vehicle System Diagnostics
The detector is designed to check the tightness of many automotive systems. For example, it can diagnose the EVAP system, air intake system, exhaust system, intercooler system, oil circuit, and water lines. The L5000 PRO model allows simulating corresponding working pressure conditions and quickly locating the source of the leak using visible smoke.
Various Pressure Modes and Available Tests
The ANCEL L5000 PRO supports a low-pressure mode of 0.5 psi, a high-pressure mode of 20 psi, and a linear mode with adjustable output pressure from 0.5 to 20 psi. The device offers air leak testing, smoke leak testing, pressure drop testing, and vacuum leak testing. With a pressure resolution of 0.001 of the selected unit and a flow resolution of 0.01 l/min, the user can more accurately control the testing process and analyze diagnostic results.
Intuitive Control Panel and Self-Diagnostic

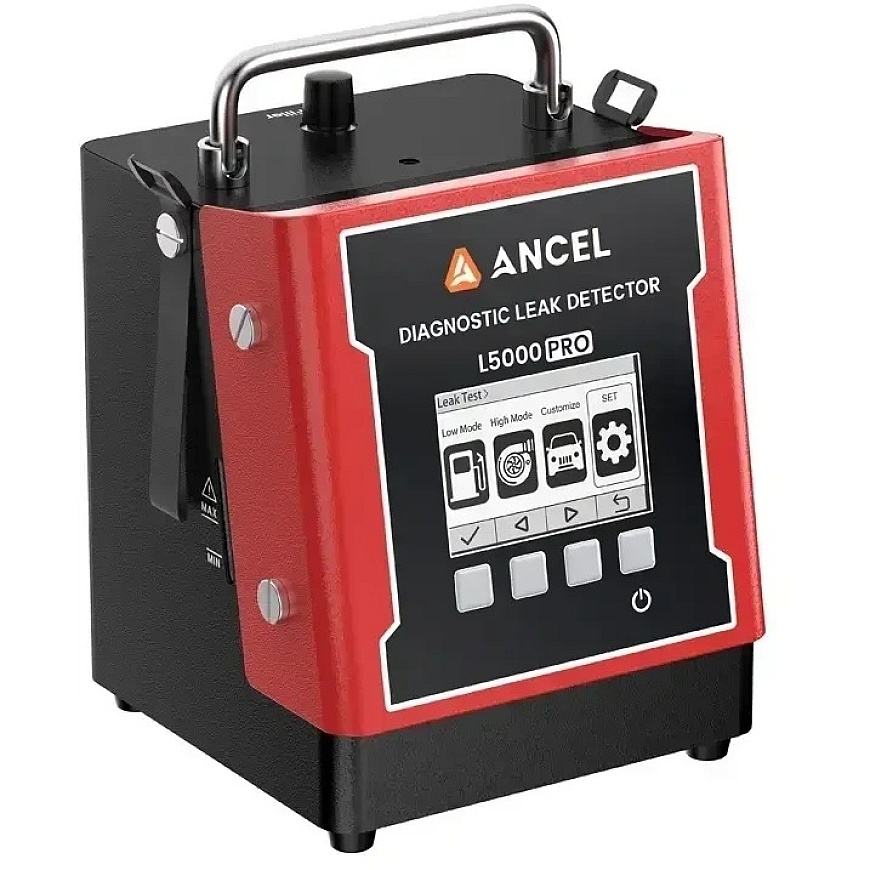

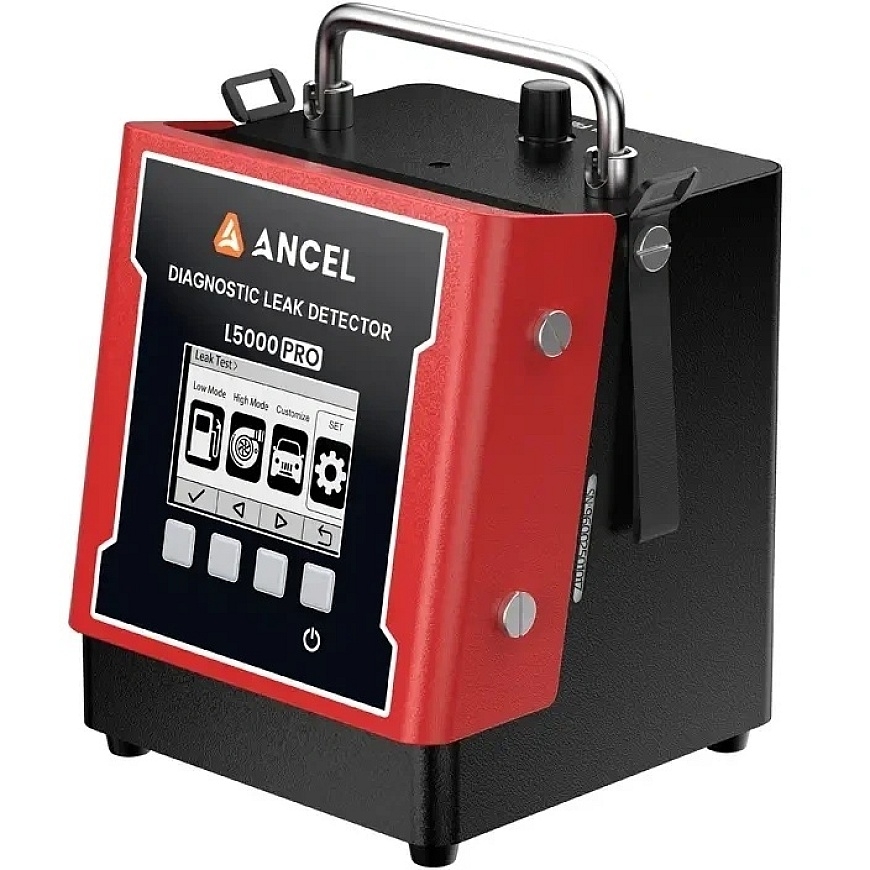

The device features a control panel with an LCD screen and 4 functional buttons. This allows for convenient selection of operating modes and adjustment of testing parameters. Additionally, it has a self-check function, allowing the unit to perform self-diagnostics if operational issues arise.
Designed for Workshop Use
The L5000 PRO model is compatible with 12 V car batteries and ensures a flow of less than 8 l/min. It comes with a 2.5 m long power cord and a 2.5 m long smoke hose, making it more convenient to work around the vehicle. There is also an adhesive clip for holding them and a hook for hanging the device.

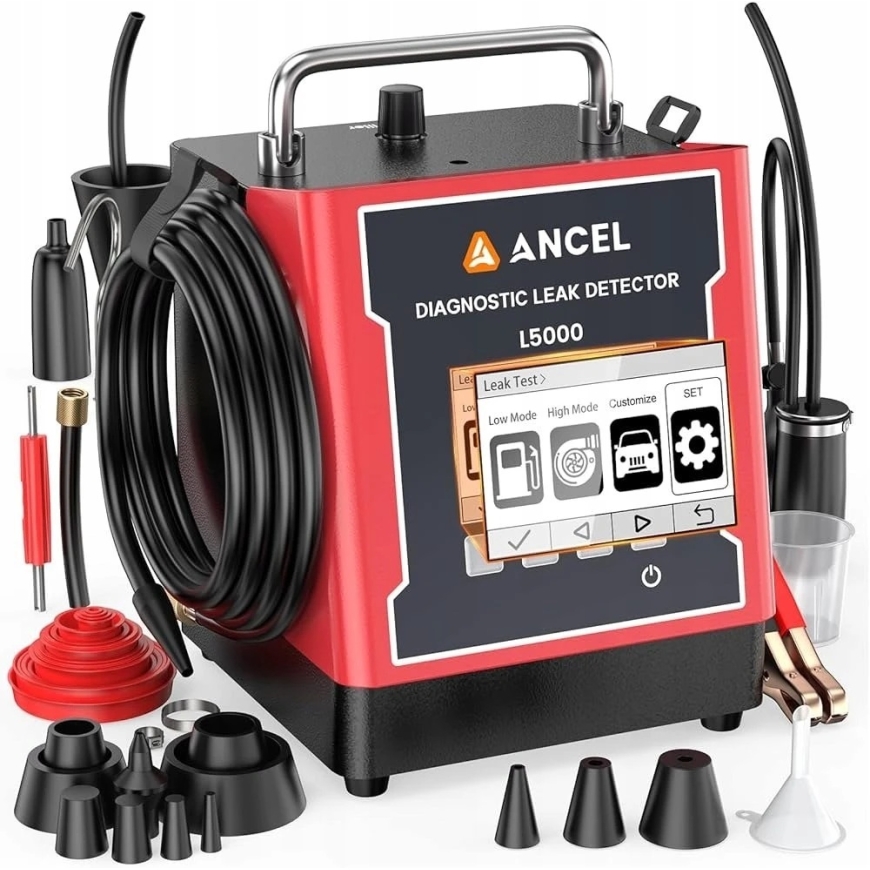

Adapter Kit for Various Applications
The package includes a variety of adapters and accessories for working with different vehicle systems. Included are adapter cones for openings ranging from 25 to 55 mm in diameter, an adapter for the EVAP service port, a set of plugs, and an intake bladder for openings ranging from 25 to 140 mm in diameter.

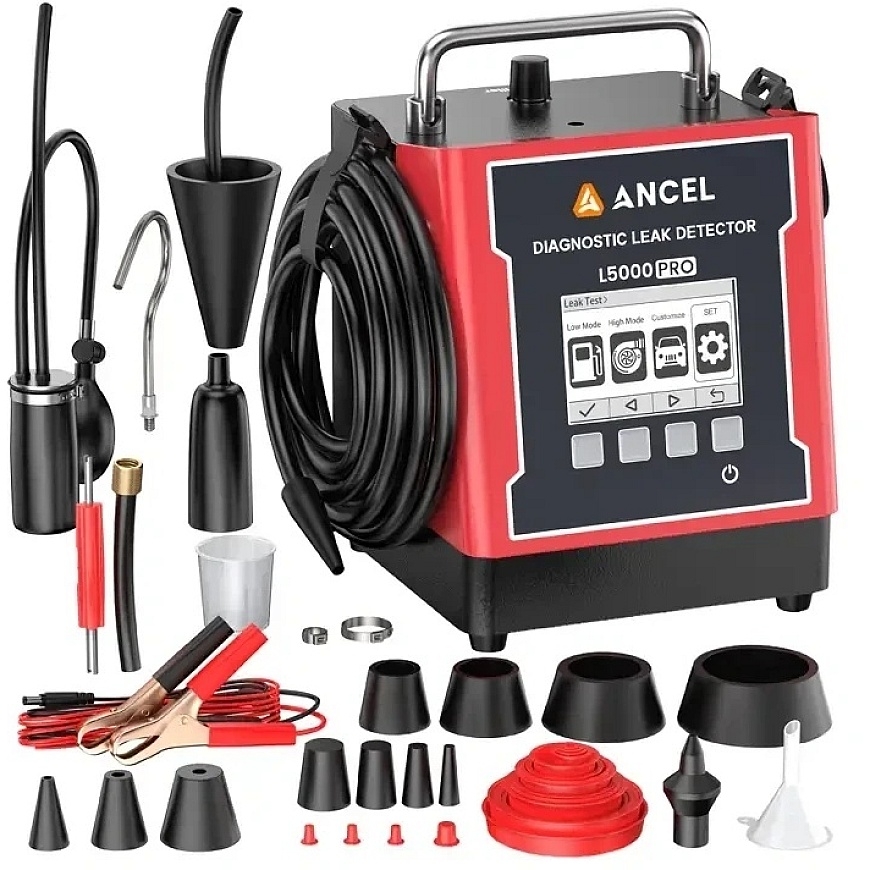

The Package Includes
- Diagnostic leak detector
- Power cord
- Supply hose
- Hook
- Funnel
- Intake bladder
- Spare parts for intake bladder
- Adapter cone
- Set of adapter cones
- Set of locking cones
- EVAP adapter
- EVAP removal tool
- Set of plugs
| Manufacturer | ANCEL |
|---|---|
| Model | L5000 PRO |
| Device Type | Diagnostic Leak Detector for Automotive Systems |
| Display | 3.5 inch display |
| Power Supply | 12 V DC (car battery), < 8 A |
| Output Pressure | Constant low (0.5 psi) / high (20 psi) pressure modes and linear mode with adjustable output pressure from 0.5 to 20 psi |
| Flow Rate | < 8 l/min |
| Power Cord Length | 2.5 m |
| Smoke Hose Length | 2.5 m |
| Pressure Resolution | 0.001 of the selected unit |
| Flow Resolution | 0.01 l/min |
| Supported Functions | Air leak test, smoke leak test, pressure drop test, vacuum leak test, device self-diagnostics |
| Air Source | Built-in pump |
| Languages | Chinese, English, Spanish, Portuguese, German, French, Italian |
| Dimensions | 164 x 168 x 245 mm |
| Weight | 2.4 kg |
