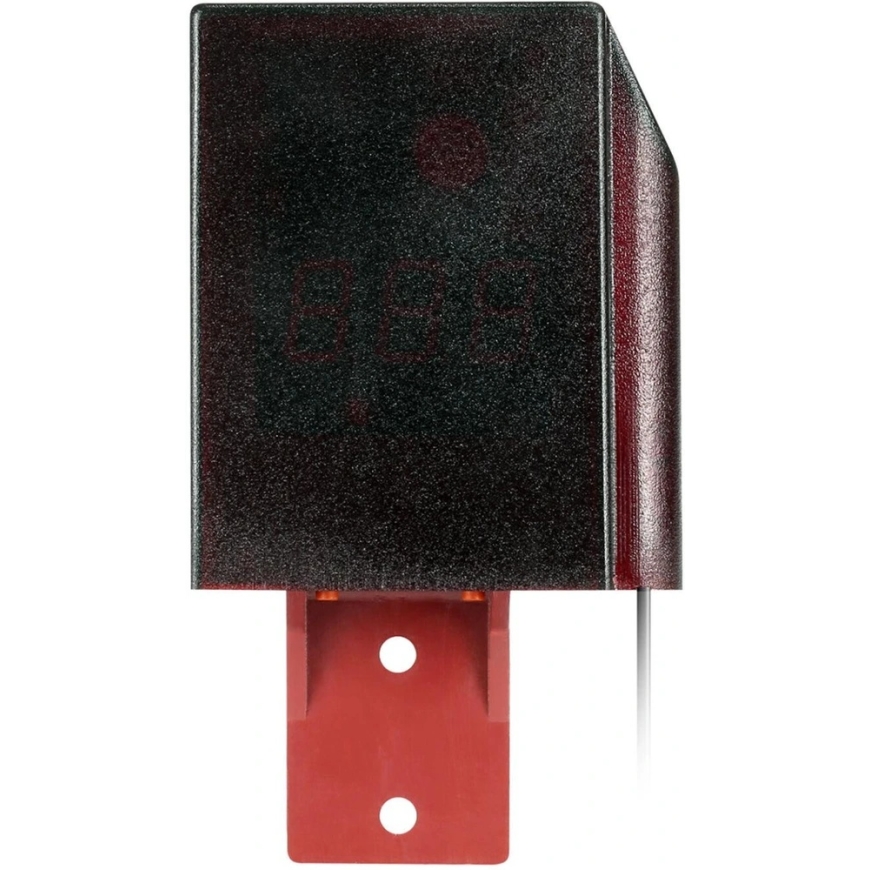

Proxima MyGate 4G/LTE VoLTE GSM controller / radio receiver

Purpose

„GSM MyGate“ is an advanced controller designed for remote management of gates and barriers through GSM/LTE network. The device allows control of two independent relay outputs and monitoring of two digital inputs. The controller features a built-in SIMCOM A7683E module , supporting 4G/LTE technology with “VoLTE” functionality, ensuring reliable voice and data transmission.

Key Features:

• Control via CLIP connections (free control).
• Memory for up to 16 administrators and 1500 users.
• Temporary access – ability to add numbers with temporary access.
• Open number function – anyone knowing the phone number of the SIM card in the controller can control it (configurable).
• Calendar – ability to create up to 128 time events.
• Ability to send SMS messages.
• Ability to forward “external SMS messages”, such as network messages about the need to top up the account.
• Two NO/NC relay outputs. Configurable operating mode (monostable, bistable).
• Two digital inputs with state detection.
• Ability to block output states.
• Event history.
• Control via a mobile application for “Android” (function will be available in the future).
• Remote software update.

Key Features:

• Control via CLIP connections (free control).
• Memory for up to 16 administrators and 1500 users.
• Temporary access – ability to add numbers with temporary access.
• Open number function – anyone knowing the phone number of the SIM card in the controller can control it (configurable).
• Calendar – ability to create up to 128 time events.
• Ability to send SMS messages.
• Ability to forward “external SMS messages”, such as network messages about the need to top up the account.
• Two NO/NC relay outputs. Configurable operating mode (monostable, bistable).
• Two digital inputs with state detection.
• Ability to block output states.
• Event history.
• Control via a mobile application for “Android” (function will be available in the future).
• Remote software update.

Technical Specifications:

• Power Supply: 12–48 V DC, 12–32 V AC
• Current Consumption (in standby): ~100mA
• Current Consumption (maximum): 1.5 A (peak)
• Relay Outputs: 2 x 1A/24V DC or 1A/48V AC
• Output Operating Mode: NO or NC (configurable with a jumper)
• Digital Inputs: 2 x 0–36 V DC
• GSM Modem Type: SIMCOM A7683E – 4G/LTE
• Frequency: LTE (VoLTE support required)
• SIM Card Interface: nano SIM
• Antenna Interface: SMA
• Maximum Number of Administrators: 16
• Maximum Number of Users: 1500
• Maximum Number of Messages: 32
• Operating Temperature: from -20 °C to +60 °C
• Antenna Cable Length: 400 mm
• Dimensions: 69 x 122 x 31 mm
• Weight: 107 g
