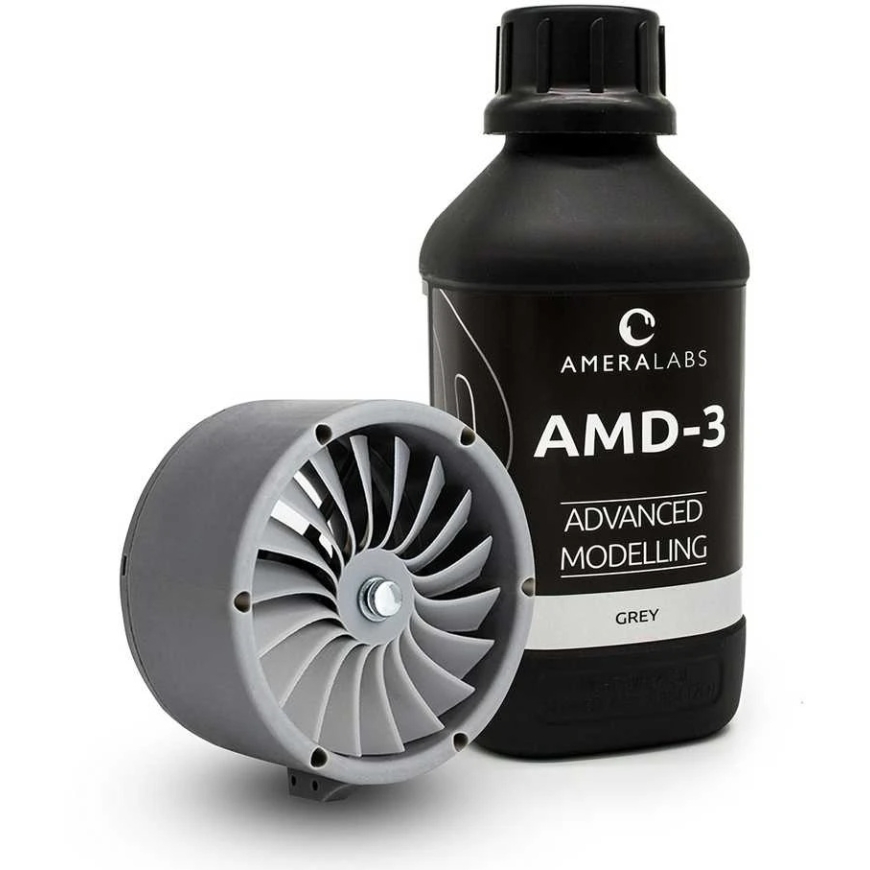

Resin for 3D Printing AMD-3 1L Gray AMERALABS
5048788 AMD-3-GRP-100
4779049450270
Shipping 7-13 b.d.
All about the product
AMD-3 is a fast-curing, highly precise 3D printing resin, designed for creating figurines, dioramas, collectible models, and prototypes. The resin is perfect for those printing architectural models, allowing for the reproduction of the finest details. Printed objects can also reproduce small details like hair or wrinkles. This resin has an extremely low water absorbency and remains unchanged even in humid environments. It can also be coated with metal. The resin is also ideal for making silicone molds.
Print Speed
AMD-3 is probably one of the fastest printing resins for LCD printers!
Designed for use with LED/LCD 3D printers whose light source UV wavelength is between 365-420nm.
Accuracy
AMD-3 LED resin ensures precise and stable prints. Due to its stiffness and sufficient hardness, it can maintain straight edges and print even the smallest details. Supports do not bend during printing, keeping the model in place throughout the entire printing session and ensuring a higher success rate for complex prints. It features low shrinkage, so the print will not deform after the curing stage and will not crack over time.
Surface
This resin comes in two colors: black and gray. The pigment is carefully selected and mixed to always achieve the same color, expressing the most intricate details. The color is nearly opaque. The surface is shiny and hard (80-90 Shore D). After washing and curing, the print is non-sticky and pleasant to touch. It becomes scratch-resistant. It can be primed and painted with popular paints. Due to the hardness, the surface can be polished to remove layer lines, support marks, or other imperfections. Thus, this material can be used by print masters when a smooth surface is needed.
Resistance
Water absorption is less than 0.2%. This means that printed models will not deform when exposed to moisture or isopropyl alcohol (IPA), and are also resistant to some weak acids.
Mechanical Properties
- Tensile Strength at Break: 55MPa (ISO-527, post-cured)
- Elongation at Break: 6% (ISO-527, post-cured)
- Viscosity: 180-200 cPs (at 25°C)
- Hardness: 80-90 Shore D (ISO 868)
- Shrinkage: less than 1%
- Compatible UV Wavelength: 365 – 420 nm
