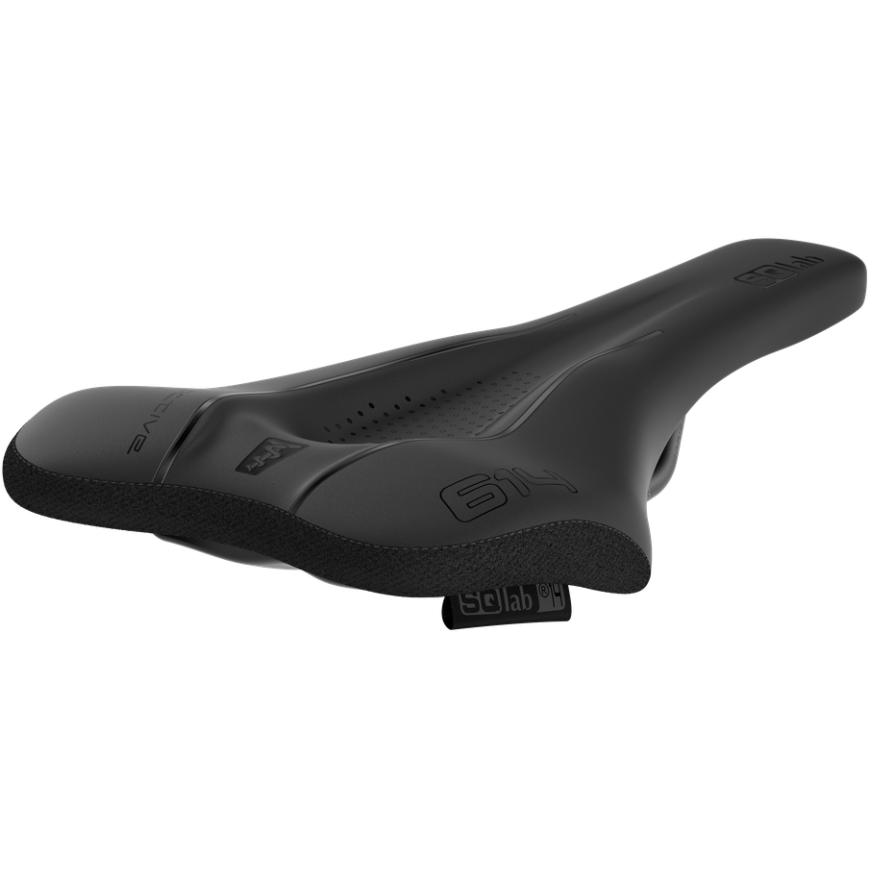

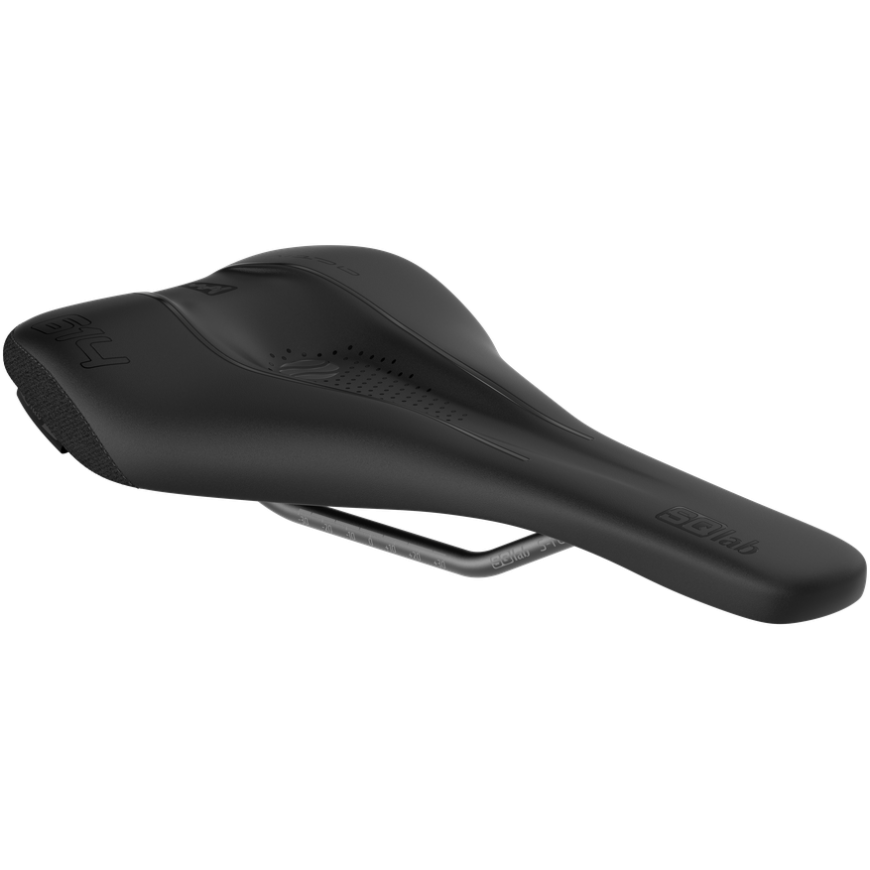

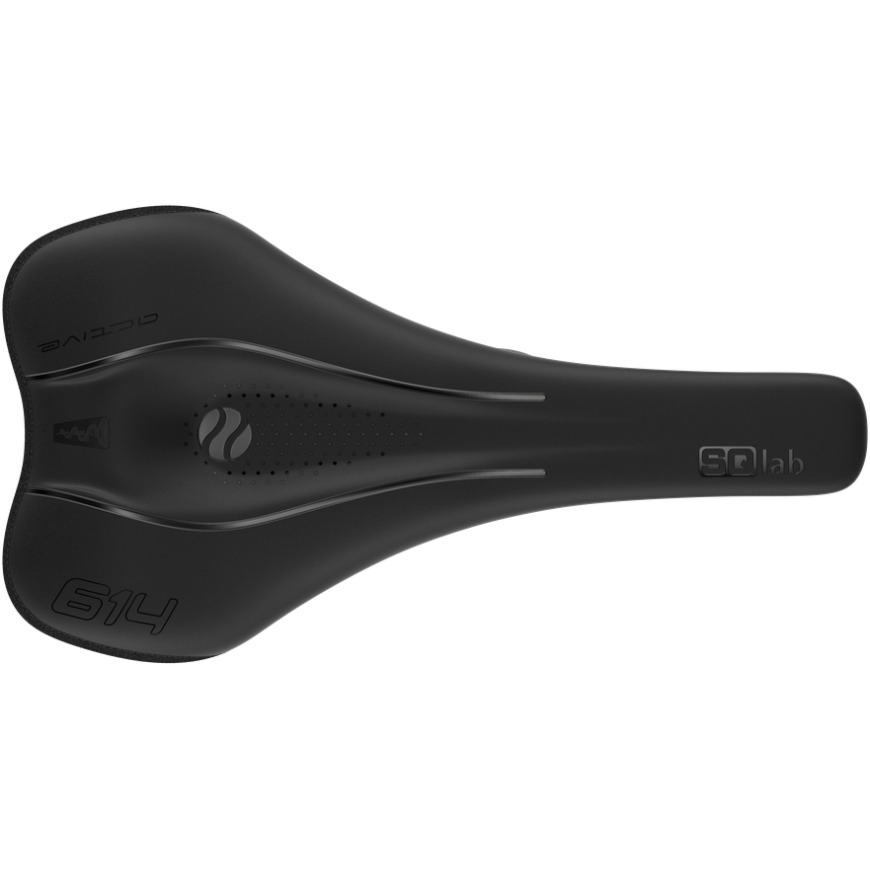

Sqlab SQB Saddle 614 Ergowave active 2.1 S-Tube, 14cm, black

All about the product

SQlab 614 Ergowave Active 2.1 saddle – black

614 ERGOWAVE® Active model combines the best features from the famous ERGOWAVE® saddles – 611 (MTB) and 612 (Road) .

Gravel type bike is a true universal: suitable for both road and off-road – it is an excellent choice for those who value comfort. This is precisely the purpose for which the 614 ERGOWAVE® Active 2.1 was created – a new "gravel" type saddle from SQlab . This model merges the advantages of 611 (MTB) and 612 (Road) saddles: the narrower shape ensures maximum freedom of leg movement off-road, while the cushioning of the 611 model provides additional absorption and comfort on uneven paths.
SQlab Active technology adds extra comfort, especially when riding a "gravel" bike, as it promotes the mobility of spinal discs. High-quality Kevlar cover protects the most stressed areas of the saddle.

Technical Information

• Usage area: Gravel

• Shape: Ergowave

• Construction: Active Sport 2.1 (adjustable with elastomer)

• Length: 275 mm

• Hardness: 55 SQ-Shore

• Reduced pressure on perineal zones: 65 %

• Rails: S-Tube

• Cover: Microfiber

• Padding: Superlight Foam

• Weight: about 240 g (without elastomer, according to the manufacturer)

• Max load: 100 kg

ACTIVE 2.1 – Protection for spinal discs and sit bones

The special Active construction allows the pelvis to move naturally in a horizontal direction – thus recreating the so-called pelvic sway similar to the movement occurring during walking.

Sport 2.1 version has made this technology lighter and even smoother, thus increasing comfort in the area of sit bones and reducing pressure on spinal discs. As a result, the mobilization of spinal discs has become even more noticeable. Smaller elastomers allow for even more precise adjustment of lateral movement according to individual needs.

ERGOWAVE® – Performance enhancement through perfect ergonomics

Ergowave® shape was developed during a research project by SQlab in collaboration with the Frankfurt University of Applied Sciences and Frankfurt University Hospital with support from the German Ministry of Economics and Technology .

Based on comprehensive calculations analyzing the forces of interaction between the human body and bicycle saddle, a shape was developed that ensures optimal pressure distribution even under maximum loads. This allows maintaining a sporty sitting position for both road and mountain bikes.

Key Advantages

• Perfect fit – choosing the right width (from 12 to 16 cm) ensures maximum performance and comfort.

• Sporty rear – the raised rear of the saddle provides extra support and more efficient power transfer.

• Energy saving – the wave-like rise from back to front matches the natural shape of the sit bones, thus avoiding energy-consuming protective postures.

• Dropped nose – reduces pressure on sensitive areas for both men and women.

• Biomechanics – SQlab Active technology enables the pelvis to move up to 7° sideways – similar to walking. This increases pedaling efficiency, reduces load on the spine, and enhances comfort.

• Frame construction – Active system is adapted for road and MTB racing segments, adjustable in three hardness levels.

• Central dip – reduces pressure in the perineal area.

• Low, flat nose ("MaxContact®") – provides a large support area with minimal pressure and reduced friction while pedaling. This shape has proven itself in previous racing models and has been further perfected in the Ergowave® series.
