Network Extender - EXTRA DIGITAL 10/100M Ethernet Extender 500 m, Black
90.50 €
Monthly payment from 3,23 €
5048600 9990000917273
Shipping 10-12 b.d.
You are interested in this product?
All about the product

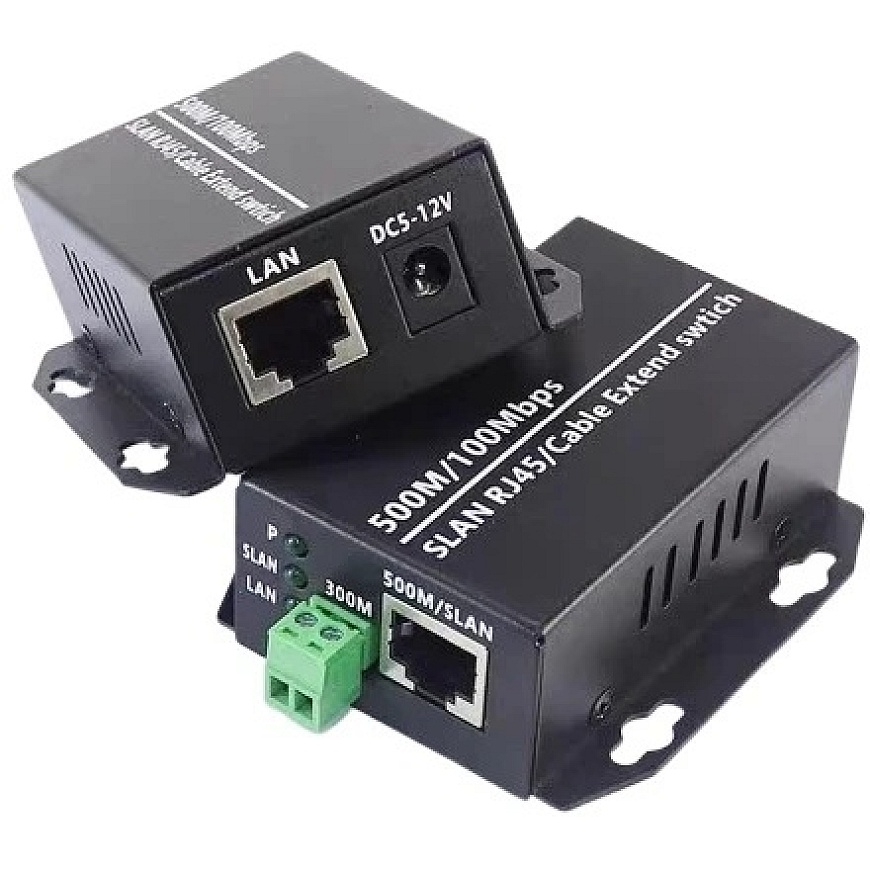

EXTRA DIGITAL 10/100M Ethernet Extender 500 m, black
10/100 Mbps Ethernet network extender kit with transmitter and receiver modules. The network connection can be extended up to 500 m using a CAT5/CAT5e cable or up to 300 m using a 2-wire cable. Supports data transfer rates of up to 94 Mbps, IGMP multicast support, and 5–12 V DC power supply. The device features RJ45 and Phoenix terminal connections and a black metal housing.
- Extends 10/100 Mbps Ethernet network up to 500 m using CAT5/CAT5e cable or up to 300 m using a 2-wire connection.
- TX/RX design consisting of two modules with RJ45 and Phoenix terminal connections, suitable for IP cameras, video surveillance systems, and network equipment.
- Supports data transfer rates of up to 94 Mbps and IGMP multicast.
- Compact black metal housing with LED status indicators, wall-mount brackets, and 5–12 V DC power supply.
Product Information | |
|---|---|
| Product Type | 10/100 Mbps Ethernet Extender Kit |
| Model | EXTRA DIGITAL 10/100M Ethernet Extender 500 m |
| Color | Black |
| Configuration | Transmitter (TX) and Receiver (RX) |
| Purpose | To extend Ethernet connections using IP cameras, video surveillance systems, network equipment, and similar systems |
Network Specifications | |
| Network Speed | 10/100 Mbps Ethernet |
| Maximum Data Transfer Rate | Up to 94 Mbps |
| Transmission Distance | Up to 500 m using CAT5/CAT5e cable; up to 300 m using 2-wire cable |
| Transmission Medium | CAT5/CAT5e UTP twisted pair cable or 2-wire cable |
| Multicast Support | IGMP multicast support |
Connections and Power | |
| Network Connection | RJ45 |
| Transmission Line Connection | 2-pin Phoenix terminal |
| Power Input | 5–12 V DC ±10 % |
| Power Consumption | Up to 2 W |
| Included Power Adapter | 12 V DC, EU plug |
Physical and Operational Characteristics | |
| Housing | Metal housing with wall-mount brackets |
| Status Indicators | Power, SLAN connection, and LAN operation LED indicators |
| Operating Temperature | −10 °C–+70 °C |
| Operating Humidity | 0–95 % relative humidity |
| Package Contents | Transmitter, Receiver, and 12 V EU power adapter |
| Safety Warning | Use only to extend compatible Ethernet networks. Connect modules with appropriate cables and use a 5–12 V DC power source, without exceeding specified limits. Keep equipment away from moisture and disconnect power before changing connections. |
