All about the product

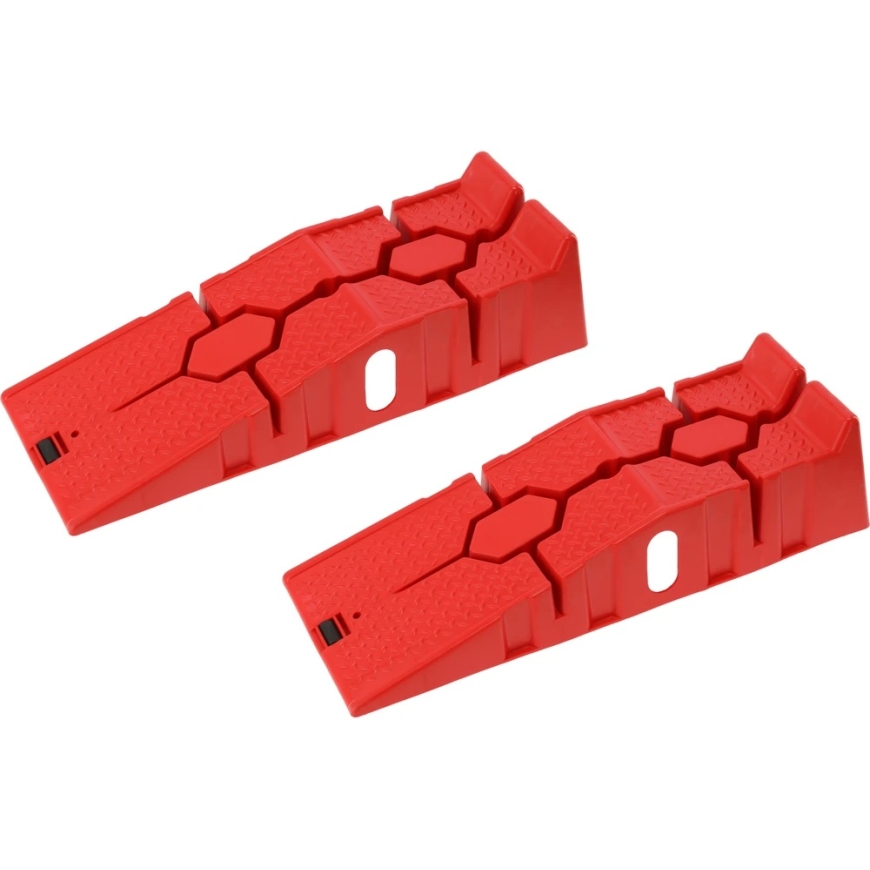

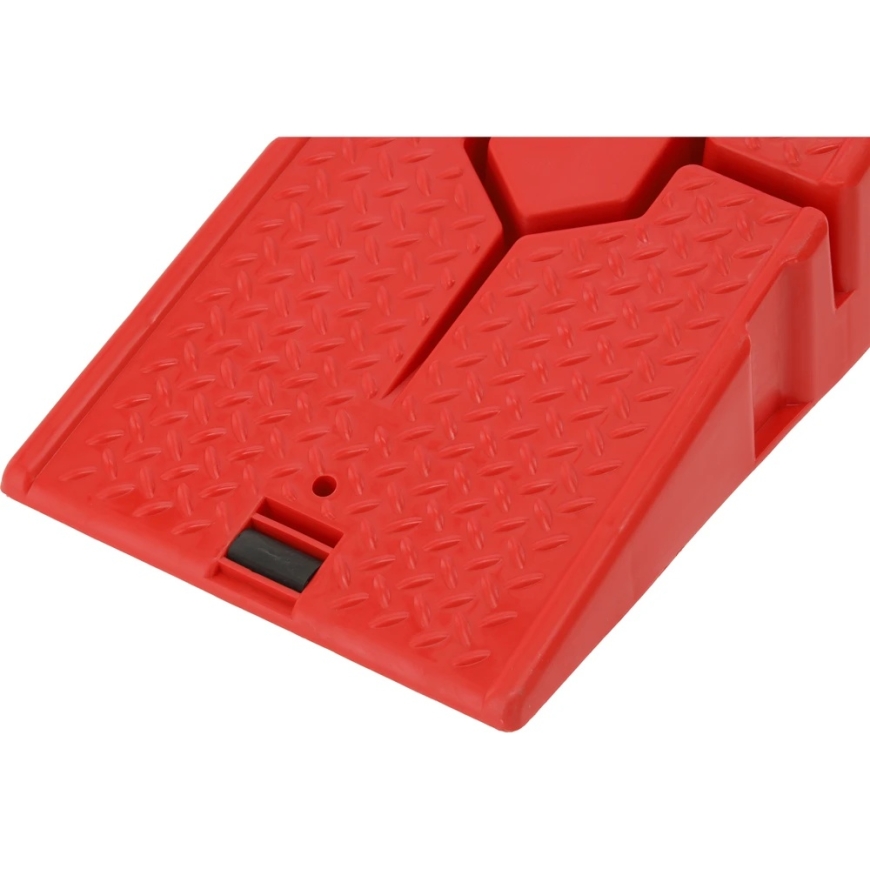

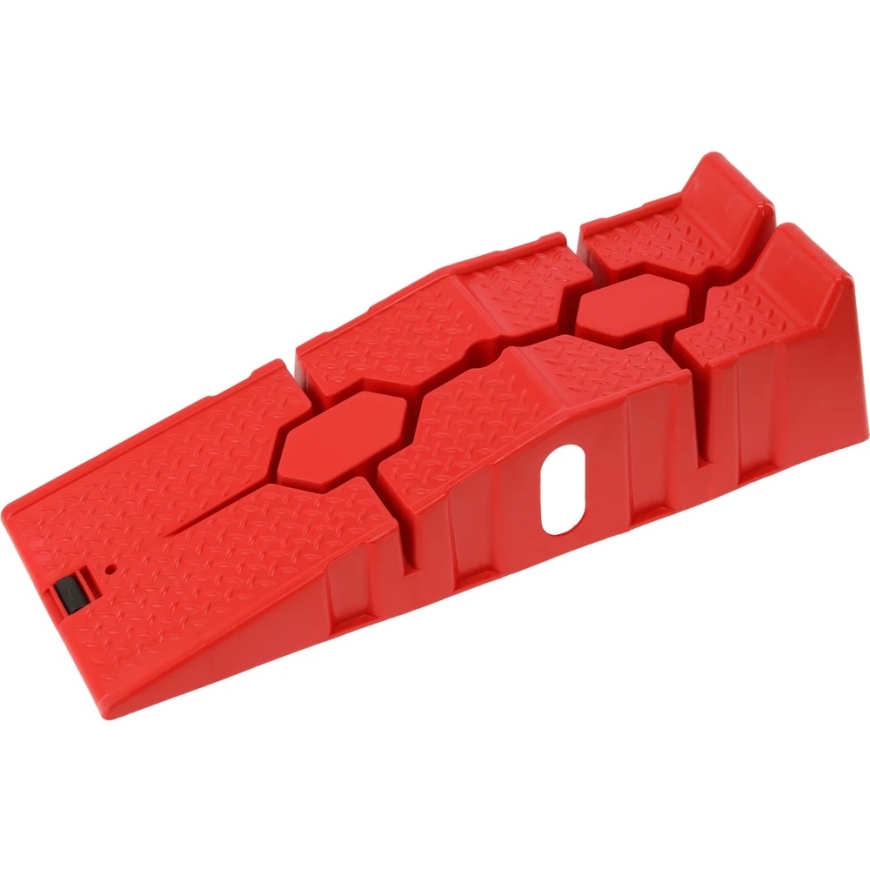

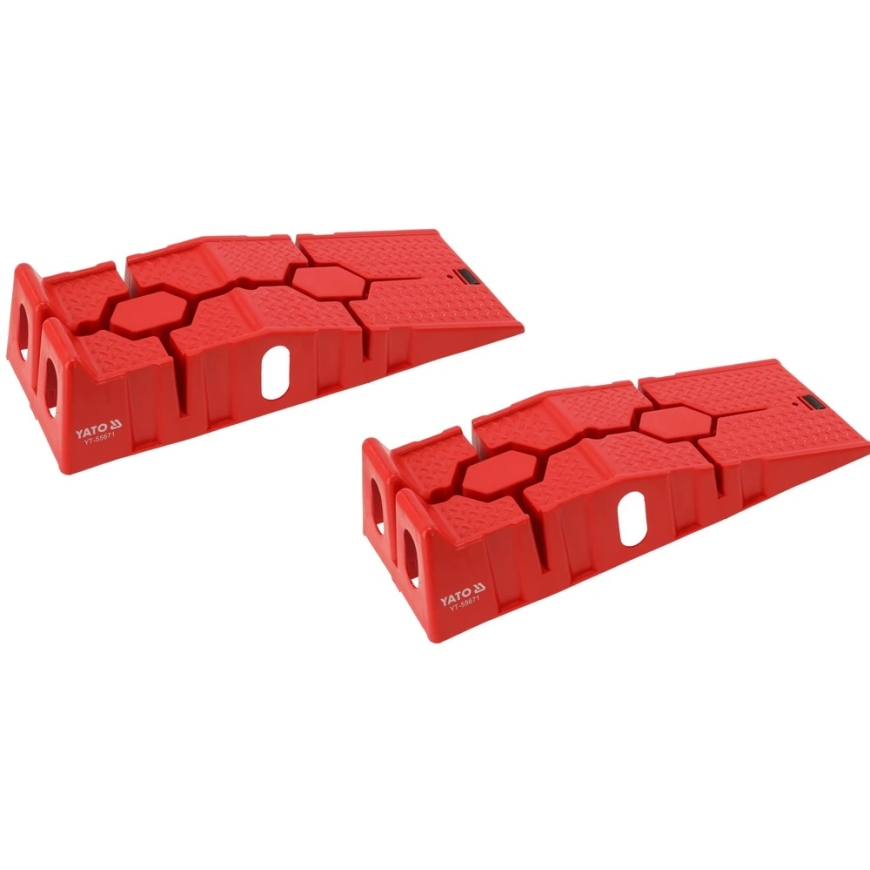

Car Ramp Set 3 t 2 pcs red (YT-55671)

The car ramp set is designed to lift one axle of a two-wheeled vehicle for repair, inspection or maintenance work. The set includes 2 red PP plastic ramps, load capacity per pair – 3000 kg, load capacity per ramp – 1500 kg, maximum tire width – 290 mm.

The ramp is 900 mm long, 330 mm wide and 200 mm high, with a maximum lifting height of the wheel – 170 mm. The horizontal support part is 260 mm long, making the set suitable for servicing passenger vehicles, garden equipment, machinery, carts, motorcycles, and other wheeled devices. More workshop equipment, lifts, and vehicle service solutions can be found at www.atsuktuvas.lt .

Features

• Designed to lift one axle of a vehicle
• Ramps should always be used in pairs
• Do not use only one ramp to lift one wheel
• Suitable for servicing passenger vehicles, garden equipment, machinery, carts, motorcycles, and wheeled devices
• Support platform dimensions: 260 x 290 mm
• Material: PP plastic
• Color: red
• Included: 2 ramps

Specifications

• Load capacity per pair: 3000 kg
• Load capacity per ramp: 1500 kg
• Dimensions: 200 x 330 x 900 mm
• Maximum tire width: 290 mm
• Maximum wheel lifting height: 170 mm
• Length of the horizontal ramp part: 260 mm
• Weight of one ramp: 4 kg
• Material: PP
• Quantity: 2 pcs.
• Series: GRE
• Manufacturer code: 5906083132766
• Code: YT-55671

Usage

• Place ramps only on a flat, solid, and level surface
• Do not place ramps on a slope, loose or free surface, such as gravel or sand
• Ramps must be positioned parallel so that their front edges are in a single line
• Drive onto and off the ramps slowly, under the supervision of another person
• Once on the ramps, engage the handbrake and place wheel chocks under the remaining wheels on the ground
• Do not use for vehicles with tires wider than 290 mm
