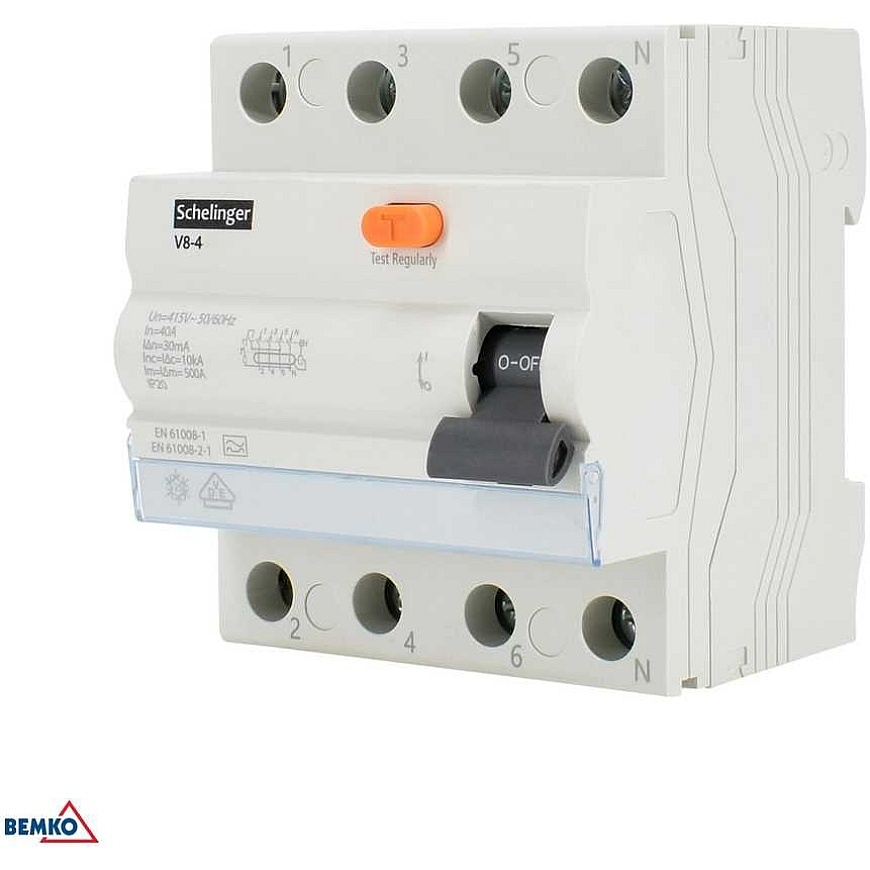

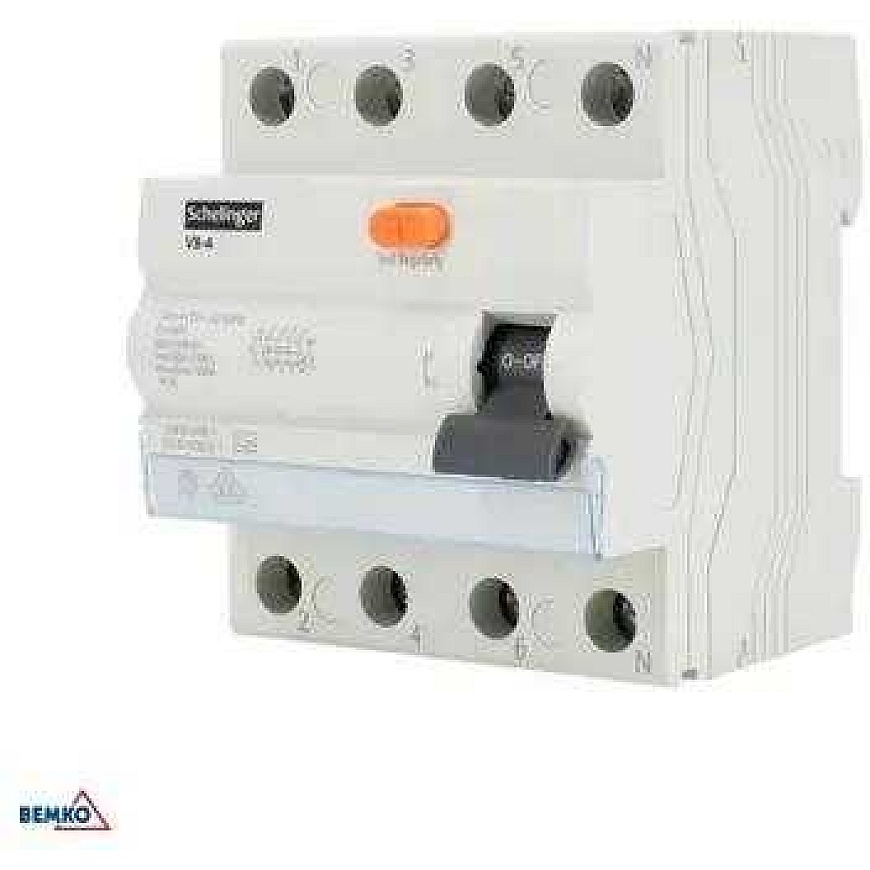

Differential automatic switch A 4P 25A 30mA 10kA VDE SCHELINGER

All about the product

The type A residual current circuit breaker A 4P 25A 30mA 10kA VDE is a reliable protective device that safeguards against electric shocks and short circuits, making it ideal for use in electrical distribution boards. Type A detects leakage currents, including DC, enhancing safety in electrical installations. The 30mA leakage current provides effective protection against electric shocks, which is crucial in high-risk areas. The rated short-circuit current of 10kA ensures resistance to overloads, extending the device's lifespan. A rated voltage of 415V at a frequency of 50/60Hz makes this circuit breaker versatile and suitable for various installations. An operating temperature range of -25°C to +40°C allows for use in various environmental conditions, increasing its versatility. DIN/TH 35mm rail mounting simplifies the installation in distribution boards, saving time and effort during setup. The IP20 protection rating prevents contact with hazardous parts, enhancing safety during use. The type A residual current circuit breaker A 4P 25A 30mA 10kA VDE – Your home safety The type A residual current circuit breaker A 4P 25A 30mA 10kA VDE is a reliable device that effectively protects against electric shocks and short circuits. Its advanced design allows for the detection of leakage currents, including DC, making it an excellent choice for various electrical installations. DIN/TH 35mm rail mounting ensures easy installation in electrical distribution boards, significantly enhancing user convenience. Main functions of the residual current circuit breaker Type A - detection of leakage currents, including DC 30mA leakage current - effective protection against electric shocks Rated short-circuit current of 10kA - high resistance to short circuits Protection rating IP20 - protection against contact with hazardous parts Mounting information and dimensions The type A residual current circuit breaker A 4P features compact dimensions that facilitate its installation in various conditions. Here are its dimensions: Length 72mm, Width 75mm, Height 82mm. The device operates at temperatures from -25°C to +40°C, making it suitable for diverse conditions. Certifications and quality marks The type A residual current circuit breaker A 4P 25A 30mA 10kA VDE has the relevant certifications confirming its high quality and safe use. The VDE mark indicates compliance with safety and quality standards. Electrical characteristics and technical parameters The device has the following electrical parameters: Rated voltage 415V at a frequency of 50/60Hz; impulse withstand voltage 4kV; rated insulation voltage 500V. Technical specifications of the residual current circuit breaker A 4P 25A 30mA 10kA VDE: Product name: type A residual current circuit breaker A 4P 25A 30mA 10kA VDE; Manufacturer code A03-V8-4-25-030; Type of circuit breaker Type A; Number of modules 4; Mounting DIN/TH 35mm rail; Rated voltage Un 415V~ 50/60Hz; Leakage current 30mA; Rated short-circuit current 10kA; Impulse withstand voltage Uimp 4kV; Rated insulation voltage Ui 500V; Operating temperature -25°C/+40°C; Protection rating IP20; Dimensions: Length 72mm, Width 75mm, Height 82mm.
