Blow MAS838L XTREME digital meter

All about the product

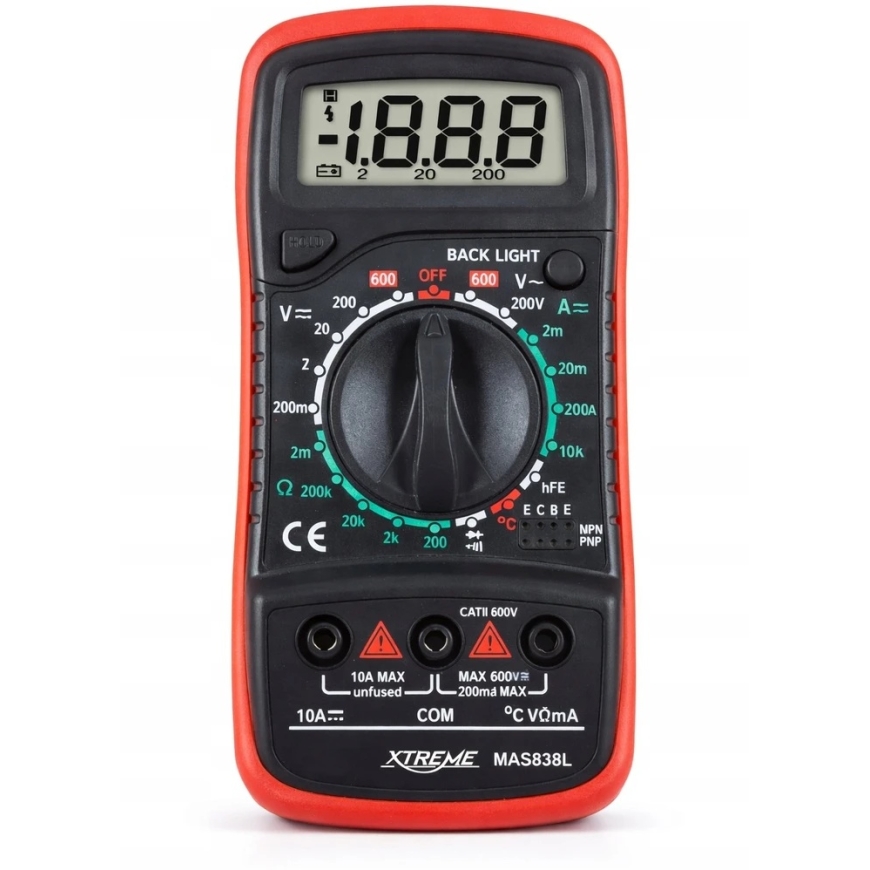

MAS838L XTREME Digital Multimeter

The multifunctional "XTREME" multimeter is designed not only for professionals but also for DIY enthusiasts due to its ease of use. Because of its compact size, you can almost always have the device with you, allowing you to check parameters in various situations.

MAIN DEVICE FEATURES

• 3-digit LCD display
• Rotary switch for selecting the specific function of the device, desired measurement ranges, and turning the meter on and off
• Powered by a 9 V DC battery
• Low battery indicator
• Universal tool for workshops, schools, as well as home and hobbies.

What measurements can be performed with the meter?

• DC voltage measurement
• AC voltage measurement
• DC current measurement
• Resistance measurement
• Continuity testing
• Diode testing
• Temperature measurement
• Transistor testing

Additional functions:

• HOLD – freezes the result on the display
• BACKLIGHT – display backlight
• Battery indicator on the screen

SPECIFICATION:

• Power source: 9 V battery
• Display: LCD, range up to 1999
• Sampling rate: 2 times per second
• Measurement method: dual integrated analog/digital converter
• Over-range indication: only the number "1" is shown on the display
• Polarity indication: displays "-" for negative polarity.
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: -10 °C ~ 50 °C
• Low battery indicator: battery icon on the screen
• Dimensions: 135 x 67 x 33 mm
• Weight with battery: 145 g
• Special connections: CAT II 600 V
• DC voltage measurement: 200 mV–600 V
• AC voltage measurement: 200–600 V
• DC current measurement: 2mA-10A
• Resistance measurement: 200–2 M ohms
• Transistor hFE measurement: diode testing: YES
• Temperature measurement: YES
• Acoustic continuity tester: YES


The set includes:

• XTREME XL830L digital multimeter + rubber case
• 9 V battery

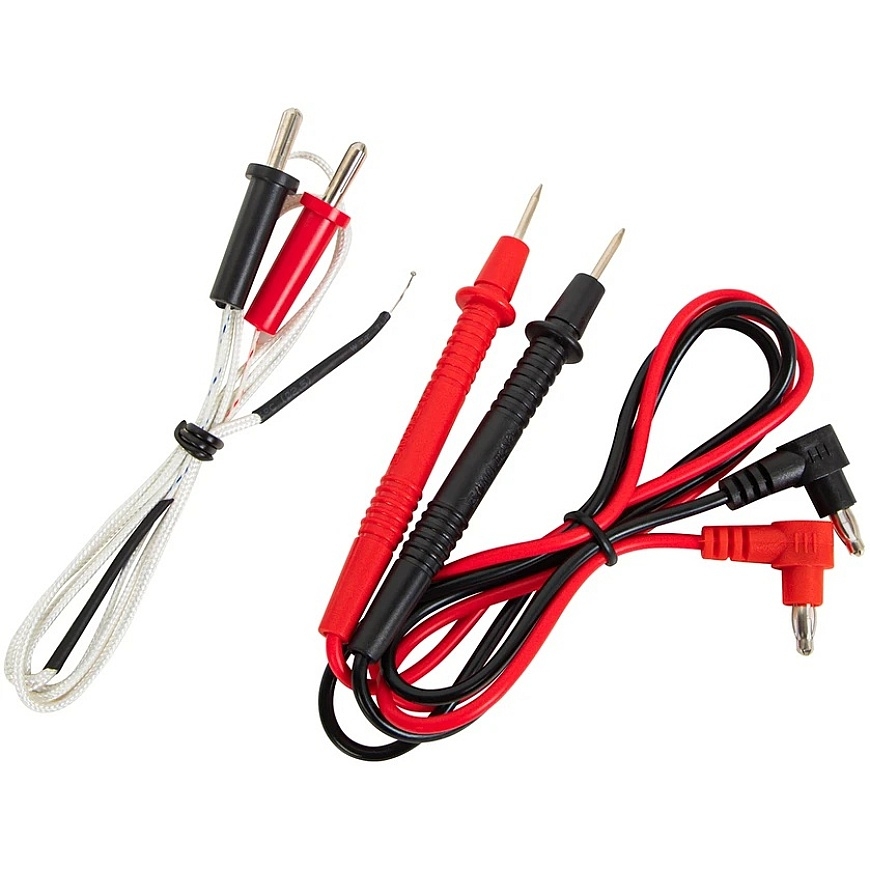

• Measurement cables
• User manual in Polish
