Toya Sa Poland Circular Saw with Extraction and Laser | 1800 W | 255 mm (YT-821732)
5043178 YT-821732
5906083133657
Shipping 9-15 b.d.
All about the product

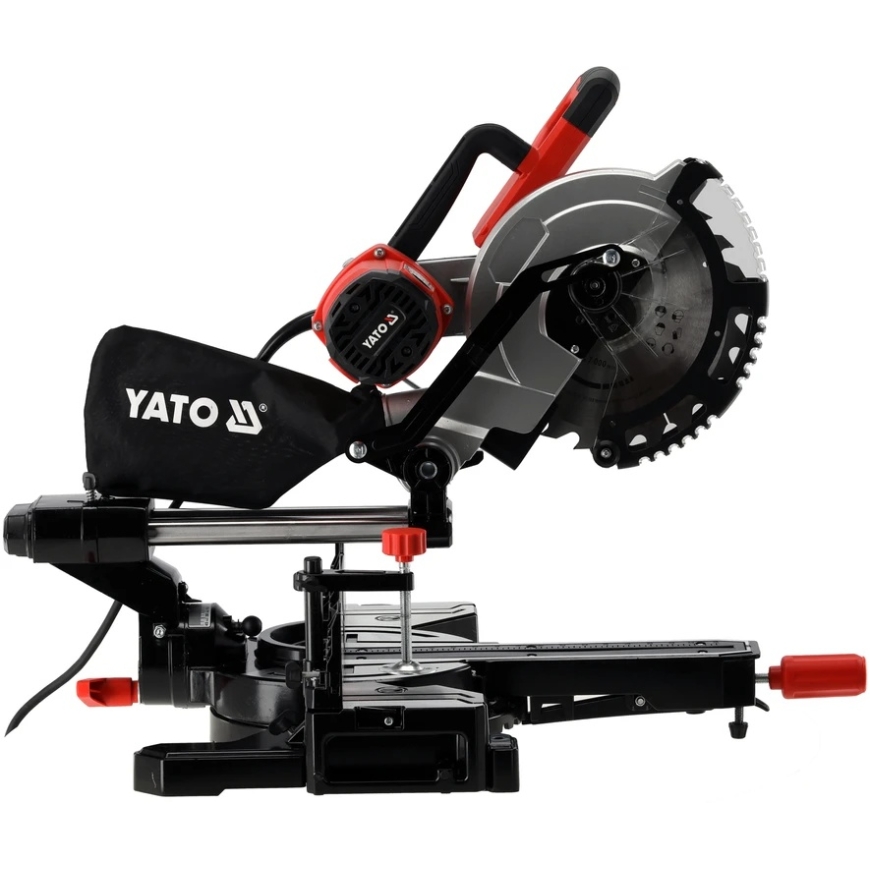

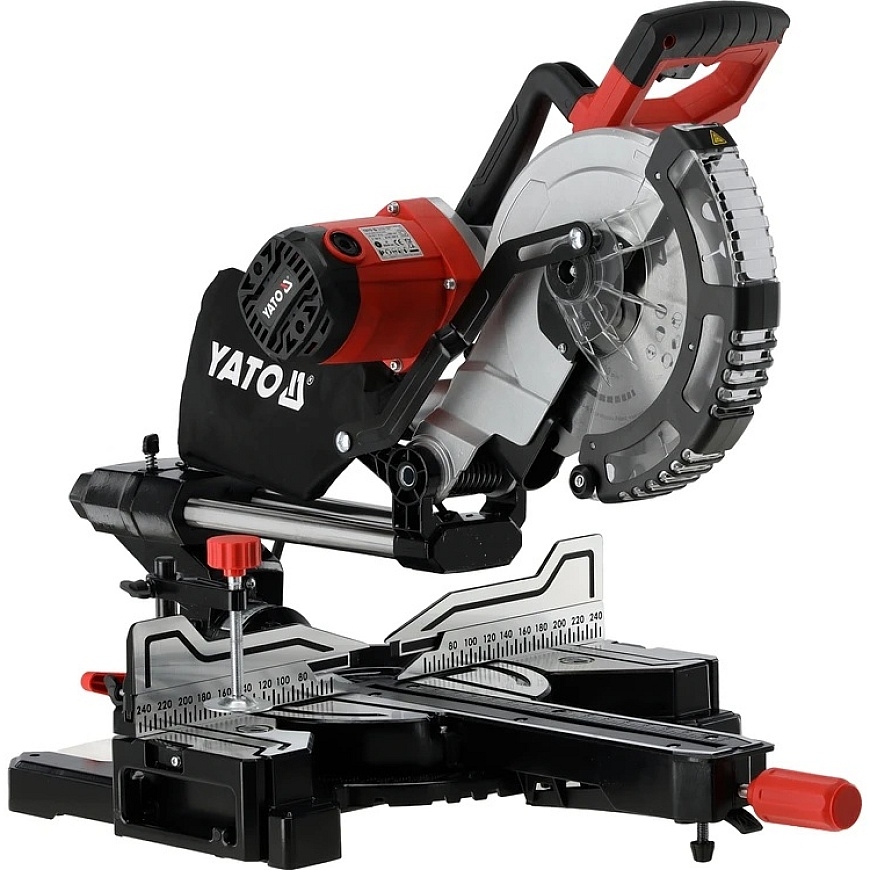

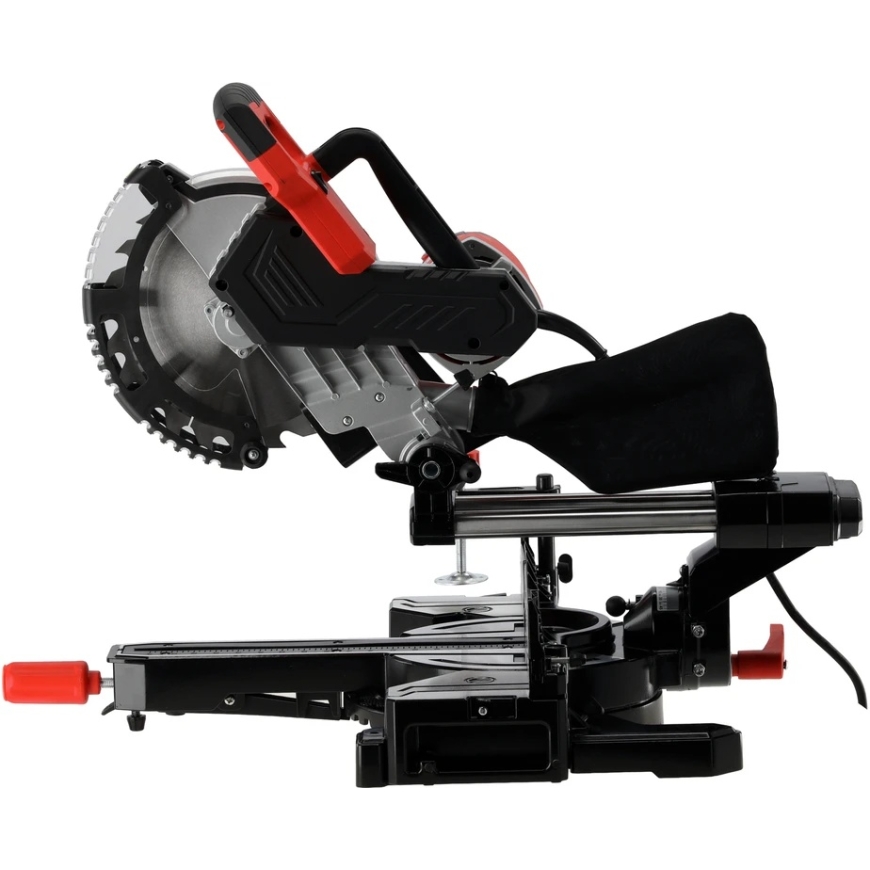

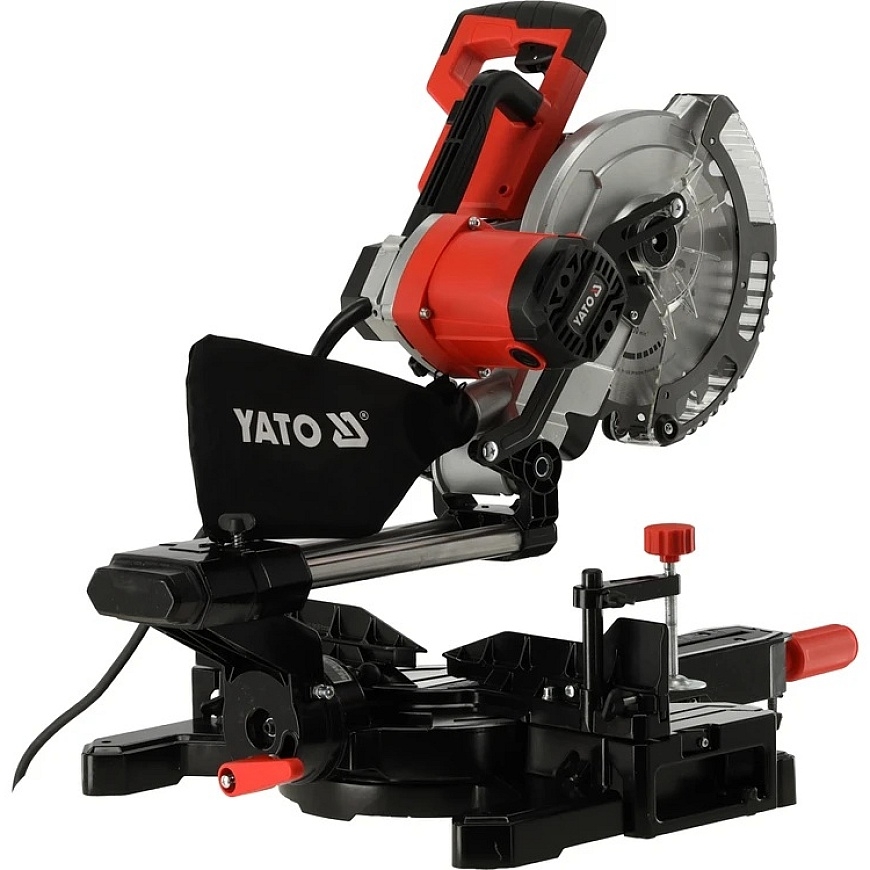

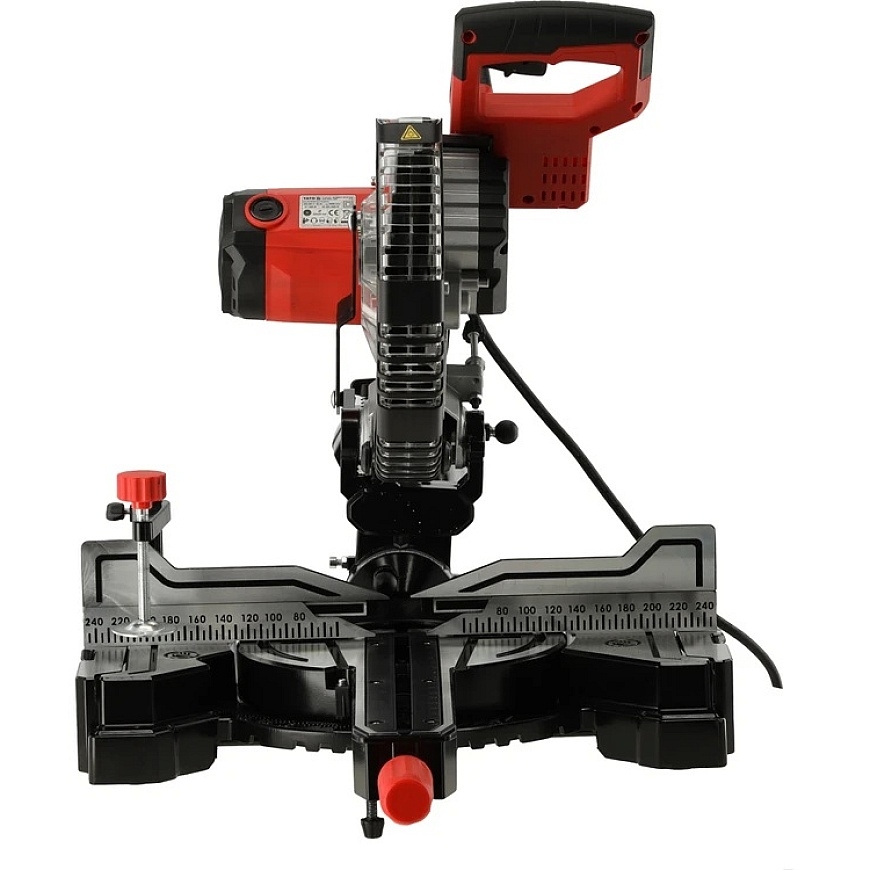

Crosscut Saw with Sliding Function and Laser | 1800 W | 255 mm (YT-821732)
The crosscut saw with sliding function and laser is designed for precise cutting of wood and wood-based materials in workshops, assembly, finishing, and carpentry tasks. More similar products can be found at www.atsuktuvas.lt .
Key Features
- Power – 1800 W.
- No-load speed – 5000 RPM.
- Saw blade – 255 x 30 x 2.8 mm.
- Includes a 255 mm blade with 24 teeth.
- Table rotation angle – from -45° to +45°.
- The cutting head tilts left and right up to 45°.
- Dual head tilt allows for miter cuts in both directions.
- Laser cutting line indicator – Class 2.
- Laser wavelength – 650 nm.
- Laser power – less than 1 mW.
- Weight of the device – 15 kg.
- Sound pressure level LpA – 94.2 ± 3.0 dB(A).
- Sound power level LwA – 107.2 ± 3.0 dB(A).
- Manufacturer – YATO.
- Series – GRF.
- EAN – 5906083133657.
- Product code – YT-821732.
Maximum Cutting Dimensions
- 90 x 340 mm – table rotation 0° / head tilt 0°.
- 90 x 230 mm – table rotation 45° / head tilt 0°.
- 45 x 340 mm – table rotation 0° / head tilt 45°.
- 45 x 230 mm – table rotation 45° / head tilt 45°.
Construction and Features
- Sliding mechanism for cutting wider materials.
- Rotating work table for angled cuts.
- Dual tilt cutting head for compound cuts.
- Table extensions for supporting longer materials.
- Table clamp to secure the workpiece.
- Spindle lock for changing the saw blade.
- Moving blade guard.
- Dust extraction connector for connecting a dust bag or external vacuum system.
- Transport handle for easier portability.
Usage
This crosscut saw is suitable for cutting boards, beams, floorboards, skirting boards, moldings, panels, furniture elements, and other wood or wood-based workpieces. The sliding function allows for cutting wider details, and the dual head tilt makes it easier to perform angled and compound cuts.
Package Contents
- Crosscut saw YT-821732.
- 255 mm cutting blade, 24 teeth.
- Dust collection bag.
- Work table clamp.
- Cutting head mounting and adjustment elements.
Important Usage Information
The device has a Class 2 laser, so do not look directly into the laser beam. Protective goggles, hearing protection, and adherence to the manufacturer's safety requirements are necessary while operating. The workpiece must be securely clamped, and the saw blade should only be used for its intended purpose.
The manufacturer's instructions can be found here: YATO YT-821732 manual .
