Automotive Leak Detector - ANCEL L8000 20 PSI Diagnostic Leak Detector
5042027 L8000
6978281190601
Shipping 11-13 b.d.
All about the product
ANCEL L8000 Automotive Leak Detector
The ANCEL L8000 is a professional automotive leak detector with low-pressure EVAP mode and high-pressure Turbo mode. It allows for smoke and pressure drop tests, which help quickly identify leaks in the intake or exhaust systems. The built-in pump generates up to 20 psi pressure, and the smoke flow of 6–8 l/min ensures effective diagnostics of various vehicle systems.
High Pressure "Turbo" and Low Pressure "EVAP" Modes
The device supports high pressure "Turbo" and low pressure "EVAP" modes. EVAP operates at 0.44–0.5 psi (30–35 mbar) pressure, while the built-in high-pressure pump reaches a maximum of 20 psi (138 kPa). The system allows for selecting a professional mode with pre-set configurations for standard systems or a custom mode where pressure can be set manually.
Smoke Test and Pressure Drop Test
The L8000 model allows for conducting a smoke test, which is used to detect leaks by filling the system under test with pressurized smoke. The device also supports pressure drop testing. Main parameters are displayed on the device's screen, and the user can adjust the test duration and pressure value.
Clear LCD Screen and User-Friendly Control
The L8000 model is equipped with a control panel featuring a 4-inch color LCD screen and several functional buttons. This makes the device very easy and convenient to use. The manufacturer has also provided a self-check function to verify the tightness of the device itself. Additionally, there is a settings menu where the language can be changed, pressure units can be selected, and the sound signal can be configured.
Wide Application Spectrum in Vehicle Diagnostics
The detector can be used to locate leaks in intake and exhaust systems, vacuum systems, turbochargers, hoses, and gaskets, as well as to diagnose leaks behind the dashboard or in the EVAP system. Additionally, the L8000 model is compatible with various vehicles, such as passenger cars, trucks, and more. Please note: the applicability may vary depending on the type of vehicle.
Extensive Set of Adapters and Accessories
The package includes adapters and accessories that facilitate working with various types of systems. The kit contains a complete set of plugs, an exhaust cone, an intake chamber, and a tool for removing the Schrader valve from the evaporation system. The package also includes 150 ml of smoke liquid. This allows for quick preparation of the device for use with many system and line types.

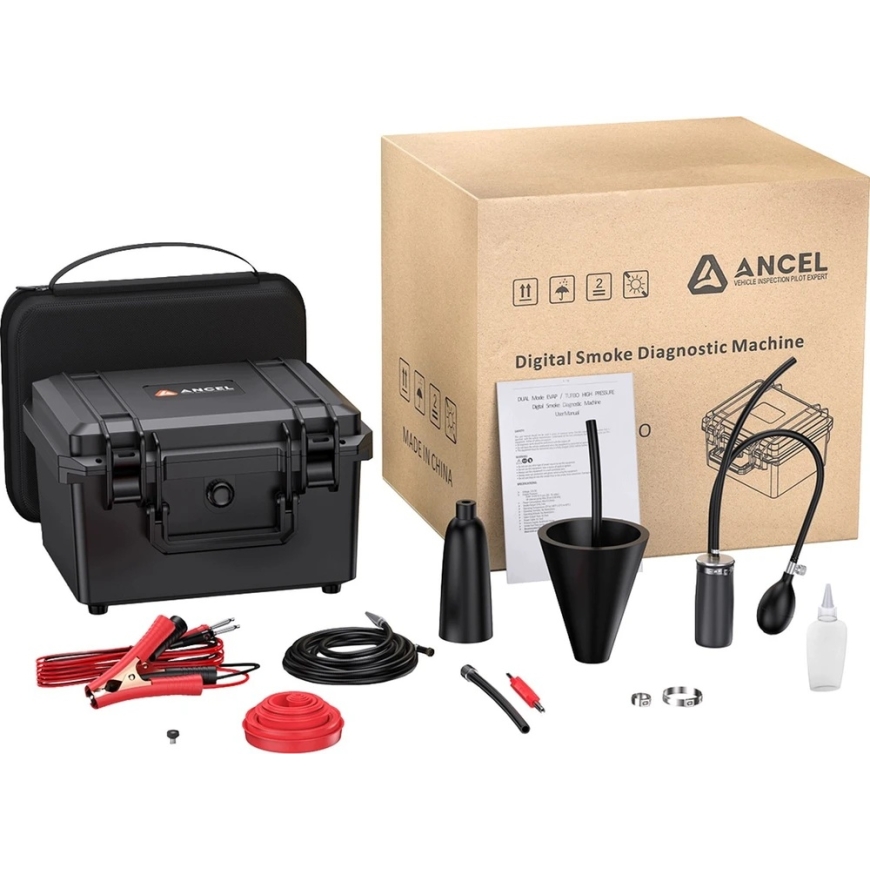

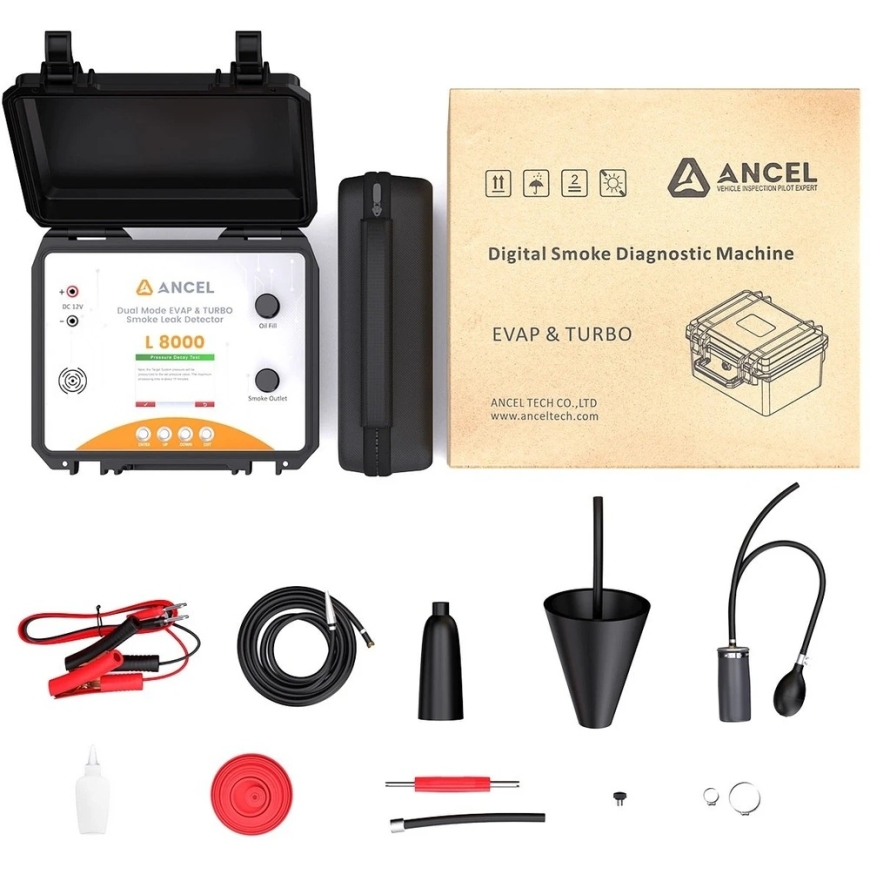

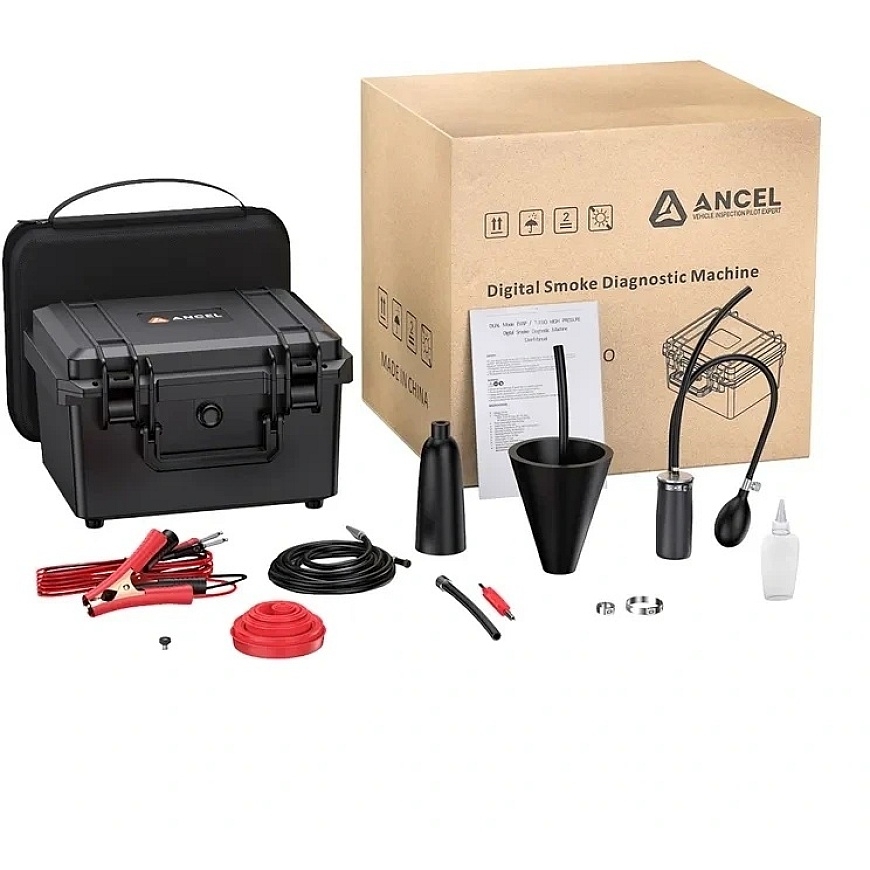

The Package Includes
- Automotive system leak detector
- Complete set of plugs
- Exhaust cone
- Tool for removing/installing Schrader valve in the evaporation system
- Adapter hose for the evaporation system service port
- Smoke liquid (150 ml)
- Air intake chamber for intake test
- Smoke hose
- Power cable
- Chamber cover
- Smoke hose cone gasket
- Smoke hose gasket
| Manufacturer | ANCEL |
|---|---|
| Model | L8000 |
| Device Type | Automotive System Leak Detector |
| Screen | 4-inch screen |
| Power Supply | 12 V DC |
| Smoke Mode Current | < 6.5 A |
| Smoke Output | 6–8 l/min |
| Output Pressure | EVAP: 0.44–0.5 psi (30–35 mbar) Built-in high-pressure pump: no more than 20 psi (138 kPa) |
| Flow Rate | < 8 l/min |
| Power Cable Length | Approximately 2.5 m |
| Smoke Hose Length | Approximately 2.5 m |
| Supported Functions | Smoke test, pressure drop test, device self-diagnosis |
| Air Source | Built-in pump |
| Languages | English, Spanish, Portuguese, German, French, Italian, Finnish, Polish, Turkish |
| Dimensions | 280 x 250 x 260 mm |
| Weight | 4.75 kg |
| Operating Temperature | From -17°C to 60°C |
